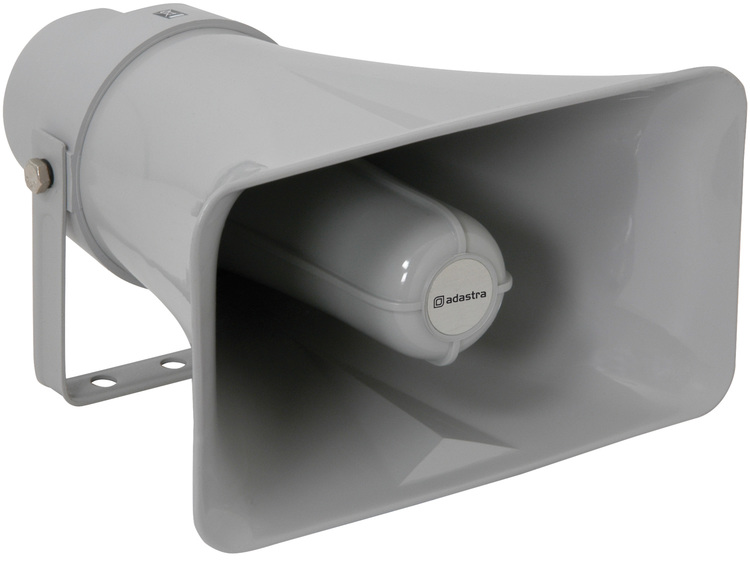

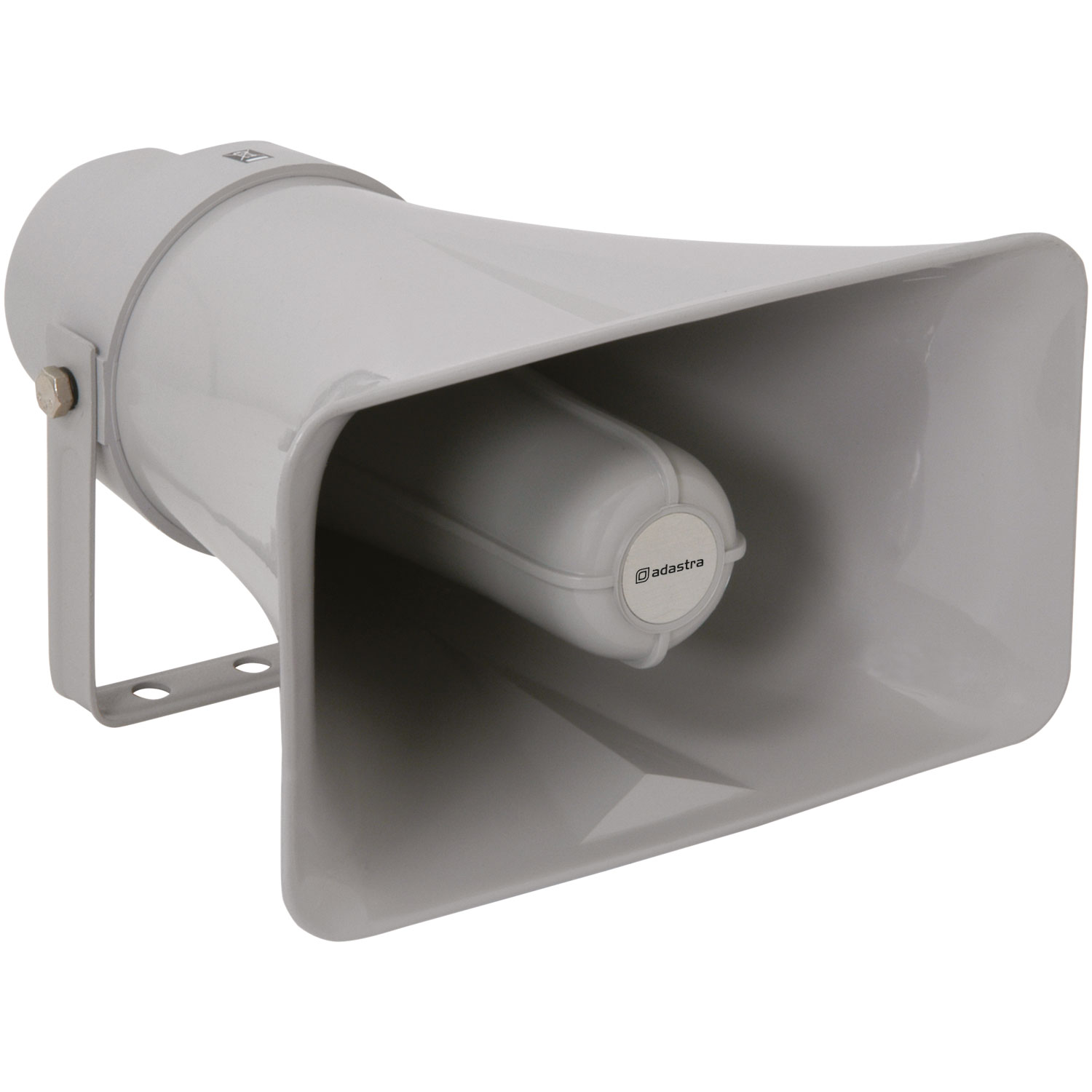

Active Weatherproof Horn Speaker 25W

952.102UK AH25

Active horn speaker with built-in amplifier for indoor or outdoor use. Constructed from high impact ABS material with IP66 protection for reliable operation in all environments. Fitted with an angl...

  • Inbuilt amplifier circuit
  • Power from 12Vdc 2A (not supplied)
  • Power and line level input on a single cable
Description Version Packed
952.102UK
Active Weatherproof Horn Speaker 25W
Gift Box

Active Weatherproof Horn Speaker 25W

Active horn speaker with built-in amplifier for indoor or outdoor use. Constructed from high impact ABS material with IP66 protection for reliable operation in all environments. Fitted with an angle-adjustable bracket for convenient installation onto a wall or ceiling. Low voltage power and line level audio are connected via a single 4-core cable for simplified cable feed and connection. Designed for voice alerts in CCTV and security systems or as a self-contained add-on for existing public address installations.

  • Inbuilt amplifier circuit
  • Power from 12Vdc 2A (not supplied)
  • Power and line level input on a single cable
  • IP66 weatherproof
  • Recommended power supply: 660.451UK

Specification

  • Power supply 12Vdc, 2A (not included)
  • Construction ABS moulded body, metal bracket
  • Connection Hard-wired cable (power + line in)
  • Output power : max. 25W
  • IP rating IP66
  • Dimensions 295 x 255 x 150mm
  • Weight 2.05kg

Trade information

  952.102UK
Barcode / EAN 5015972194355
Package type Gift Box
Package dimensions 270 x 310 x 210mm
Package weight 2.40kg
Package quantity 1 unit
Carton dimensions 430 x 550 x 320mm
Carton weight 11.00kg
Carton quantity 4 packages

In the box

The box for this item contains :

  • Weatherproof active horn speaker

Support

Instruction manual
For 952.102UK (75KB)

Support : articles

Low impedance speakers

Impedance is the effective resistance of an electric circuit or component to alternating current, arising from the combined effects of resistance and reactance. Here we explain the features of low impedance and how it is implemented in a speaker system.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020
