100V line speakers
For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.
ABS 100V Ceiling Speaker 3-6W
952.160UK
AC6V
Flush-mount ceiling speaker with ABS frame and basket and powder coated steel grille, installed via an inbuilt pair of easy-fit spring clamps. Loaded with a 6.5" reinforced paper dual cone driver f...
- Dual cone driver for extended frequency range
| Description | |
|---|---|
|
952.160UK
AC6V Ceiling Speaker 100V 3-6W |
ABS 100V Ceiling Speaker 3-6W

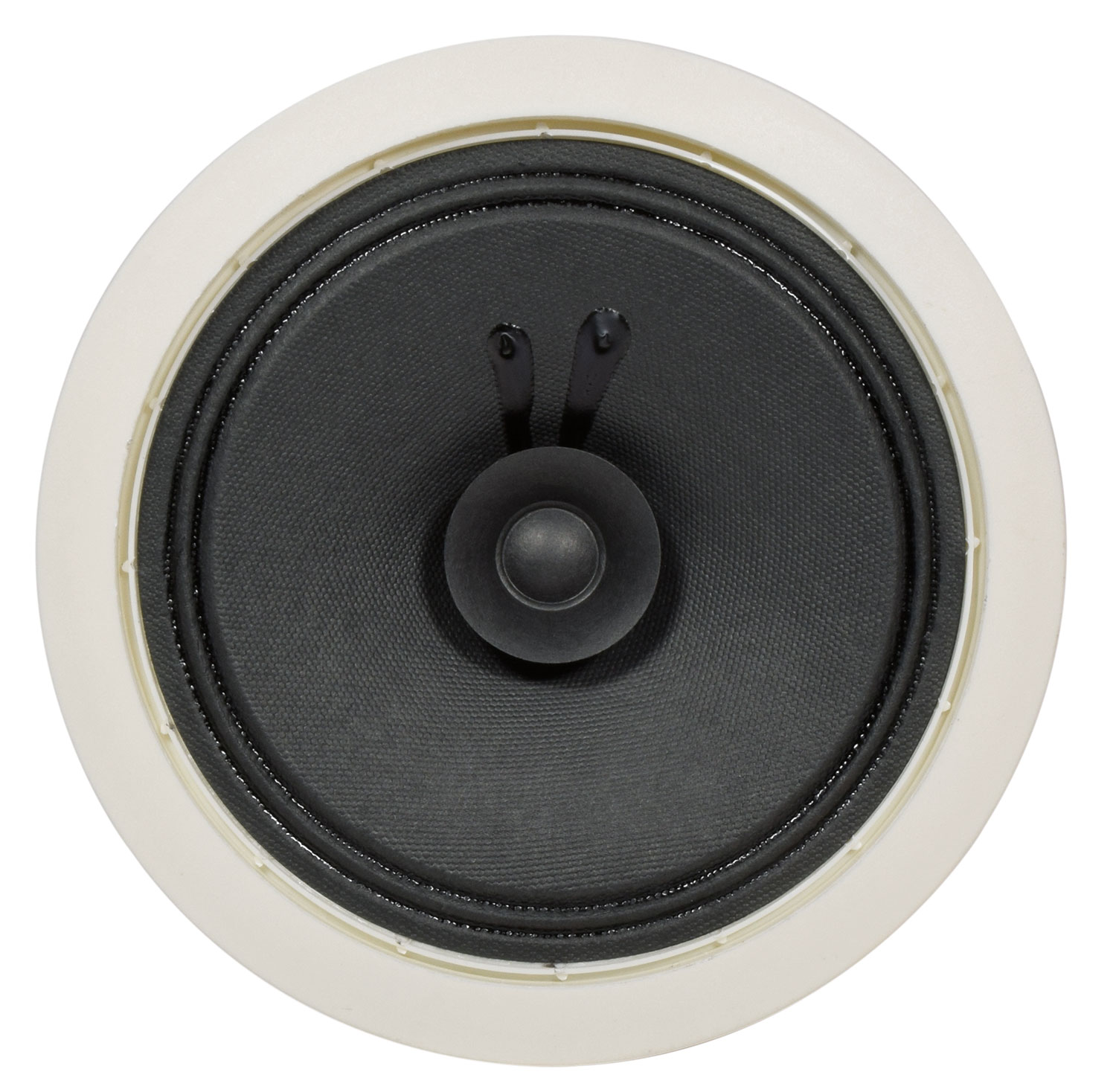

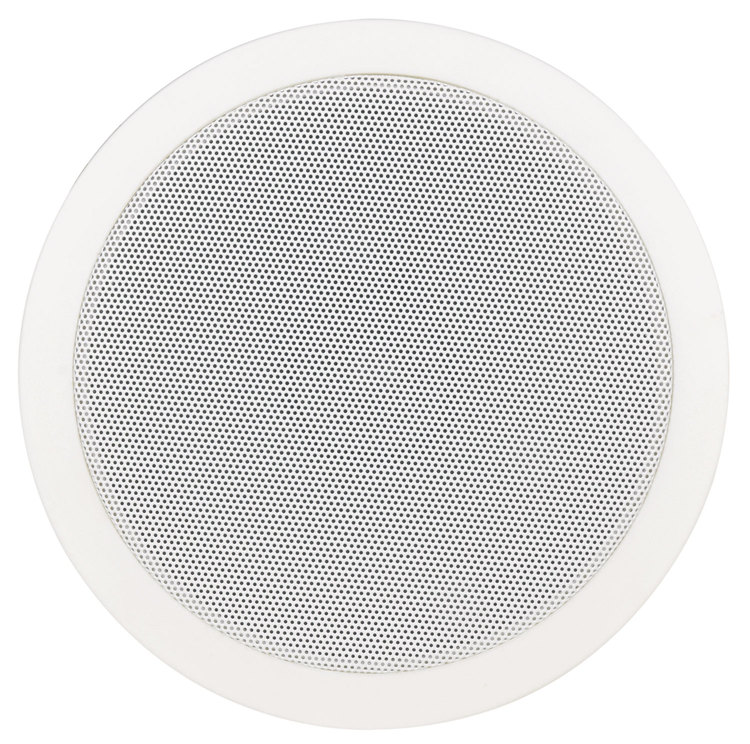

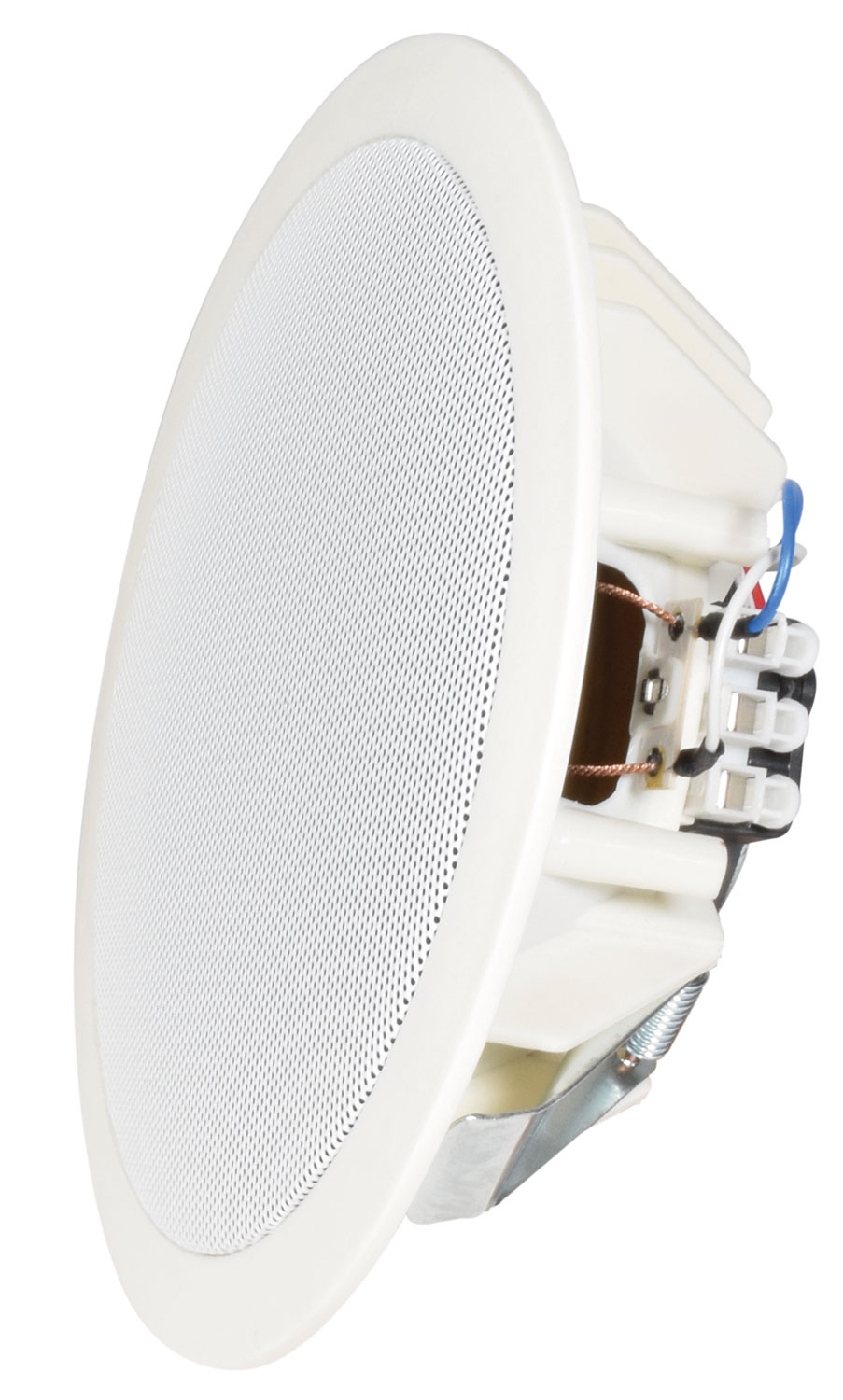

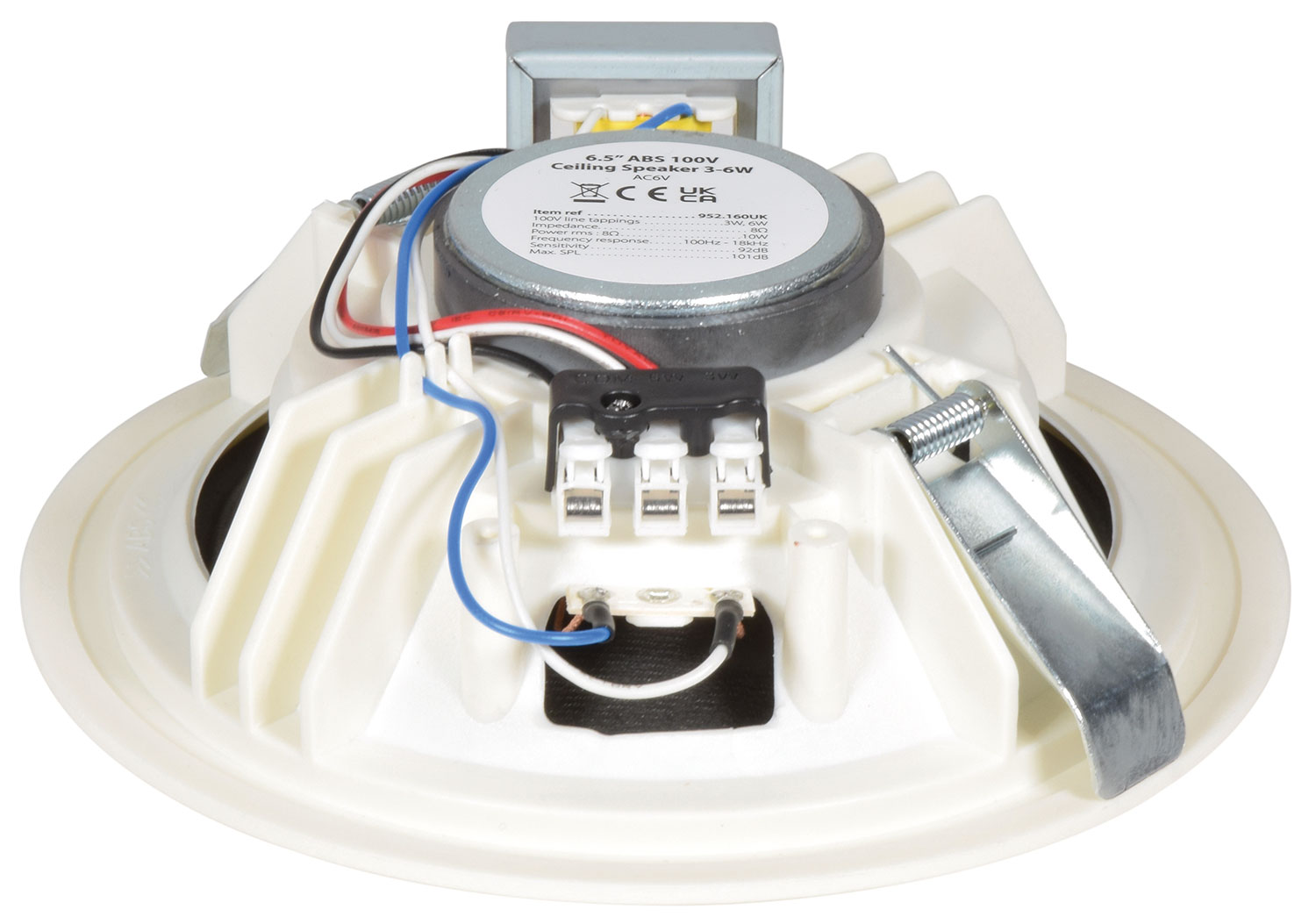

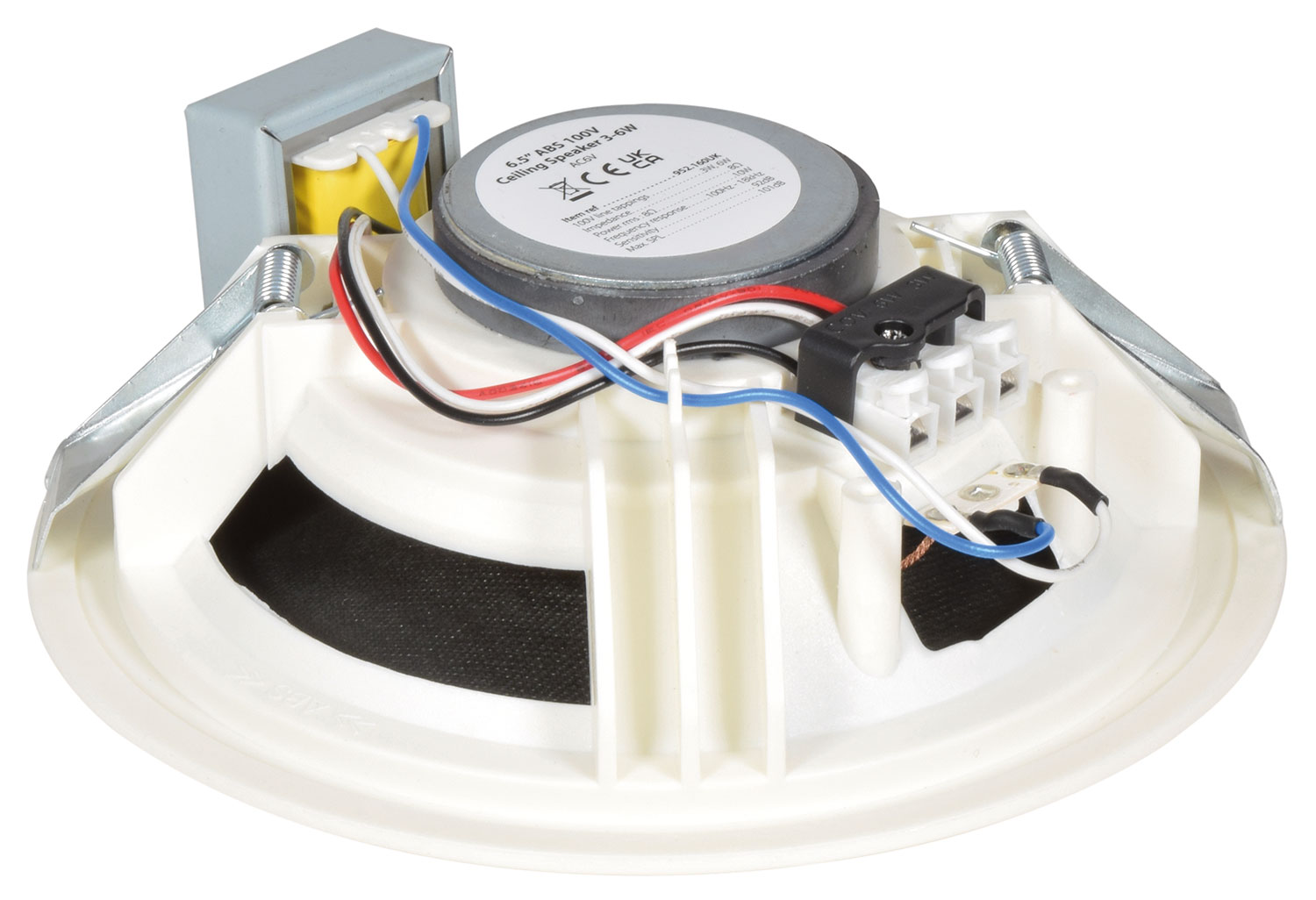

Flush-mount ceiling speaker with ABS frame and basket and powder coated steel grille, installed via an inbuilt pair of easy-fit spring clamps. Loaded with a 6.5" reinforced paper dual cone driver for full range sound reproduction. Operating at 100V line with 3W and 6W tappings. Designed for music and speech distribution in buildings with suspended ceilings.
- Dual cone driver for extended frequency range
- Construction ABS frame & basket with steel grille
- 100V line tappings 3W, 6W
- Impedance 8 ohms
- Power rms : 8 Ohms 10W
- Frequency response 100Hz - 18kHz
- Sensitivity 92dB
- Max. SPL 101dB
- Cutout 170mmØ
- Dimensions 65 x 187mmØ
- Weight 590g
Support : articles
Dispersion angles
Each ceiling speaker in an installation is capable of effectively providing coverage to an area defined by its dispersion angle. Here we show how to calculate the spacing of speakers to cover your installation
Speaker system types
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
In the box
The box for this item contains :
- AC6V ceiling speaker
Downloads
UK Declaration of conformity
For 952.160UK (242KB)
For 952.160UK (242KB)
EU Declaration of conformity
For 952.160UK (232KB)
For 952.160UK (232KB)
