FW-5V Wall Speaker EN54 100V
FW-6V
A heavy duty fire-rated wall speaker for voice announcements and background sound duties. The FW-5V has a 5.25" dual cone speaker mounted into a powder-coated steel cabinet with punched holes at the… more
- EN54-24 compliant for fire evacuation systems
- Heavy duty steel cabinet with detachable front
- 4 x 100V volume tappings
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
952.245UK
FW-5V Wall Speaker EN54 100V 6W |
FW-6V | Box Label |
FW-5V Wall Speaker EN54 100V

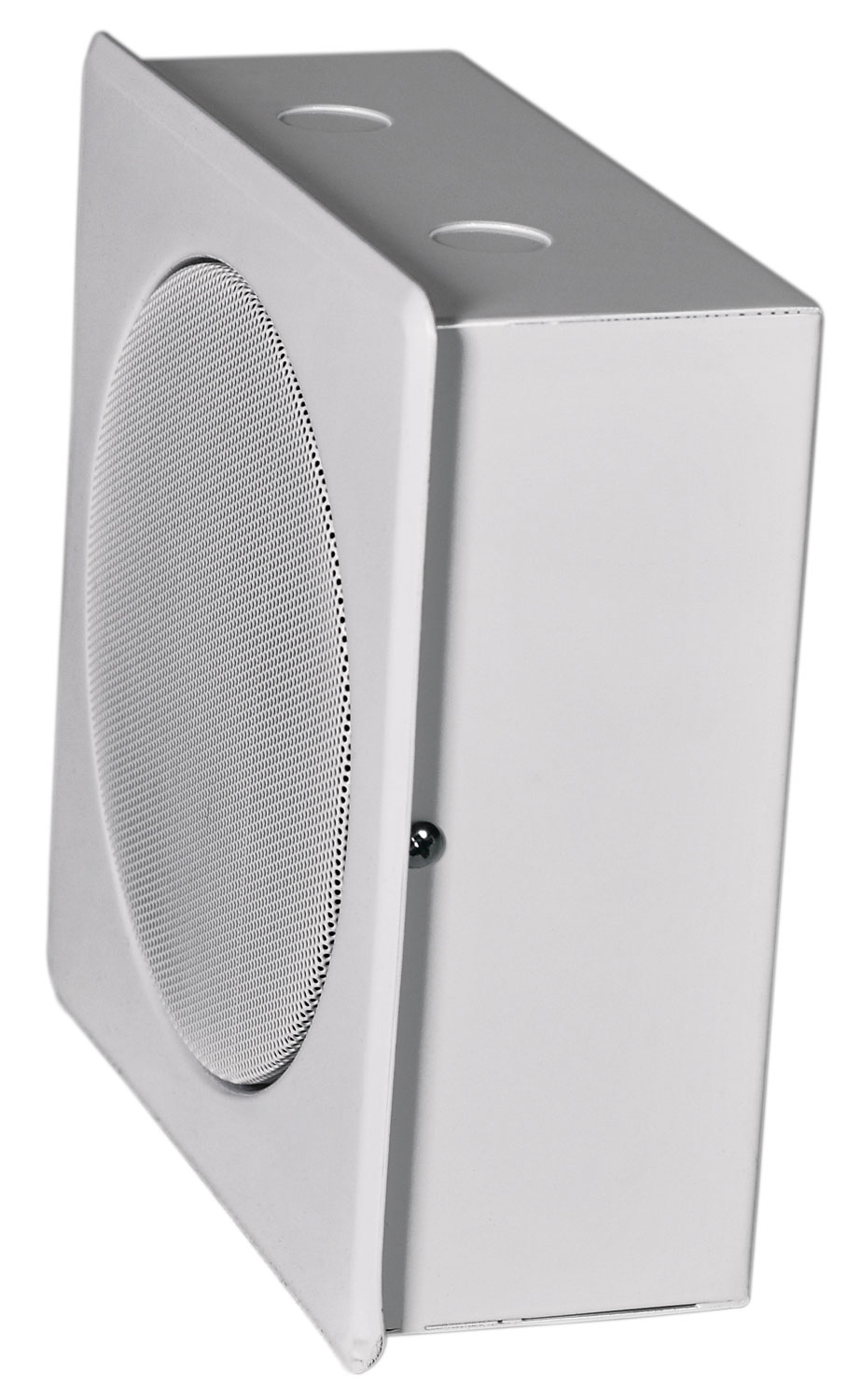

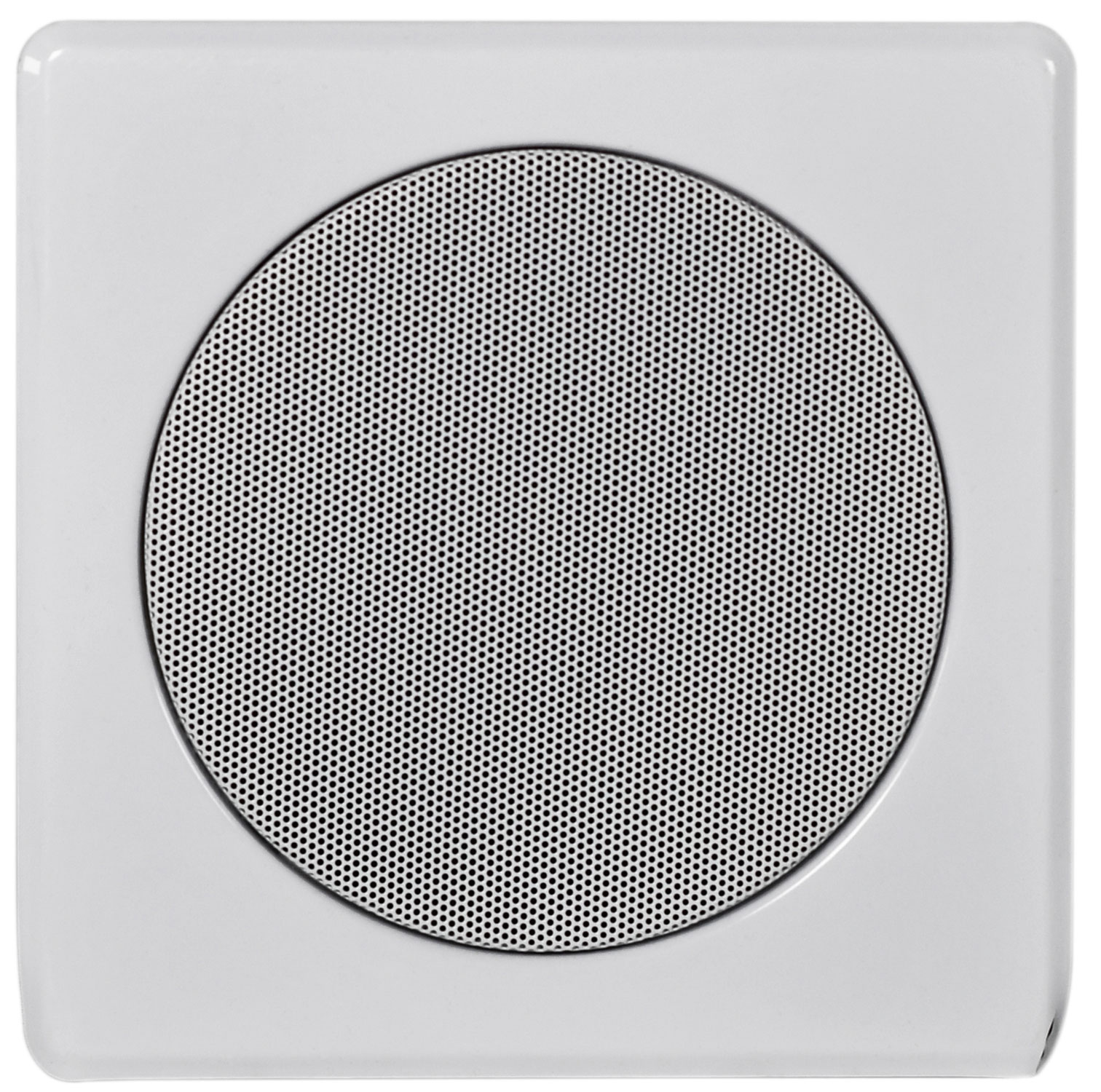

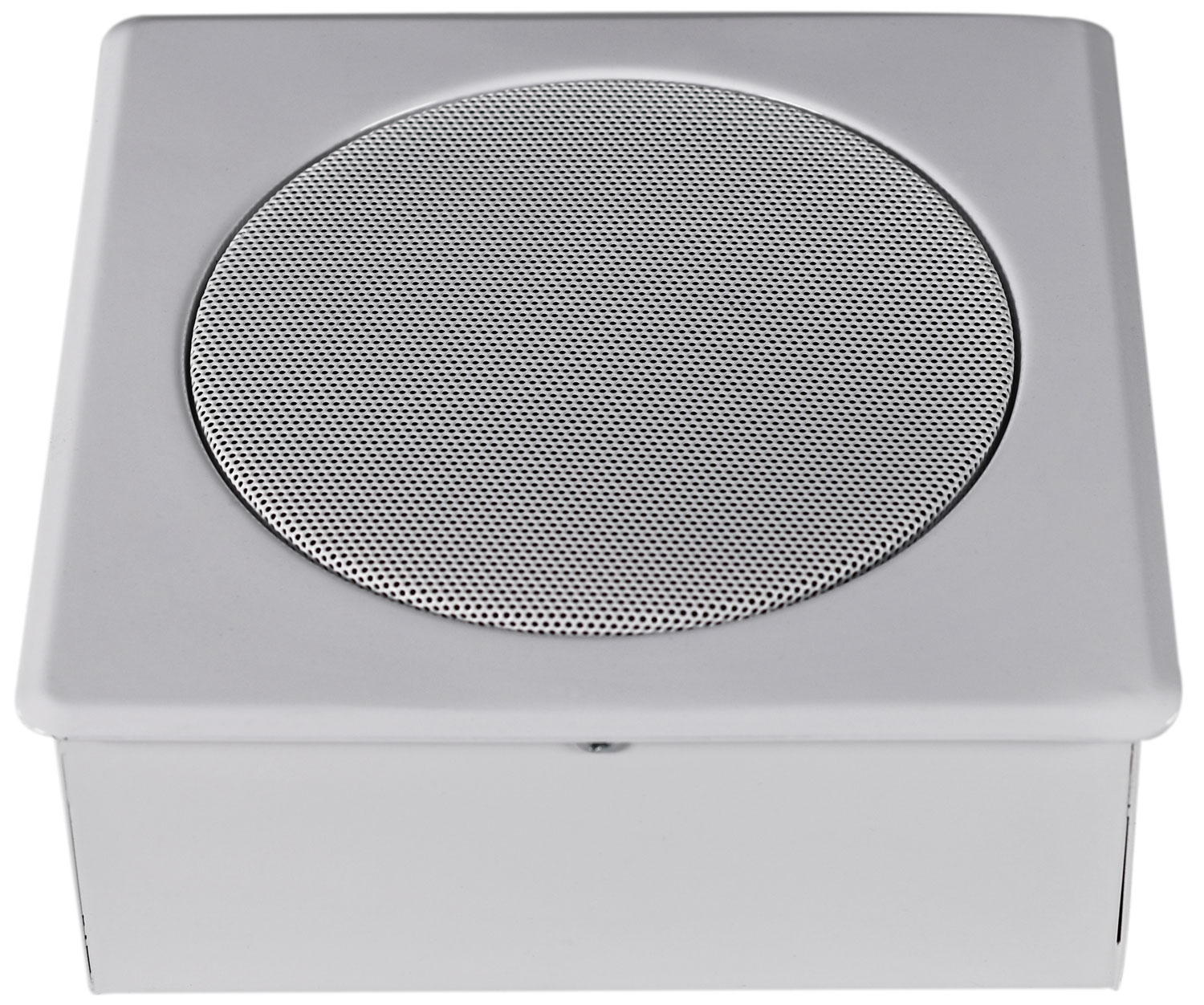

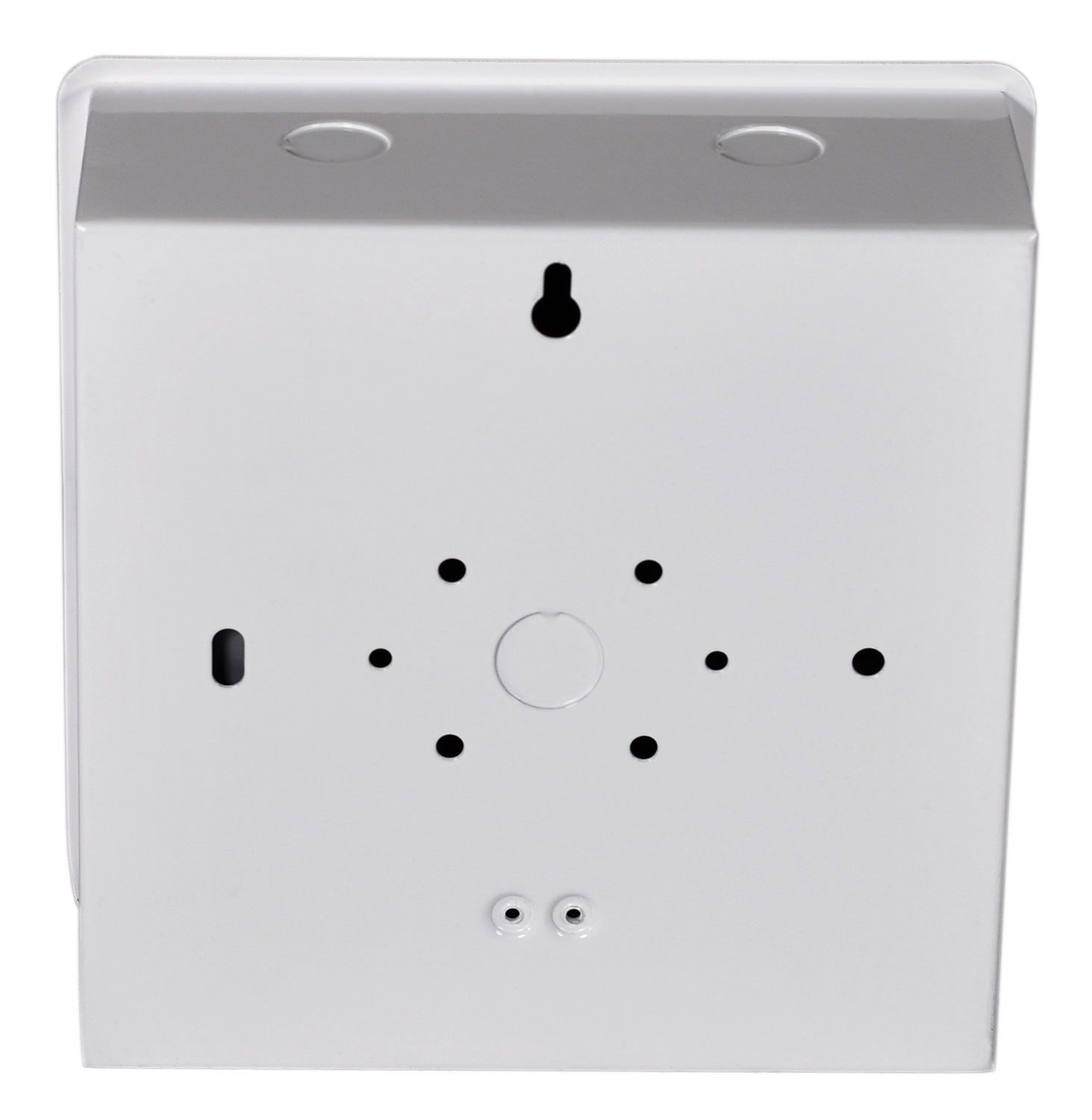

A heavy duty fire-rated wall speaker for voice announcements and background sound duties. The FW-5V has a 5.25" dual cone speaker mounted into a powder-coated steel cabinet with punched holes at the rear for hanging, 20mm knock-outs for cable glands and a detachable front baffle which extends as part of the basket for the speaker. Internally, the rear of the speaker holds a 100V transformer and a ceramic terminal block with thermal fuse for EN54-24 compliance in fire-rated installations. Overall, a robust workhorse speaker for quick installation in voice evacuation and other public address systems.
- EN54-24 compliant for fire evacuation systems
- Heavy duty steel cabinet with detachable front
- 4 x 100V volume tappings
- Construction Powder-coated steel cabinet & grille
- 100V line tappings 0.75, 1.5, 3, 6W
- Driver 5.25" reinforced paper dual cone
- Circuit protection Thermal fuse
- Connection Ceramic screw terminal block
- SPL @ 1W/1m 92dB
- SPL max. 99dB
- Frequency response 120Hz - 10kHz
- Dimensions 185 x 185 x 70mm
- Weight 1.334kg
In the Box
- FW-5V wall-mount EN54-24 speaker
