100V line speakers
For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

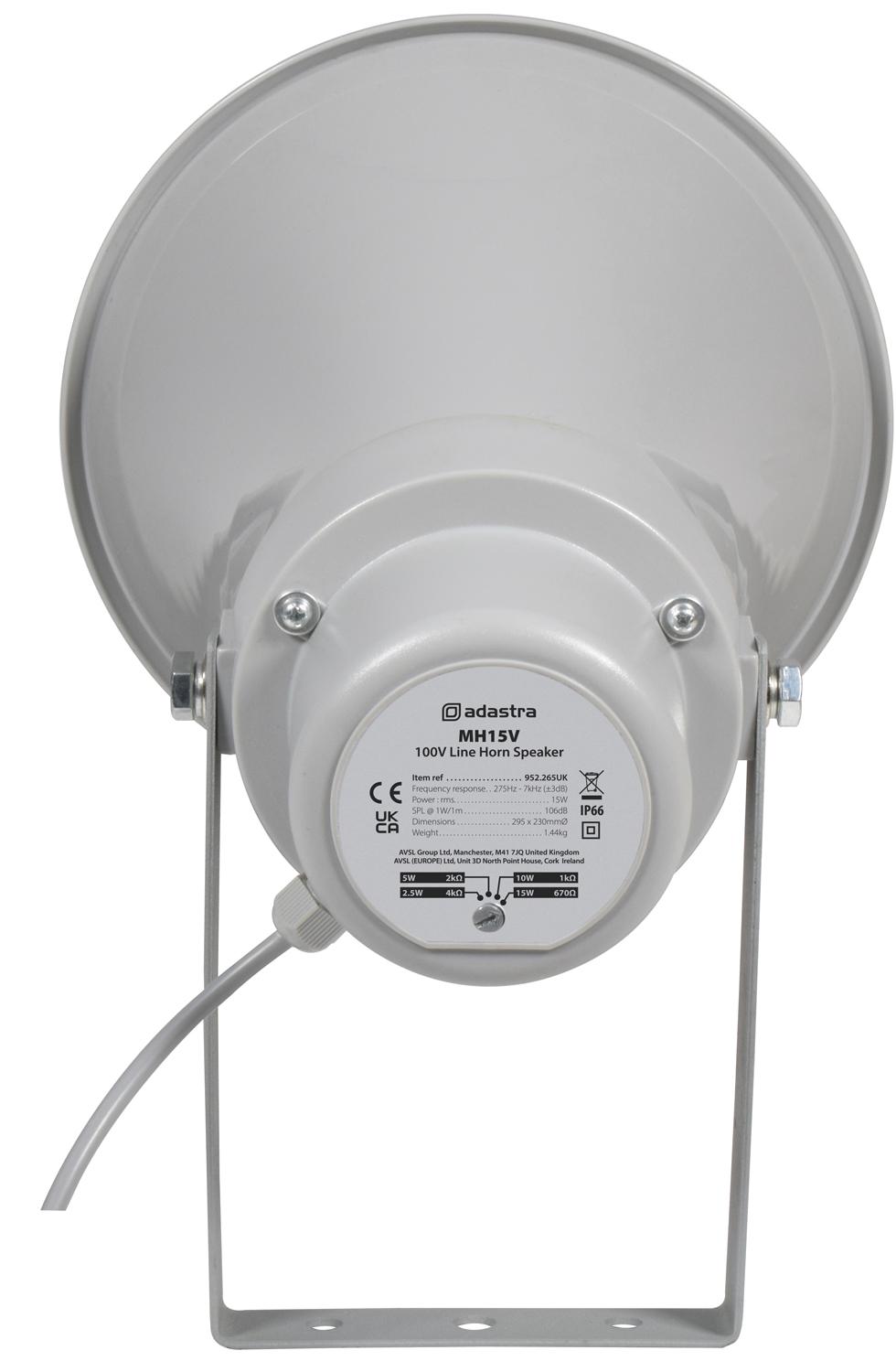

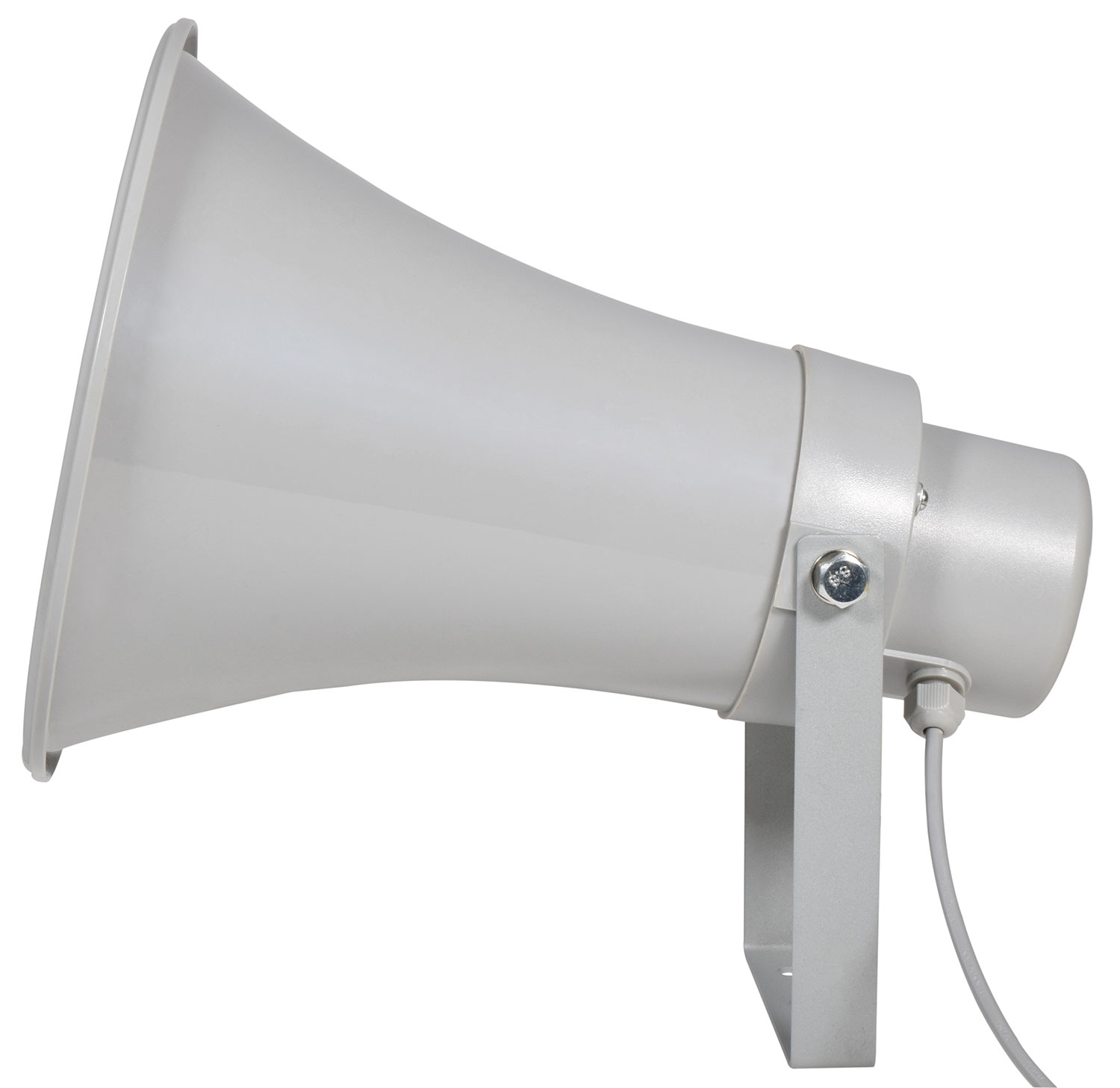

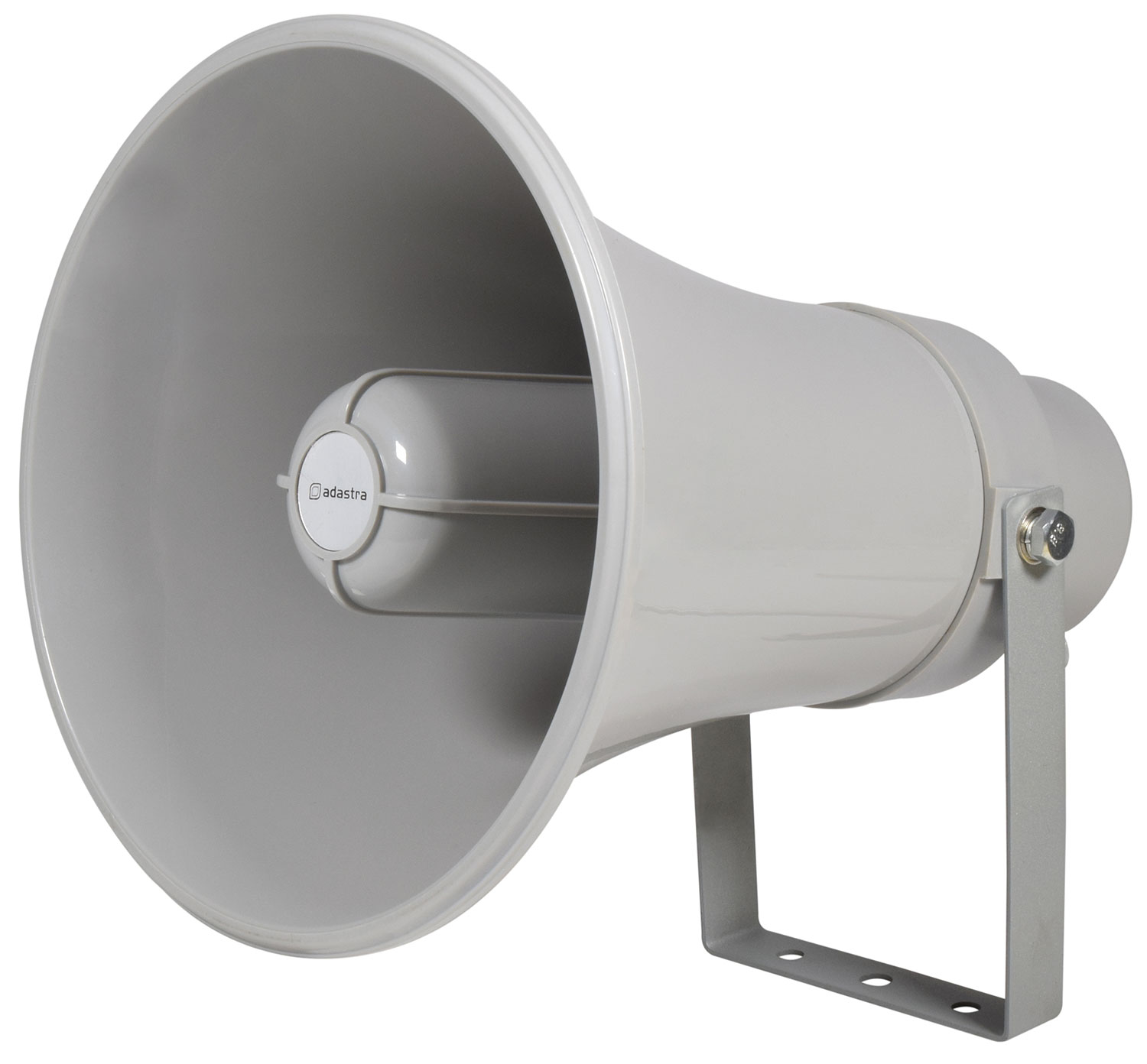

PA horn speakers with 100V transformer offering several different power settings. The housing is moulded from high impact ABS material to offer maximum protection against physical or weather damage...
PA horn speakers with 100V transformer offering several different power settings. The housing is moulded from high impact ABS material to offer maximum protection against physical or weather damage. Reflex loading and a conical flared aperture ensures efficient and directed sound delivery over large areas.
952.265UK | 952.266UK | |
---|---|---|
Power handling : rms | 15W | 30W |
100V line tappings | 2.5W, 5W, 10W, 15W | 5W, 10W, 15W, 20W, 30W |
Frequency response : ±3dB | 275Hz - 7kHz | 180Hz - 7kHz |
Impedance | 4k / 2k / 1k / 670 Ohms | 2k / 1k / 670 Ohms / 500 Ohms / 330 Ohms |
SPL @ 1W/1m | 106dB | 111dB |
Dimensions | 295 x 230mmØ | 315 x 310mmØ |
Weight | 1.44kg | 1.77kg |
For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
A summary explaining the key differences between RMS, Max and Peak power ratings.
The box for this item contains :
