Heavy Duty 100V Horn Speakers
20W, 9.5"
952.270UK
HD20V
Heavy duty round horn speakers for voice alerts and public address in outdoor or indoor areas. Constructed from a spun aluminium flare with a weatherproof ABS rear cover and reflex cone. The… more
- IP66 waterproof
- Tilt-adjustable wall bracket
- Tested to extreme temperatures (-55°C to +70°C)
Heavy Duty 100V Horn Speakers
Heavy duty round horn speakers for voice alerts and public address in outdoor or indoor areas. Constructed from a spun aluminium flare with a weatherproof ABS rear cover and reflex cone. The fibreglass compression driver is connected to a 100V transformer with a 4-core cable offering 3 different power tappings. Tested to withstand the harshest elemental conditions and suitable for industrial installations, these horns offer reliable and consistent performance in almost any environment.
- IP66 waterproof
- Tilt-adjustable wall bracket
- Tested to extreme temperatures (-55°C to +70°C)
- RAL7042 finish

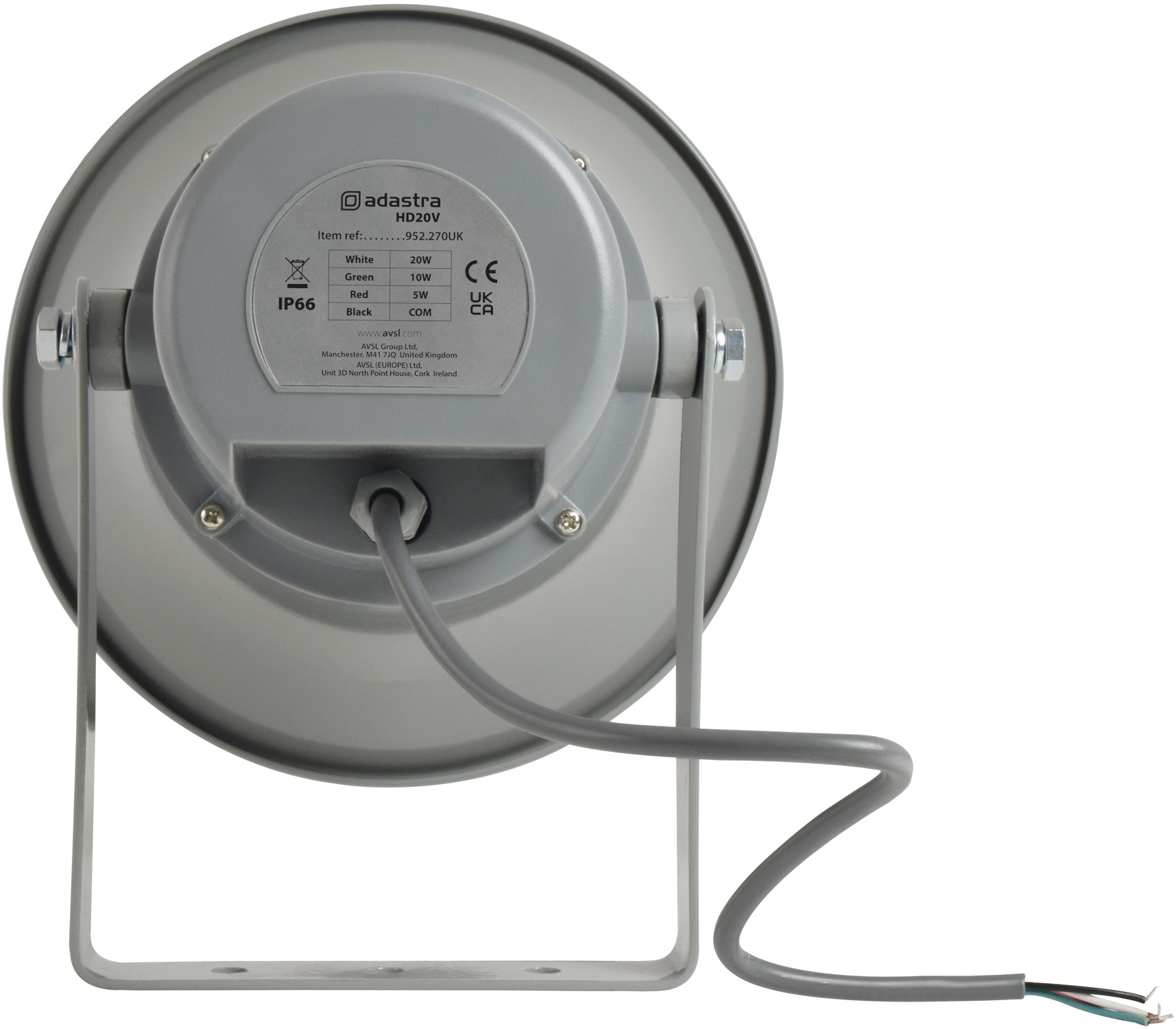

- Tappings 5W (red), 10W (green), 20W (white), COM (black)
- SPL @ 1W/1m 102dB
- Dimensions 280 x 240mmØ
- Weight 1.993kg
- Construction Aluminium flare, ABS reflex & rear cover
- Driver Fibreglass diaphragm compression driver
- IP rating IP66
- Impedance (nominal) 8 Ohms (transformer bypassed)
- Operating temperature range -55°C to +70°C
- Frequency response 400Hz - 5kHz
- Colour RAL7042
In the Box
- Heavy duty 100V horn speaker
