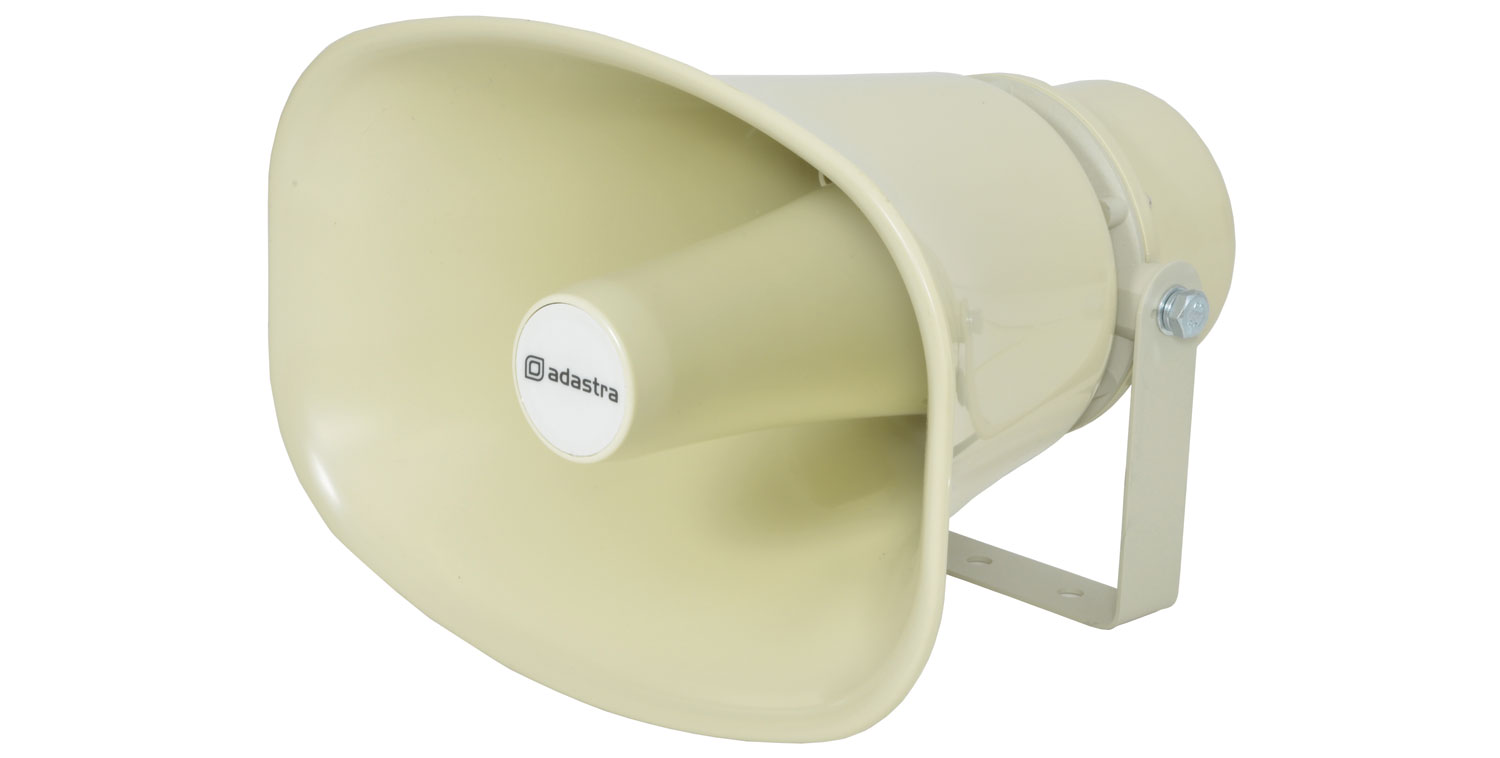

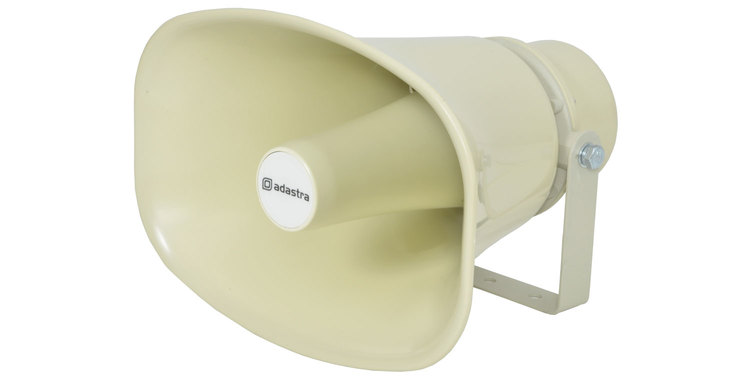

Rectangular Horn Speakers

952.258UK EH30V

Rectangular shaped 100V line PA horn speakers ideal for general purpose and standard industrial installations. All models are moulded from durable ABS in an ivory colour and fitted with a high perf...

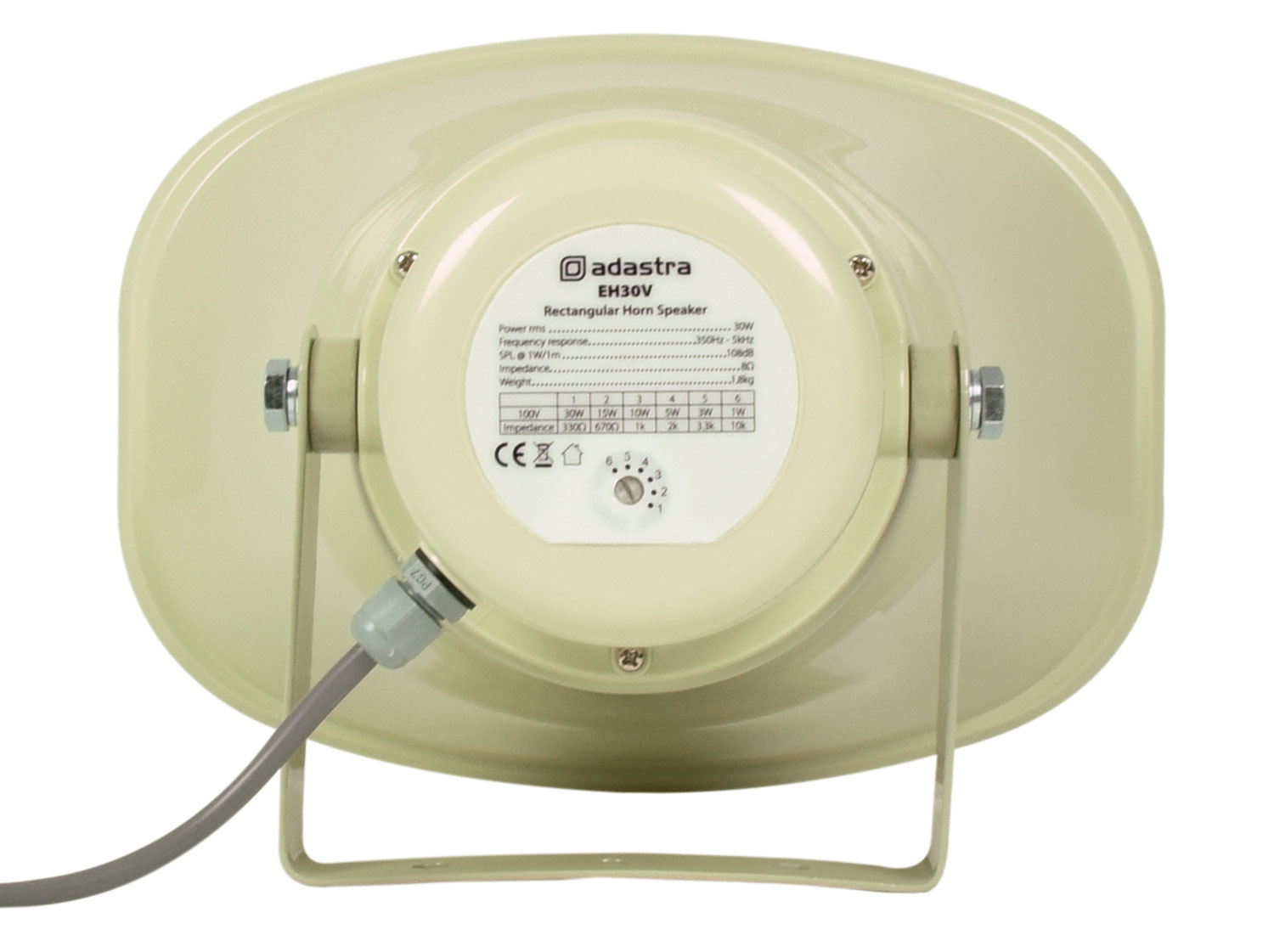

  • Rotary volume tapping switch
  • Adjustable steel mounting bracket
Full description Find retailer
Description Version Packed
952.257UK
EH15V Horn Speaker 100V 15W 		15W Box Printed
952.258UK
EH30V Horn Speaker 100V 30W 		30W Box Printed

Rectangular Horn Speakers

Rectangular shaped 100V line PA horn speakers ideal for general purpose and standard industrial installations. All models are moulded from durable ABS in an ivory colour and fitted with a high performance 100V line matching transformer with 350mm of 2 core double insulated connecting cable.

  • Rotary volume tapping switch
  • Adjustable steel mounting bracket
  • IP rating IP56
  • Cable : length 350mm

Versions

  952.257UK 952.258UK
Power rms 15W 30W
Frequency response 500Hz - 7kHz 350Hz - 5kHz
SPL @ 1W/1m 100dB 108dB
Impedance 670, 1.3k, 2.6k and 8 Ohms 330, 670, 1k, 2k, 3.3k and 8 Ohms
Tappings 15W, 7.5W, 3.75W and 8 Ohms 30W, 15W, 10W, 5W, 3W, 1W
Dimensions 233 x 220 x 158mm 236 x 205 x 185mm
Weight 1.4kg 1.8kg

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • ABS rectangular horn speaker
  • Mounting bracket
