SL Series - Slimline Ceiling Speakers
5.25" pair
952.547UK
SL5
High-grade ceiling speaker offering a premium quality sound delivery system. Quick and neat installation with sleek edge profile. more
- Minimal profile edge
- Full range sound reproduction
- Sleek, understated profile
- Efficient 2-way crossover network
SL Series - Slimline Ceiling Speakers

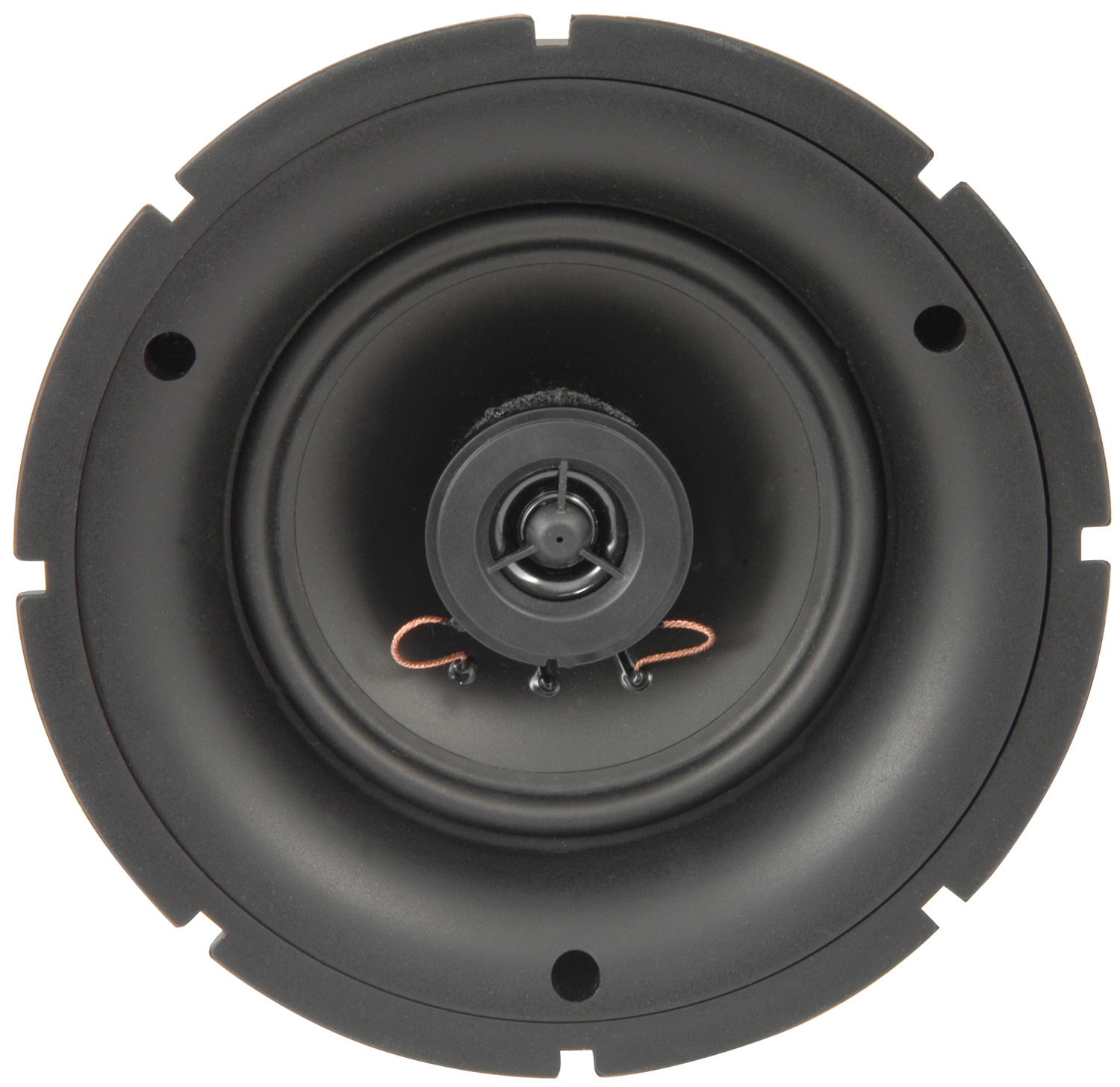

High-grade ceiling speakers featuring a hi-flex main driver for full range output with extended low frequency response. Both 5.25" and 6.5" models add a mylar tweeter unit for accurate HF reproduction. Quick fit spring clamps or 'dog-ear' mounts enable easy installation, resulting in a minimalist profile for a discreet and understated sound system.
- Efficient 2-way crossover network
- Gold-plated spring terminals
- Sleek, understated profile
- Flared baffle for wide dispersion
- 3 "dog-ear" mounts for SL5 and SL6
- 3 spring clips for SL4
- 2 spring clips for SL3
- Supplied in pairs
- Weight 1.30kg (each)

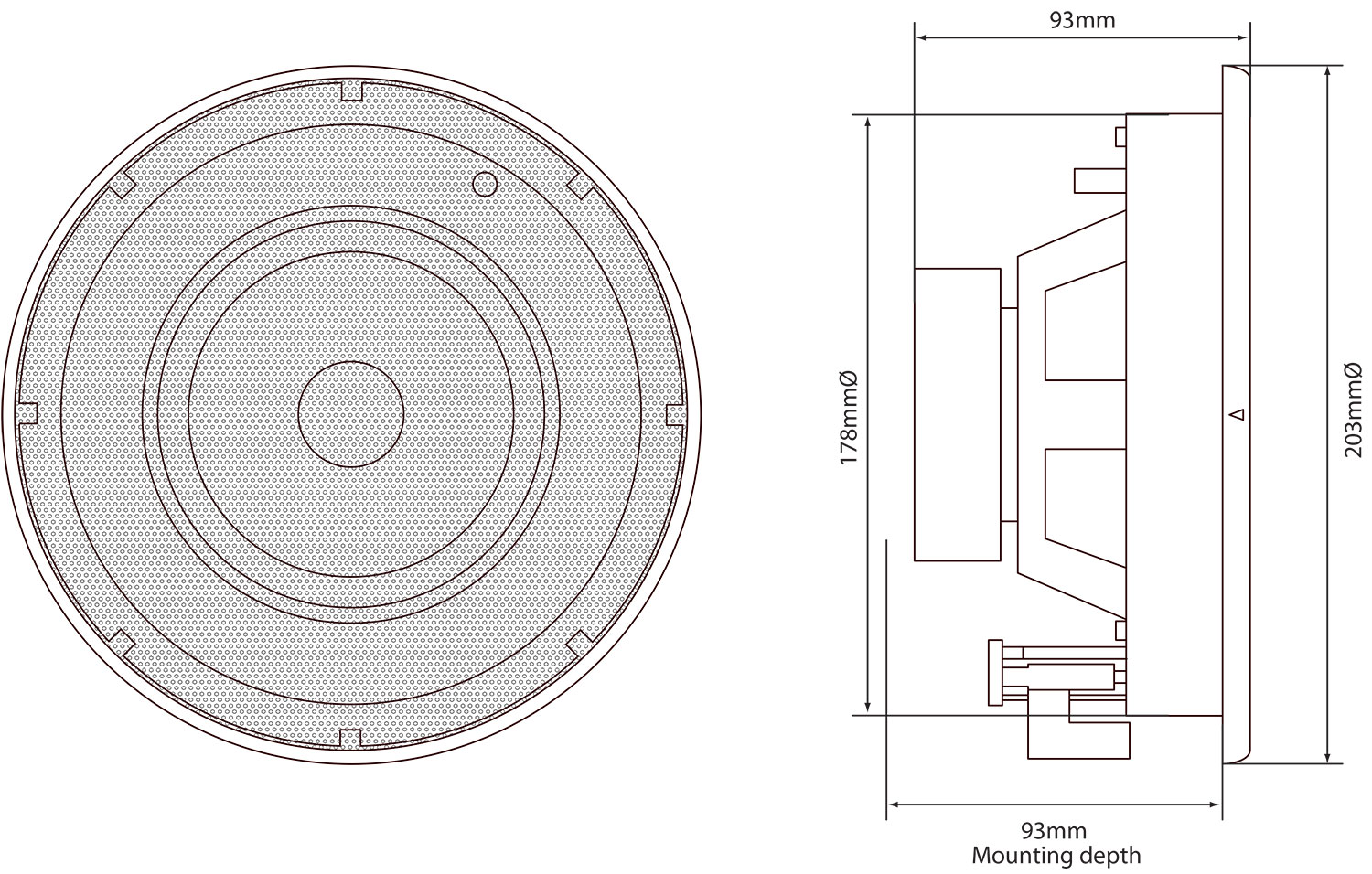

- Dimensions 93 x 203mmØ (each)
- Sensitivity 88dB (1W/1m)
- Mounting depth 93mm
- Cutout diameter 178mmØ
- Power handling RMS 35W
- Frequency response 50Hz-20kHz
- Crossover frequency 4.5kHz
- HF driver 12mmØ (0.5") mylar dome
- LF driver 130mmØ (5.25") PP cone
- Impedance 8 ohms
- Dispersion angle 160°
In the Box
- Pair of SL ceiling speakers
