CBS-35 Coaxial Background Speaker 100V - Pair
White (pair)
CBS-35 is a compact indoor wall speaker unit constructed from high impact ABS material with a removable rear multi-angle mounting bracket. A single 90mmØ bass driver has a concentric tweeter assembly… more
- Coaxial full-range driver
- Integrated multi-angle bracket
- 100V or 16 Ohm operation
CBS-35 Coaxial Background Speaker 100V - Pair

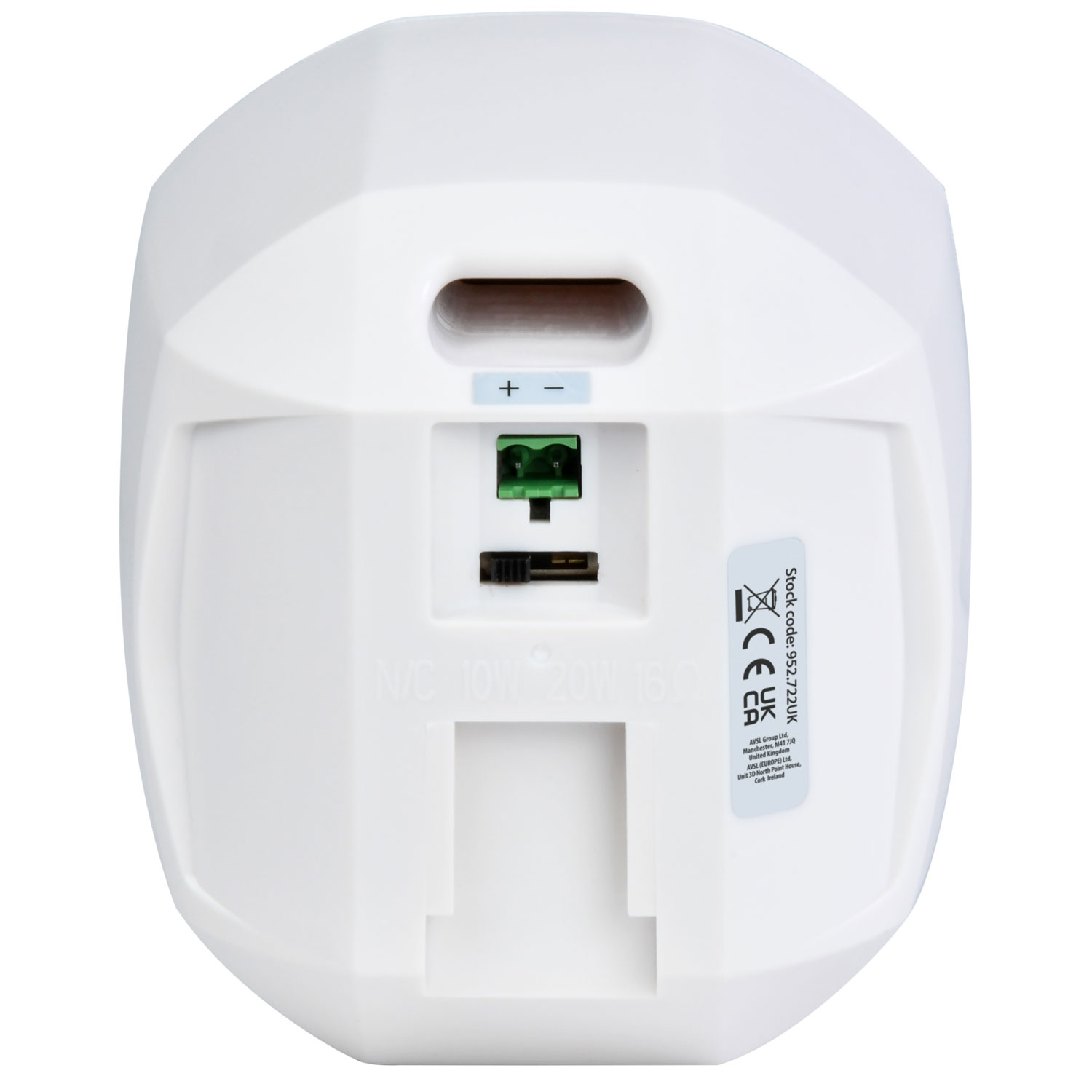

CBS-35 is a compact indoor wall speaker unit constructed from high impact ABS material with a removable rear multi-angle mounting bracket. A single 90mmØ bass driver has a concentric tweeter assembly that both combine to provide a balanced and phase-aligned full-range output. Connection at the rear is via a removable screw terminal euroblock connector and is accompanied by a slide switch for 100V operation with 10W or 20W tappings or a 16 Ohm option. Designed for background music and general purpose public address duties in leisure, retail and other public settings. Supplied in pairs.
- Coaxial full-range driver
- Integrated multi-angle bracket
- 100V or 16 Ohm operation
- Supplied as a pair
- Colour White
- Tappings 10W-20W (100V), and 16 ohms
- Driver Coaxial 90mmØ main driver with concentric tweeter
- Housing Moulded ABS & cloth-fronted perforated grille
- Sensitivity 85dB (±2dB)
- SPL max. 99dB (±2dB)
- Frequency response 120Hz-20kHz
- Dimensions 187 x 138 x 125mm (each)
- Weight 1.23kg (each)
In the Box
- 2 x CBS-35 ABS speaker
- 2 x wall-mount brackets
