100V line speakers
For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

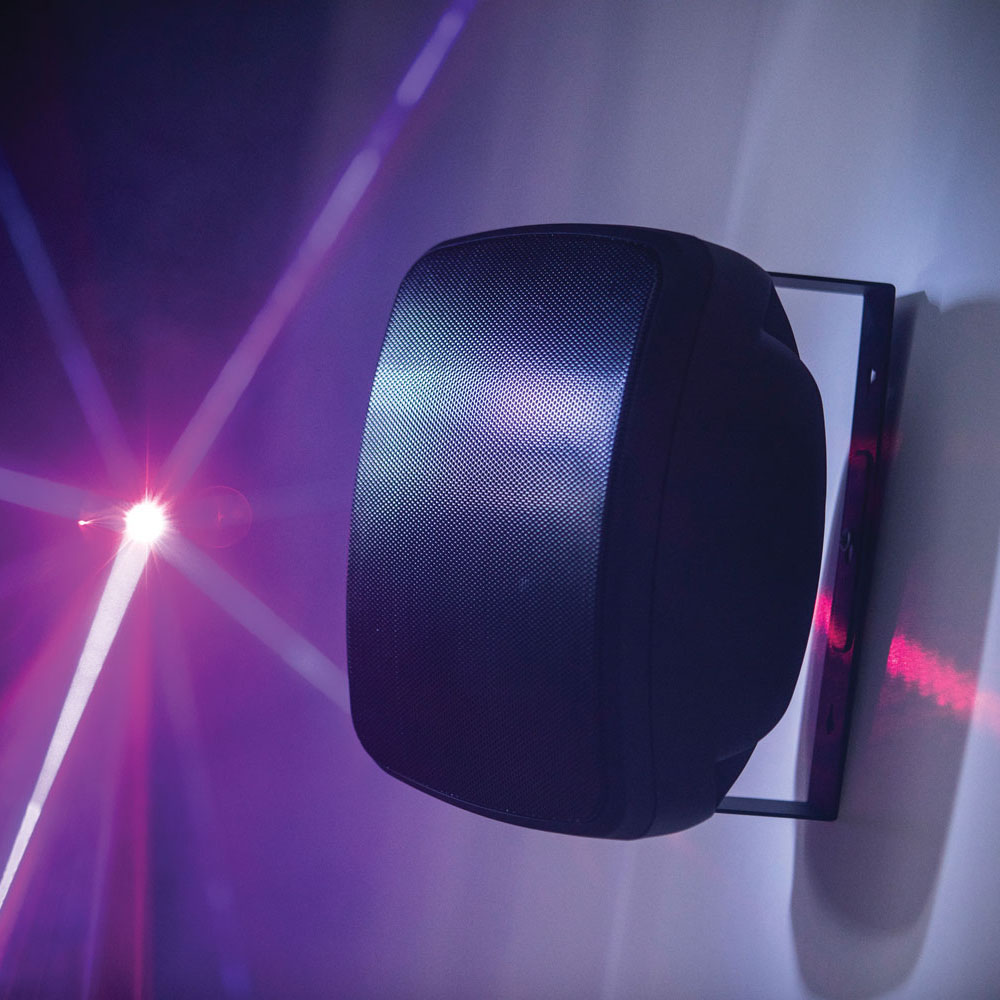

FC Series Compact Background Speakers
952.960UK
FC5V-B

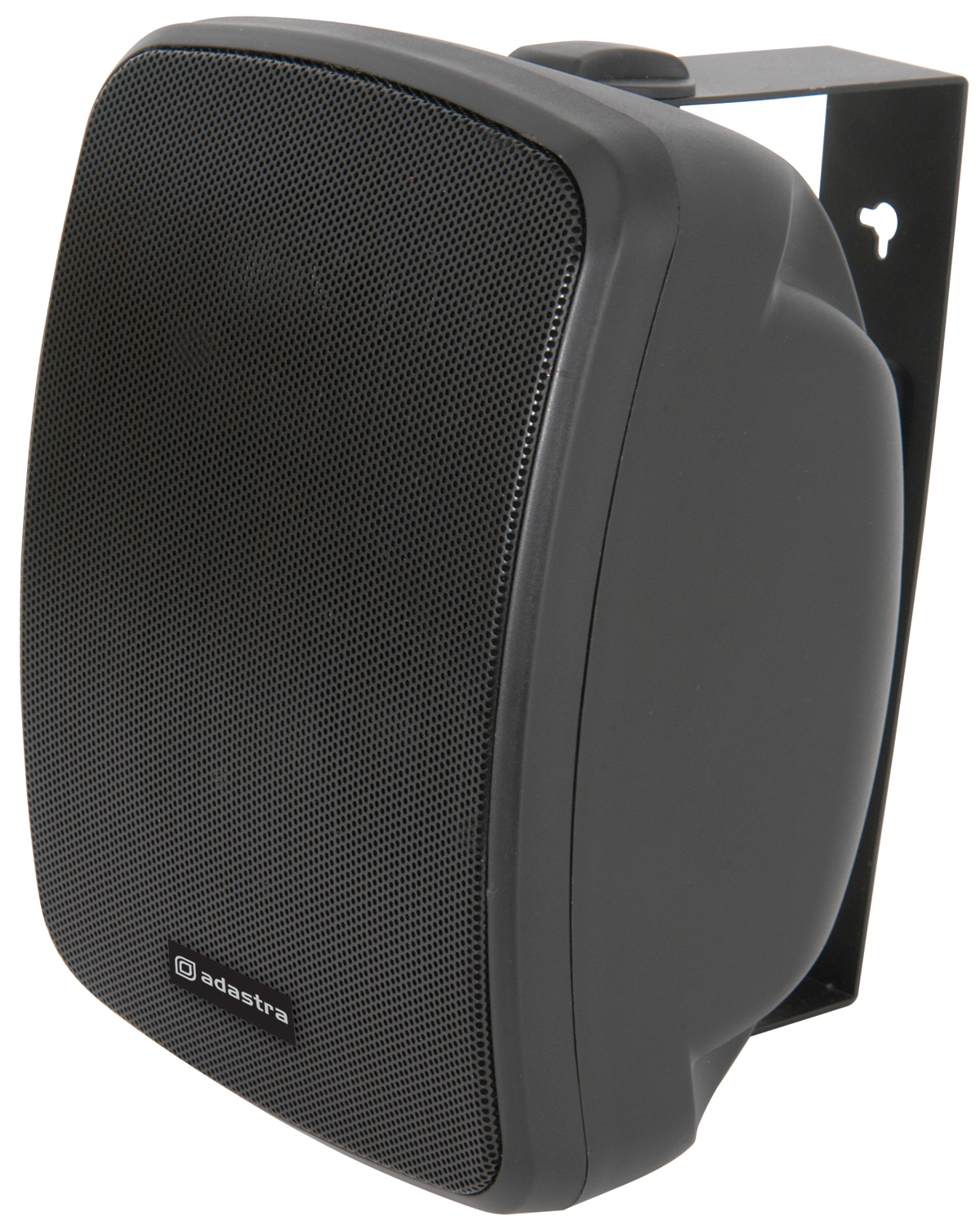

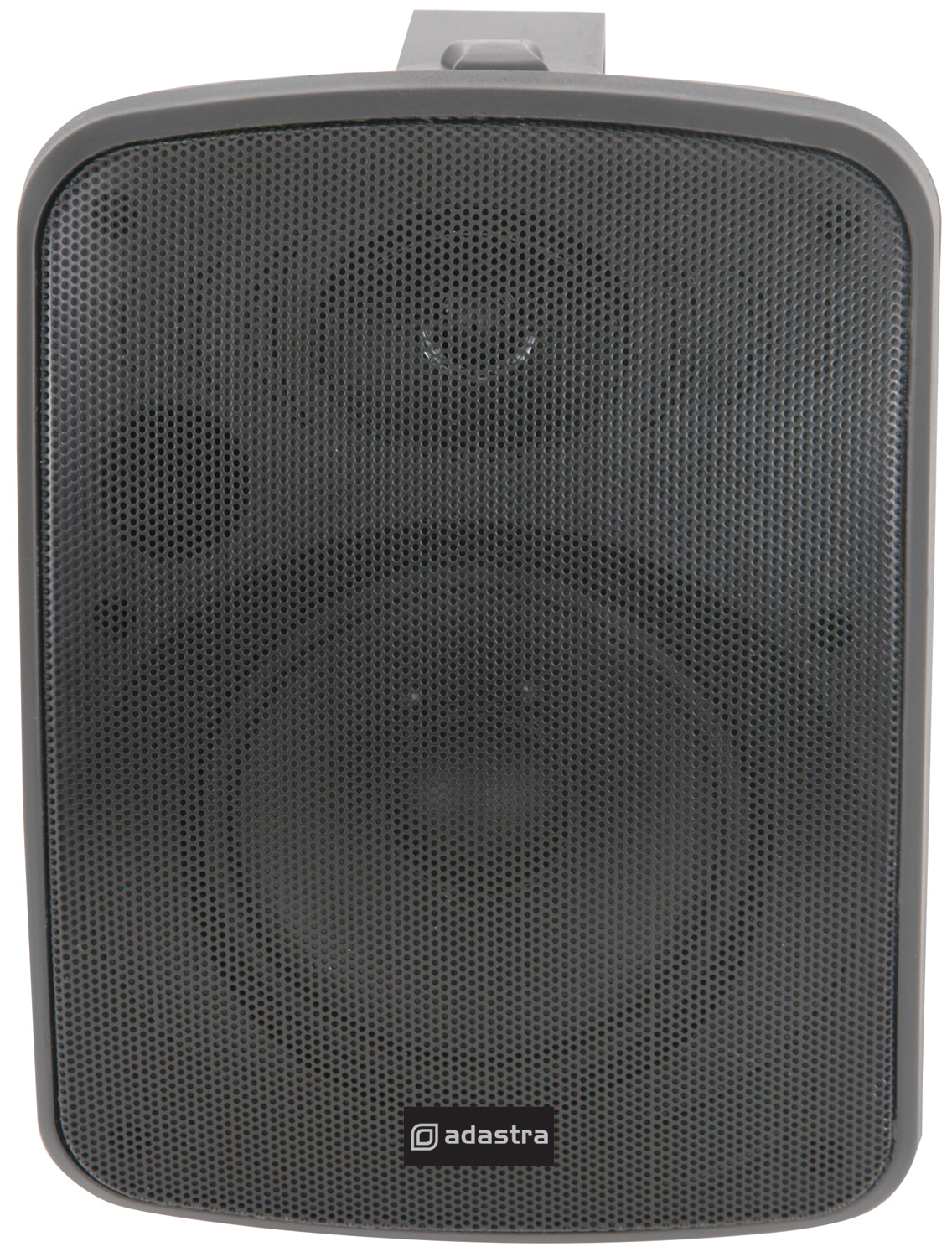

2-way compact speakers with weatherproof moulded cabinets, making them ideal for gardens, outdoor shelters, health club spa areas and marine applications.

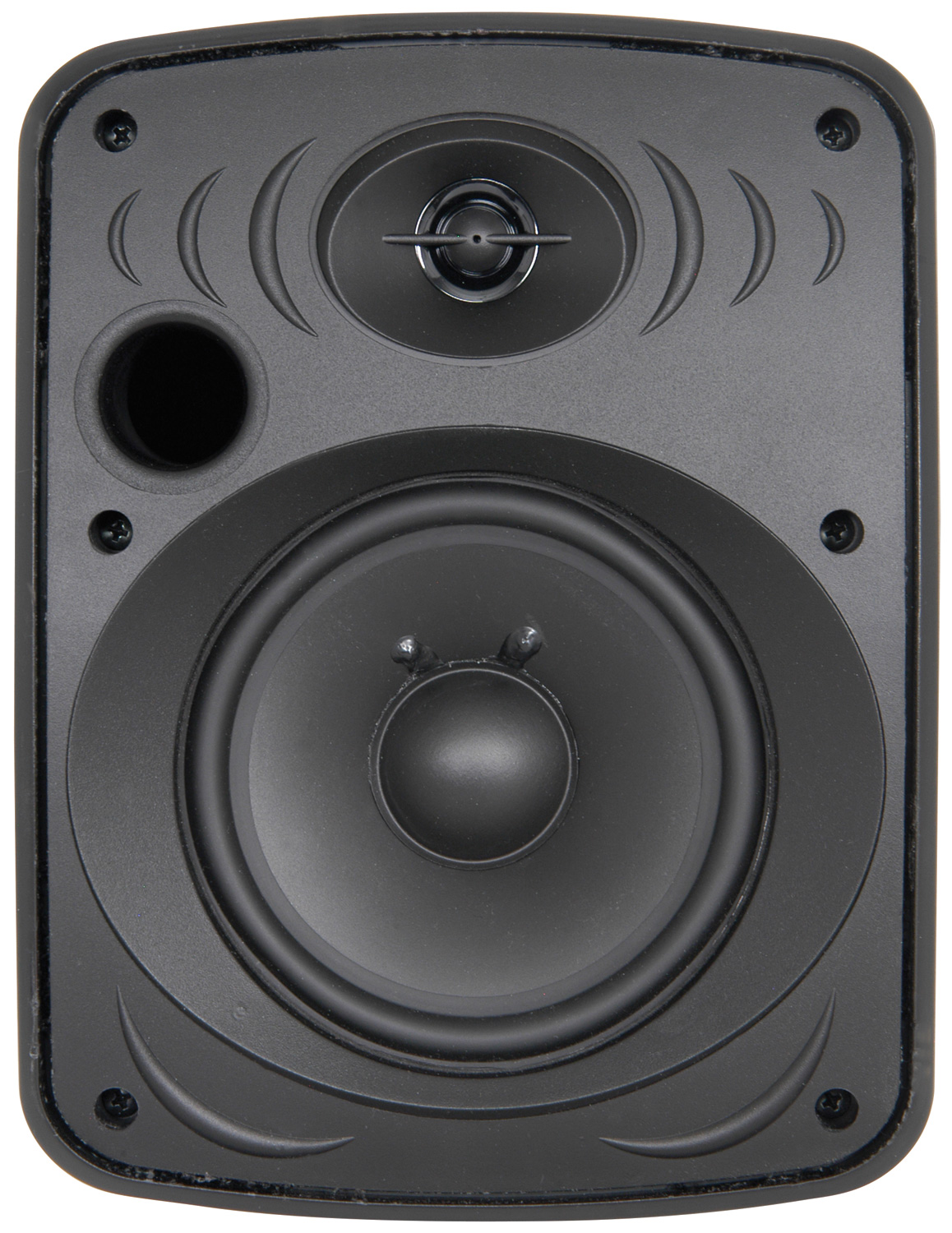

- 2-way speaker system with crossover network

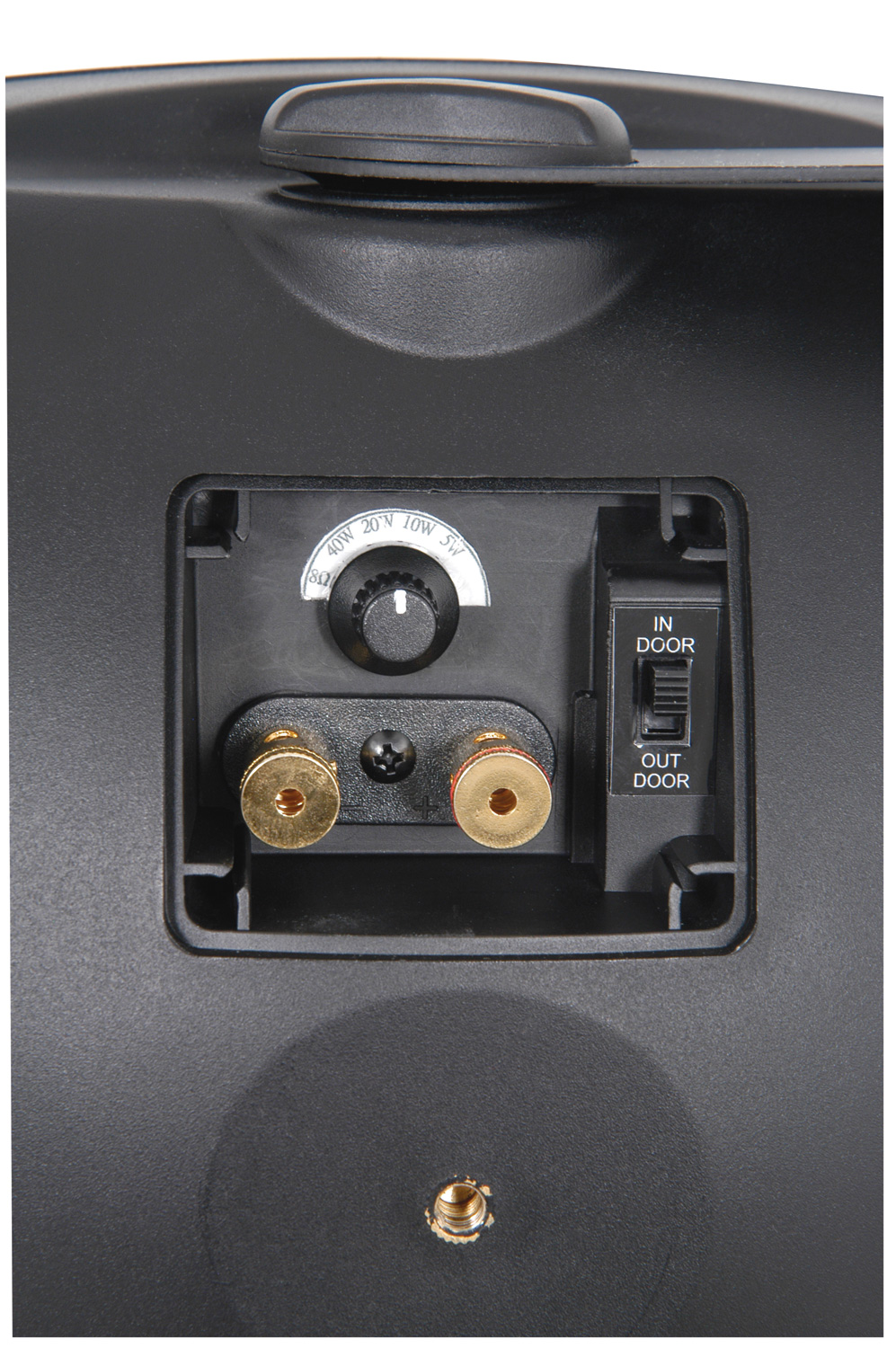

- Rotary selector switch for 100V line tappings or 8 ohms operation
- Weatherproof IP44
FC Series Compact Background Speakers
2-way compact speakers with weatherproof moulded cabinets, making them ideal for gardens, outdoor shelters, health club spa areas and marine applications.
- 2-way speaker system with crossover network
- Rotary selector switch for 100V line tappings or 8 ohms operation
- Weatherproof IP44
- UV protected ASTM D4329
- Equalisation switch boosts higher frequencies when outside
- Gold plated spring terminal connections

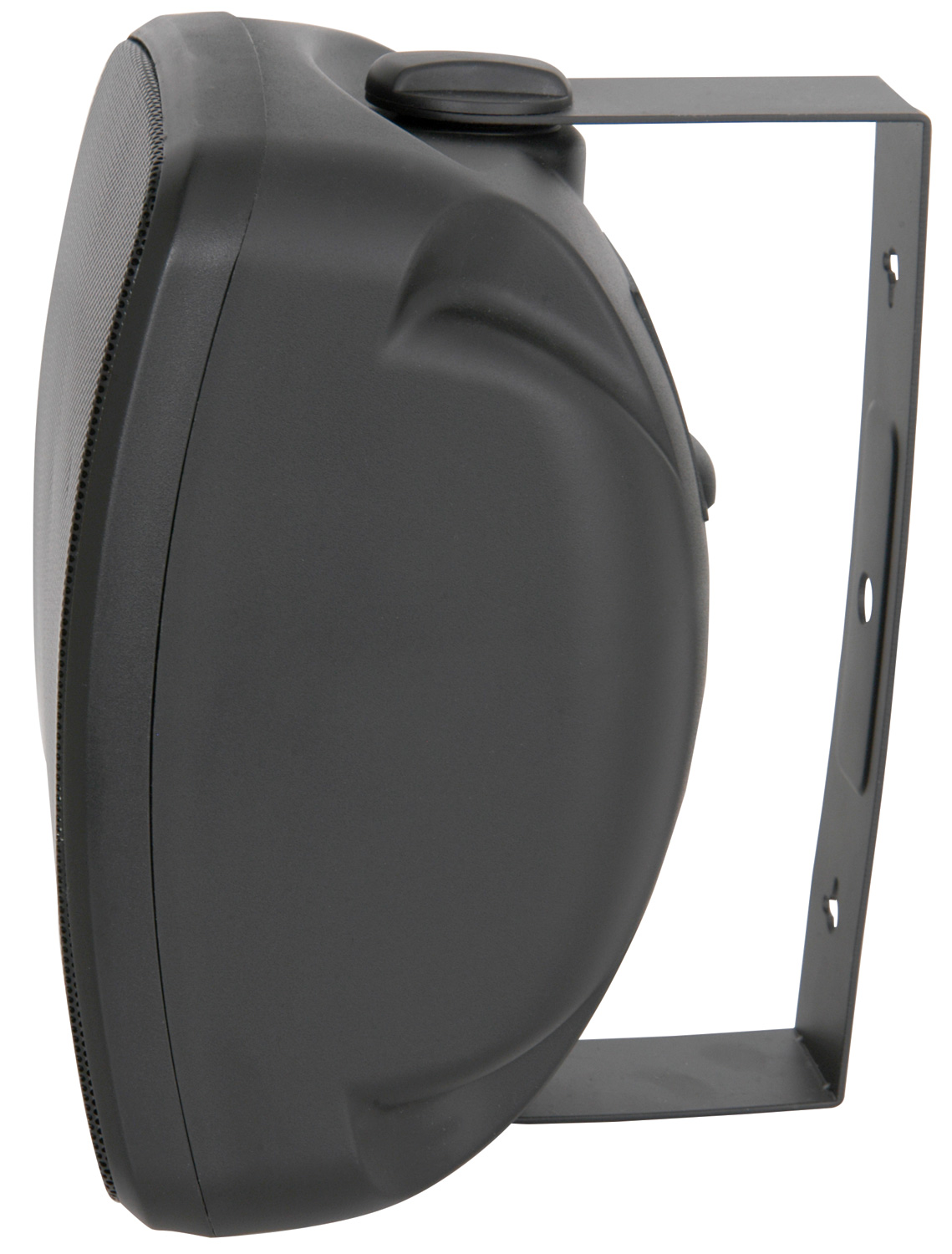

- Mounting bracket included

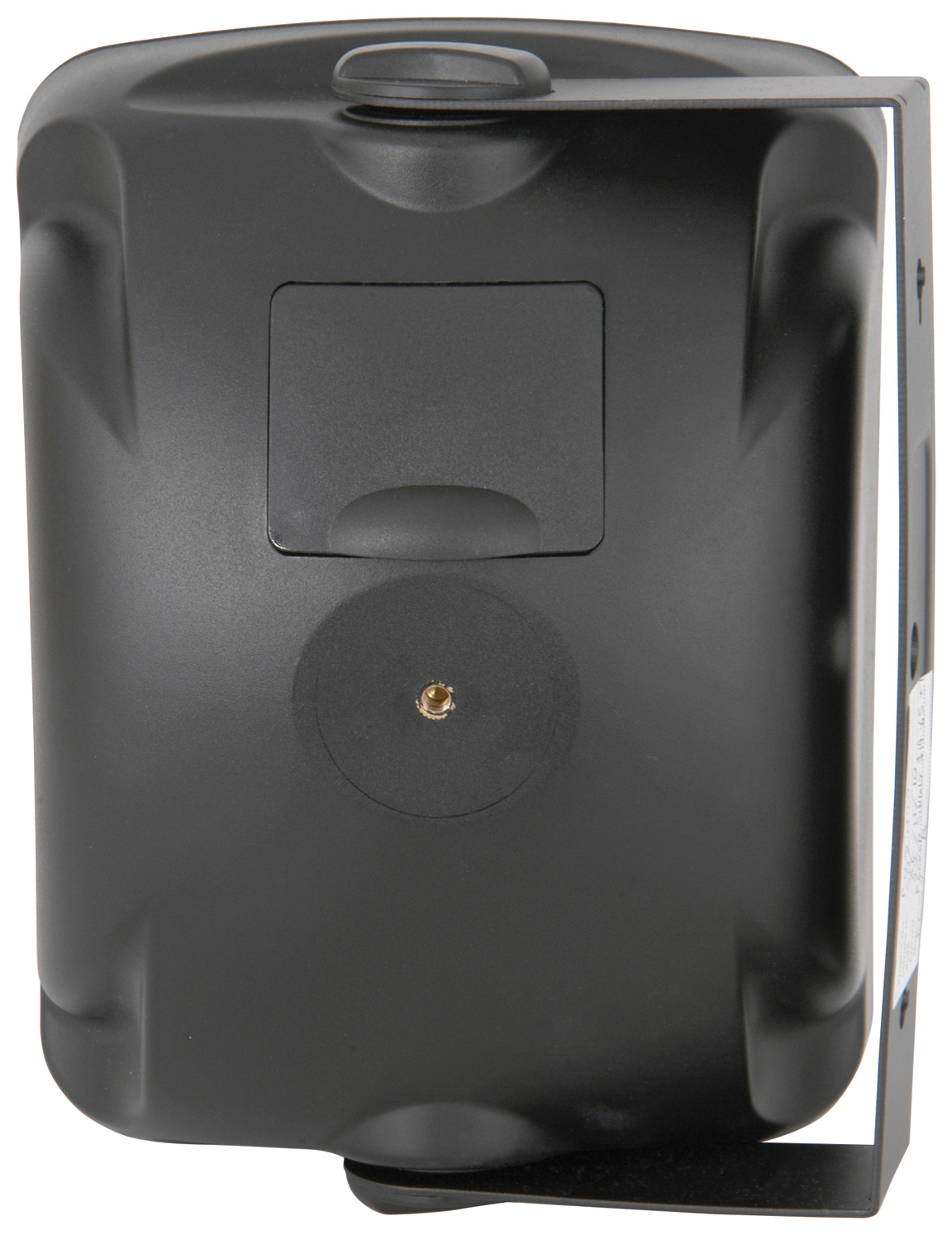

- Optional mounting by M6 screw sockets
- Available in white or black finish
- Supplied singly
- Tweeter 13mm PEI dome tweeter
- IP rating IP44
- Dispersion angle 145°
- Construction Moulded PP cabinet with aluminium grille
Versions
| 952.962UK | 952.964UK | 952.965UK | 952.960UK | |
|---|---|---|---|---|
| Colour | White | Black | White | Black |
| Woofer | 9cm (3.5") PP cone | 9cm (3.5") PP cone | 13cm (5.25") PP cone | 13cm (5.25") PP cone |
| Frequency response | 114Hz - 20kHz | 114Hz - 20kHz | 80Hz - 20kHz | 80Hz - 20kHz |
| Power handling : max. | 80W | 80W | 100W | 100W |
| Power handling : rms | 40W | 40W | 50W | 50W |
| SPL @ 1W/1m | 87dB | 87dB | 88dB | 88dB |
| Tappings | 2.5/5/10/20W + 8 Ohms | 2.5/5/10/20W + 8 Ohms | 5/10/20/40W + 8 Ohms | 5/10/20/40W + 8 Ohms |

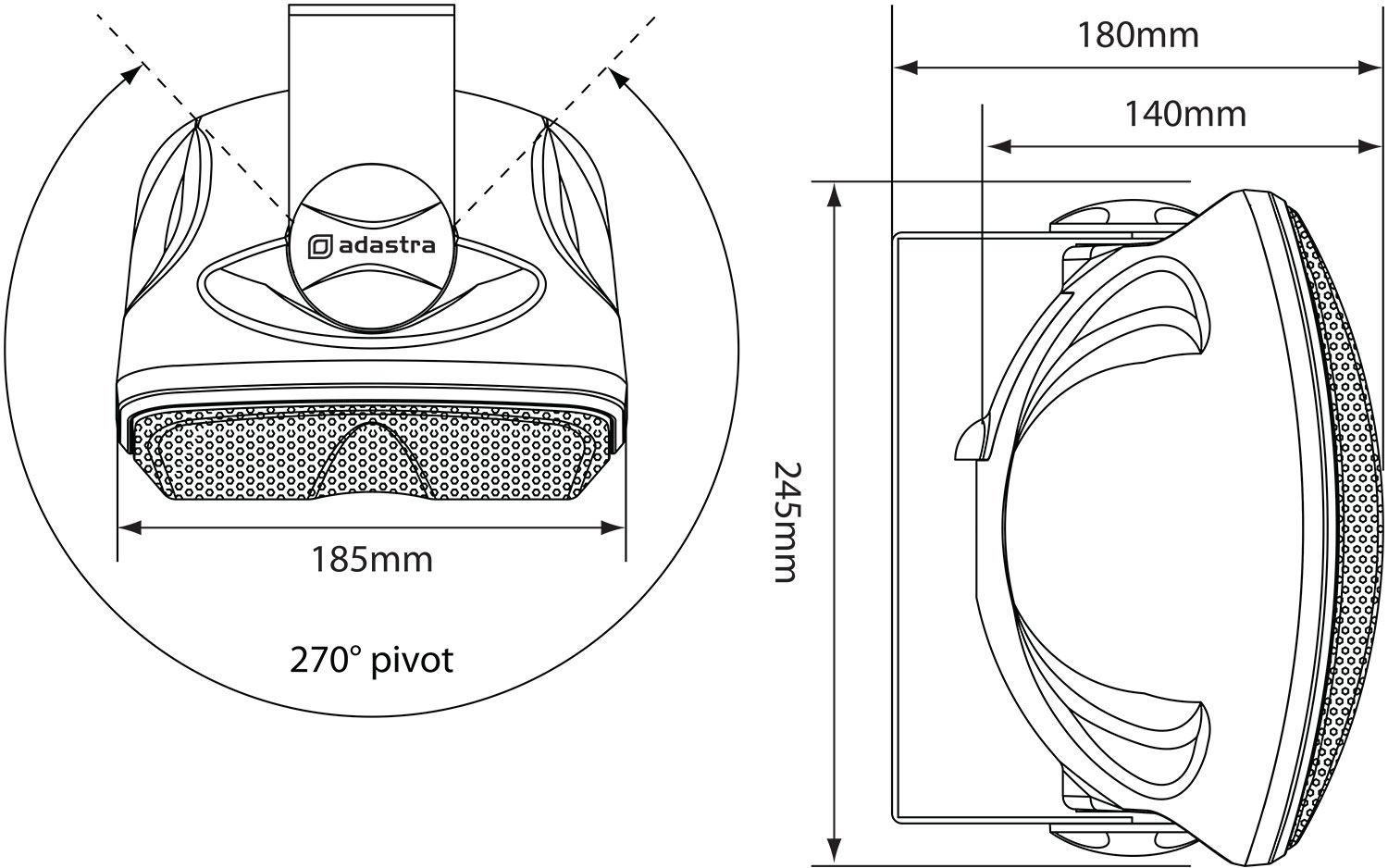

| Dimensions | 199 x 149 x 112mm | 199 x 149 x 112mm | 245 x 185 x 180mm | 245 x 185 x 180mm |
| Weight | 1.36kg | 1.36kg | 2.7kg | 2.7kg |
