FC Series Compact Background Speakers

952.962UK FC4V-W

2-way compact speakers with weatherproof moulded cabinets, making them ideal for gardens, outdoor shelters, health club spa areas and marine applications.

  • 2-way speaker system with crossover network

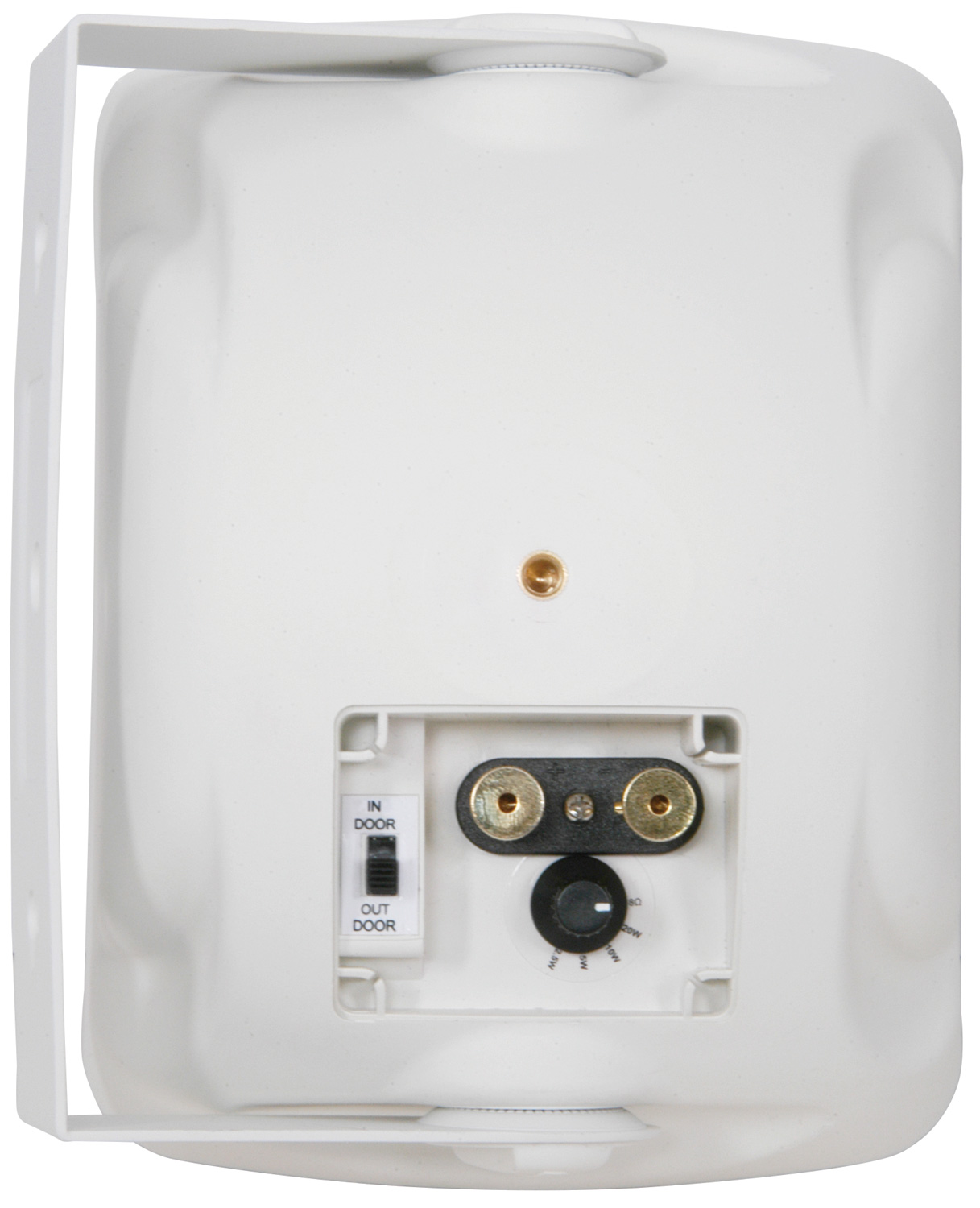

  • Rotary selector switch for 100V line tappings or 8 ohms operation
  • Weatherproof IP44
Description Version Packed
952.962UK
FC4V-W compact 100V background speaker 3.5in, white
3.5" White each Box Label
952.964UK
FC4V-B compact 100V background speaker 3.5in, black
3.5" Black each Box Label
952.965UK
FC5V-W compact 100V background speaker 5.25in, white
5.25" White each Box Label
952.960UK
FC5V-B compact 100V background speaker 5.25in, black
5.25" Black each Box Label

FC Series Compact Background Speakers

2-way compact speakers with weatherproof moulded cabinets, making them ideal for gardens, outdoor shelters, health club spa areas and marine applications.

  • 2-way speaker system with crossover network
  • Rotary selector switch for 100V line tappings or 8 ohms operation
  • Weatherproof IP44
  • UV protected ASTM D4329
  • Equalisation switch boosts higher frequencies when outside
  • Gold plated spring terminal connections
  • Mounting bracket included
  • Optional mounting by M6 screw sockets
  • Available in white or black finish
  • Supplied singly

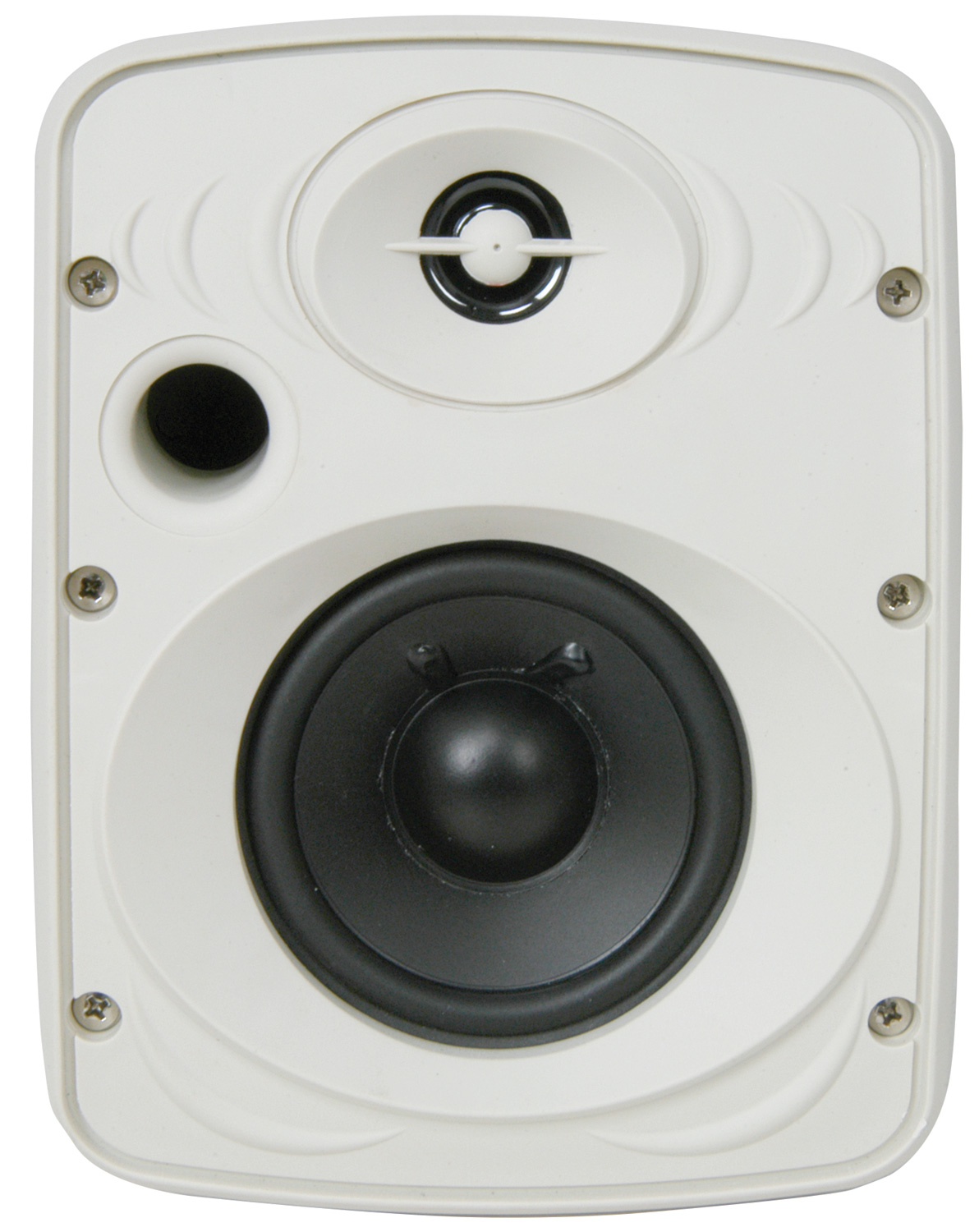

  • Tweeter 13mm PEI dome tweeter
  • IP rating IP44
  • Dispersion angle 145°
  • Construction Moulded PP cabinet with aluminium grille

Versions

  952.962UK 952.964UK 952.965UK 952.960UK
Colour White Black White Black
Woofer 9cm (3.5") PP cone 9cm (3.5") PP cone 13cm (5.25") PP cone 13cm (5.25") PP cone
Frequency response 114Hz - 20kHz 114Hz - 20kHz 80Hz - 20kHz 80Hz - 20kHz
Power handling : max. 80W 80W 100W 100W
Power handling : rms 40W 40W 50W 50W
SPL @ 1W/1m 87dB 87dB 88dB 88dB
Tappings 2.5/5/10/20W + 8 Ohms 2.5/5/10/20W + 8 Ohms 5/10/20/40W + 8 Ohms 5/10/20/40W + 8 Ohms

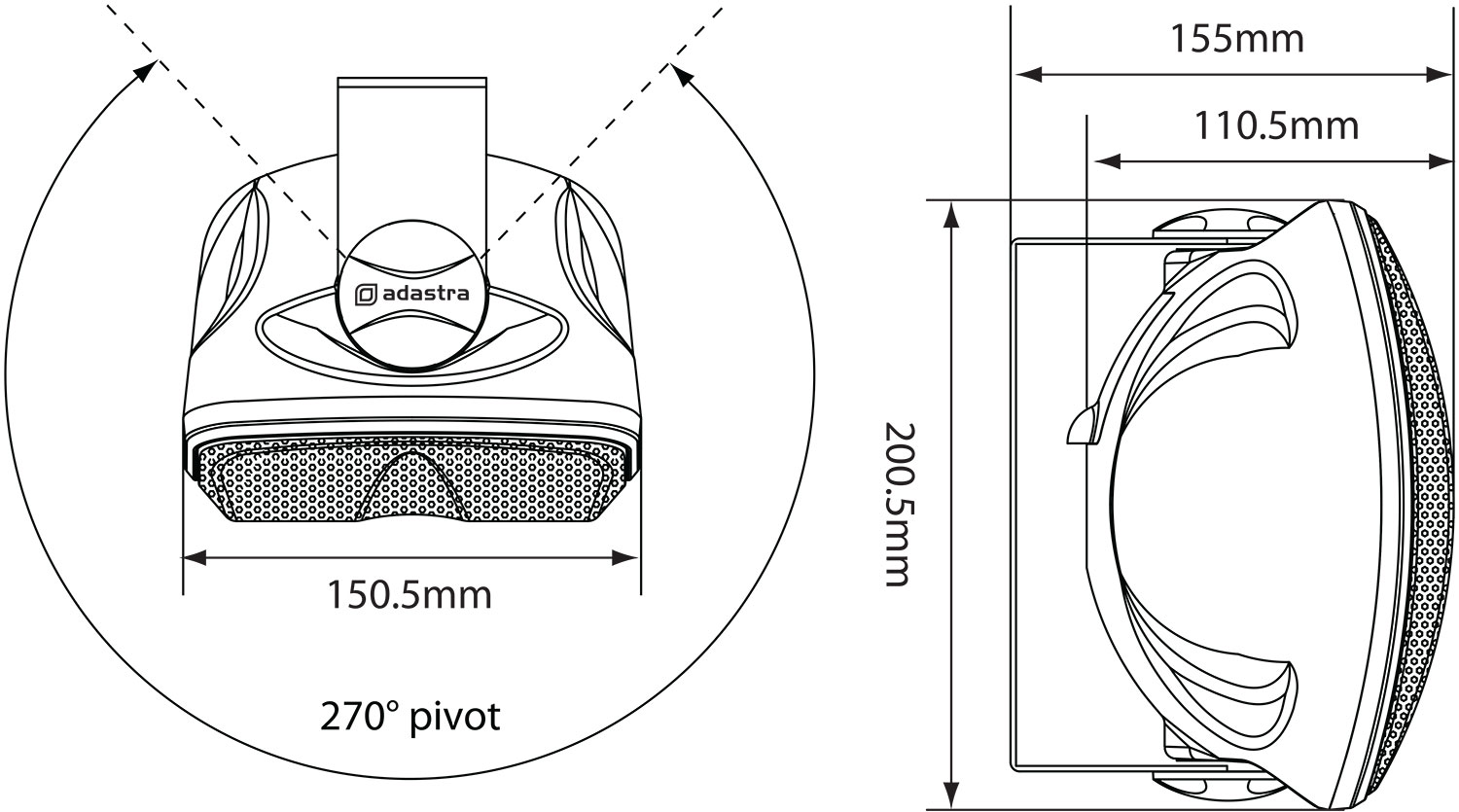

Dimensions 199 x 149 x 112mm 199 x 149 x 112mm 245 x 185 x 180mm 245 x 185 x 180mm
Weight 1.36kg 1.36kg 2.7kg 2.7kg
