Zoning Mixer

953.019UK Z5M

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in ...

  • 2 inputs to 5 zones
  • Mono selectable for each zone
  • Fully balanced XLR connections
Full description Find retailer
Description Version Packed
953.019UK
Z5M zoning mixer 		Z5M Box Label

Accessories

Description Version Packed
853.081UK
RACK-IT Wall / Counter Mounting Brackets 1U - pair 		1U Box Label

Zoning Mixer

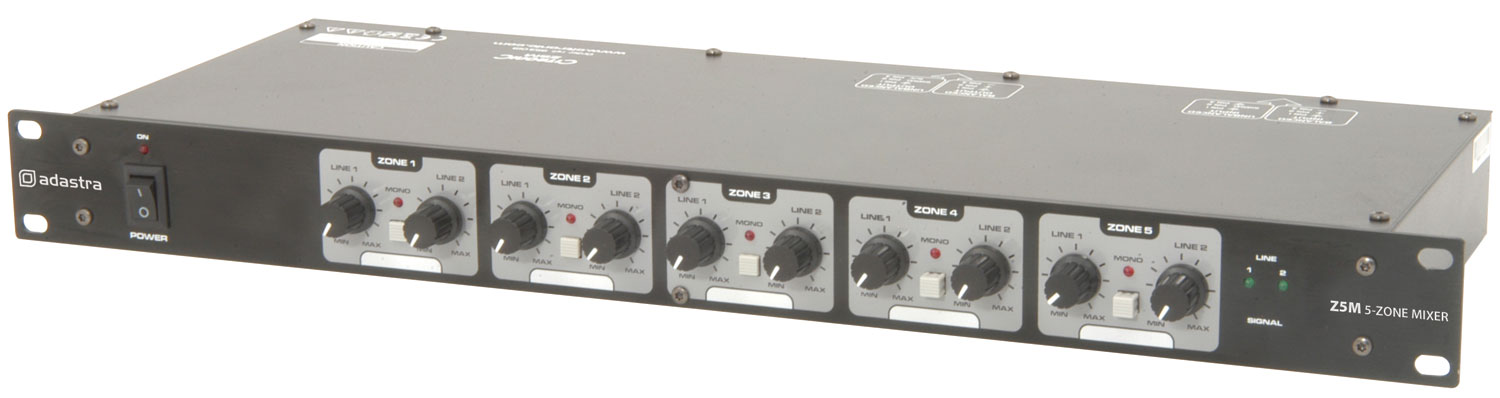

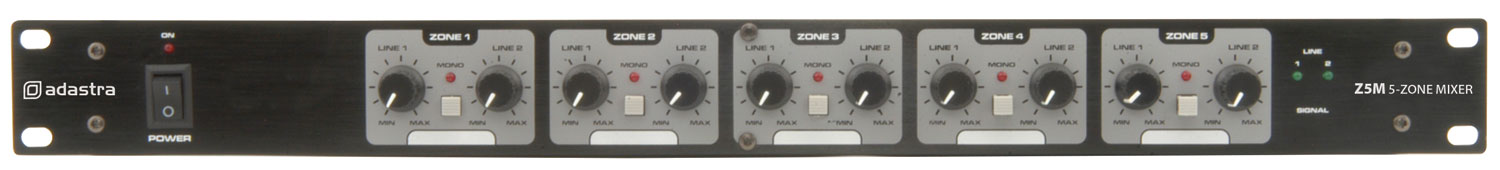

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

  • 2 inputs to 5 zones
  • Mono selectable for each zone
  • Fully balanced XLR connections
  • Power supply 115/230Vac 50/60Hz (IEC)

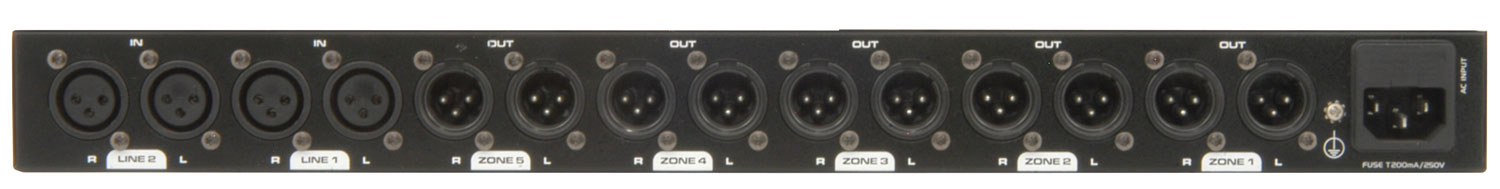

  • Inputs Line 1 L+R, Line 2 L+R, balanced XLRF
  • Outputs Zone 1 to 5 L+R, balanced XLRM
  • Input impedance 40k Ohms
  • Output impedance 220 Ohms
  • Frequency response 20Hz - 25kHz, +0/-1dB
  • Signal to noise ratio >100dB
  • THD <0.005%
  • Dimensions 483 x 175 x 44mm
  • Weight 2.2kg
