8 Way IEC Power Distributor

776.496UK CPD-9

Protect your equipment and organise your power distribution with this 19" rack mounting unit.

  • 19" 1U rack mountable
  • 8 rear and 1 front IEC outlets
  • 2 front mounted LED lamps with dimmer control
  • Digital voltmeter displays incoming line voltage
  • Surge protection
  • 10A capacity with circuit breaker
Full description Find retailer
Description Version Packed
776.496UK
CPD-9 19" 8-Way IEC Power Distributor 		Box Label

8 Way IEC Power Distributor

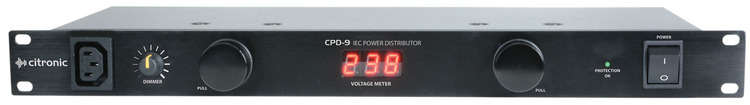

Protect your equipment and organise your power distribution with this 19" rack mounting unit. The front panel features a digital voltage meter and two LED lamps with dimmer control for illuminating your rack.

  • 19" 1U rack mountable
  • 8 rear and 1 front IEC outlets
  • 2 front mounted LED lamps with dimmer control
  • Digital voltmeter displays incoming line voltage
  • Surge protection
  • 10A capacity with circuit breaker
  • Power supply 230Vac, 50Hz
  • Max. output current 10A
  • Outputs IEC, 8 rear & 1 front mounted
  • LED : type 2 x 3W LEDs
  • Dimensions 482 x 178 x 44mm
  • Weight 2.6kg

Downloads

Instruction manual
For 776.496UK (888KB)
UK Declaration of conformity
For 776.496UK (251KB)
EU Declaration of conformity
For 776.496UK (242KB)
