Premium KV-series Ceiling Speakers
5.25" 40W
125.105UK
KV5
Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome… more
- Full 2-way passive crossover

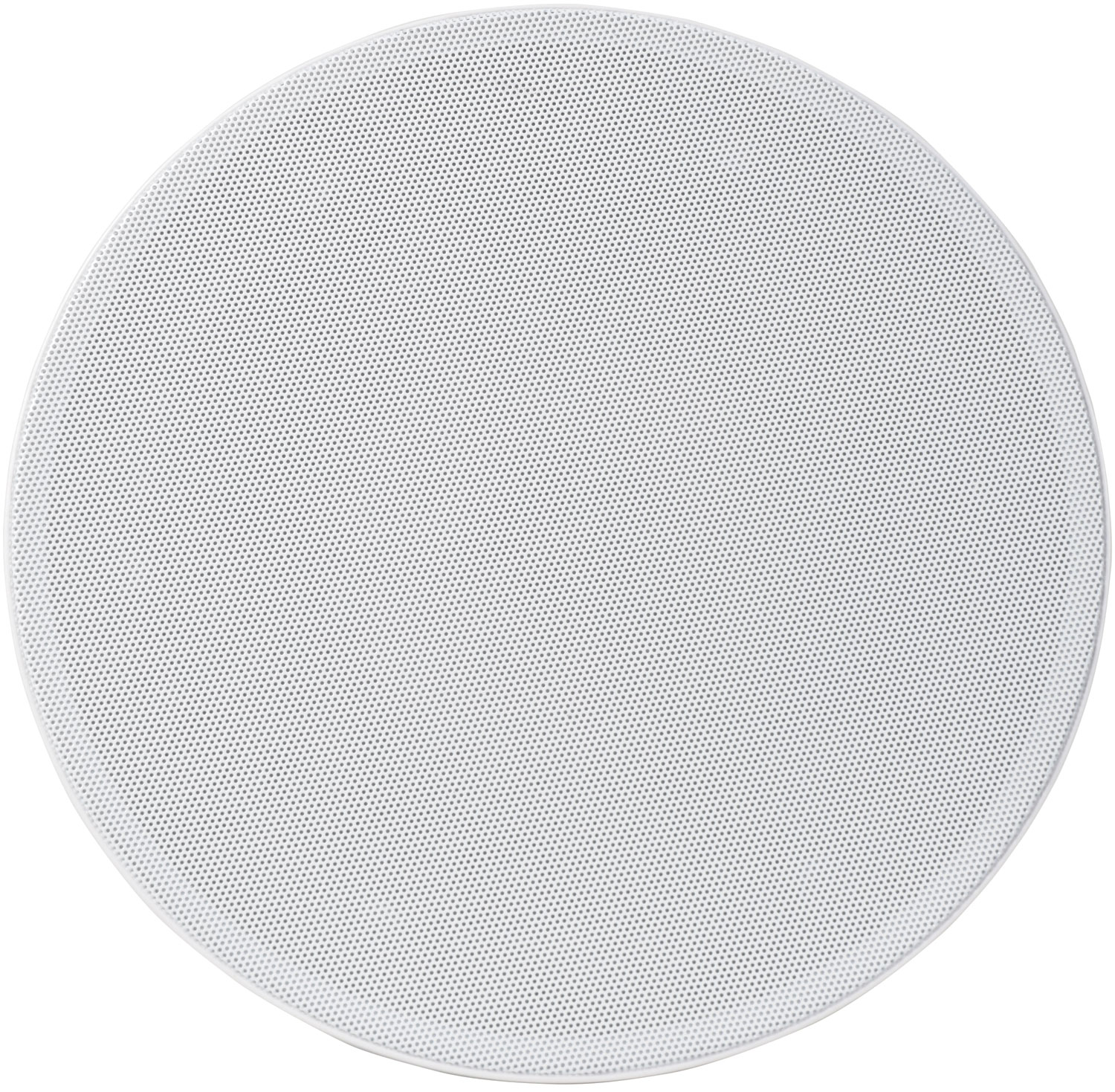

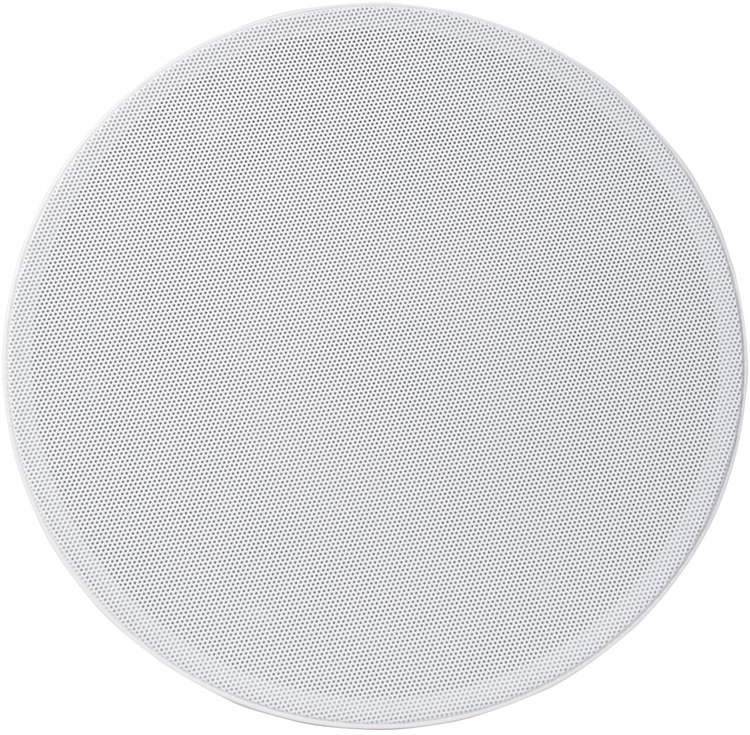

- Magnetic low profile steel grille
- Heavy duty glass-aramid cone
Premium KV-series Ceiling Speakers

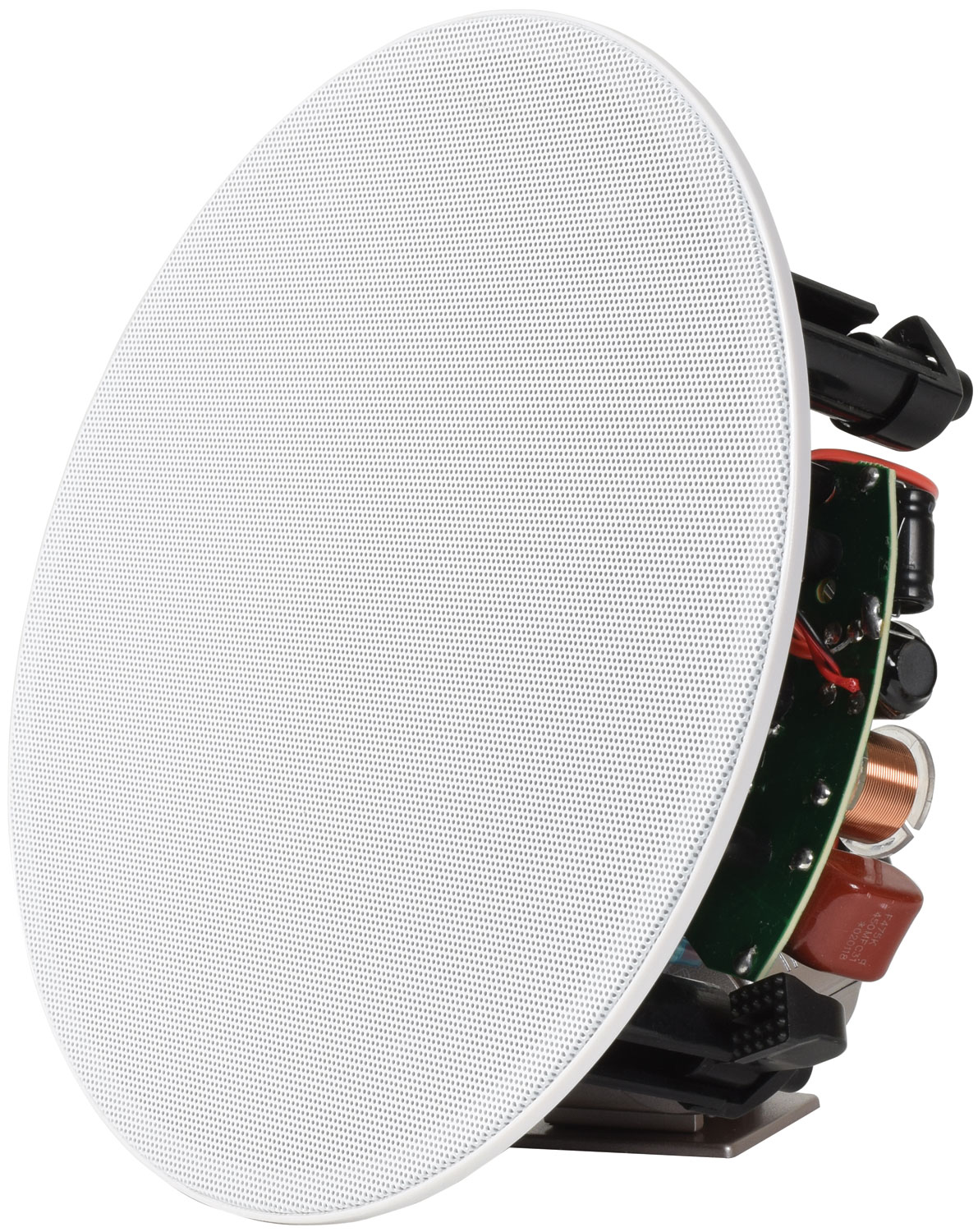

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV speaker is served by a full 2-way passive crossover network, providing an accurate and efficient frequency balance. Designed without compromise to deliver maximum power and quality from this class of ceiling speaker.

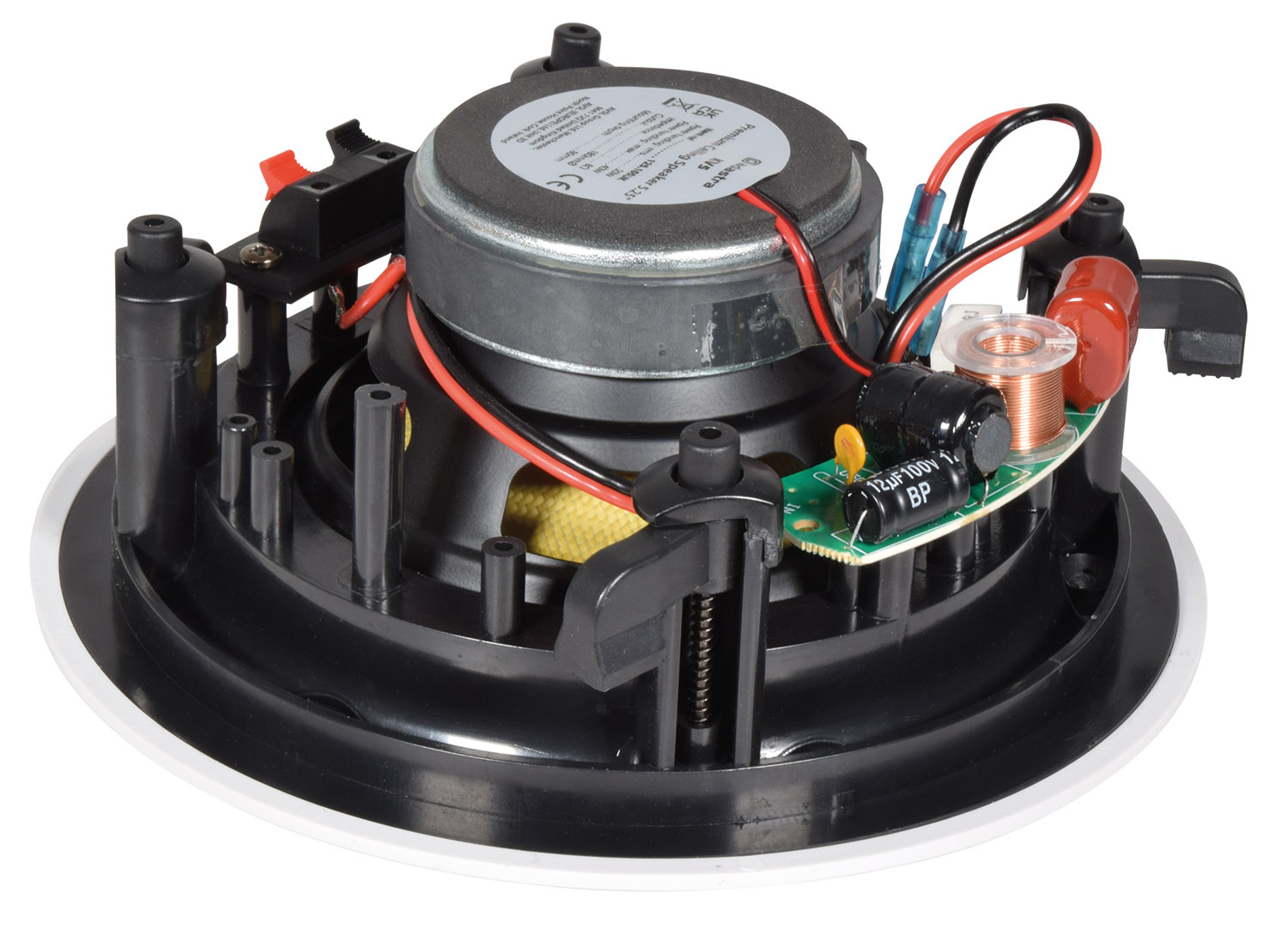

- Full 2-way passive crossover
- Magnetic low profile steel grille
- Heavy duty glass-aramid cone

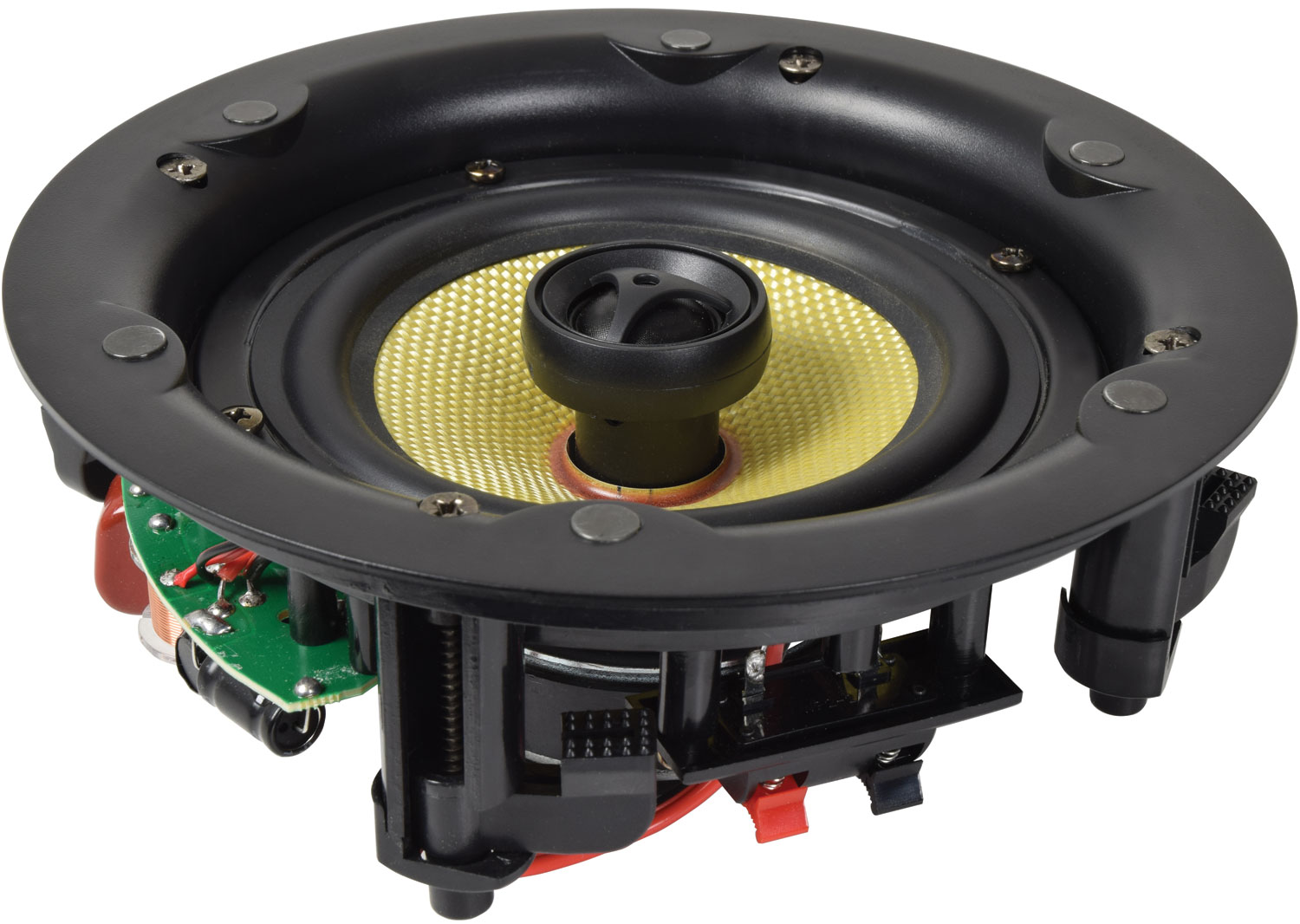

- Braced ABS basket with integral wave guide
- Supplied individually
- Weight 1.054kg
- Dimensions 80 x 206mmØ
- Mounting depth 80mm
- Cutout 180mmØ
- Max. SPL 100dB
- SPL @ 1W/1m 89dB
- Frequency response 80Hz - 20kHz
- Power handling : rms 20W
- Magnet weight 270g
- Main driver 135mmØ (5.25") glass-aramid diaphragm
- Power handling : max 40W
- Construction ABS basket & powder coated steel grille
- Impedance 8 Ohms
- Dispersion angle 120°
- HF driver 25mmØ (1") ASV diaphragm
In the Box
- KV-series premium ceiling speaker
