Fire Dome Ceiling Speakers

952.205UK CF-5D

100V ceiling speakers with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity with spr...

  • EN54-24 certified
  • Supplied with flush mount fire dome
  • 4 x 100V volume tappings
Description Version Packed
952.205UK
Fire Dome EN54 Ceiling Spkr 5.25in 6W
135mm (5.25") Box Printed
952.206UK
Fire Dome EN54 Ceiling Spkr 6.5in 6W
165mm (6.5") Box Printed

Fire Dome Ceiling Speakers

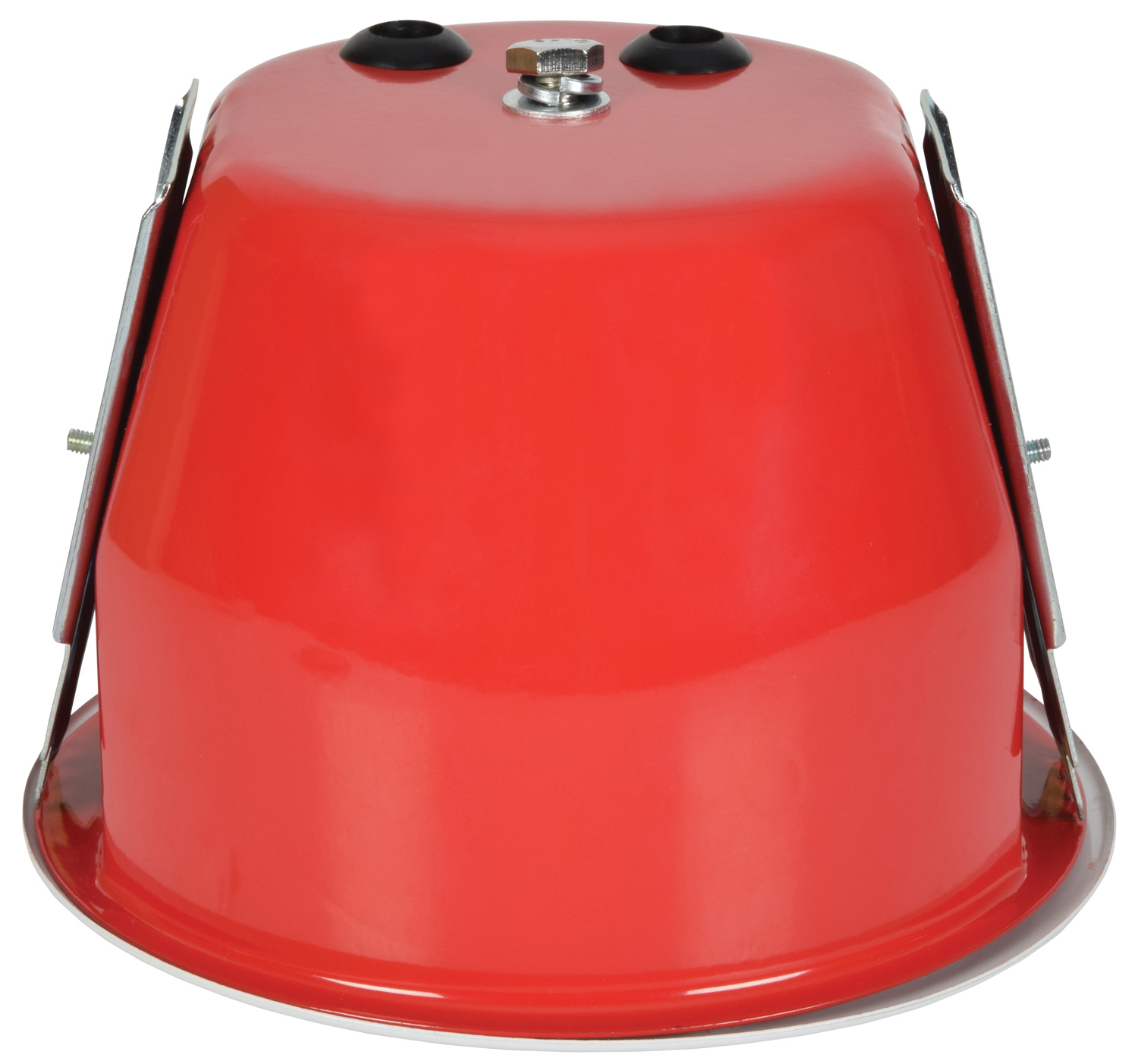

100V ceiling speakers with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity with spring loaded wire fitting for the speaker unit to pull into the dome for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tappings at 100V. Certified to EN54 standard for compliance with fire detection and alarm systems requirements.

  • EN54-24 certified
  • Supplied with flush mount fire dome
  • 4 x 100V volume tappings
  • Spring loaded speaker retainers
  • All metal frame and basket
  • Fire-resistant cable to 95°C
  • Ceramic screw terminals

Specification : Common

  • 100V line tappings 0.75W, 1.5W, 3W, 6W
  • Fire rating EN54-24
  • SPL @ 1W/1m 92dB
  • Frame material Steel (powder coated)

Specification : Versions

  952.205UK 952.206UK
Frequency response 130Hz - 15kHz 120Hz - 18kHz
Cutout 160mmØ 204mmØ
Driver 135mmØ (5.25") reinforced paper cone 165mmØ (6.5") reinforced paper cone

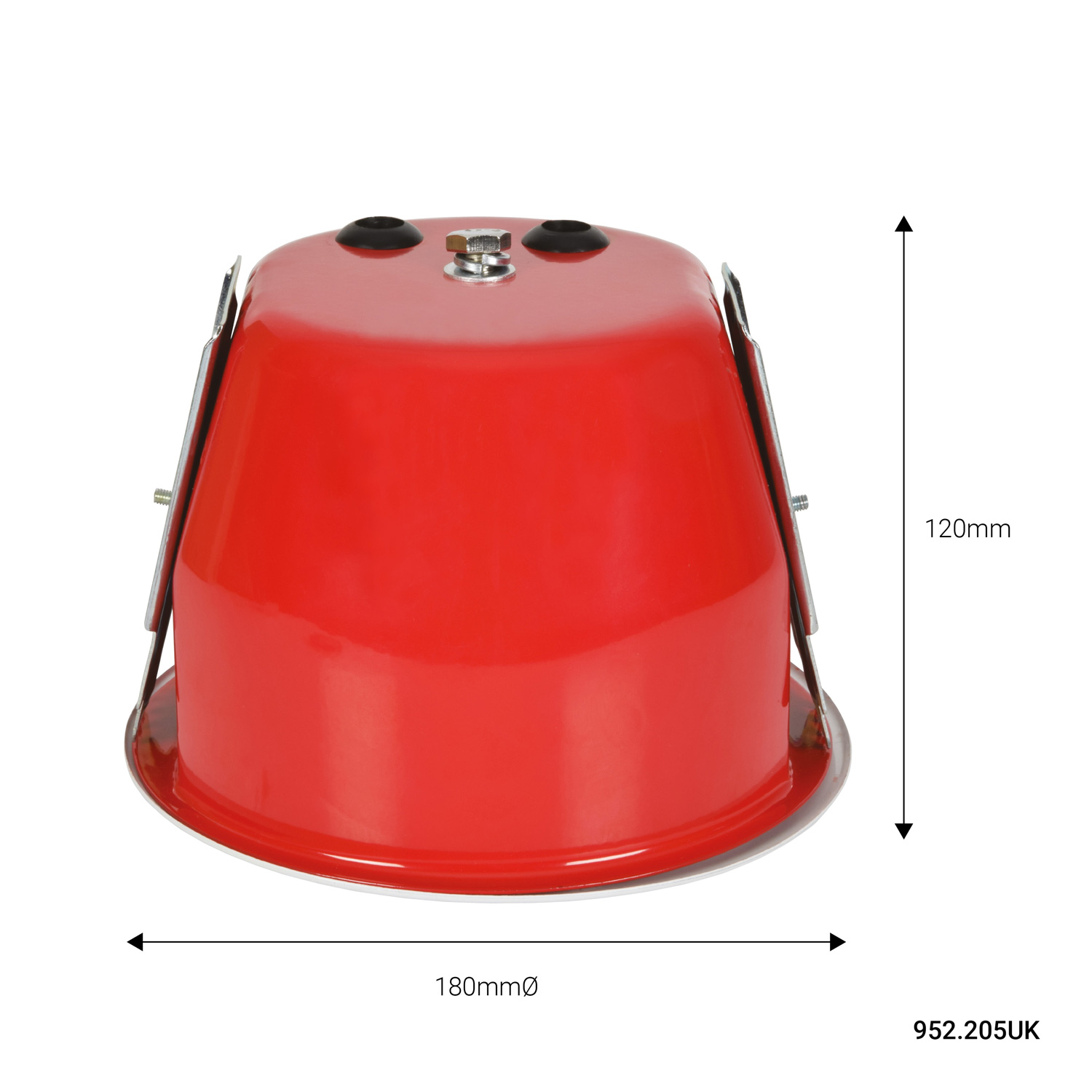

Dimensions 120 x 180mmØ 135 x 235mmØ
Weight 1.23kg 1.58kg

Trade information

  952.205UK 952.206UK
Barcode / EAN 5015972213018 5015972213032
Package type Box Printed Box Printed
Package dimensions 240 x 240 x 180mm 240 x 240 x 140mm
Package weight 1.78kg 1.82kg
Package quantity 1 unit 1 unit
Carton dimensions 370 x 490 x 510mm 300 x 490 x 510mm
Carton weight 15.80kg 16.40kg
Carton quantity 8 packages 8 packages

In the box

The box for this item contains :

  • Metal frame 100V ceiling speaker
  • Metal fire dome
