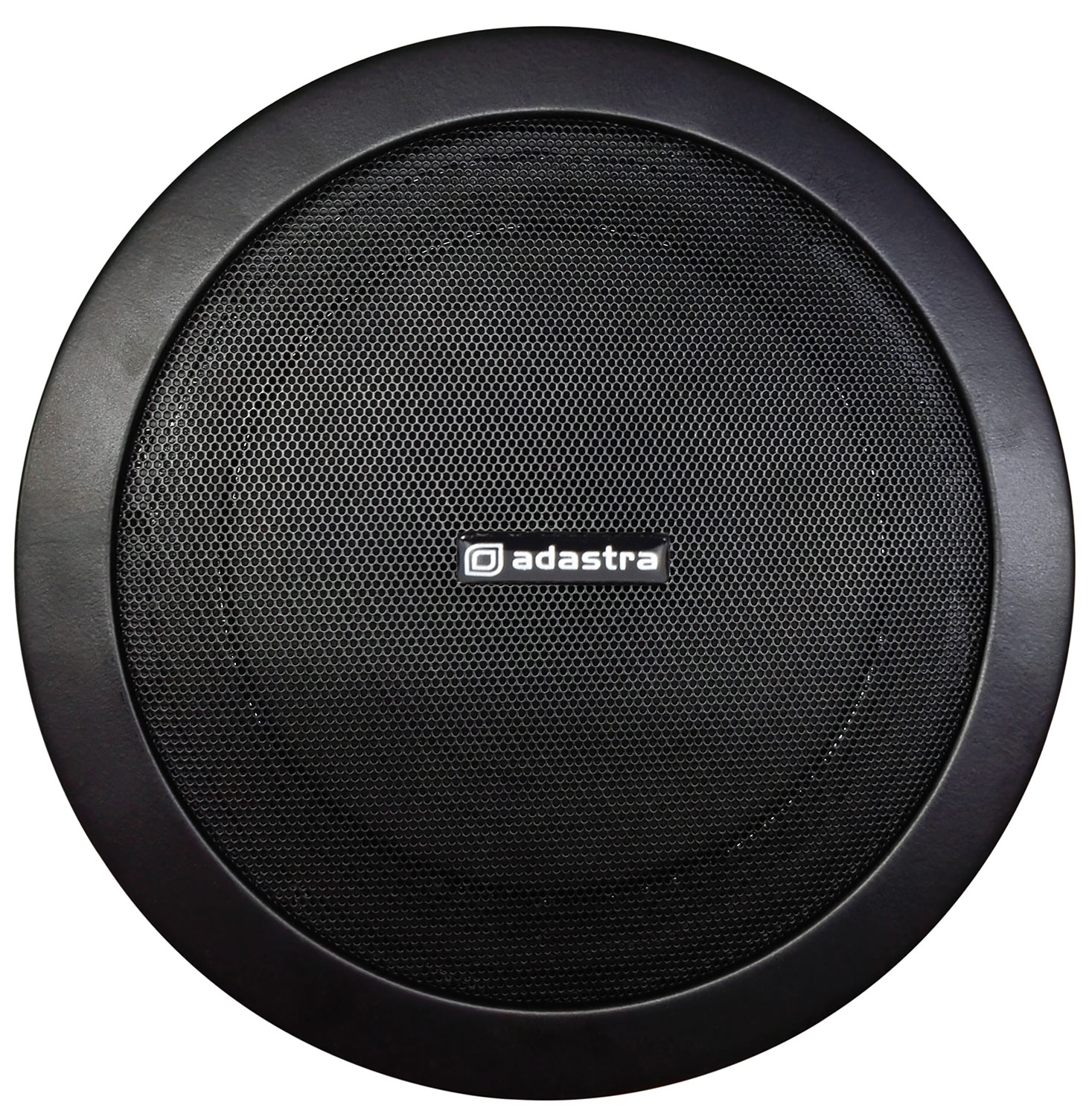

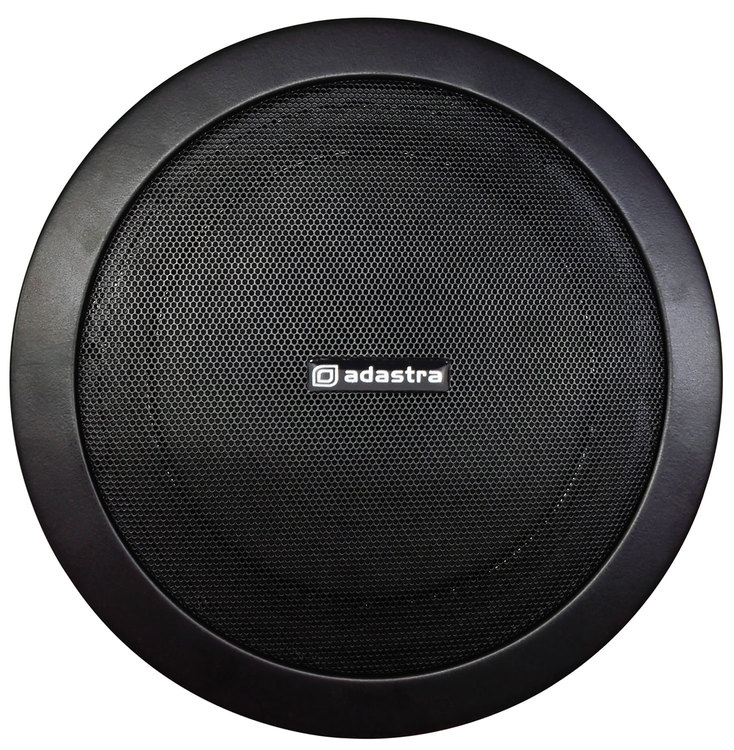

Metal Quick Fit 100V Ceiling Speakers

952.178UK EC56V-B

Metal framed ceiling speakers with a quick-fit design, suitable for mounting into almost any material. All metal, flush fit grille fitted with quality speaker and 100V line transformer tapped at 1....

  • Easy quick-fit mechanism
  • Slimline flush fitting grille
  • Tappings @ 1.5W, 3W, 6W
Description Version Packed
952.168UK
Metal Quick Fit 100V Ceiling Speaker 5.25in 6W white
5.25" white Box Label
952.178UK
Metal Quick Fit 100V Ceiling Speaker 5.25in 6W black
5.25" black Box Label

Metal Quick Fit 100V Ceiling Speakers

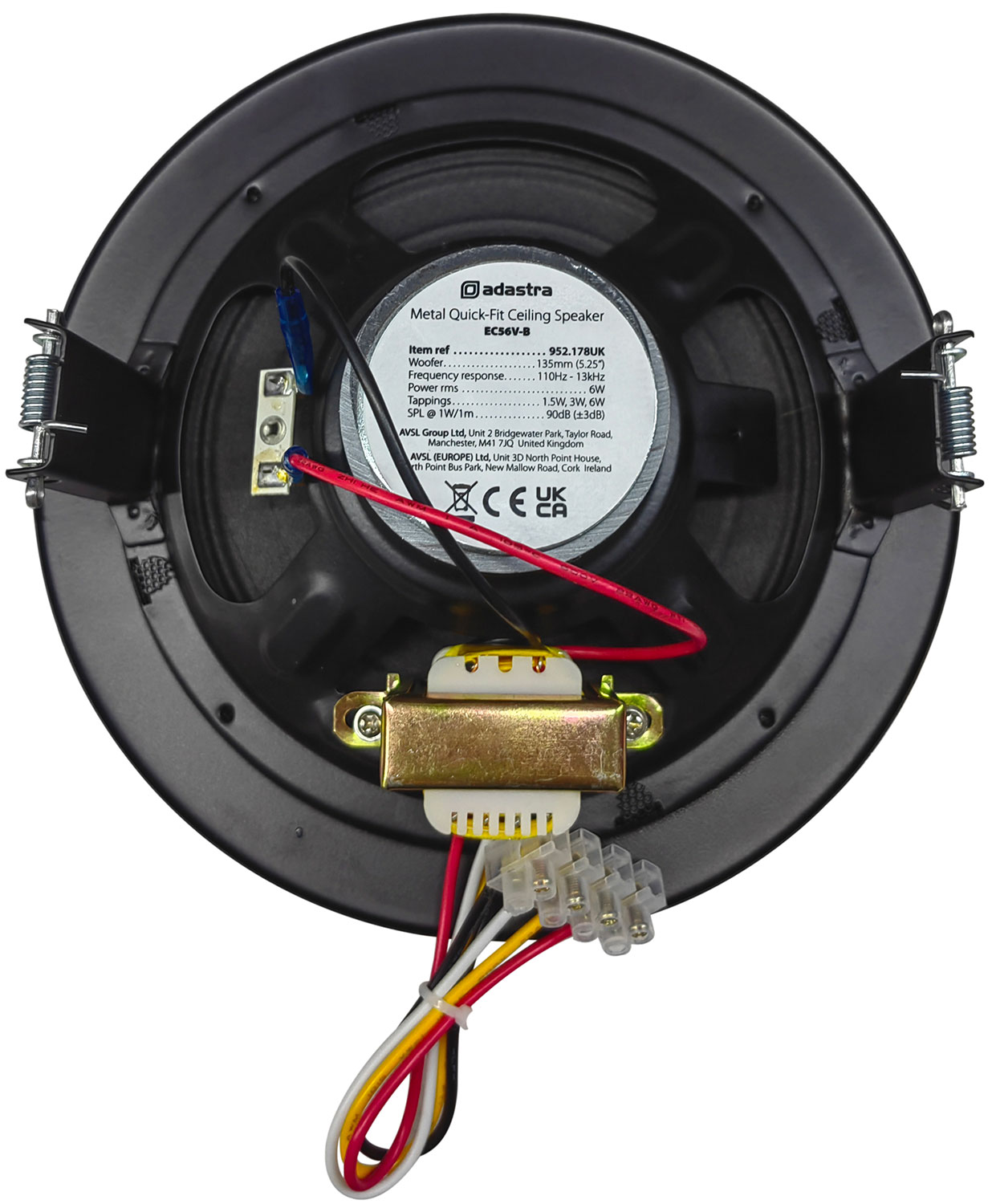

Metal framed ceiling speakers with a quick-fit design, suitable for mounting into almost any material. All metal, flush fit grille fitted with quality speaker and 100V line transformer tapped at 1.5W, 3W and 6W.

  • Easy quick-fit mechanism
  • Slimline flush fitting grille
  • Tappings @ 1.5W, 3W, 6W
  • Material Metal
  • Dispersion angle 155°
  • Power rms : 100V line 6W
  • Mounting depth 57mm
  • Frequency response 110Hz - 13kHz
  • SPL @ 1W/1m 90dB (±3dB)
  • Tappings 1.5, 3, 6W
  • Weight 638g

Versions

  952.168UK 952.178UK
Driver 135mm (5.25") 135mm (5.25")
Cutout 165mmØ 165mmØ
Dimensions 60 x 197mmØ 60 x 197mmØ
Weight 638g 638g
Colour White Black

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Dispersion angles

Each ceiling speaker in an installation is capable of effectively providing coverage to an area defined by its dispersion angle. Here we show how to calculate the spacing of speakers to cover your installation

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • Metal framed ceiling speaker

Downloads

UK Declaration of conformity
For 952.178UK (244KB)
EU Declaration of conformity
For 952.178UK (235KB)
