Outdoor Amplified HDTV Aerial for Caravans and Boats

120.910UK OT20A

Outdoor HDTV aerial specially designed for camping and marine use and compatible with Digital Terrestrial TV and DAB/FM radio signals. The built-in amplifier gives a clear picture even if the signa...

  • Compatible with Digital Terrestrial TV and DAB/FM radio signals

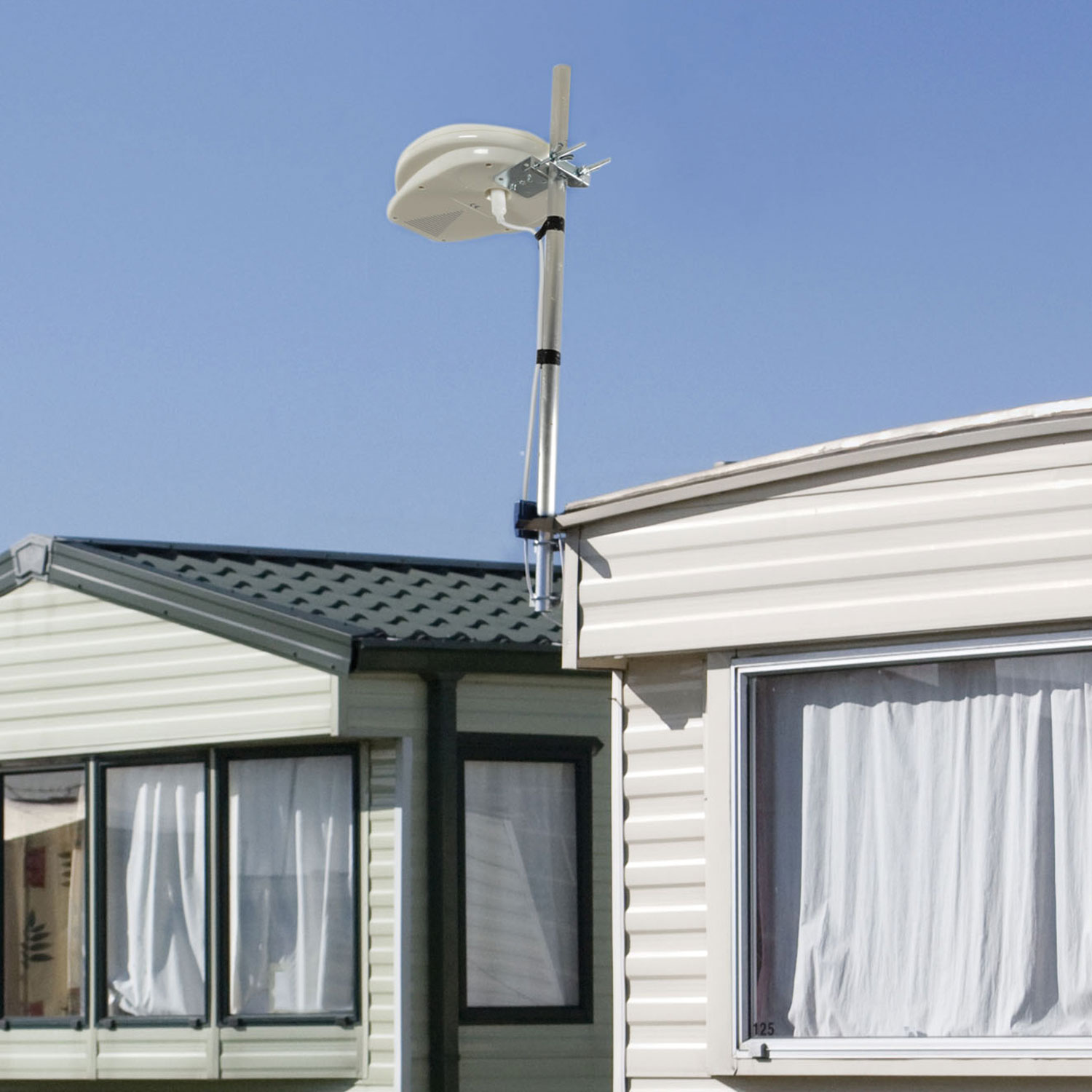

  • Ideal for installation on caravans, campers or boats
  • Unidirectional with built-in high gain amplifier
Description Version Packed
120.910UK
Outdoor Amplified HDTV Aerial for Caravans and Boats
Hanging Giftbox

Outdoor Amplified HDTV Aerial for Caravans and Boats

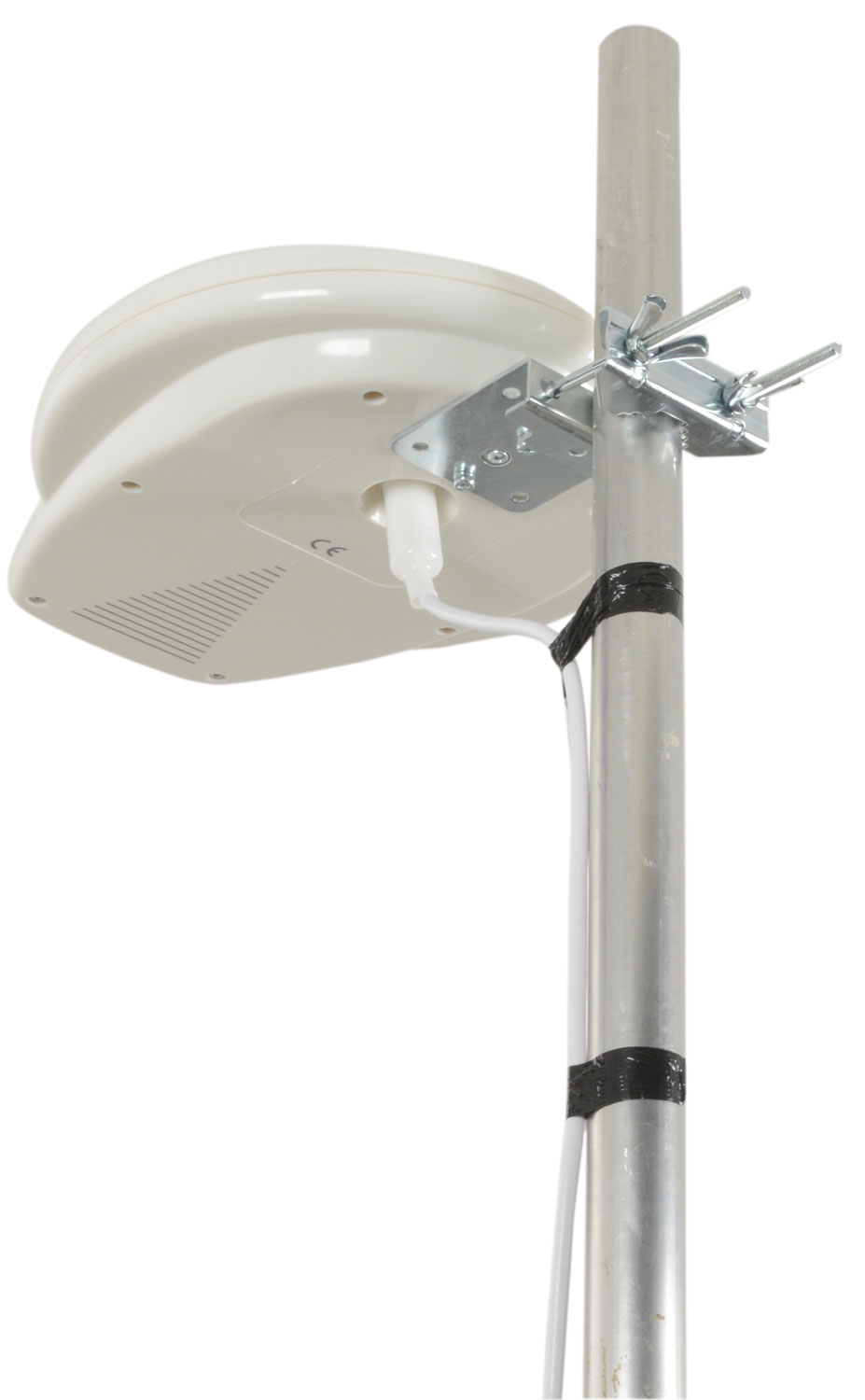

Outdoor HDTV aerial specially designed for camping and marine use and compatible with Digital Terrestrial TV and DAB/FM radio signals. The built-in amplifier gives a clear picture even if the signal reception is weak. Can be mounted on a pole of up to 38mmØ using the clamp supplied.

  • Compatible with Digital Terrestrial TV and DAB/FM radio signals
  • Ideal for installation on caravans, campers or boats
  • Unidirectional with built-in high gain amplifier

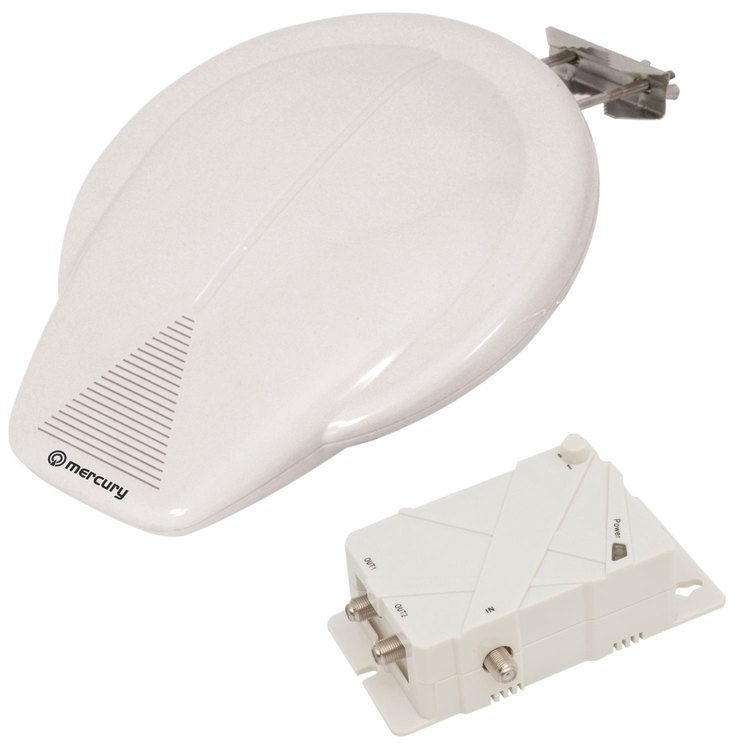

  • Features a splitter to connect a second radio or TV set

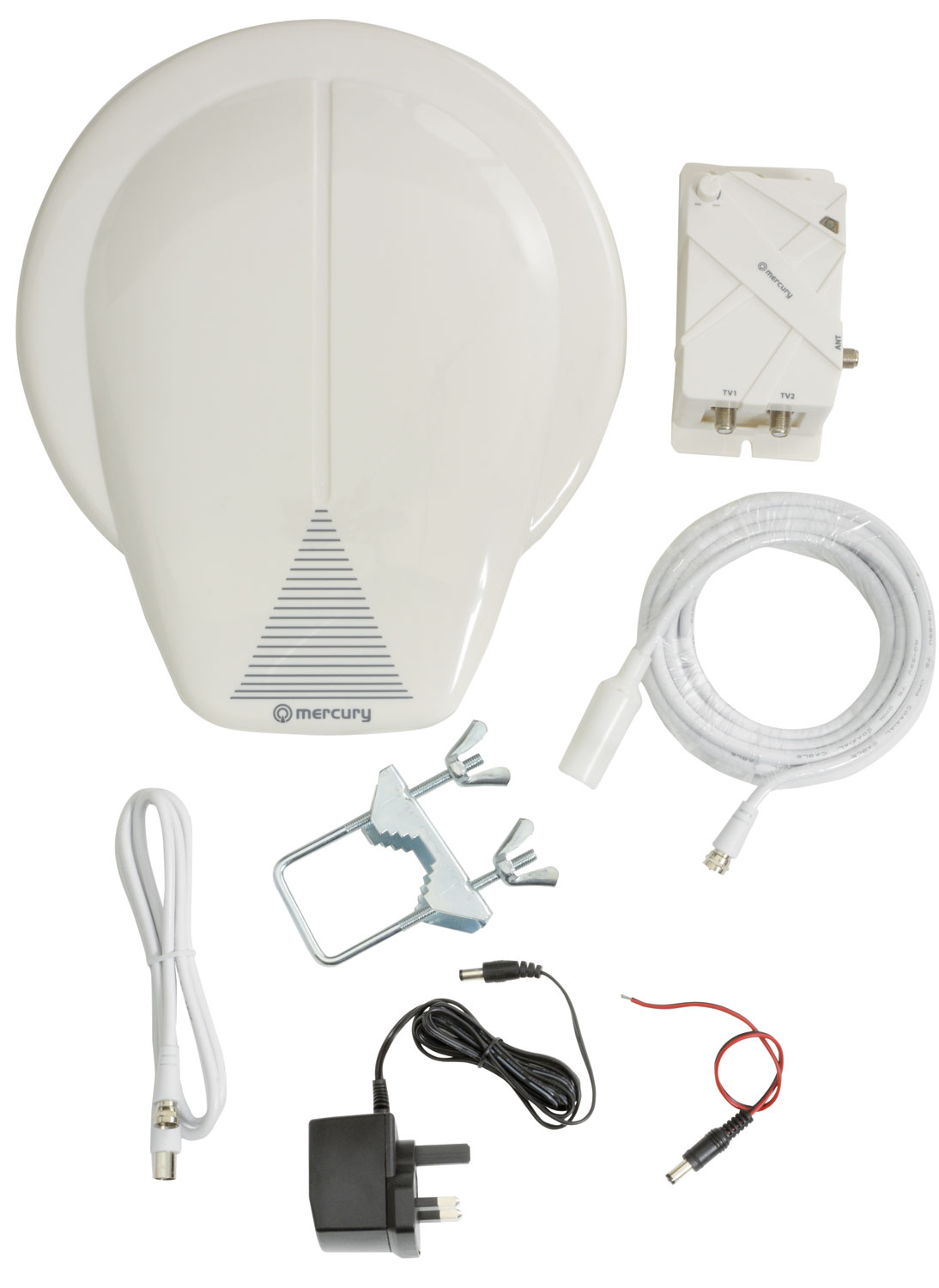

  • Supplied with mounting materials, 6m connection cable and power supply

Specification

  • Frequency range : UHF 470MHz - 862MHz
  • Frequency range : VHF 40MHz - 230MHz
  • Impedance 75 ohms
  • Gain : UHF 20dB
  • Gain : VHF 20dB
  • Max. loss 2dB
  • Output level 100dBµV max.
  • Power supply 230Vac, 50Hz (3W) / 12Vdc, 50mA
  • Dimensions 260 x 334 x 80mm
  • Weight 1.5kg

Trade information

  120.910UK
Barcode / EAN 5015972021811
Package type Hanging Giftbox
Package dimensions 90 x 310 x 331mm
Package weight 1.69kg
Package quantity 1 unit
Carton dimensions 480 x 640 x 350mm
Carton weight 16.92kg
Carton quantity 10 packages
Pack paper weight 0.01kg
Pack plastic weight 0.01kg

Support

Instruction manual
For 120.910UK (138KB)
