4K HDMI Digital Audio Extractor

128.514UK

A simple USB powered HDMI to HDMI unit that extracts digital optical and/or analogue audio from a HDMI source signal. Easy to install and operate, this handy little device is ideal for use with gam...

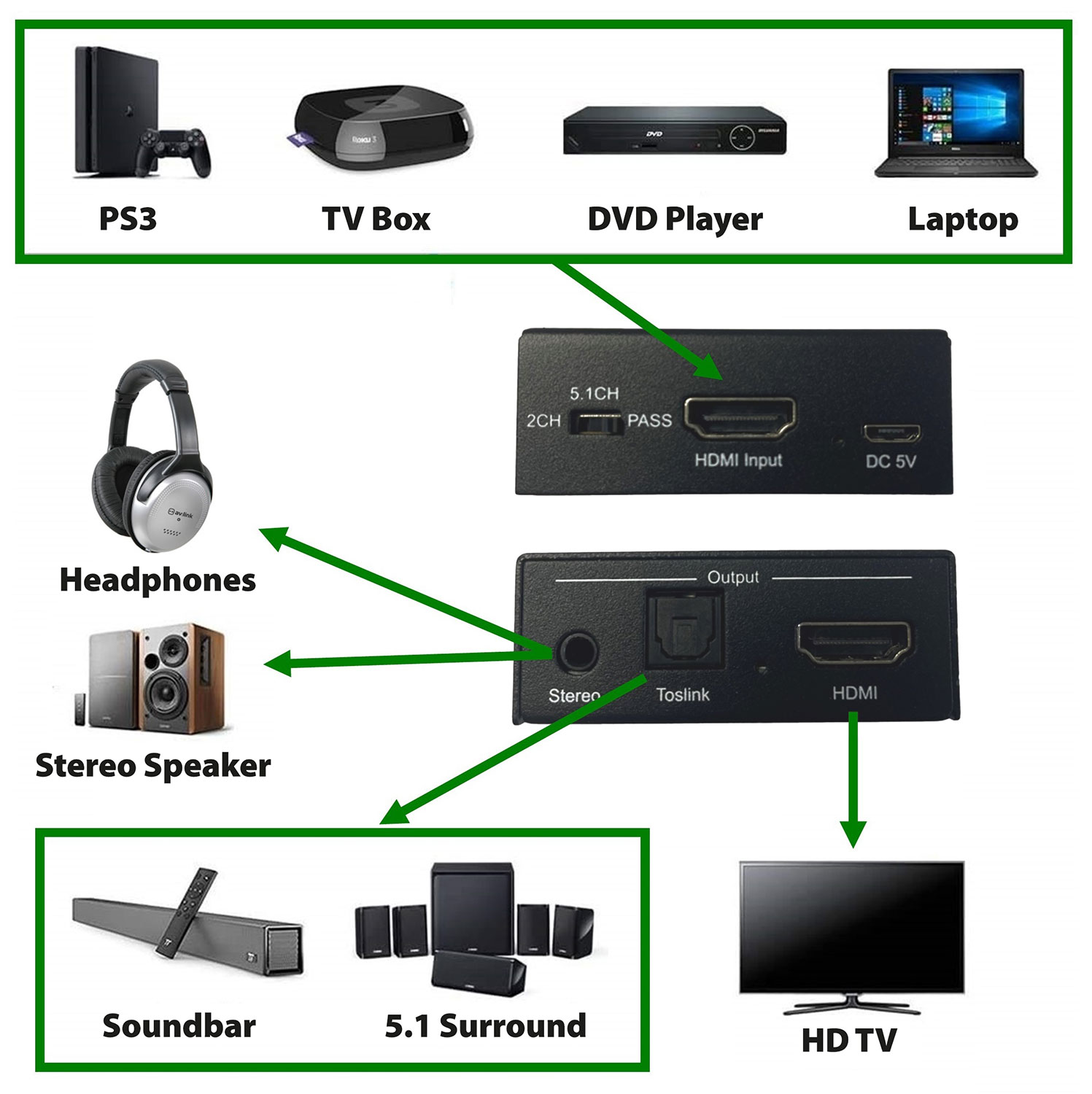

  • Extracts digital optical (Toslink) and/or Analogue (3.5mm headphone) audio signals from a single HDMI source device
  • Simple plug and play installation and instant synchronisation without delay
  • Supports HDMI v1.4b input/output resolutions up to 2160p @ 30Hz
Full description Find retailer
Description Version Packed
128.514UK
4K HDMI Digital Audio Extractor 		Gift Box

4K HDMI Digital Audio Extractor

A simple USB powered HDMI to HDMI unit that extracts digital optical and/or analogue audio from a HDMI source signal. Easy to install and operate, this handy little device is ideal for use with games consoles, LED TVs, projectors and Blu-ray players that have no optical audio or 3.5mm headphone output.

  • Extracts digital optical (Toslink) and/or Analogue (3.5mm headphone) audio signals from a single HDMI source device
  • Simple plug and play installation and instant synchronisation without delay
  • Supports HDMI v1.4b input/output resolutions up to 2160p @ 30Hz
  • USB power lead supplied

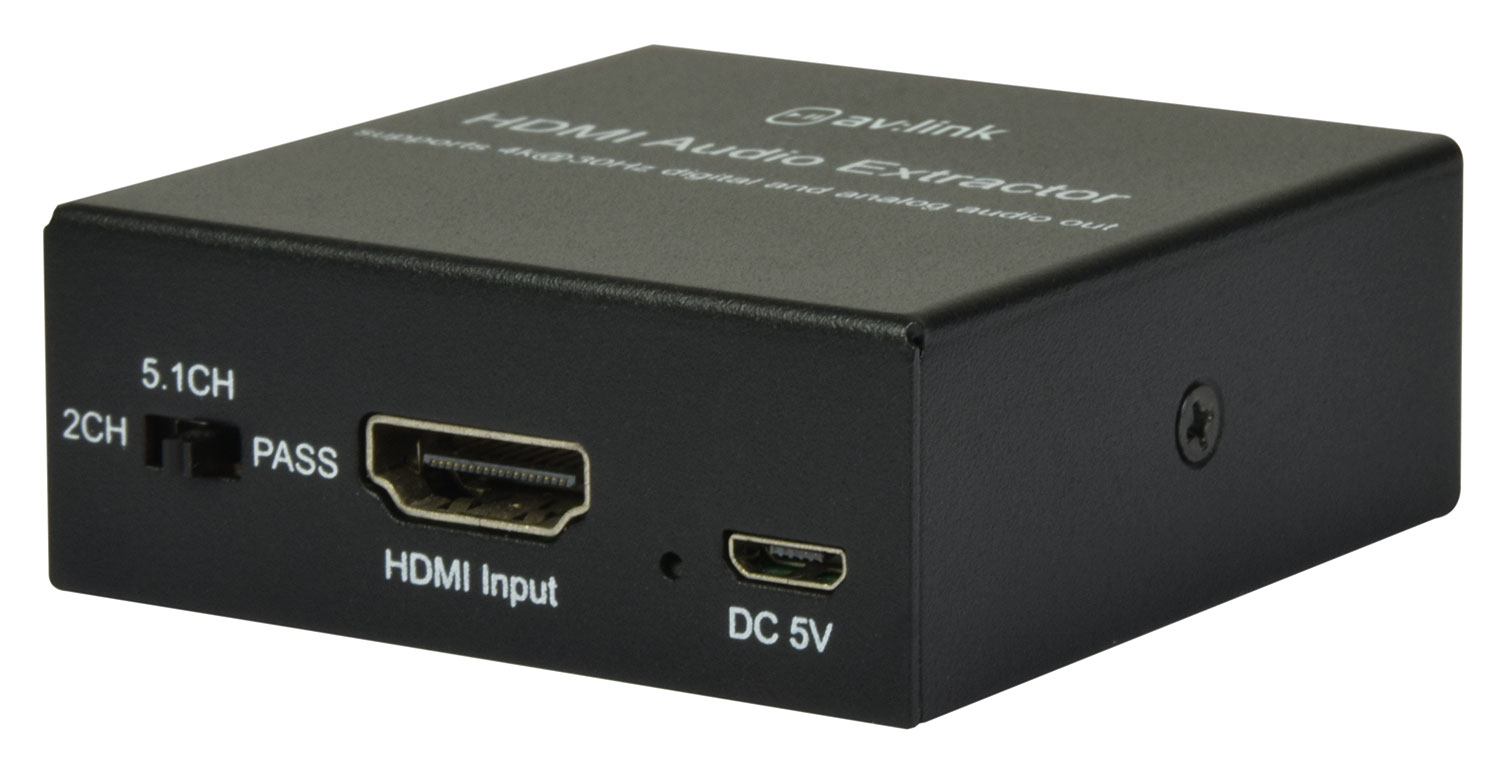

  • Input connections HDMI (4K)

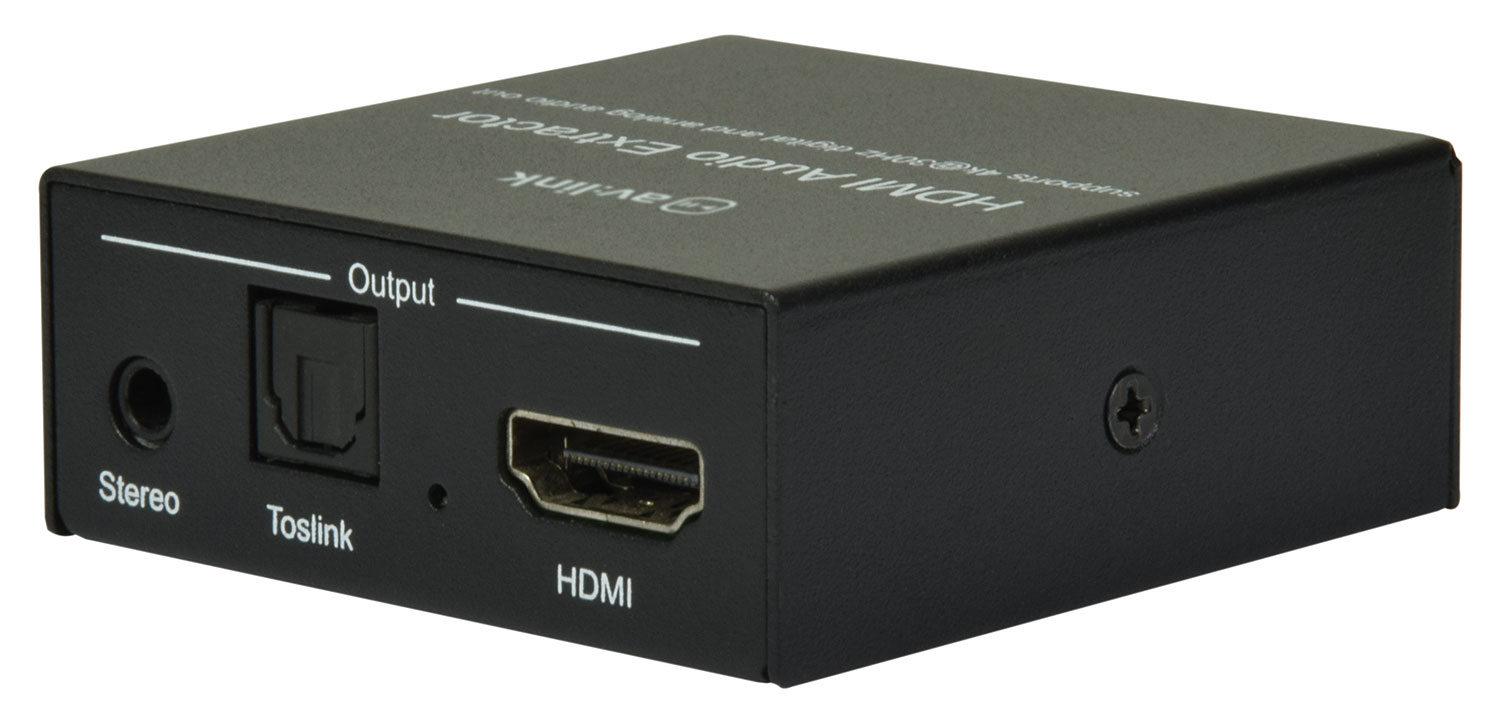

  • Output connections HDMI (4K), Optical (Toslink), 3.5mm (Stereo)
  • Video resolution Up to 3840 x 2160 @ 30Hz
  • HDMI version 1.4b
  • HDCP version 1.4
  • Audio output Stereo, DSD and HD (HBR)
  • Power : input DC/5V (micro USB)
  • Dimensions 60 x 58 x 22mm
  • Weight 102g

In the box

The box for this item contains :

  • DAC Extractor

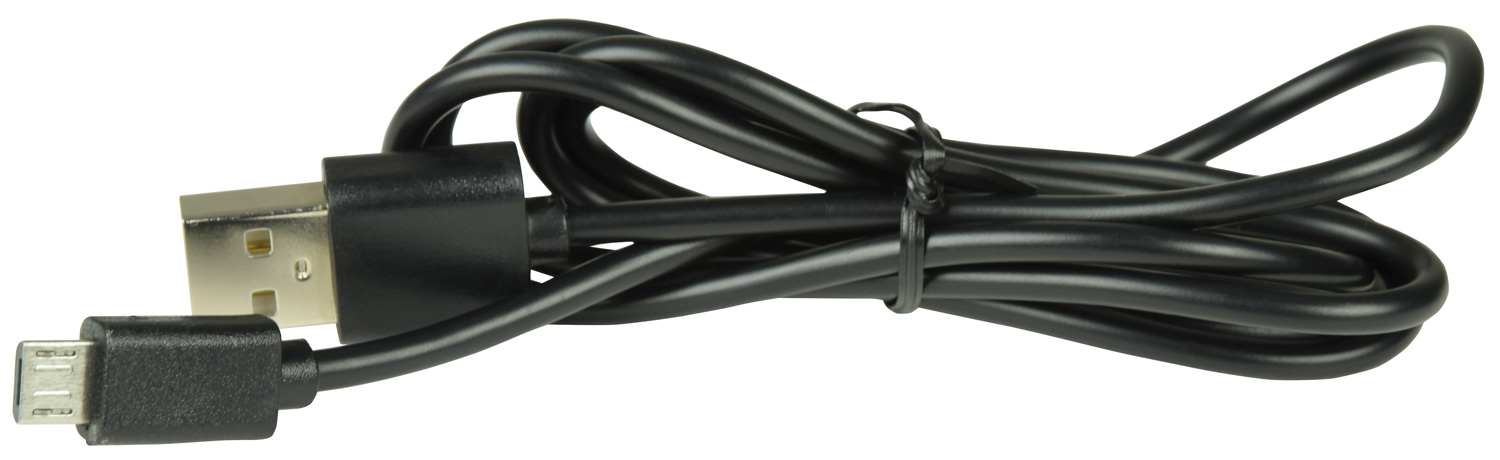

  • USB power lead (1.2m)
  • User guide

Downloads

Instruction manual
For 128.514UK (224KB)
UK Declaration of conformity
For 128.514UK (246KB)
EU Declaration of conformity
For 128.514UK (234KB)
