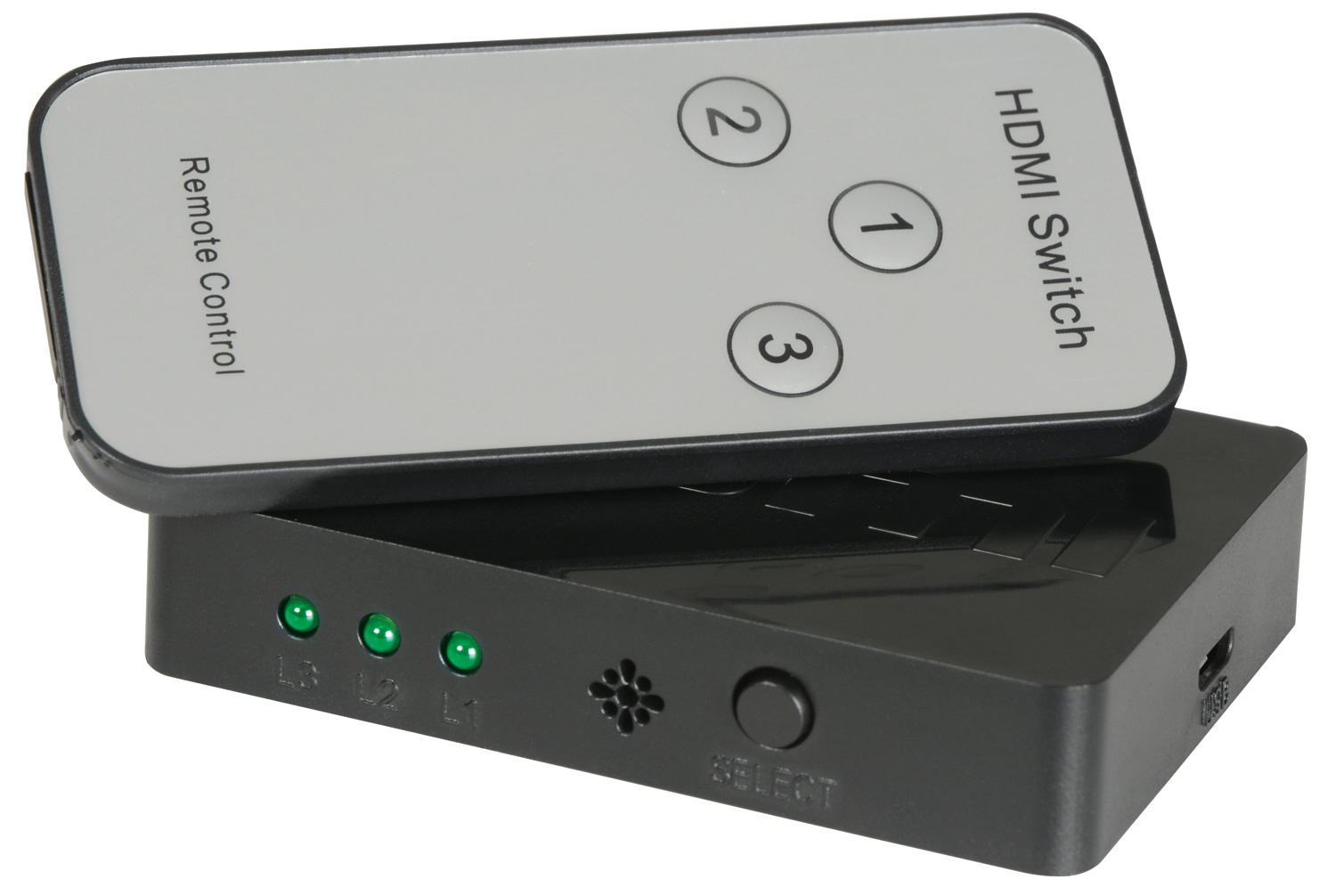

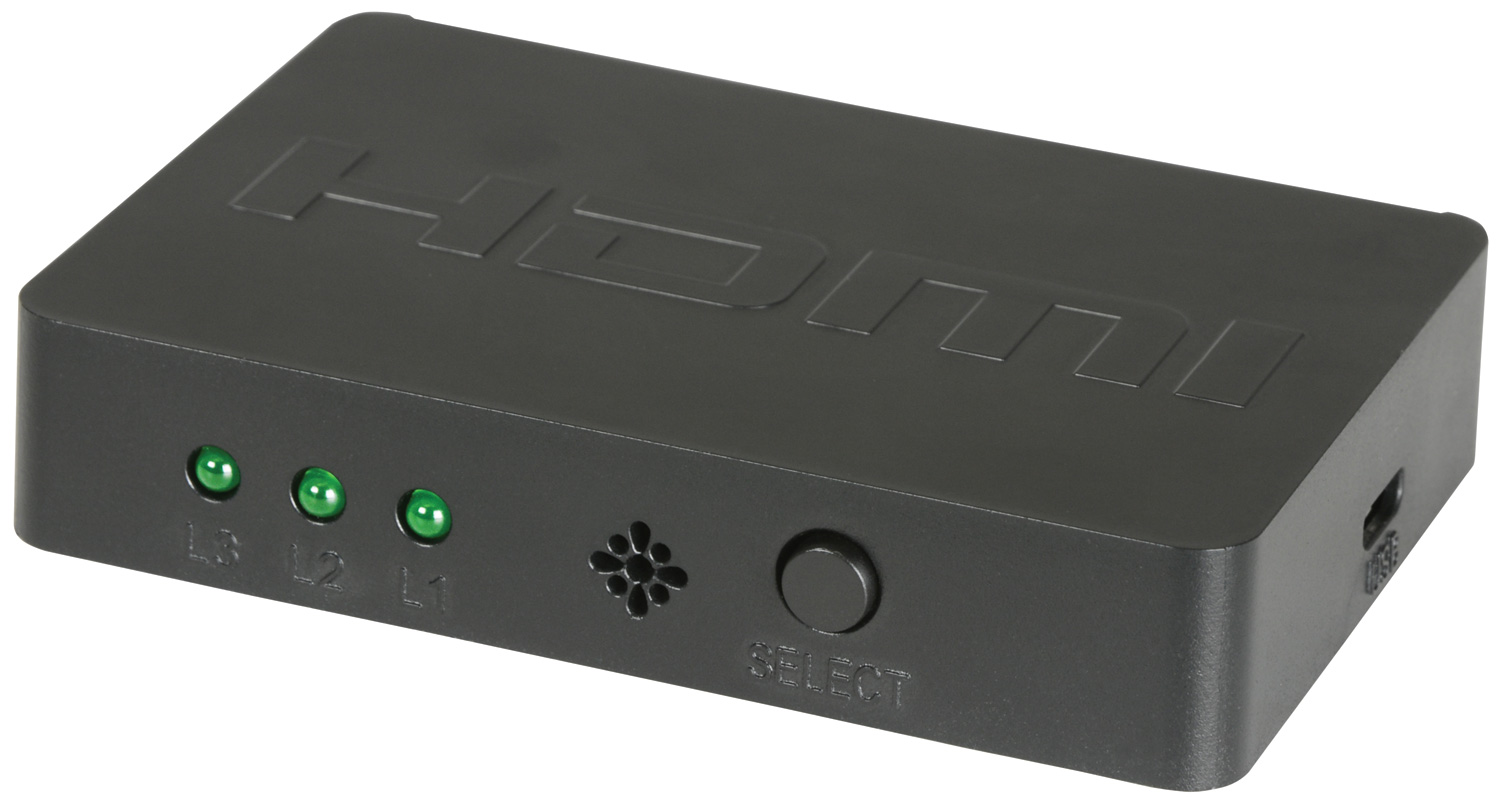

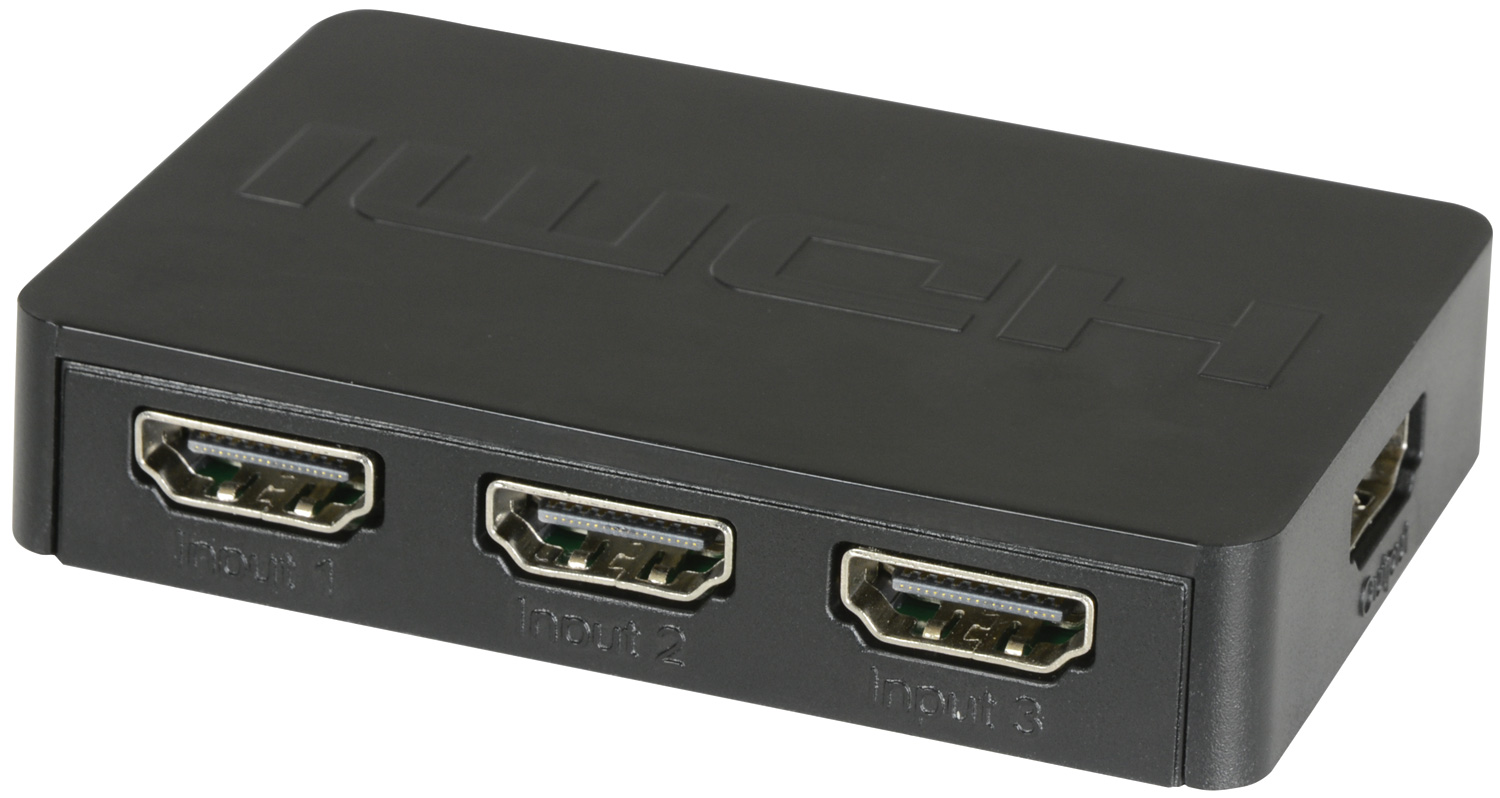

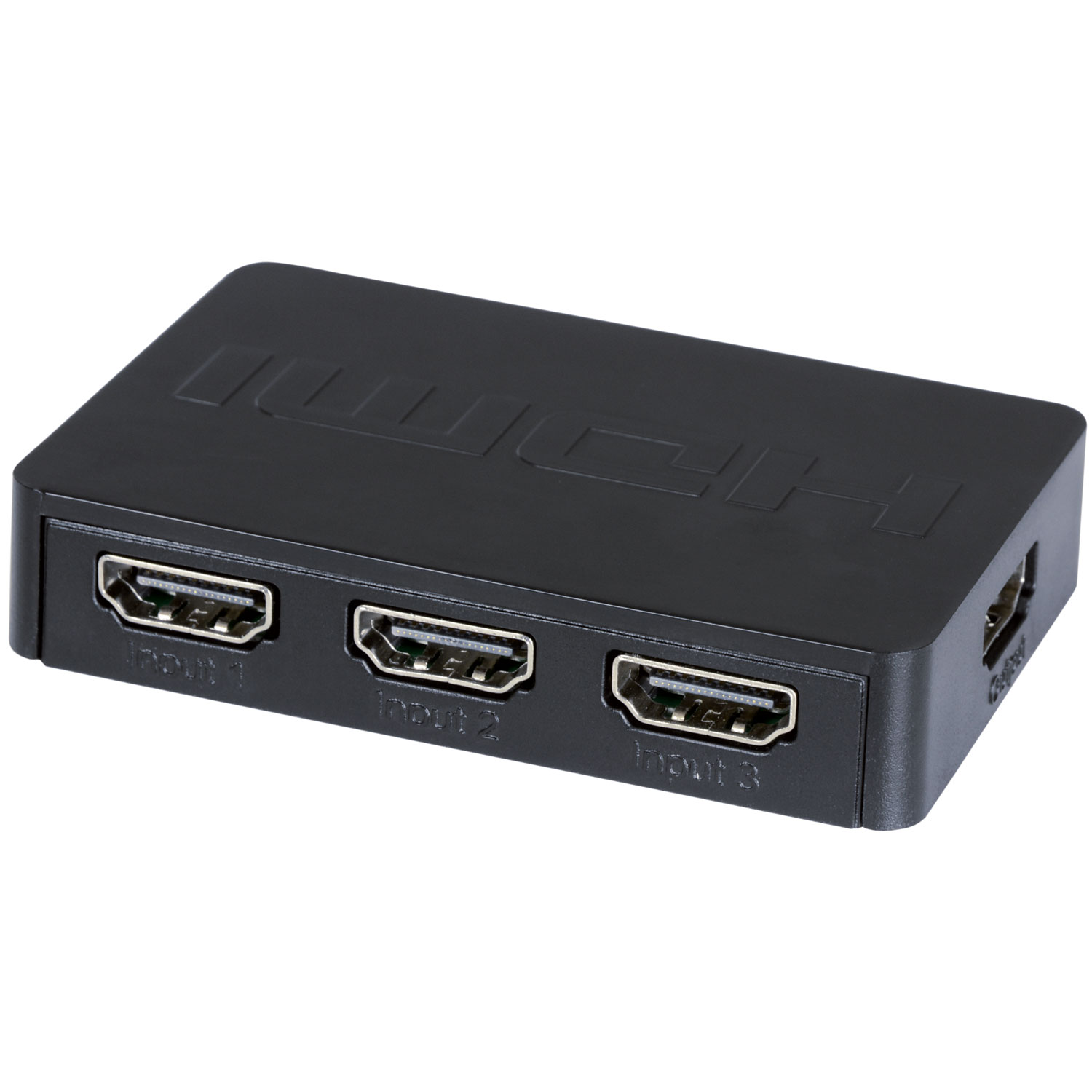

Mini HDMI Switch 3x1 with IR Remote Control

128.820UK HDP31M

This mini HDMI switch allows a single display to be connected to up to 3 HDMI sources and selected using the IR remote control or selection button on the unit. Front LEDs keep you informed as to wh...

  • Small form factor chassis
  • No power needed, works using the power carried by the HDMI cables
  • Live input LEDs
Full description Find retailer
Description Version Packed
128.820UK
Mini HDMI Switch 3x1 w/IR 		Gift Box

Mini HDMI Switch 3x1 with IR Remote Control

This mini HDMI switch allows a single display to be connected to up to 3 HDMI sources and selected using the IR remote control or selection button on the unit. Front LEDs keep you informed as to which of the inputs is live at any one time.

  • Small form factor chassis
  • No power needed, works using the power carried by the HDMI cables
  • Live input LEDs
  • Supports 4K, up to full HD 1080p, 3D and 8bit deep colour image formats
  • Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD audio formats
  • HDCP2.2 Compliant
  • Supplied with IR Remote Control
  • HDMI version 1.4a
  • Video format Up to 4K, 1080p @ 60Hz, 3D, 8bit deep colour
  • Audio format DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD
  • Operating temperature range -15 to +55°C
  • Max. bandwidth 340MHz
  • Max. baud rate 3.4Gbps
  • Max. working current 150mA
  • Dimensions 77 x 56 x 15mm
  • Weight 40g
  • Battery : remote CR2025 (supplied)

In the box

The box for this item contains :

  • HDMI Switch 3x1
  • IR Remote control

Downloads

Instruction manual
For 128.820UK (158KB)
UK Declaration of conformity
For 128.820UK (245KB)
EU Declaration of conformity
For 128.820UK (236KB)
