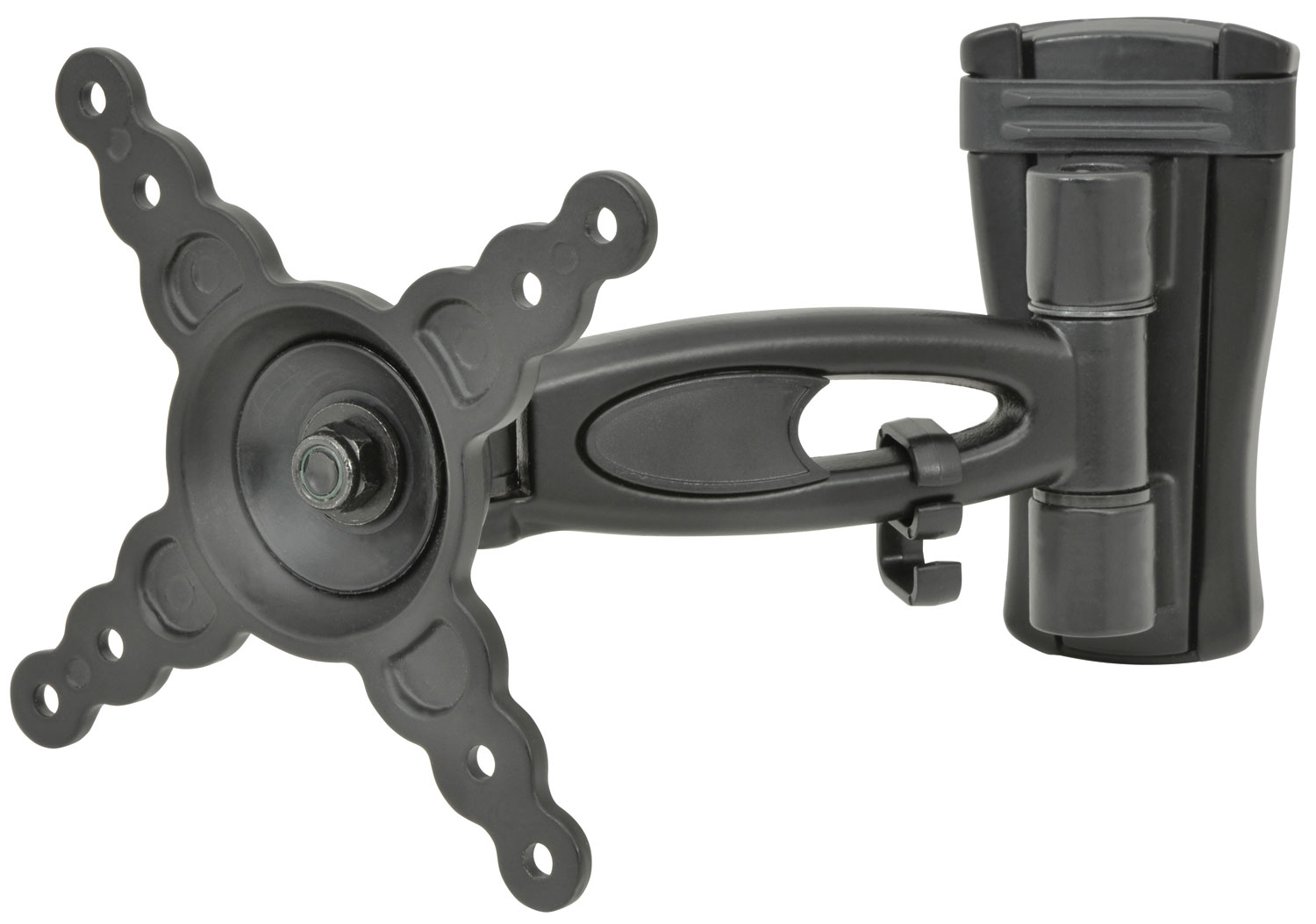

Single Arm Full Motion TV/Monitor Wall Mount Bracket

129.511UK HQO201

A single arm, fully adjustable steel wall bracket suitable for mounting screens from 13" to 40". Its stylish yet sturdy design can both tilt and swivel to provide you with the ideal viewing angle. ...

  • Suitable for mounting screens sized 13" to 40"
  • VESA 75 and 100 hole patterns

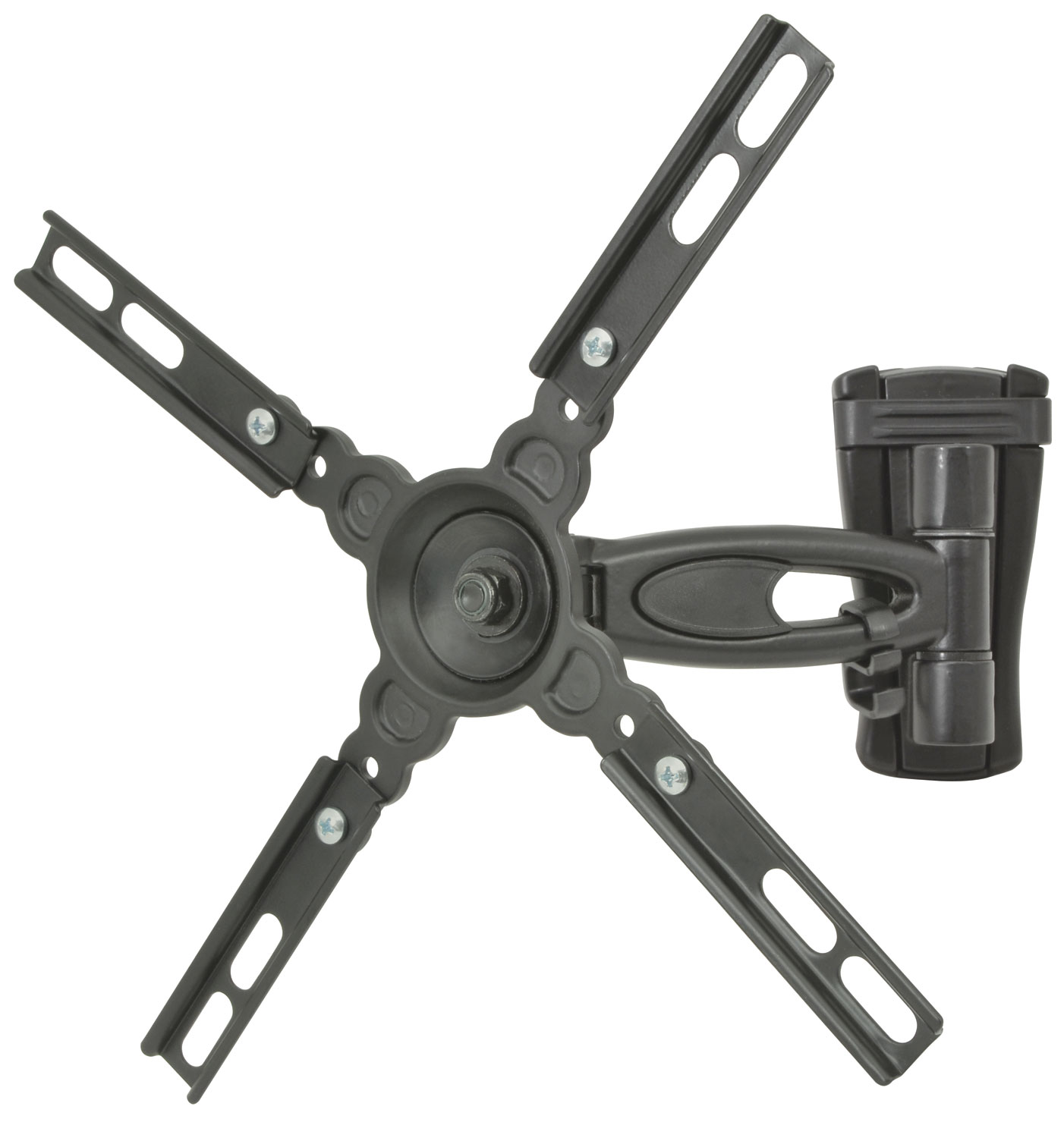

  • VESA 200 hole pattern adaptors included
Description Version Packed
129.511UK
Compact Full Motion Single Arm TV/Monitor Wall Bracket 13" to 40"
200x200 Max (13-40") Gift Box

Single Arm Full Motion TV/Monitor Wall Mount Bracket

A single arm, fully adjustable steel wall bracket suitable for mounting screens from 13" to 40". Its stylish yet sturdy design can both tilt and swivel to provide you with the ideal viewing angle. Supplied with integrated spirit level, cable retainer and fixing kit.

  • Suitable for mounting screens sized 13" to 40"
  • VESA 75 and 100 hole patterns
  • VESA 200 hole pattern adaptors included
  • Swivels 180° from wall connection point and 180° from arm
  • -5° to 15° tilt mechanism
  • Integrated spirit level and cable retainer
  • Built-in lock for safety and stability

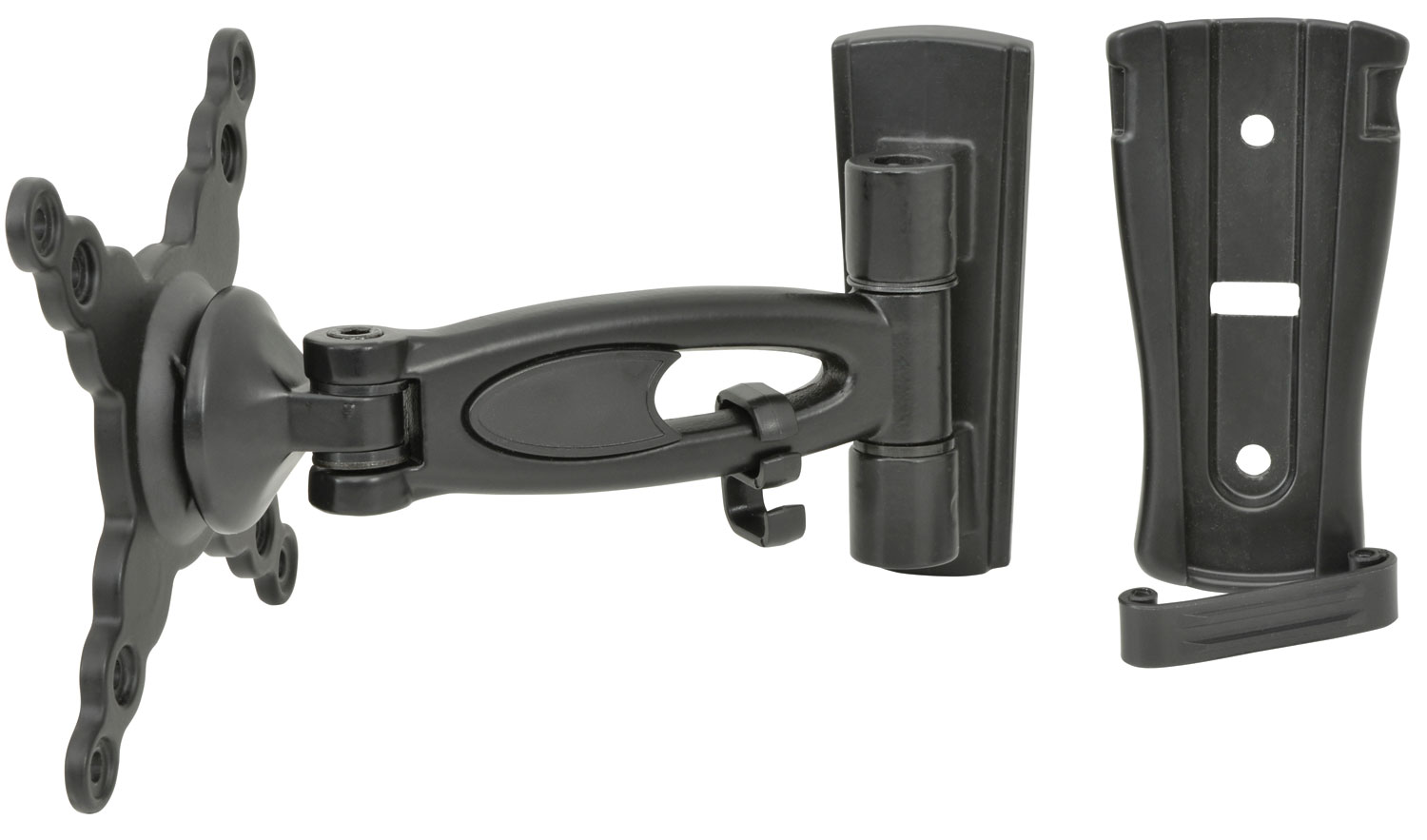

  • Bracket detaches from wall mount for easy installation.
  • Installation hardware included

Specification

  • Max. VESA 200x200mm (with adaptor)
  • Max. weight load 15kg
  • Screen size 13" to 40"
  • Distance from wall 78 - 190mm
  • Wall plate dimensions 57 x 115mm
  • Weight 800g
  • TV fixing screws provided 4 x M4 12mm,4 x M4 25mm,8 x M5 12mm,4 x M5 25mm,4 x M6 16mm,4 x M8 16mm

Trade information

  129.511UK
Barcode / EAN 5015972170069
Package type Gift Box
Package dimensions 125 x 210 x 55mm
Package weight 0.80kg
Package quantity 1 unit
Carton dimensions 225 x 575 x 265mm
Carton weight 16.00kg
Carton quantity 20 packages

Videos

AV:LINK TV Brackets and Projector Brackets Overview

Support

Instruction manual
For 129.511UK (561KB)
