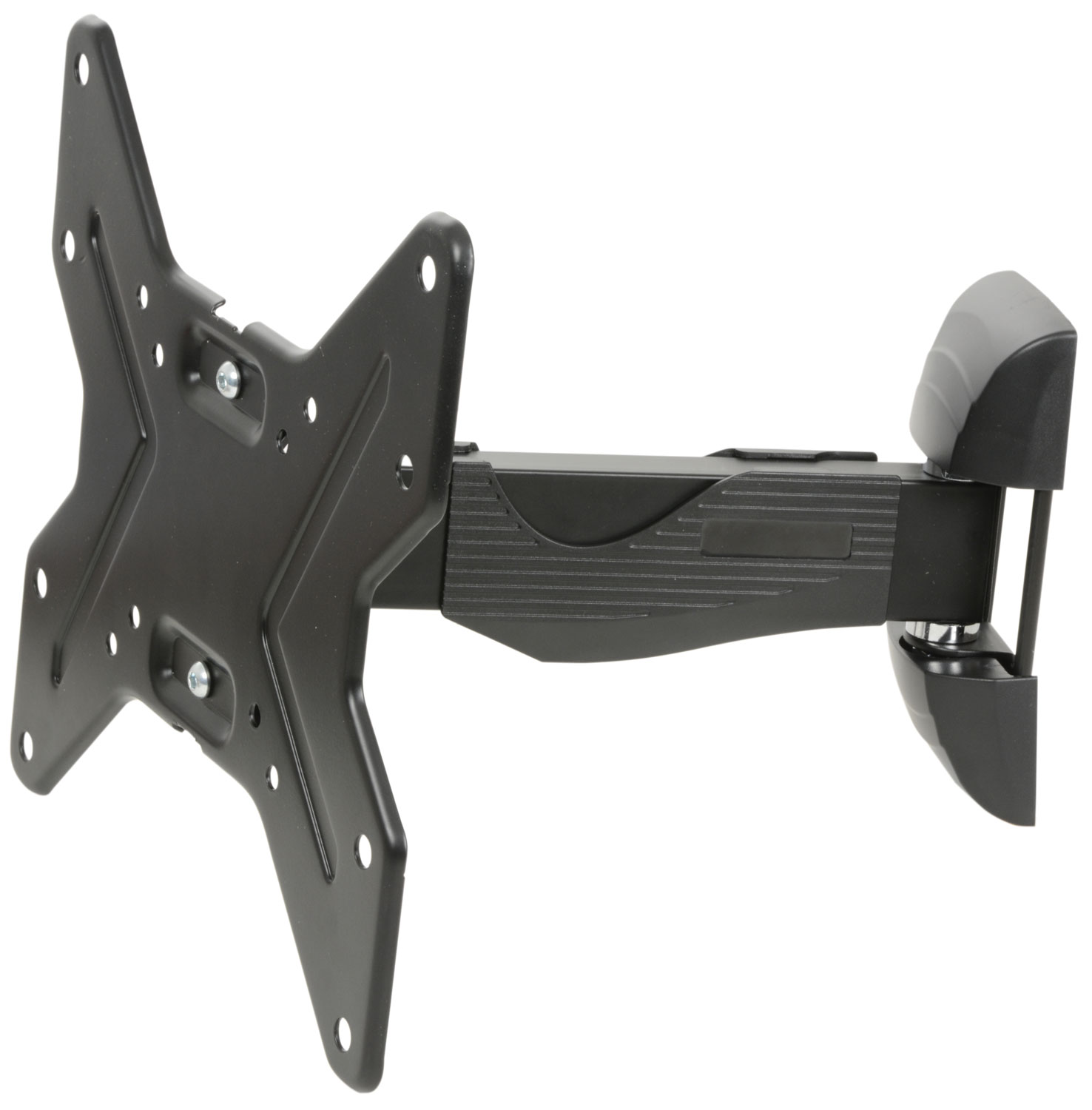

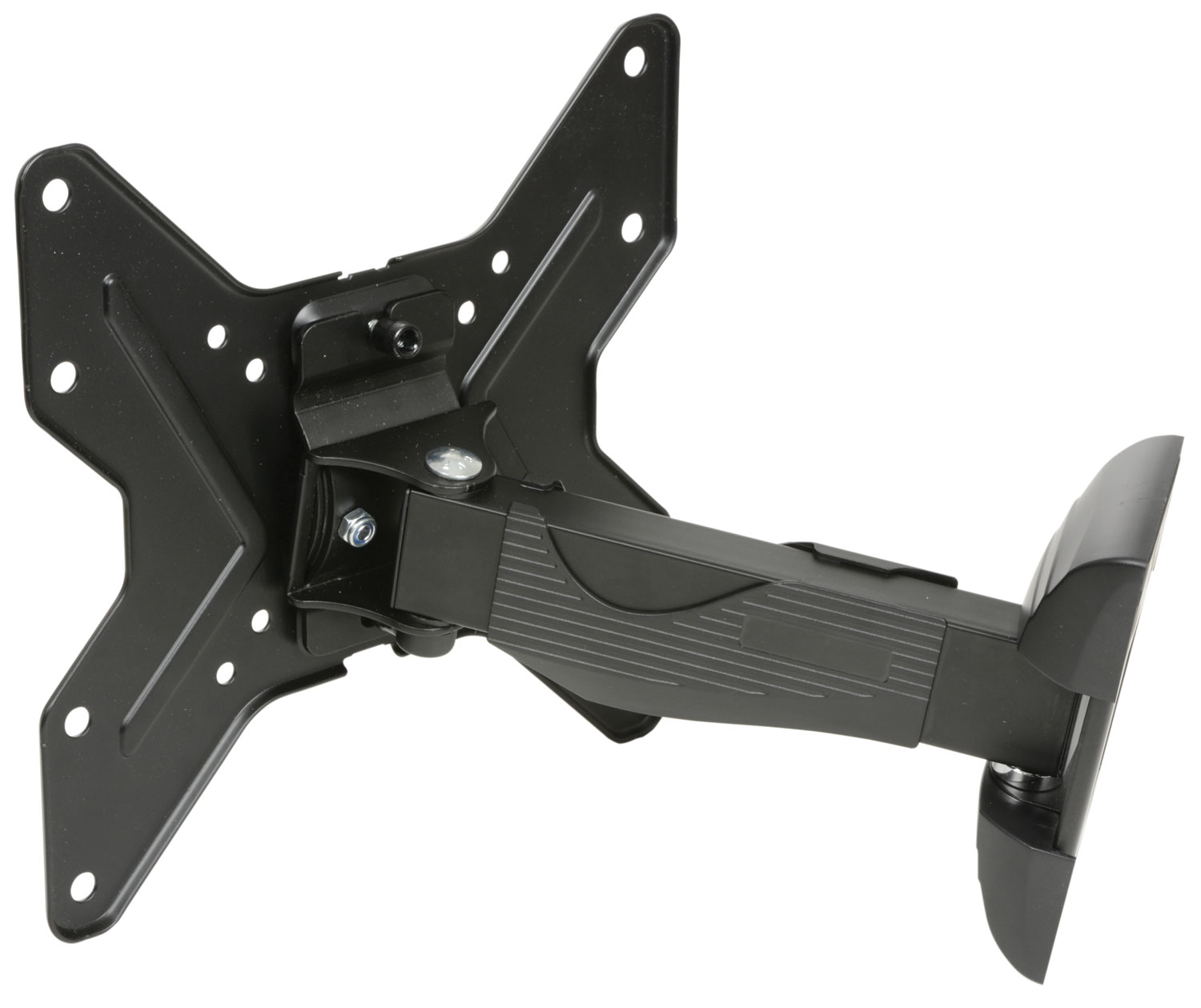

Full Motion Single Arm TV/Monitor Wall Mount Bracket

129.514UK INS201

An adjustable rolled steel wall bracket suitable for mounting VESA compatible screens from 26" to 42" and up to 25kg in weight.

  • Suitable for mounting LCD or LED screens sized 26" to 42"
  • VESA 75, 100 and 200 hole patterns
  • Swivels 180° from wall connection point and 180° from arm
Description Version Packed
129.514UK
Full Motion Single Arm TV Wall Bracket
200 x 200 Max VESA Gift Box

Full Motion Single Arm TV/Monitor Wall Mount Bracket

An adjustable rolled steel wall bracket suitable for mounting VESA compatible screens from 26" to 42" and up to 25kg in weight.

  • Suitable for mounting LCD or LED screens sized 26" to 42"
  • VESA 75, 100 and 200 hole patterns
  • Swivels 180° from wall connection point and 180° from arm
  • -5° to 10° tilt mechanism
  • Locking screws for safety
  • Installation hardware included

Specification

  • Max. hole spacing 200 x 200mm
  • Distance from wall 50 - 225mm
  • Max. weight load 25kg
  • VESA 75 x 75, 100 x 100 and 200 x 200
  • Wall plate dimensions 143 x 72mm
  • Weight 1.17kg
  • TV fixing screws provided 4x M4 20mm, 4x M5 x 20mm, 4x M6 x 20mm, 4x M8 x 20mm

Trade information

  129.514UK
Barcode / EAN 5015972187470
Package type Gift Box
Package dimensions 257 x 295 x 62mm
Package weight 1.70kg
Package quantity 1 unit
Carton dimensions 335 x 535 x 315mm
Carton weight 17.00kg
Carton quantity 10 packages

Support

Instruction manual
For 129.514UK (2.4MB)
