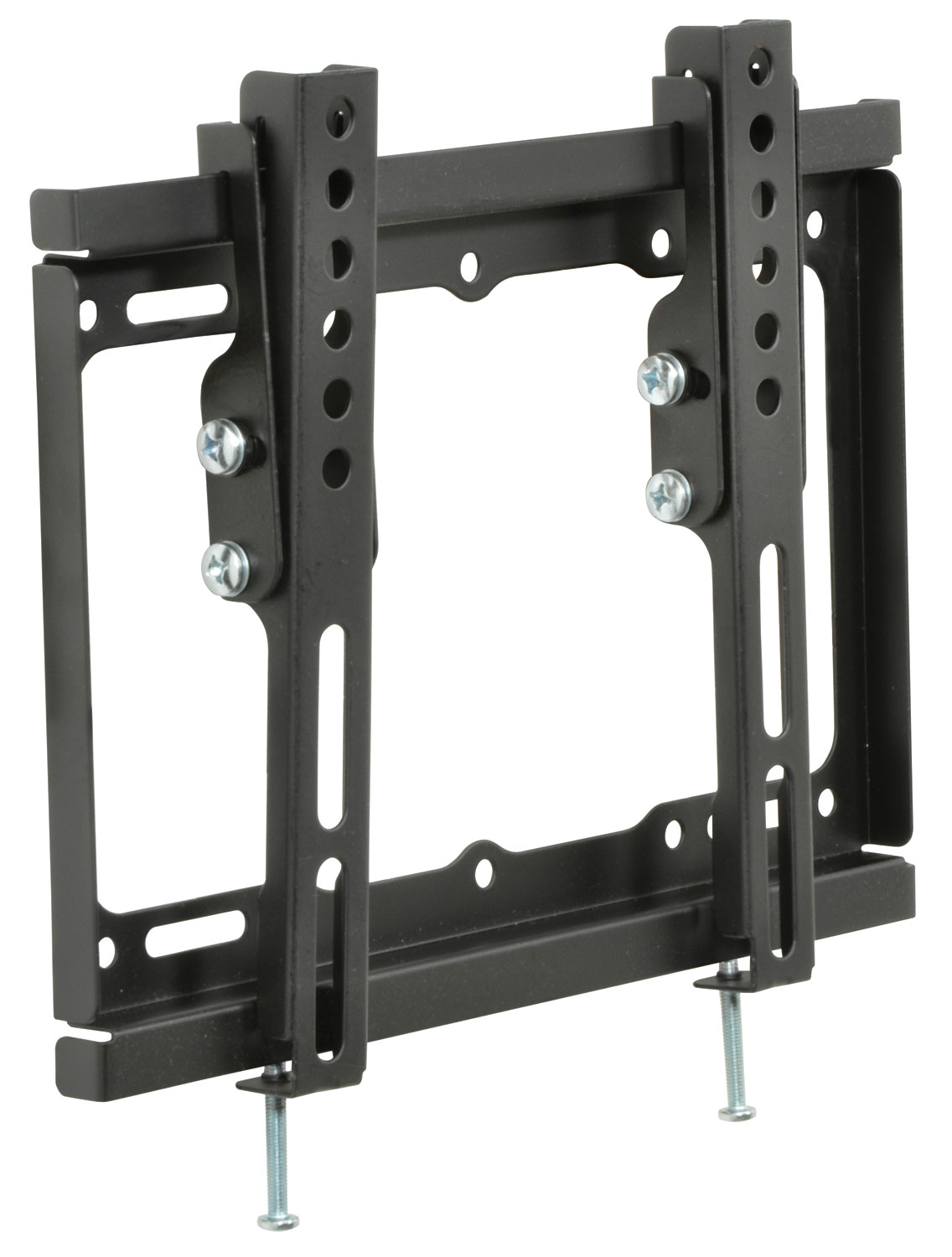

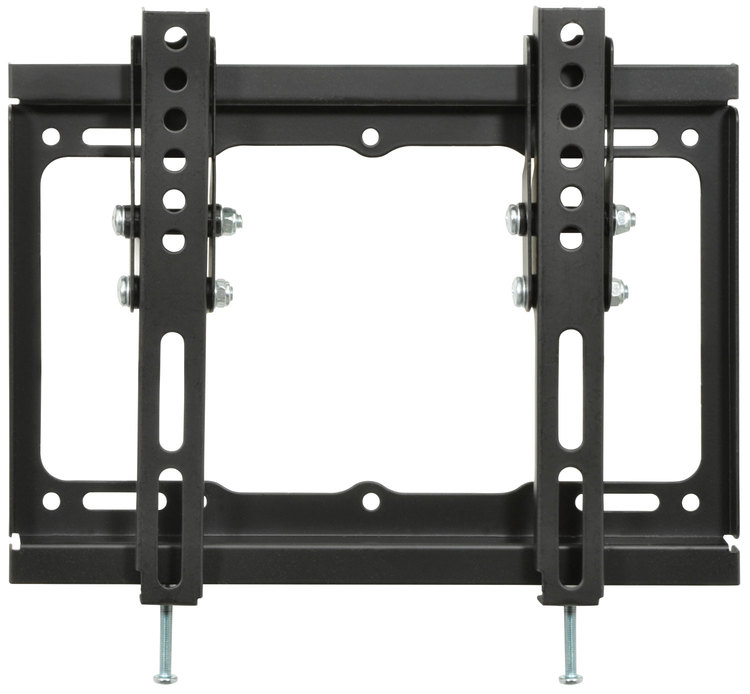

Tilting TV Wall Bracket
129.550UK
ST201
An easy to install range of tilting TV wall brackets, with low profile design and VESA compatible mounting patterns.
- Suitable for a wide range of screen sizes
- Low profile design
- Compatible with VESA mounting patterns
Tilting TV Wall Bracket
An easy to install range of tilting TV wall brackets, with low profile design and VESA compatible mounting patterns.
- Suitable for a wide range of screen sizes
- Low profile design
- Compatible with VESA mounting patterns
- Installation hardware included
Specification : Common
- TV fixing screws provided 4 x M4 25mm, 4 x M5 25mm, 4 x M6 25mm, 4 x M8 25mm
Specification : Versions
| 129.550UK | 129.551UK | 129.552UK | |
|---|---|---|---|
| Max. VESA | 200 x 200 | 400 x 400 | 600 x 400 |
| Max. weight load | 20kg | 30kg | 35kg |
| Screen size | 17" - 42" | 26" - 50" | 32" - 65" |
| Distance from wall | 25mm | 25mm | 25mm |

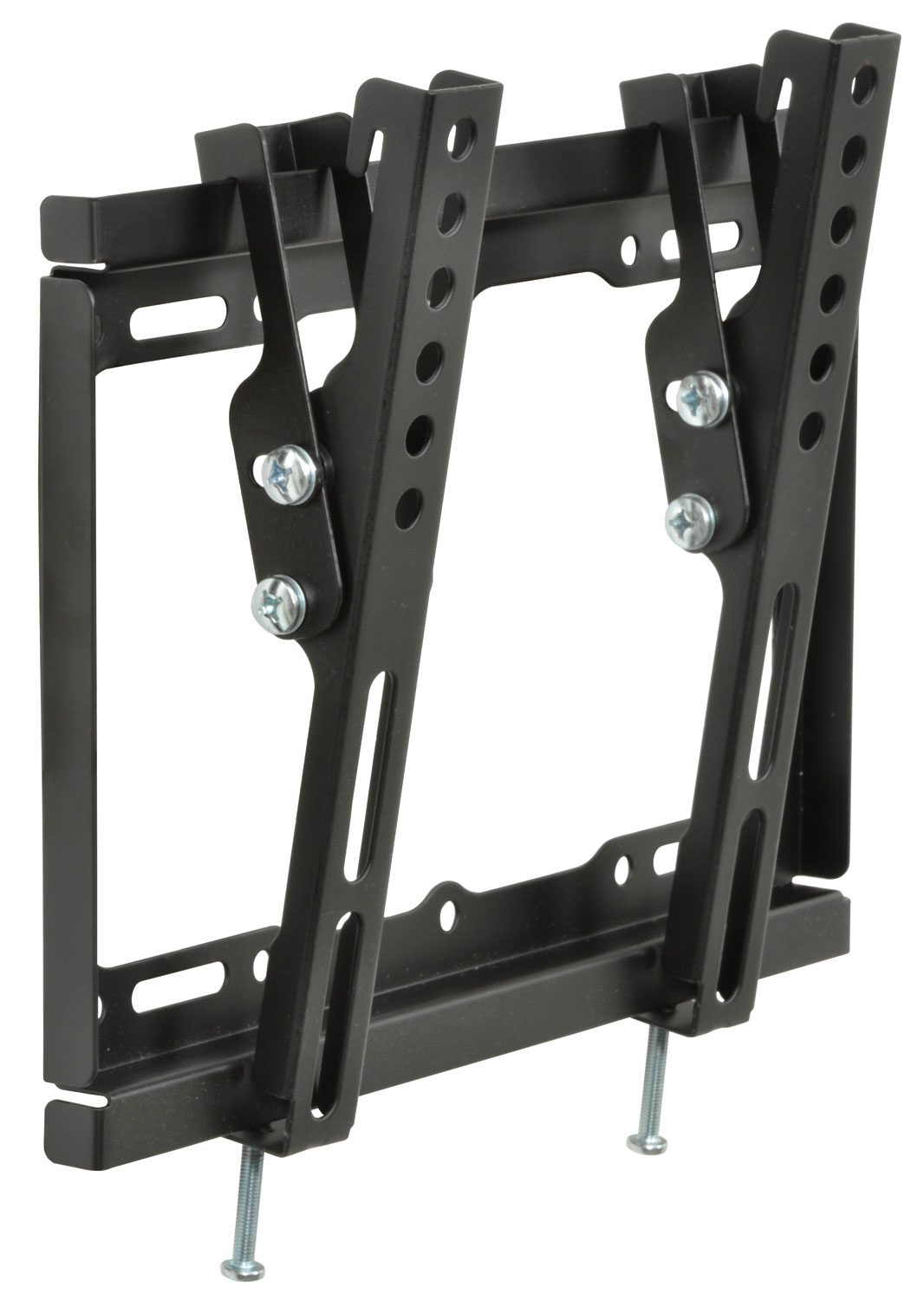

| Tilt range | 0 to 10° | 0 to 10° | 0 to 10° |

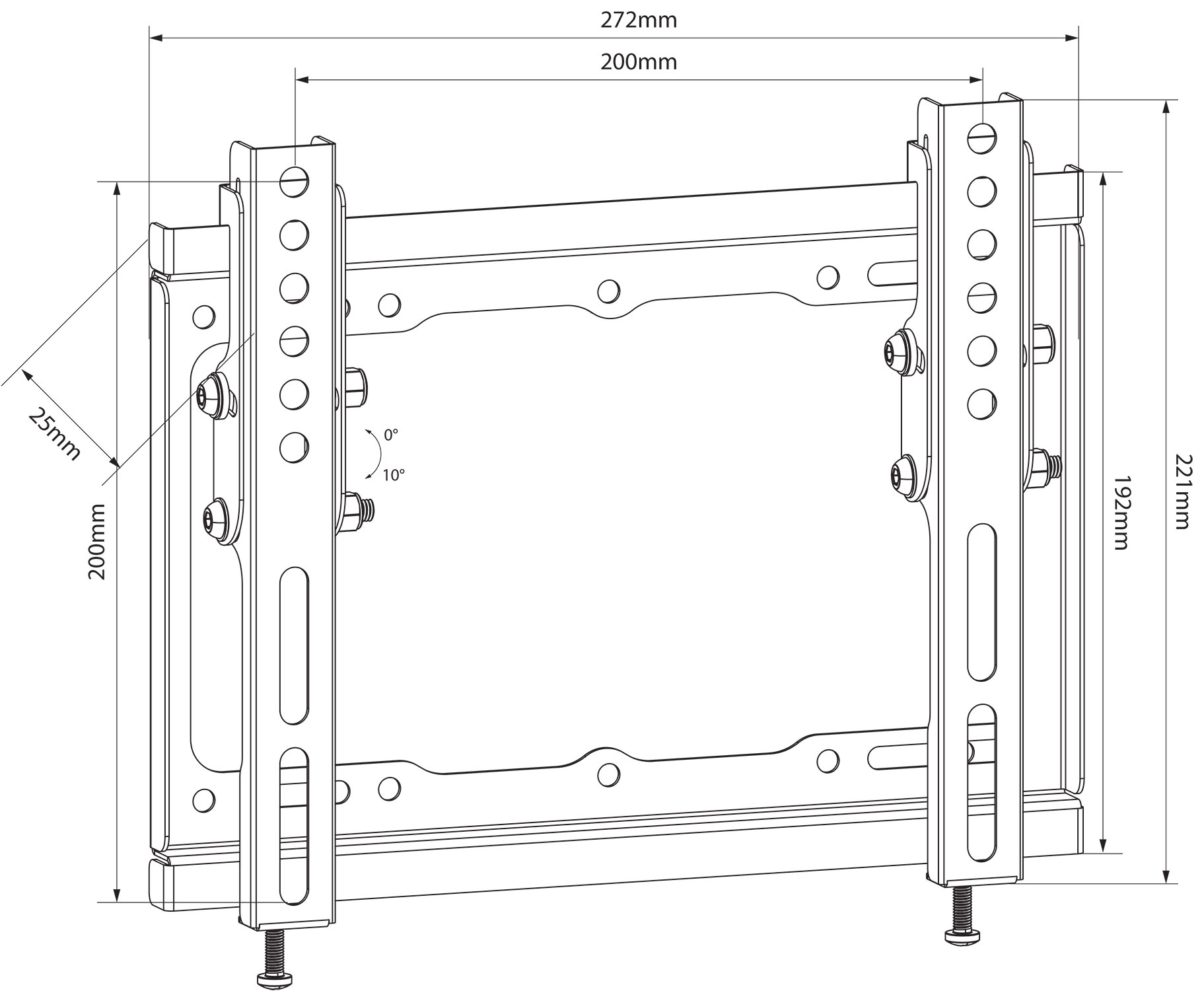

| Wall plate dimensions | 272 x 192mm | 452 x 218mm | 647 x 218mm |
| Bracket dimensions | 272 x 221mm | 452 x 420mm | 647 x 420mm |
| Weight | 750g | 1.16kg | 1.34kg |
Trade information
| 129.550UK | 129.551UK | 129.552UK | |
|---|---|---|---|
| Barcode / EAN | 5015972170267 | 5015972173015 | 5015972170281 |
| Package type | Gift Box | Gift Box | Gift Box |
| Package dimensions | 291 x 198 x 30mm | 470 x 223 x 30mm | 666 x 223 x 30mm |
| Package weight | 0.75kg | 1.18kg | 1.55kg |
| Package quantity | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 420 x 325 x 305mm | 490 x 325 x 245mm | 685 x 325 x 245mm |
| Carton weight | 14.94kg | 11.80kg | 15.50kg |
| Carton quantity | 20 packages | 10 packages | 10 packages |
Videos
AV:LINK TV Brackets and Projector Brackets Overview
Support
Instruction manual
For 129.553UK (568KB)
For 129.553UK (568KB)
Instruction manual
For 129.550UK (428KB)
For 129.550UK (428KB)
