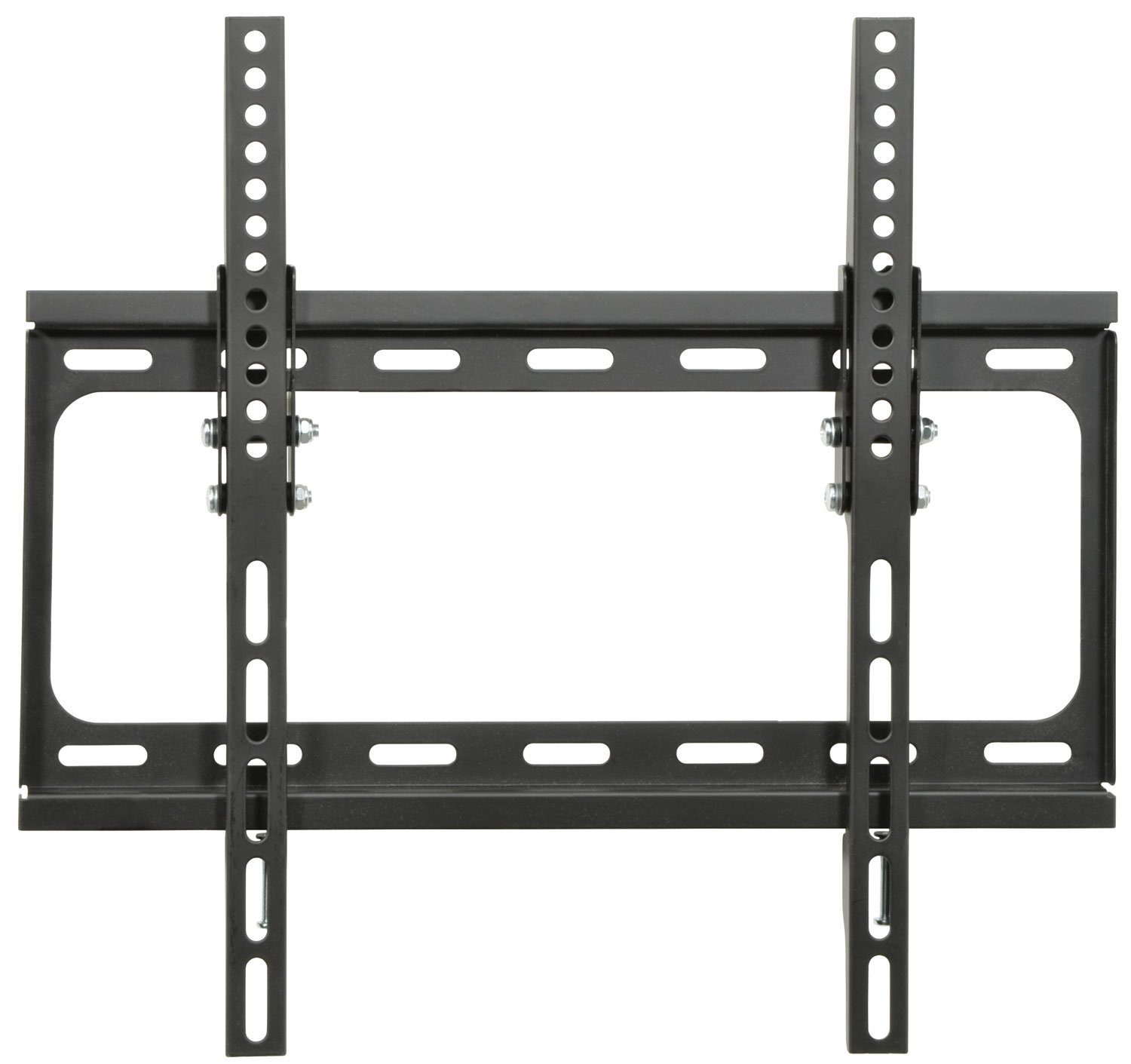

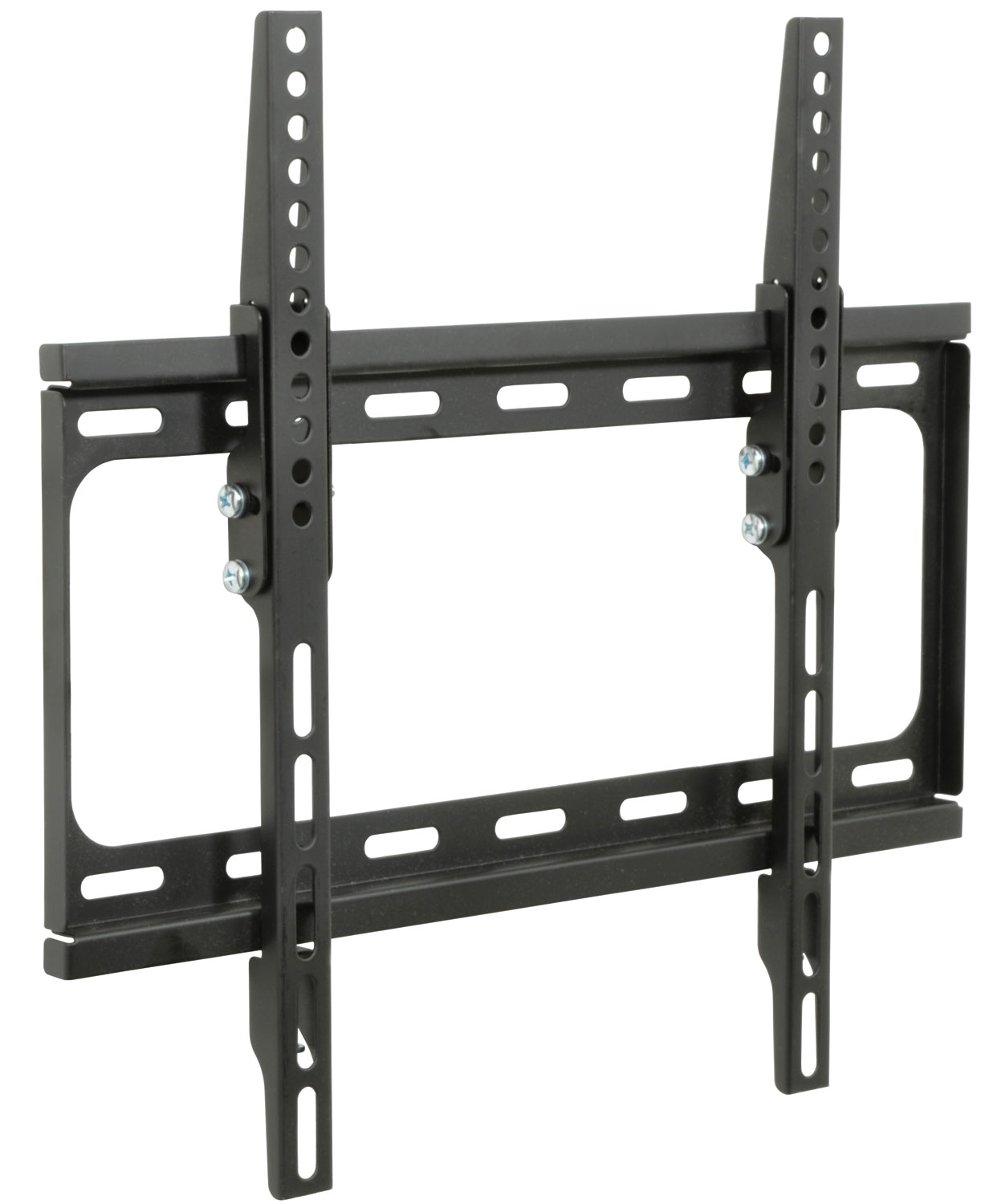

Tilting TV Wall Bracket

129.551UK ST401

An easy to install range of tilting TV wall brackets, with low profile design and VESA compatible mounting patterns.

  • Suitable for a wide range of screen sizes
  • Low profile design
  • Compatible with VESA mounting patterns
Full description Video Find retailer
Description Version Packed
129.550UK
Standard TV/monitor tilted wall bracket VESA 200x200 17" - 42" 		200x200 Max (17-42") Gift Box
129.551UK
Standard TV/monitor tilted wall bracket VESA 400x400 26" - 55" 		400x400 Max (26-50") Gift Box
129.552UK
Standard TV/monitor tilted wall bracket VESA 600x400 32" - 65" 		600x400 Max (32-65") Gift Box

Tilting TV Wall Bracket

An easy to install range of tilting TV wall brackets, with low profile design and VESA compatible mounting patterns.

  • Suitable for a wide range of screen sizes
  • Low profile design
  • Compatible with VESA mounting patterns
  • Installation hardware included

Specification : Common

  • TV fixing screws provided 4 x M4 25mm, 4 x M5 25mm, 4 x M6 25mm, 4 x M8 25mm

Specification : Versions

  129.550UK 129.551UK 129.552UK
Max. VESA 200 x 200 400 x 400 600 x 400
Max. weight load 20kg 30kg 35kg
Screen size 17" - 42" 26" - 50" 32" - 65"
Distance from wall 25mm 25mm 25mm

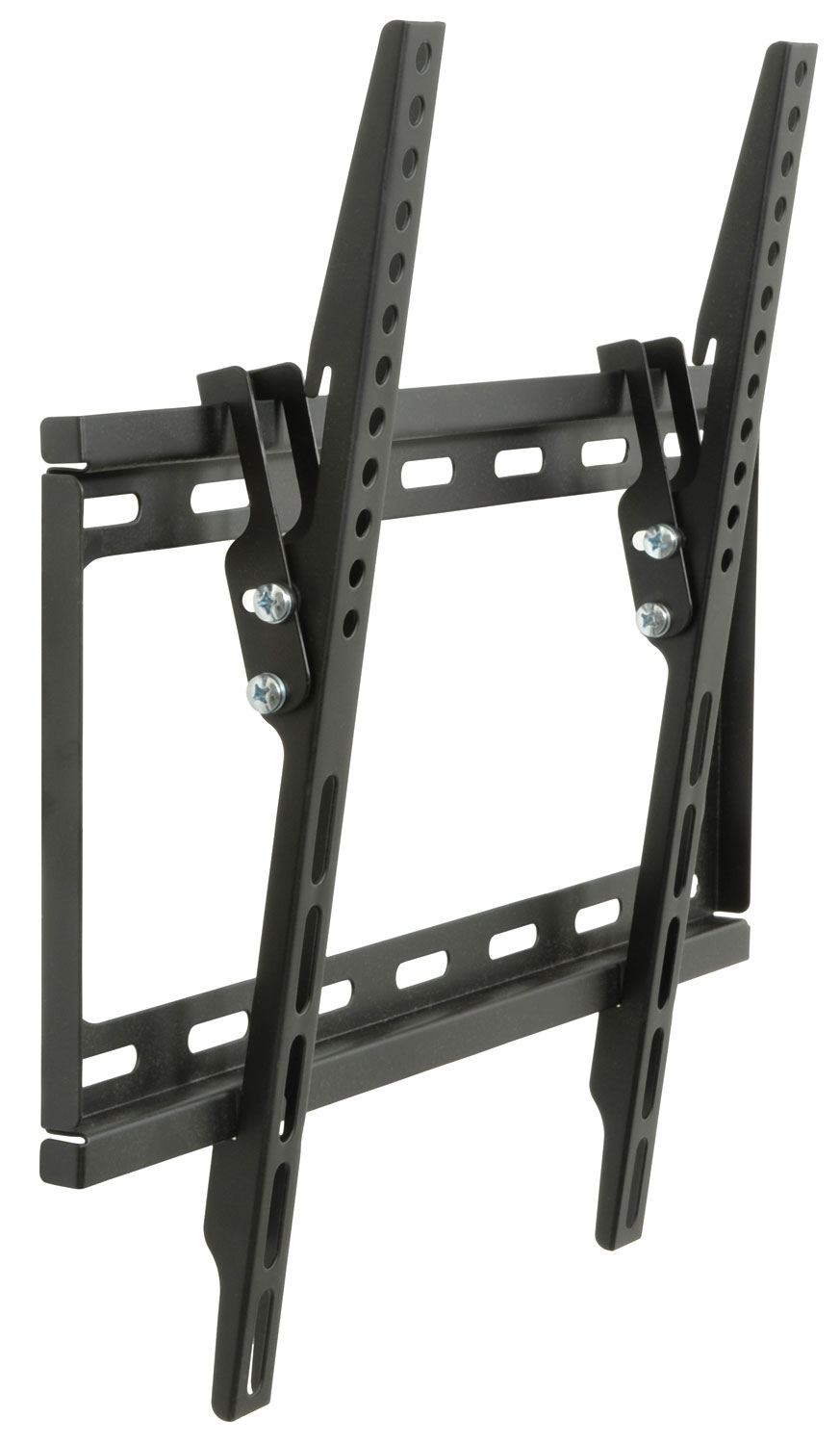

Tilt range 0 to 10° 0 to 10° 0 to 10°

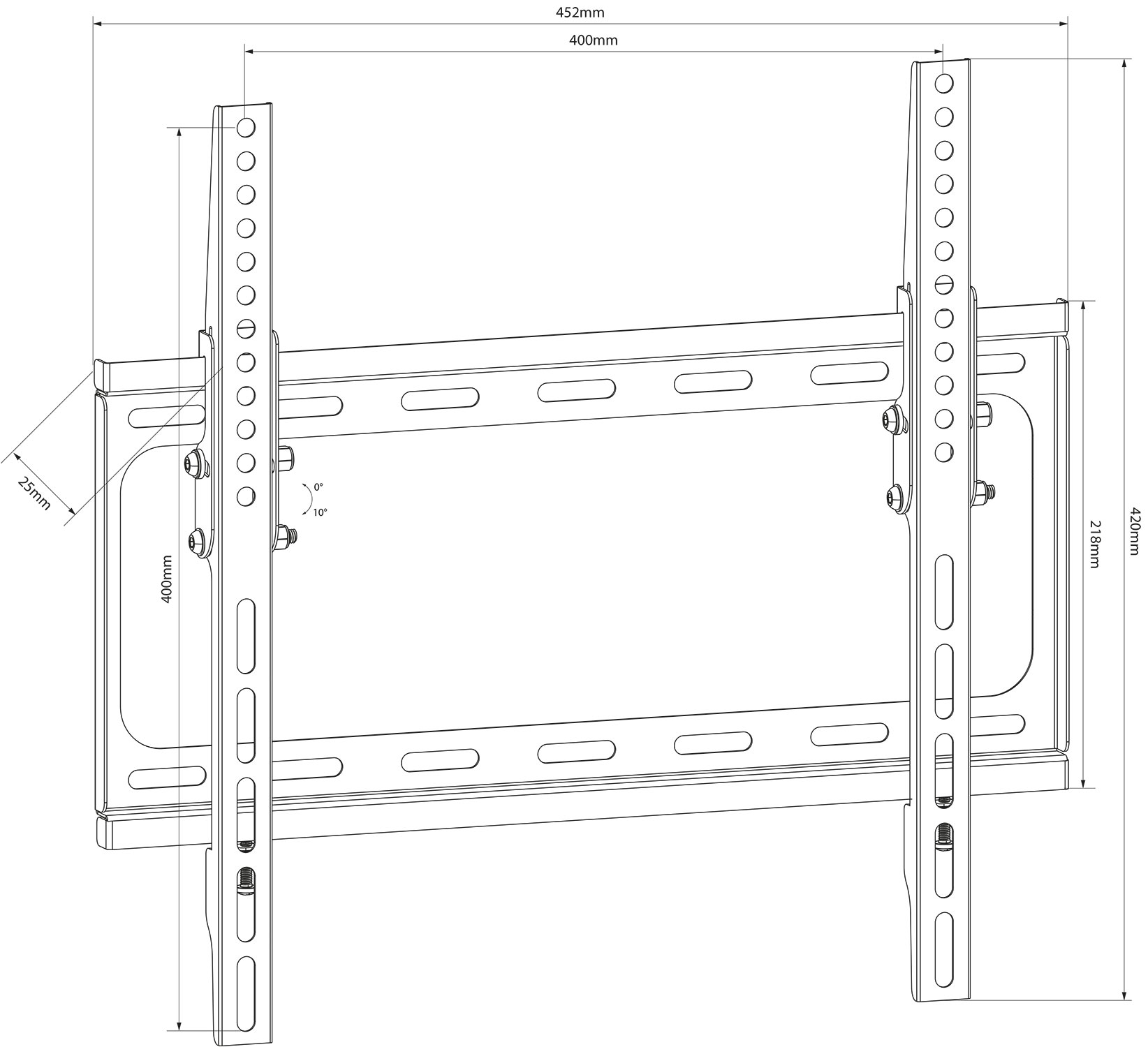

Wall plate dimensions 272 x 192mm 452 x 218mm 647 x 218mm
Bracket dimensions 272 x 221mm 452 x 420mm 647 x 420mm
Weight 750g 1.16kg 1.34kg

Trade information

  129.550UK 129.551UK 129.552UK
Barcode / EAN 5015972170267 5015972173015 5015972170281
Package type Gift Box Gift Box Gift Box
Package dimensions 291 x 198 x 30mm 470 x 223 x 30mm 666 x 223 x 30mm
Package weight 0.75kg 1.18kg 1.55kg
Package quantity 1 unit 1 unit 1 unit
Carton dimensions 420 x 325 x 305mm 490 x 325 x 245mm 685 x 325 x 245mm
Carton weight 14.94kg 11.80kg 15.50kg
Carton quantity 20 packages 10 packages 10 packages

Videos

AV:LINK TV Brackets and Projector Brackets Overview

Support

Instruction manual
For 129.553UK (568KB)
Instruction manual
For 129.550UK (428KB)
