Heavy Duty Full Motion TV Wall Bracket 37" to 80"

129.567UK FMXL600

Heavy-duty TV wall bracket, suitable for larger LCD/LED screens from 37" to 80" and up to 60kg in weight. Its full motion double arm design provides maximum flexibility with extend, tilt and swivel...

  • Suitable for larger LED/LCD screen sizes 37" to 80" and up to 60kg in weight
  • Compatible with VESA hole patterns up to 600 x 400
  • -5° to 15° tilt mechanism
Description Version Packed
129.567UK
Heavy Duty Full Motion TV Wall Bracket 37" to 80"
Gift Box

Heavy Duty Full Motion TV Wall Bracket 37" to 80"

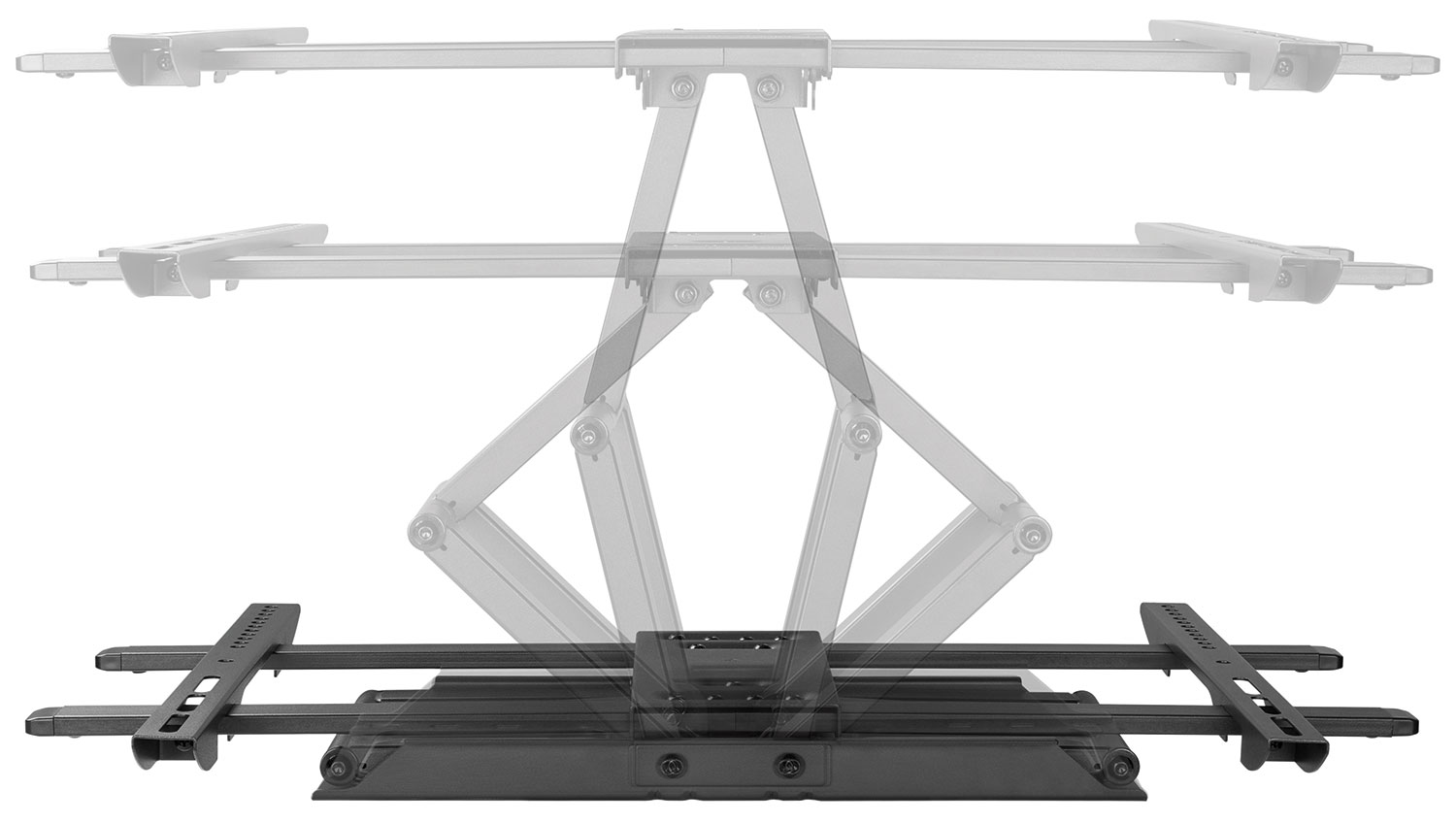

Heavy-duty TV wall bracket, suitable for larger LCD/LED screens from 37" to 80" and up to 60kg in weight. Its full motion double arm design provides maximum flexibility with extend, tilt and swivel capabilities providing easy viewing from any seat in a room. The easy to assemble, low profile design will save you wall space while the included hook and loop tapes will keep your cables clean and tidy.

  • Suitable for larger LED/LCD screen sizes 37" to 80" and up to 60kg in weight
  • Compatible with VESA hole patterns up to 600 x 400
  • -5° to 15° tilt mechanism
  • 120° Swivel range

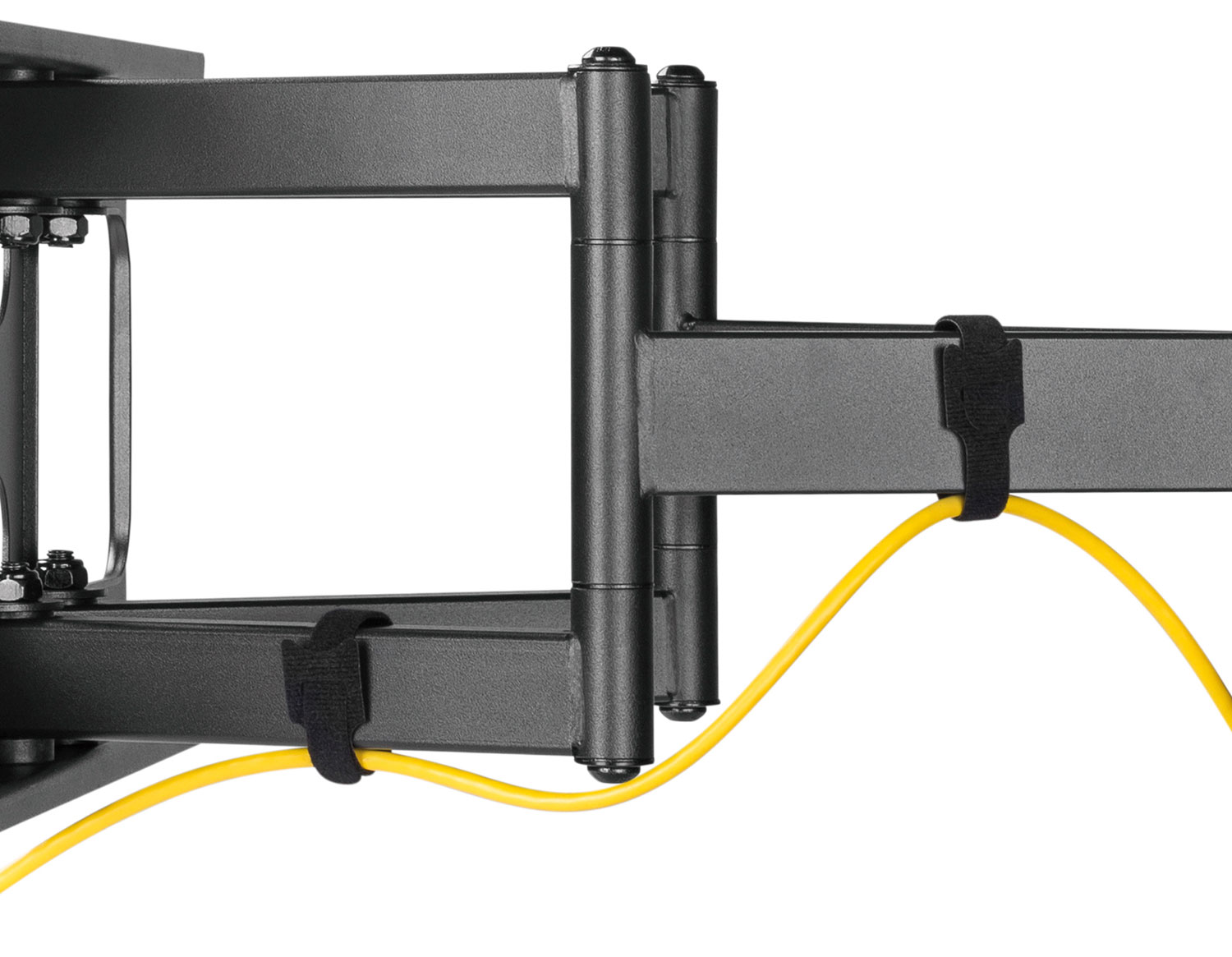

  • Included hook and loop tapes to route your cables neatly
  • Installation hardware included
  • Screen size 37" to 80"
  • Max. VESA 600 x 400
  • Max. weight load 60kg
  • Distance from wall 58-402mm
  • Tilt range -5° to 15°
  • Swivel +60°~-60°
  • Wall plate dimensions 430 x 200mm
  • Weight 6kg

In the box

The box for this item contains :

  • TV bracket
  • 5pcs hook and loop cable ties
  • Spanner
  • Allen key
  • 4pcs M5 x 14
  • 4pcs M6 x 14
  • 4pcs M6 x 25
  • 4pcs M8 x 25
  • 4pcs M8 x 45
  • 4pcs washer
  • 4pcs Short spacer
  • 4pcs Long spacer
  • 4pcs Wall studs
  • 4pcs Wall plugs
  • 4pcs Fixing washer
  • User guide

Downloads

Instruction manual
For 129.567UK (9.5MB)
