Pixel-Bar: Pixelated LED Wall Strobe Bar

151.594UK Pixel-Bar

LED wall strobe bar fitted with 224 RGB SMD's to provide a wide range of bright and colourful patterns and effects. Various automatic shows and settings can be run directly from the unit, or using ...

  • 224 high output tri-colour SMD LEDs
  • Automatic shows and settings can be run directly from the unit, or using sound to light
  • Supplied with white and clear diffusers creating even more effects and patterns
Full description Find retailer
Description Version Packed
151.594UK
Pixelated LED Wall Strobe Bar 		Box Label

Pixel-Bar: Pixelated LED Wall Strobe Bar

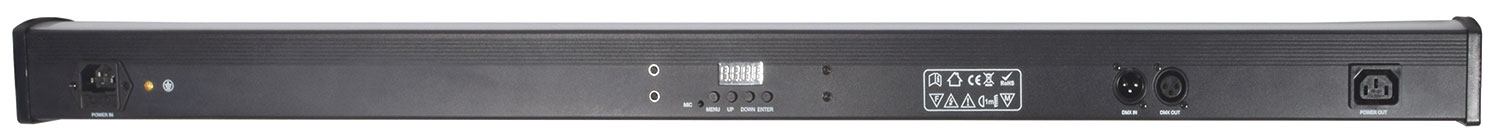

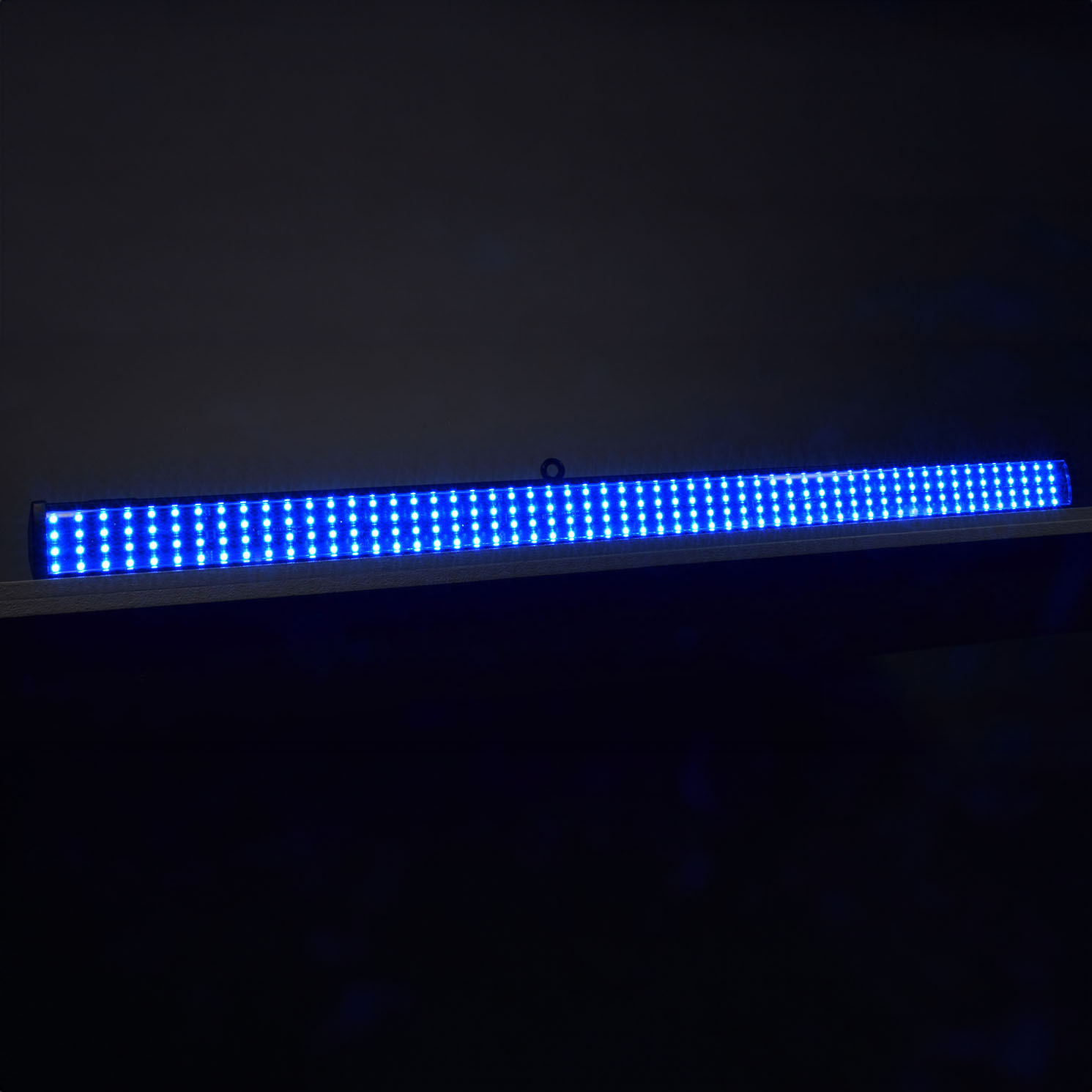

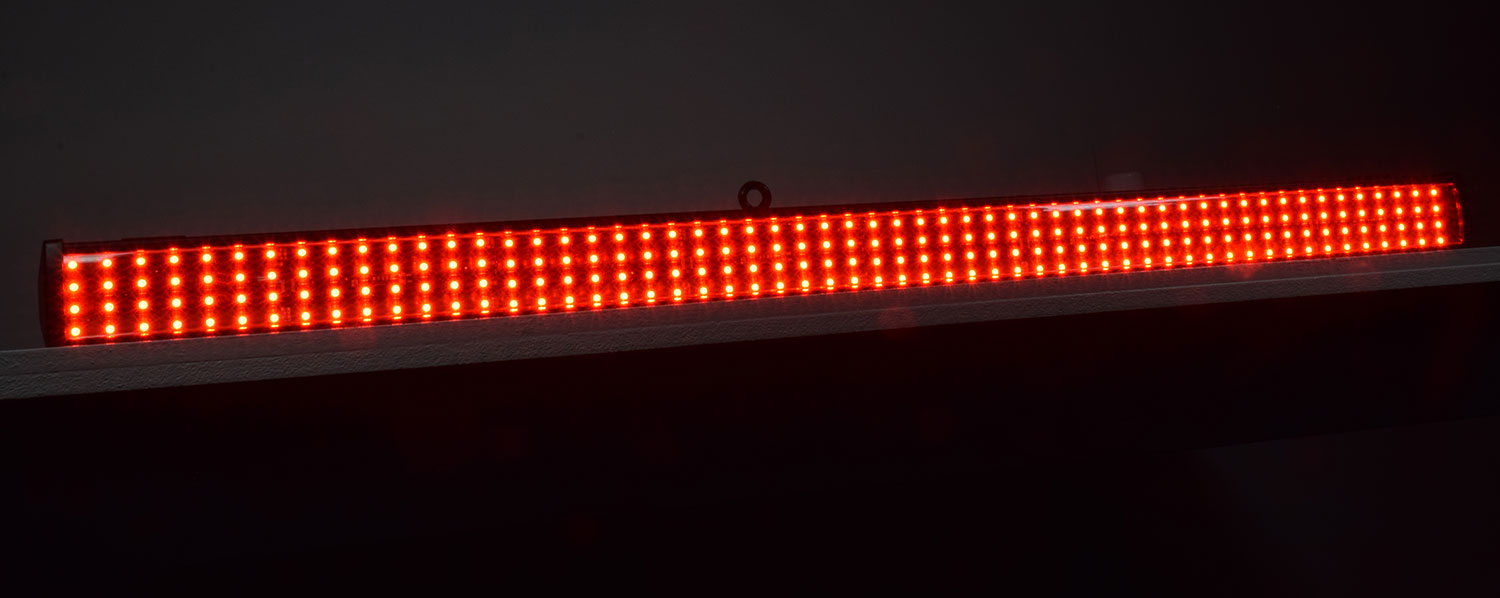

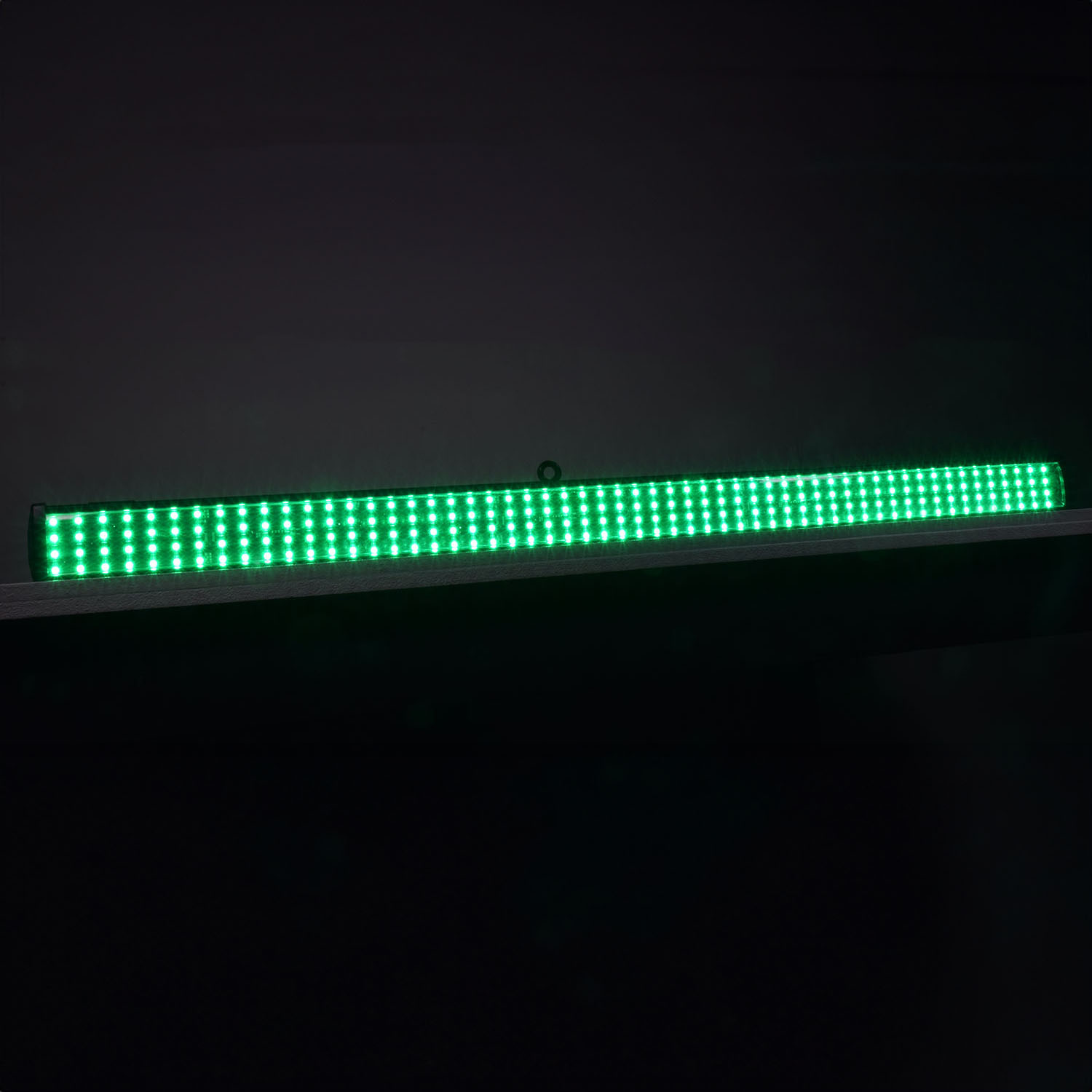

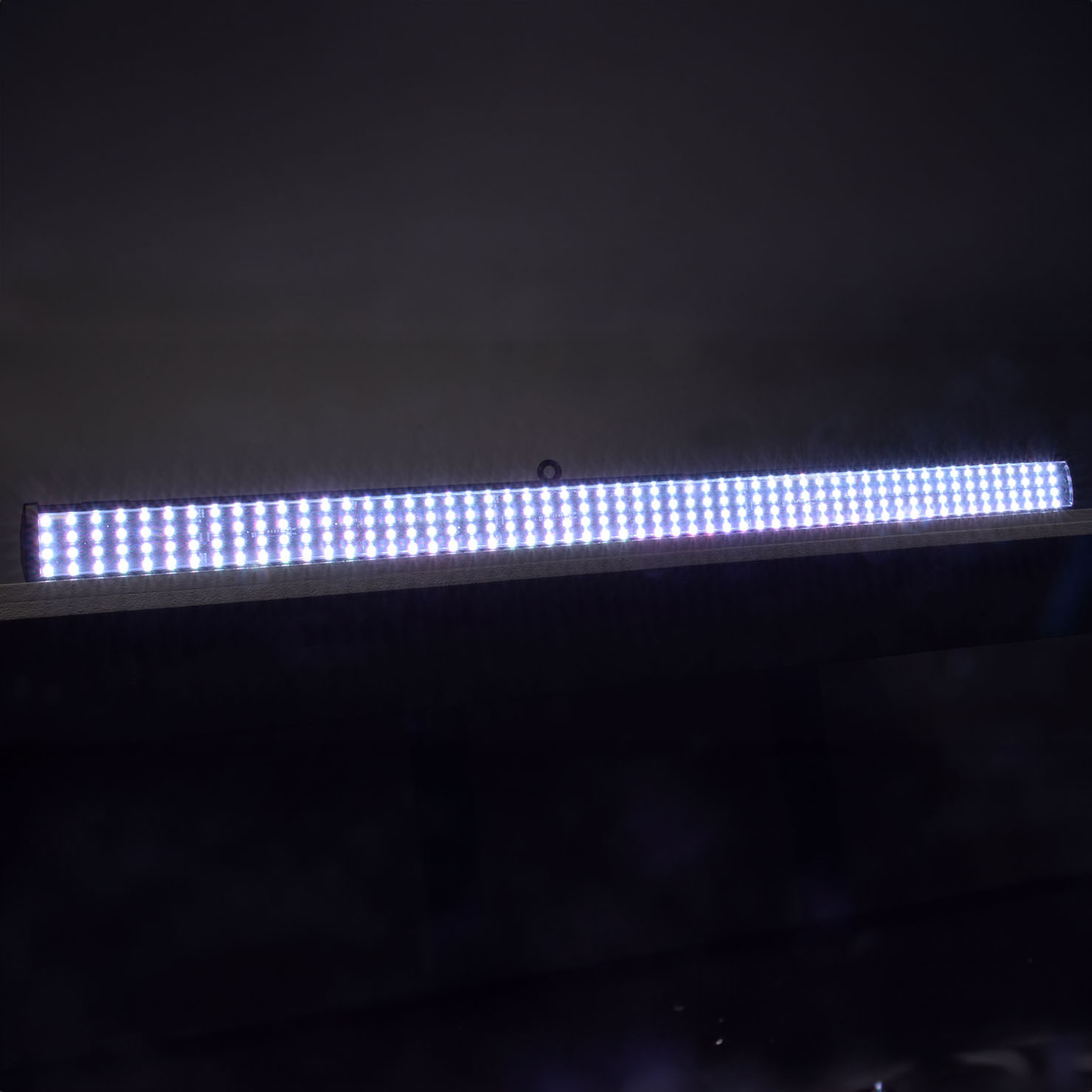

LED wall strobe bar fitted with 224 RGB SMD's to provide a wide range of bright and colourful patterns and effects. Various automatic shows and settings can be run directly from the unit, or using sound to light. Alternatively the bar can be operated remotely by DMX in various channel modes and connected to more units if a larger effect is needed. Supplied with additional clear diffuser and tilt-adjustable brackets for mounting to a wall or ceiling,

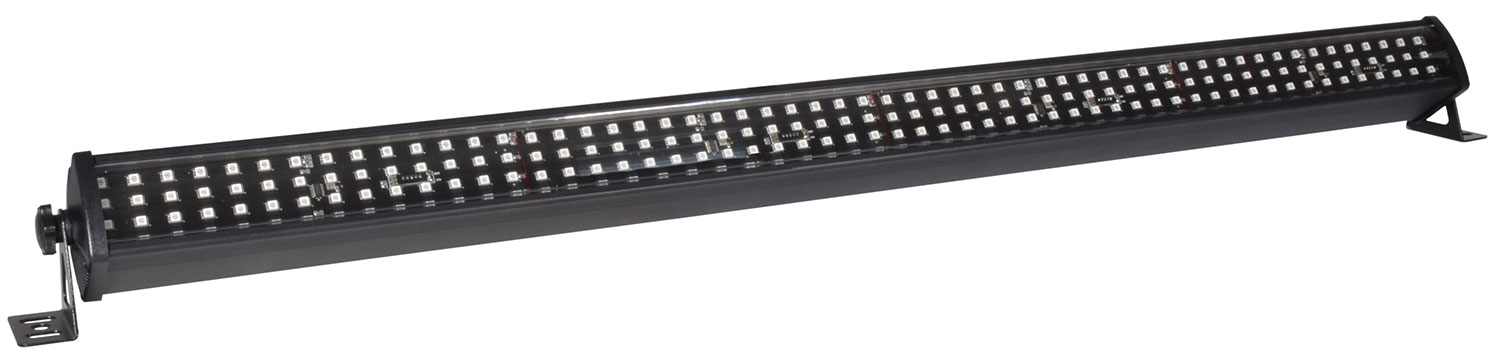

  • 224 high output tri-colour SMD LEDs
  • Automatic shows and settings can be run directly from the unit, or using sound to light

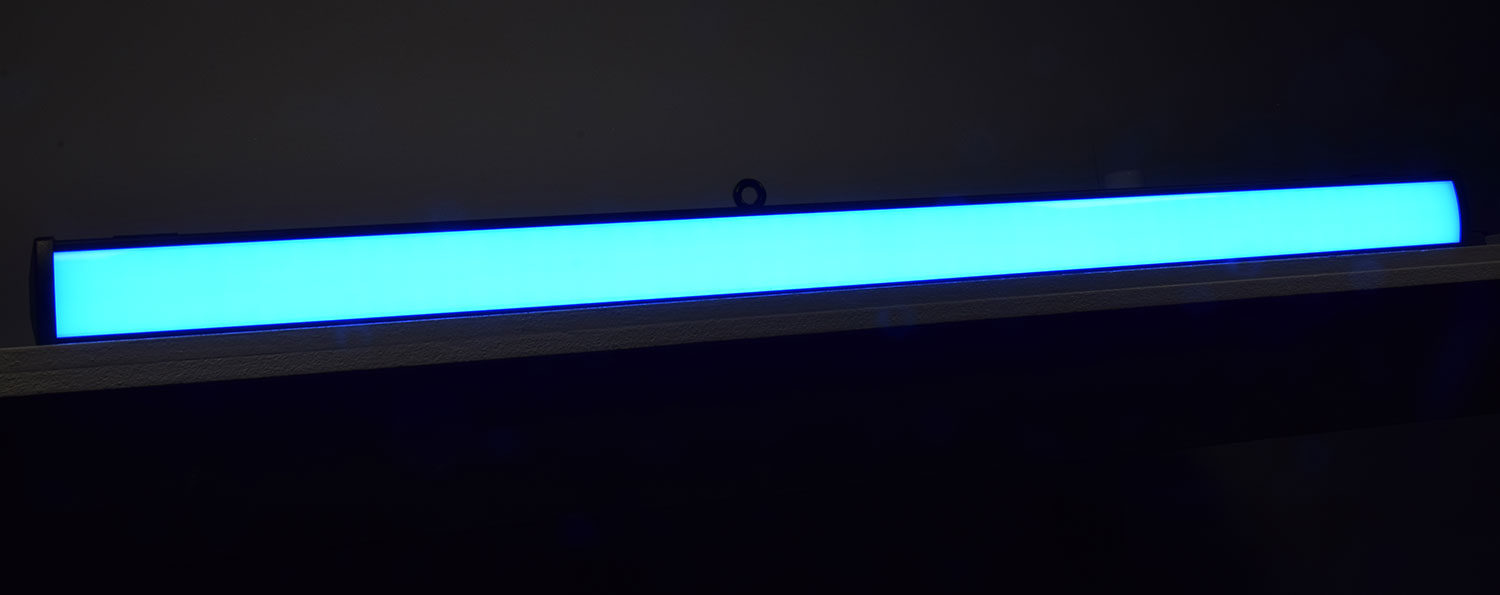

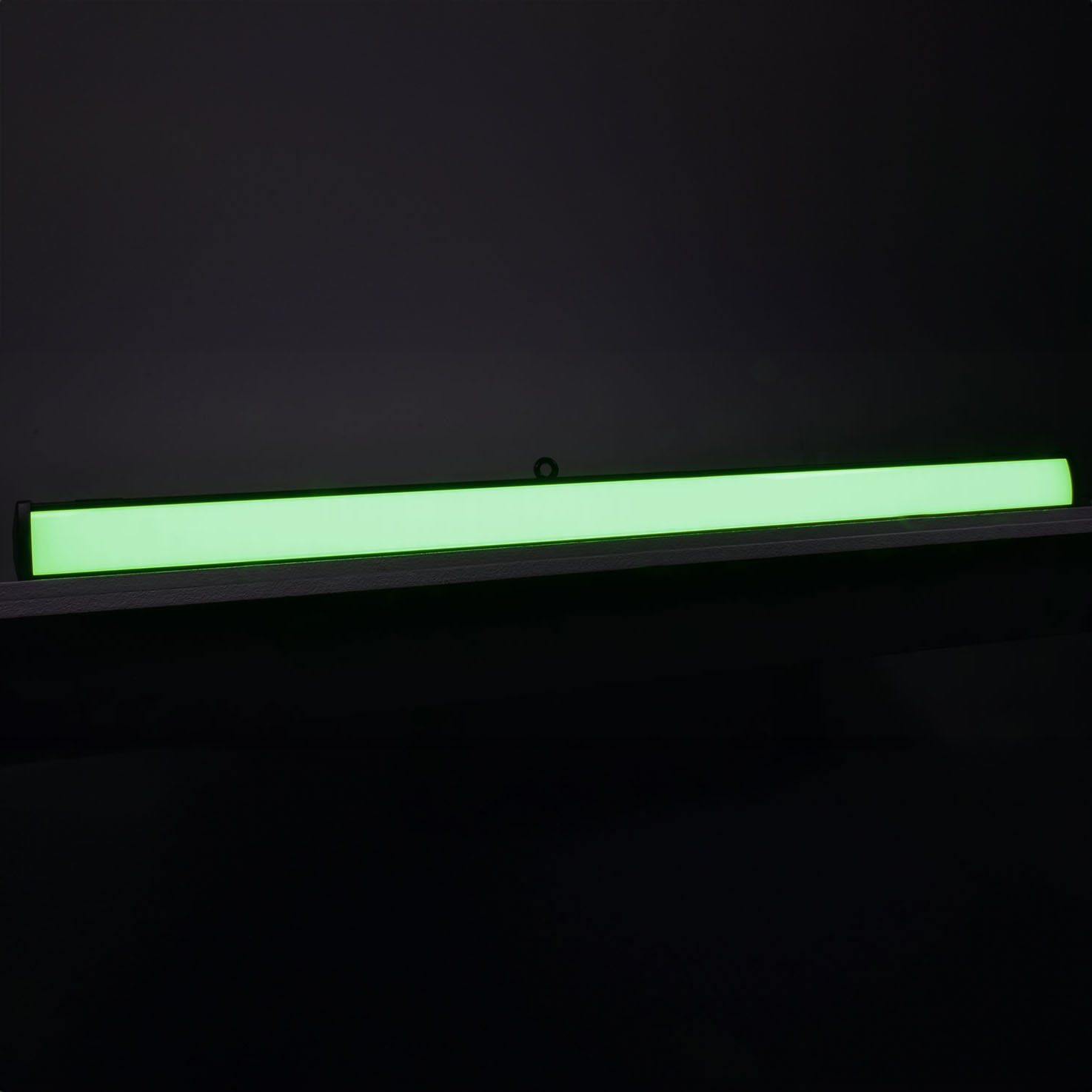

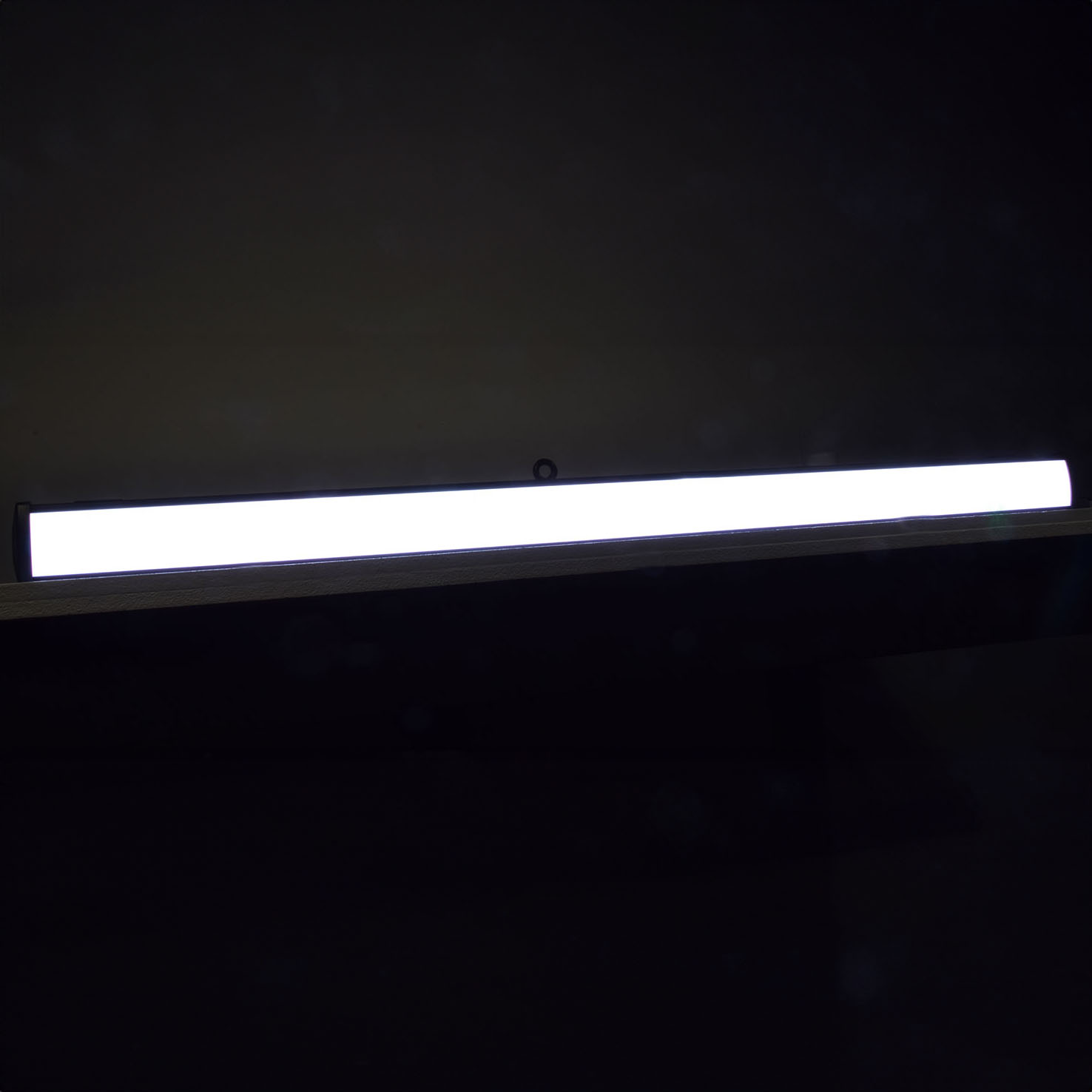

  • Supplied with white and clear diffusers creating even more effects and patterns
  • Auto-Link to more units and control using DMX for a wider effect
  • 3, 5, 8, 24, 48 or 53 DMX modes
  • Power supply 110-240Vac, 50/60Hz (IEC)
  • Power consumption 60W
  • Fuse F3A
  • LED : type SMD 5050 RGB
  • LED : quantity 224
  • Modes Static colour, colour change, colour fade, auto, sound active, DMX, master/slave
  • DMX channels 3, 5, 8, 24, 48, 53
  • Dimensions 1100 x 60 x 60mm
  • Weight 1.35kg

In the box

The box for this item contains :

  • Pixel-Bar main unit
  • IEC mains power lead (1.2m)

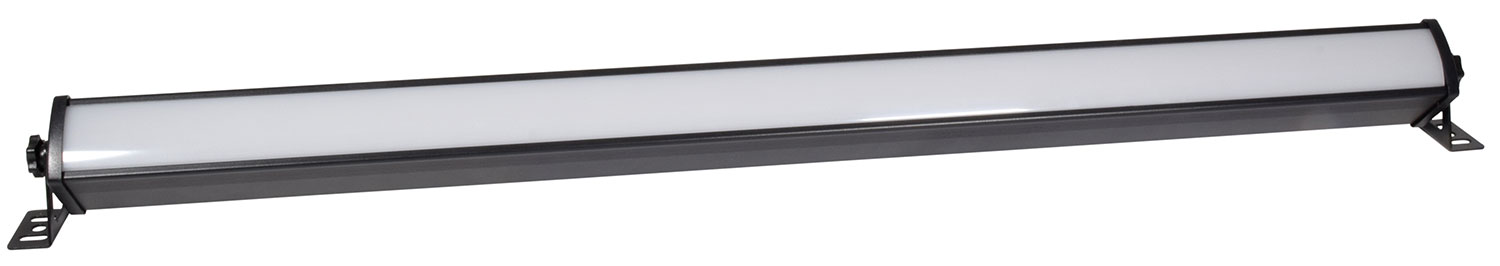

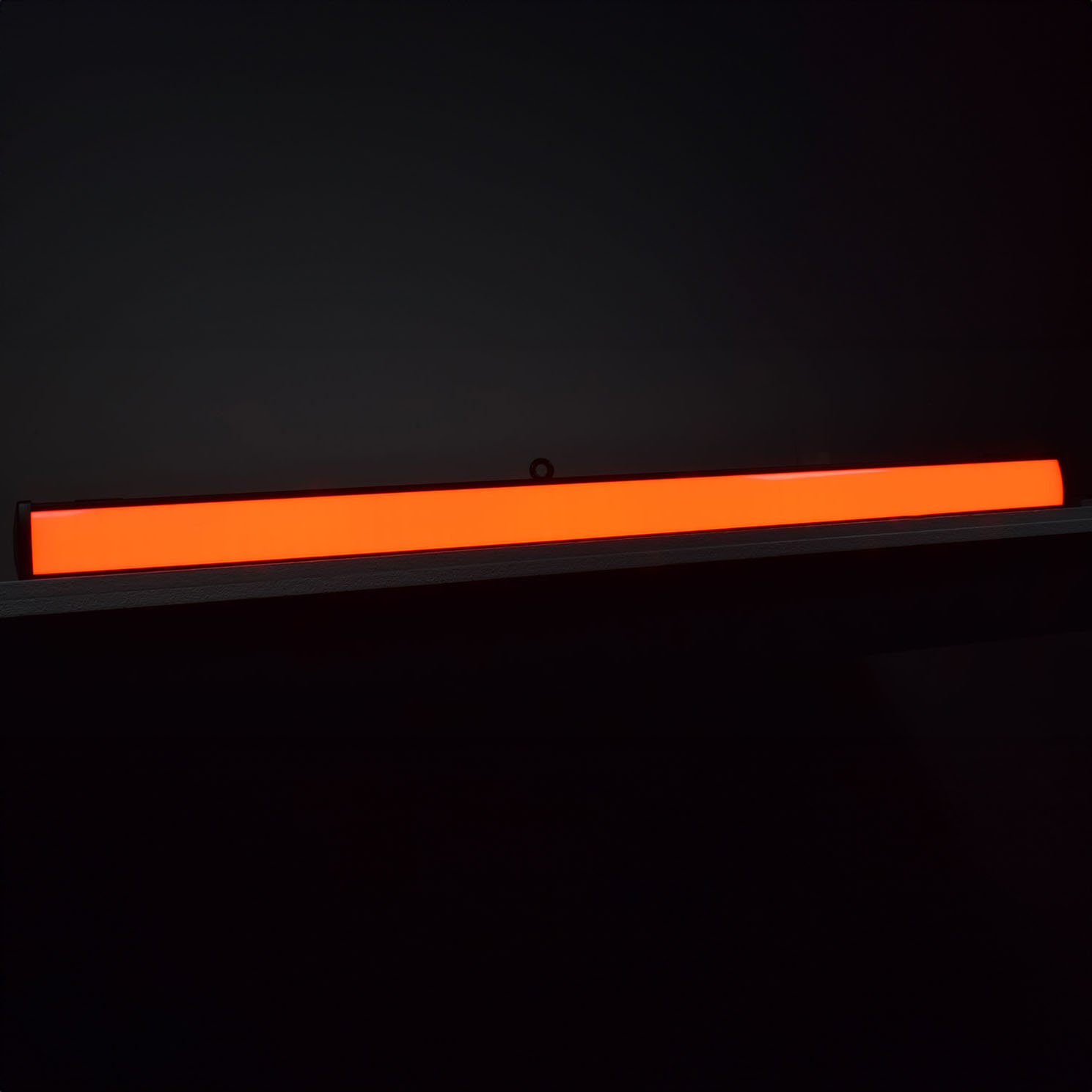

  • Clear diffuser (white version pre-fitted)

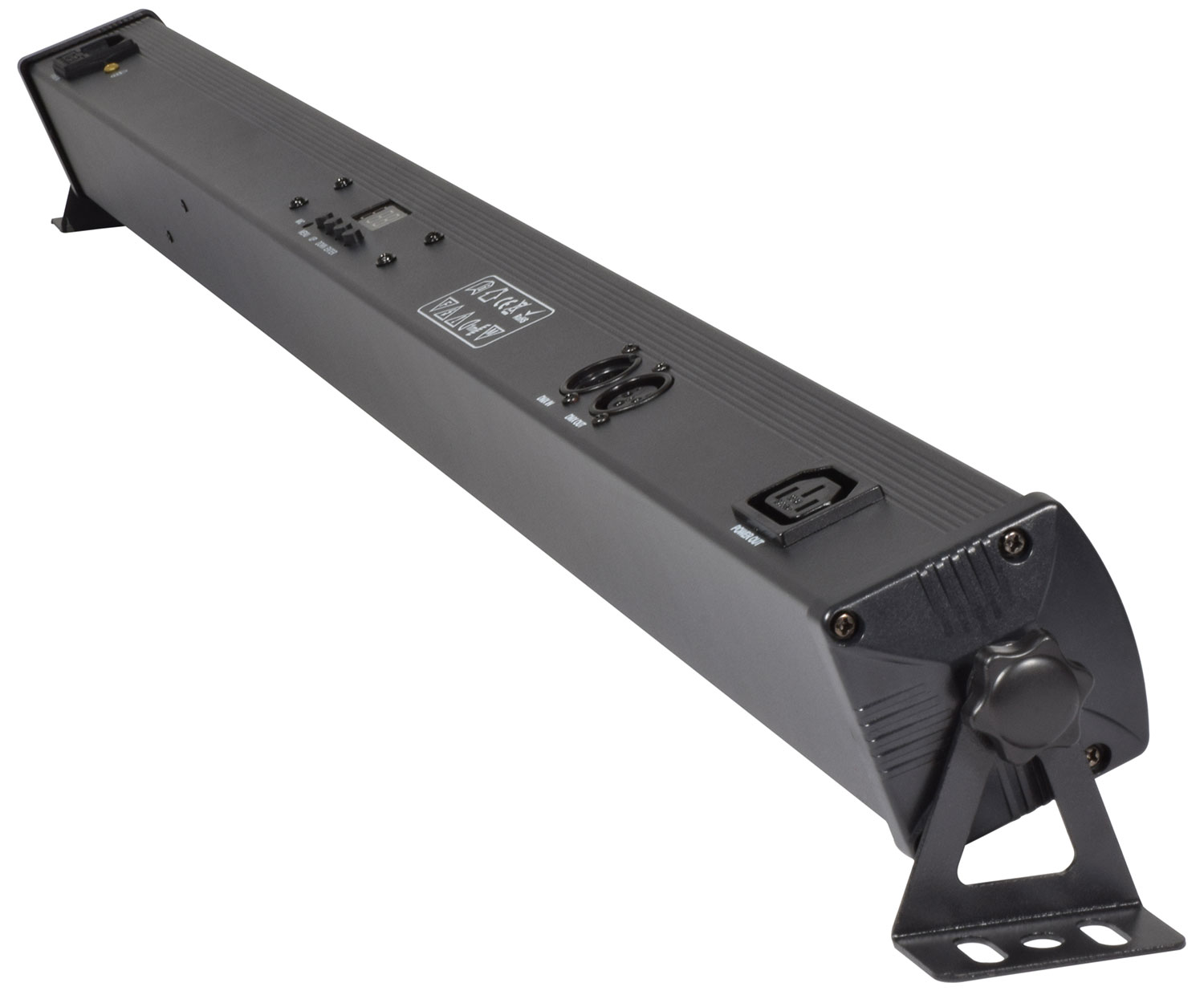

  • Adjustable end mounting brackets
  • User guide

Downloads

Instruction manual
For 151.594UK (232KB)
UK Declaration of conformity
For 151.594UK (252KB)
EU Declaration of conformity
For 151.594UK (240KB)
