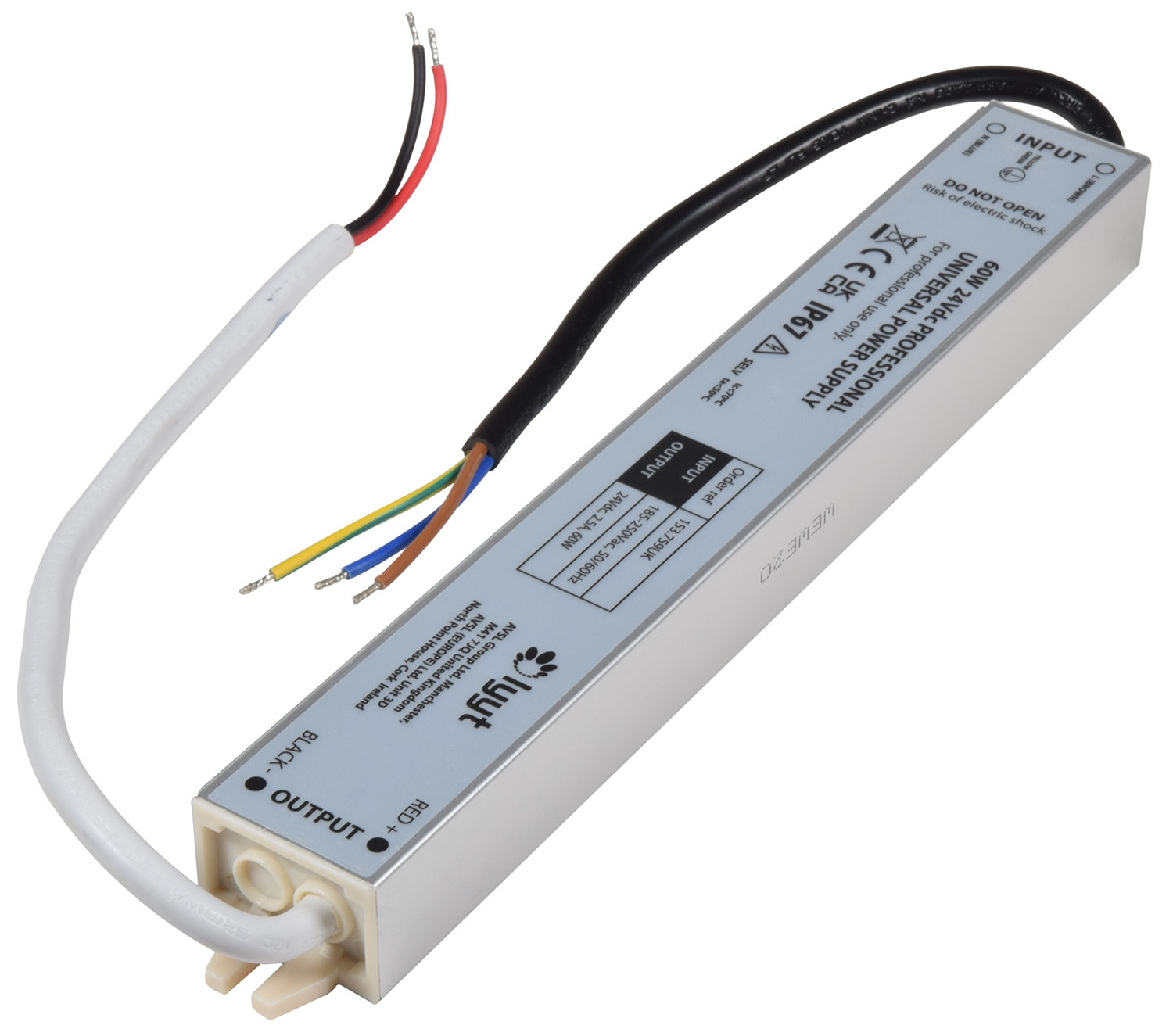

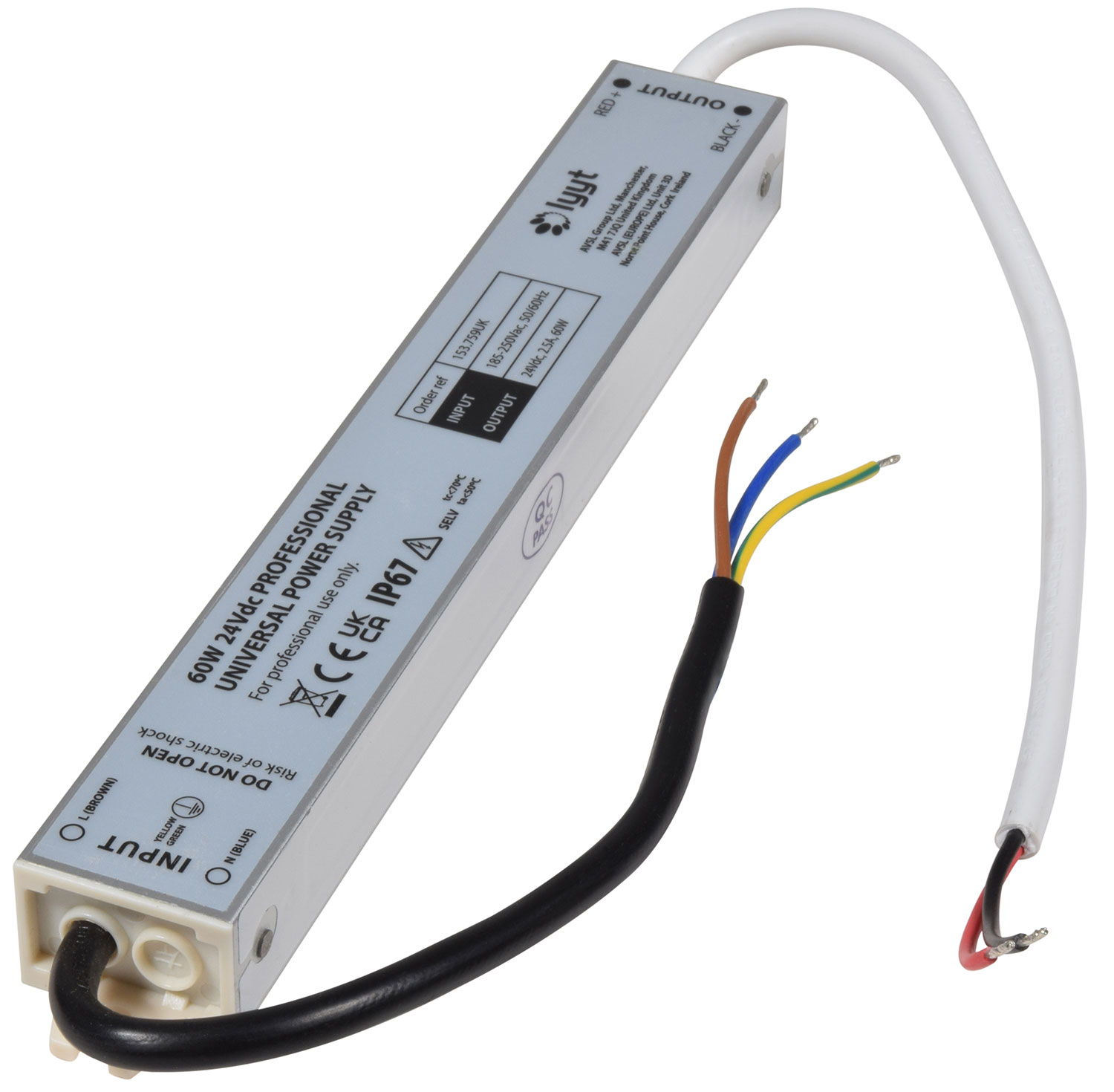

Universal 24Vdc Power Supplies

153.759UK PS60-24

A range of IP67 rated 24Vdc power supplies, available from 30W to 150W output power, suitable for both indoor and outdoor lighting installation. For Professional Use Only.

  • Single or multiple outputs for loop output connection
  • Short circuit protection
Description Version Packed
153.757UK
PS30-24 30W power supply
24Vdc 1.25A 30W Box Label BW
153.758UK
PS45-24 45W power supply
24Vdc 1.875A 45W Box Label BW
153.759UK
PS60-24 60W power supply
24Vdc 2.50A 60W Box Label BW
153.760UK
PS100-24 100W power supply
24Vdc 4.16A 100W Box Label BW
153.761UK
PS150-24 150W power supply
24Vdc 6.25A 150W Box Label BW
153.762UK
PS200-24 200W power supply
24Vdc 8.33A 200W Box Label BW
153.763UK
PS250-24 250W power supply
24Vdc 10.4A 250W Box Label BW
153.764UK
PS300-24 300W power supply
24Vdc 12.5A 300W Box Label BW

Universal 24Vdc Power Supplies

A range of IP67 rated 24Vdc power supplies, available from 30W to 150W output power, suitable for both indoor and outdoor lighting installation. For Professional Use Only.

  • Single or multiple outputs for loop output connection
  • Short circuit protection

Specification : Common

  • Output voltage 24Vdc
  • IP rating IP67

Specification : Versions

  153.757UK 153.758UK 153.759UK 153.760UK 153.761UK 153.762UK 153.763UK 153.764UK
Input voltage 100-250Vac, 50/60Hz 170-250Vac, 50/60Hz 170-250Vac, 50/60Hz 170-250Vac, 50/60Hz 170-250Vac, 50/60Hz 170-250Vac, 50/60Hz 170-250Vac, 50/60Hz 185-250Vac, 50/60Hz
Total power output 30W 45W 60W 100W 150W 200W 250W 300W
Current 1.25A 1.87A 2.5A 4.17A 6.25A 8.33A 10.42A 12.5A
Dimensions 221 x 30 x 20mm 252 x 40 x 22mm 159 x 70 x 45mm 240 x 70 x 45mm 245 x 70 x 46mm 231 x 133 x 64mm 233 x 120 x 56mm 287 x 108 x 65mm
Weight 250g 400g 782g 1.25kg 2.8kg 2.8kg 3kg 3.2kg

Trade information

  153.757UK 153.758UK 153.759UK 153.760UK 153.761UK 153.762UK 153.763UK 153.764UK
Barcode / EAN 5015972131091 5015972131190 5015972131206 5015972131213 5015972131220 5015972131237 5015972131244 5015972131251
Package type Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW
Package dimensions 40 x 195 x 35mm 40 x 225 x 35mm 60 x 260 x 35mm 60 x 220 x 40mm 90 x 262 x 48mm 245 x 130 x 75mm 245 x 130 x 75mm 245 x 130 x 75mm
Package weight 0.31kg 0.27kg 0.45kg 0.68kg 1.30kg 2.80kg 3.00kg 3.20kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 235 x 345 x 175mm 210 x 360 x 200mm 270 x 310 x 220mm 230 x 250 x 210mm 430 x 262 x 193mm 430 x 293 x 185mm 430 x 293 x 185mm 430 x 293 x 185mm
Carton weight 16.50kg 14.50kg 14.50kg 14.50kg 14.00kg 14.00kg 15.00kg 32.00kg
Carton quantity 50 packages 50 packages 30 packages 20 packages 10 packages 5 packages 5 packages 10 packages

Support

Instruction manual
For 153.759UK (540KB)
Instruction manual
For 153.760UK (540KB)
Instruction manual
For 153.761UK (540KB)
Instruction manual
For 153.758UK (540KB)
Instruction manual
For 153.757UK (540KB)
