24V Single Colour LED Tape - 5m Reel

156.761UK LT24560-BL

Our range of IP65 single colour, super-bright LED tapes are supplied on 5m reels with a choice of 4 different colours, each with an adhesive back. The tape is easy to setup and quick to install, th...

  • Can be cut to desired length (10cm intervals)
  • 60 ultra bright LEDs per metre
  • Self-adhesive backing for easy installation
Full description Find retailer
Description Version Packed
156.766UK
24V SMD2835 tape 5m - warm white 		Warm White Poly Bag
156.761UK
24V LED tape 5m reel - blue 		Blue Poly Bag

Accessories

Description Version Packed
156.141UK
10mm single colour LED tape L connector - pack of 5 		10mm single L piece Poly Bag
156.143UK
10mm single colour LED tape T connector - pack of 5 		10mm single T piece Poly Bag
156.145UK
10mm single colour LED tape X connector - pack of 5 		10mm single X piece Poly Bag
153.795UK
Single colour LED tape controller with DC jacks 		Poly Bag
153.793UK
RF 1-Colour LED Controller 		Box Label
156.149UK
Professional Single Colour Flexible Link - Pack of 5 		10mm single colour Poly Bag
153.757UK
Power Supply 24Vdc 1.25A 30W 		24Vdc 1.25A 30W Box Label
153.758UK
Power Supply 24Vdc 1.875A 45W 		24Vdc 1.875A 45W Box Label
153.759UK
Power Supply 24Vdc 2.50A 60W 		24Vdc 2.50A 60W Box Label
153.760UK
Power Supply 24Vdc 4.16A 100W 		24Vdc 4.16A 100W Box Label
153.761UK
Power Supply 24Vdc 6.25A 150W 		24Vdc 6.25A 150W Box Label
153.762UK
Power Supply 24Vdc 8.33A 200W 		24Vdc 8.33A 200W Box Label
153.763UK
Power Supply 24Vdc 10.4A 250W 		24Vdc 10.4A 250W Box Label
153.764UK
Power Supply 24Vdc 12.5A 300W 		24Vdc 12.5A 300W Box Label

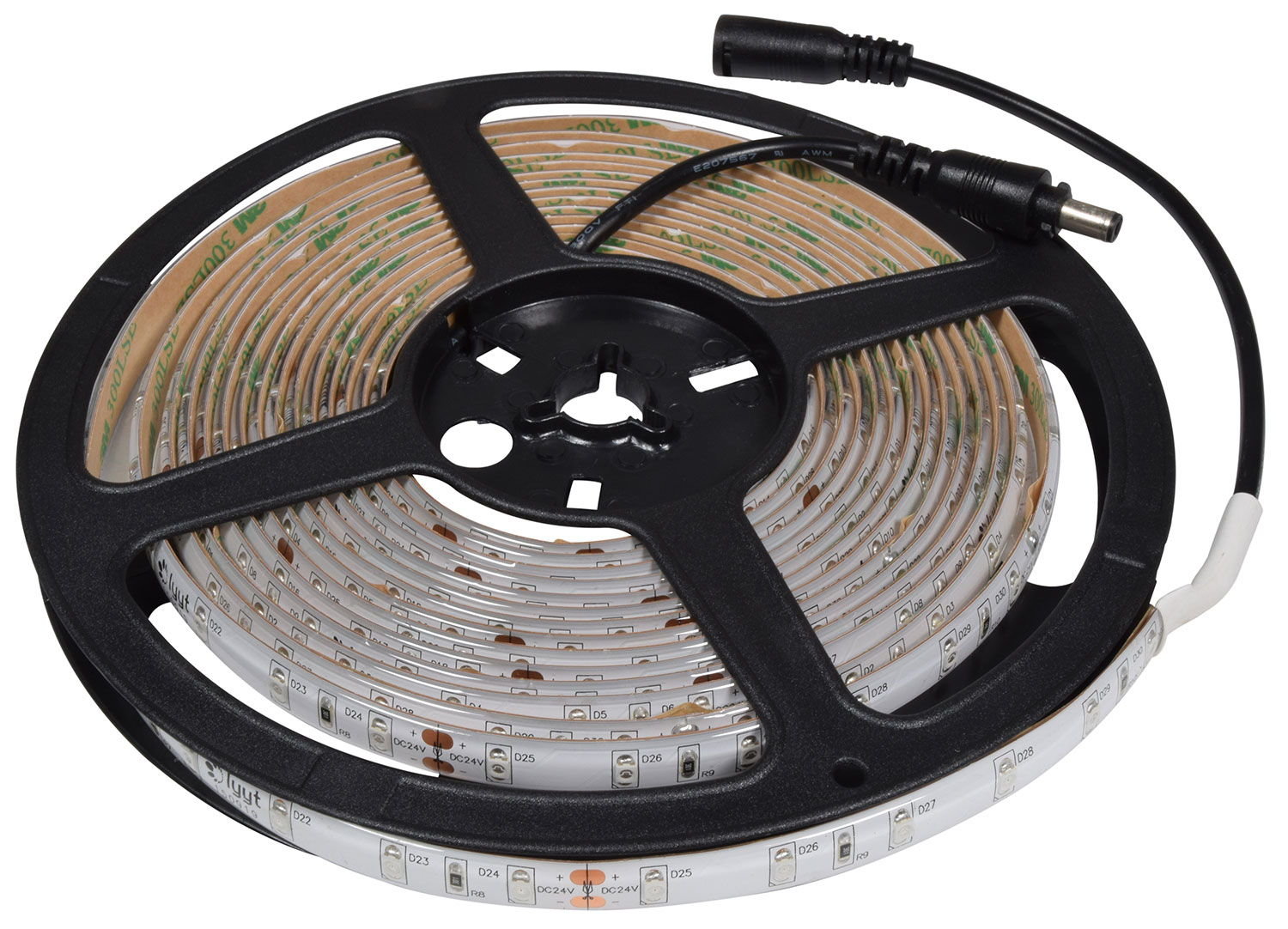

24V Single Colour LED Tape - 5m Reel

Our range of IP65 single colour, super-bright LED tapes are supplied on 5m reels with a choice of 4 different colours, each with an adhesive back. The tape is easy to setup and quick to install, the 24Vdc supply and low power consumption makes them suitable for a wide variety of applications from homes to vehicles, shops to bars and even nightclubs. The LEDs will last up to 50,000 hours and are covered with an epoxy coating to protect the tape from general wear and tear as well as being water resistant, this makes cleaning an easy task.

  • Can be cut to desired length (10cm intervals)
  • 60 ultra bright LEDs per metre
  • Self-adhesive backing for easy installation
  • Low voltage (24Vdc) and power consumption
  • Flexible and lightweight
  • Supplied with easy-to-use connection accessories
  • IP65 rated
  • Voltage 24Vdc
  • Number of LEDs 60/m
  • Beam angle 140°
  • Cut intervals 10cm
  • Reel length 5m
  • LED : spacing 16mm
  • IP rating IP65
  • Current 200mA per metre
  • Power consumption per metre 4.8W
  • Cross-section 10.5 x 2.55mm
  • Weight 210g

Versions

  156.766UK 156.761UK
LED : type SMD2835 SMD3528
Colour Warm white (3000K) Blue
Luminous flux (Lumens per metre) 720lm/m 30lm/m
Light intensity per LED (millicandelas) 3996mcd 500mcd

Downloads

Instruction manual
For 156.761UK (258KB)
UK Declaration of conformity
For 156.761UK (246KB)
EU Declaration of conformity
For 156.761UK (235KB)
