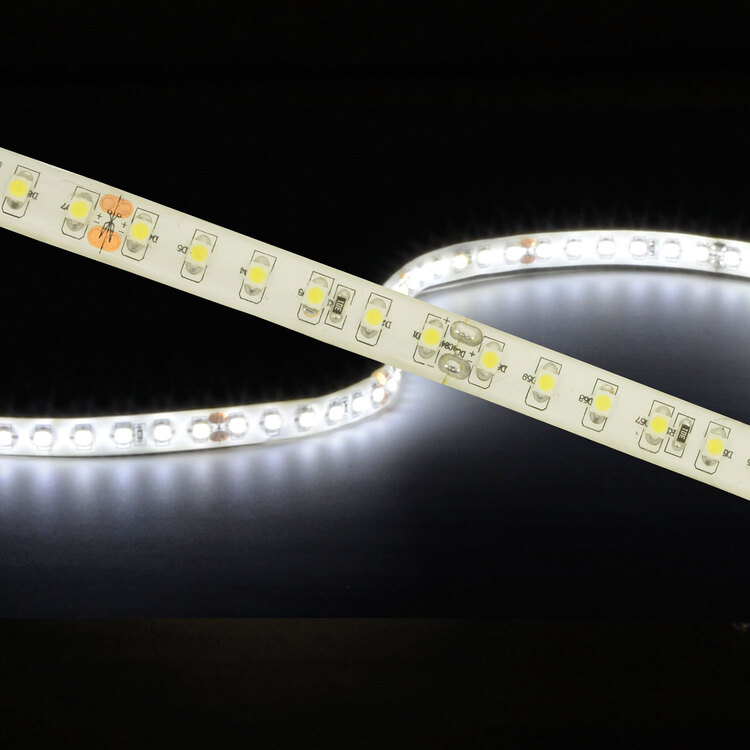

24V High Output LED Tape - 5m Reel

156.778UK LT245120-CW

24V LED tape with high luminous flux output. 120 LEDs per metre combine to give exceptional light output with narrow spacing for even light distribution. Epoxy coated for water resistant protection...

  • High luminous flux output
  • 120 ultra bright LEDs per metre
  • Self-adhesive backing for easy installation
Full description Find retailer
Description Version Packed
156.776UK
24V high output LED tape 5.0m reel - warm white 		Warm white Poly Bag
156.777UK
24V high output LED tape 5.0m reel - natural white 		Natural white Poly Bag
156.778UK
24V high output LED tape 5.0m reel - cool white 		Cool white Poly Bag

Accessories

Description Version Packed
156.141UK
10mm single colour LED tape L connector - pack of 5 		10mm single L piece Poly Bag
156.143UK
10mm single colour LED tape T connector - pack of 5 		10mm single T piece Poly Bag
156.145UK
10mm single colour LED tape X connector - pack of 5 		10mm single X piece Poly Bag
153.795UK
Single colour LED tape controller with DC jacks 		Poly Bag
153.759UK
Power Supply 24Vdc 2.50A 60W 		24Vdc 2.50A 60W Box Label
153.760UK
Power Supply 24Vdc 4.16A 100W 		24Vdc 4.16A 100W Box Label
153.761UK
Power Supply 24Vdc 6.25A 150W 		24Vdc 6.25A 150W Box Label
153.762UK
Power Supply 24Vdc 8.33A 200W 		24Vdc 8.33A 200W Box Label
153.763UK
Power Supply 24Vdc 10.4A 250W 		24Vdc 10.4A 250W Box Label
153.764UK
Power Supply 24Vdc 12.5A 300W 		24Vdc 12.5A 300W Box Label
153.793UK
RF 1-Colour LED Controller 		Box Label
156.149UK
Professional Single Colour Flexible Link - Pack of 5 		10mm single colour Poly Bag

24V High Output LED Tape - 5m Reel

24V LED tape with high luminous flux output. 120 LEDs per metre combine to give exceptional light output with narrow spacing for even light distribution. Epoxy coated for water resistant protection and self adhesive backing for easy installation. Where standard LED tapes may not be powerful enough, these high output versions offer sufficient illumination for cabinets, architectural detail and signage.

  • High luminous flux output
  • 120 ultra bright LEDs per metre
  • Self-adhesive backing for easy installation
  • Can be cut to desired length
  • IP65 epoxy coated
  • Voltage 24Vdc
  • Number of LEDs 120/m
  • Beam angle 140°
  • Cut intervals 5cm
  • Reel length 5m
  • LED : type Epistar™ SMD3528
  • LED : spacing 8mm
  • IP rating IP65
  • Current 400mA per metre
  • Luminous flux (Lumens per metre) 720lm/m
  • Light intensity per LED 2400mcd
  • Power consumption per metre 9.6W
  • Cross-section 10.3 x 2.55mm
  • Weight 210g

Versions

  156.776UK 156.777UK 156.778UK
Colour temperature 3000K 4000K 6000K
Colour Warm white Natural white Cool white

Downloads

Instruction manual
For 156.778UK (216KB)
UK Declaration of conformity
For 156.778UK (248KB)
EU Declaration of conformity
For 156.778UK (237KB)
