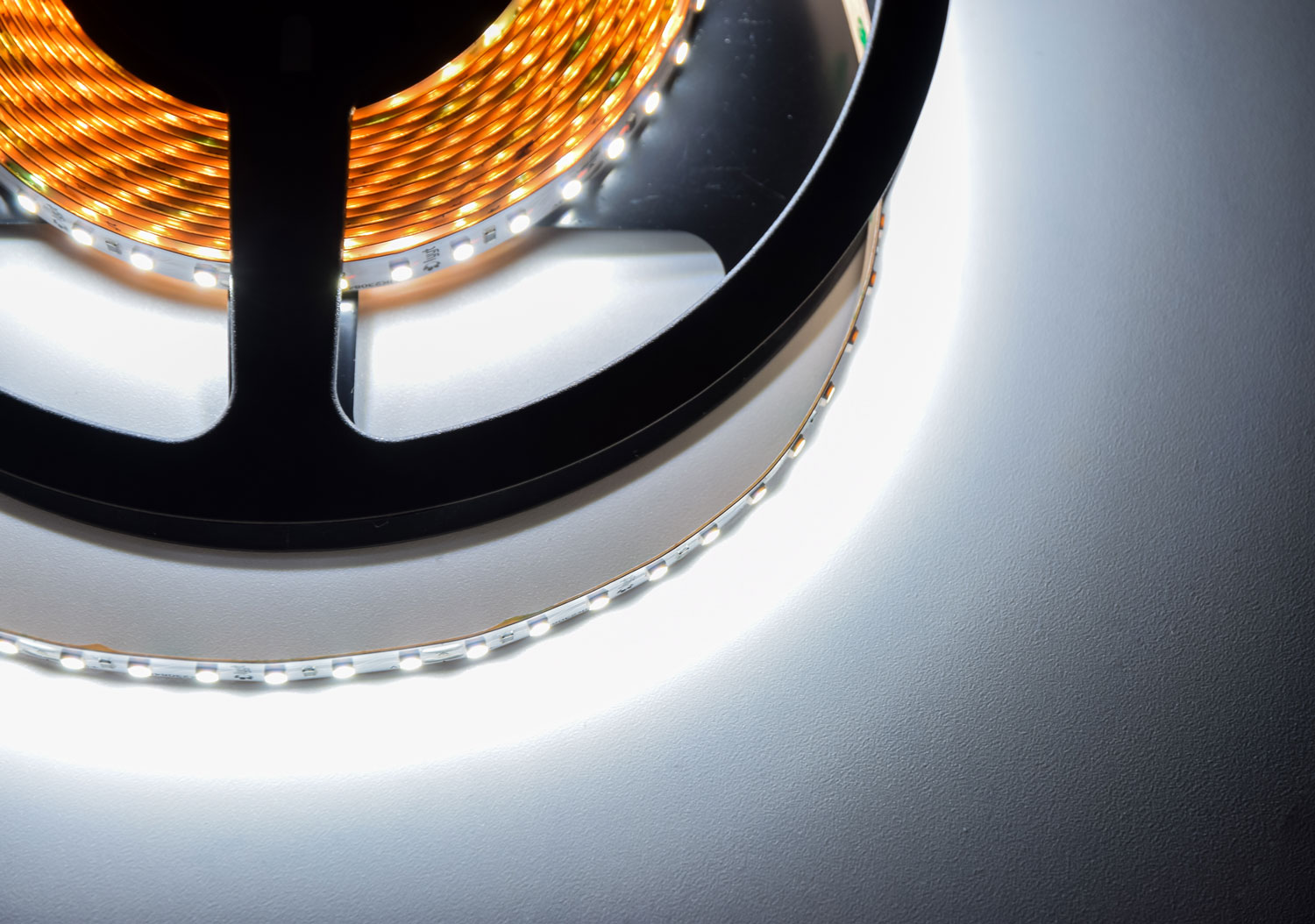

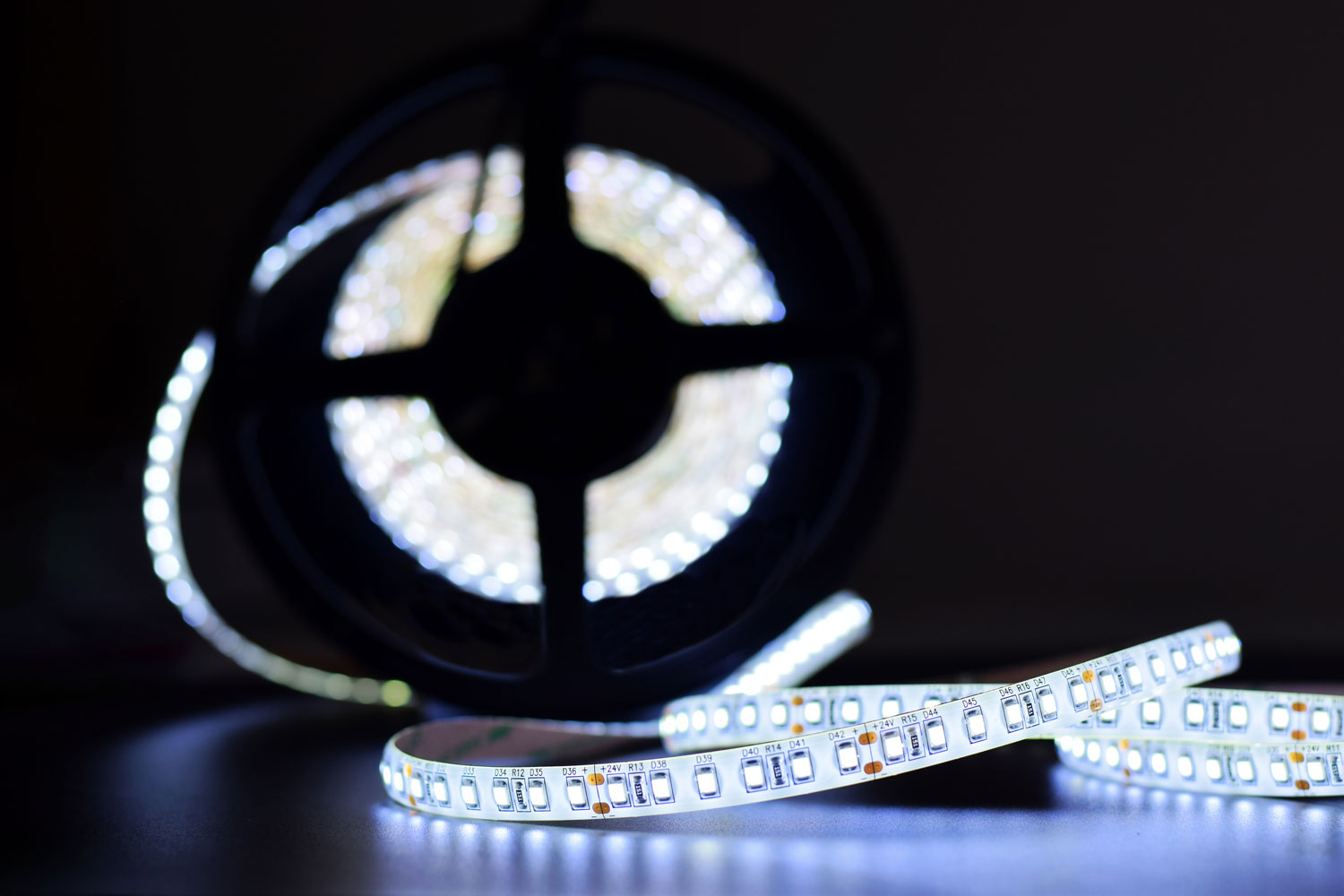

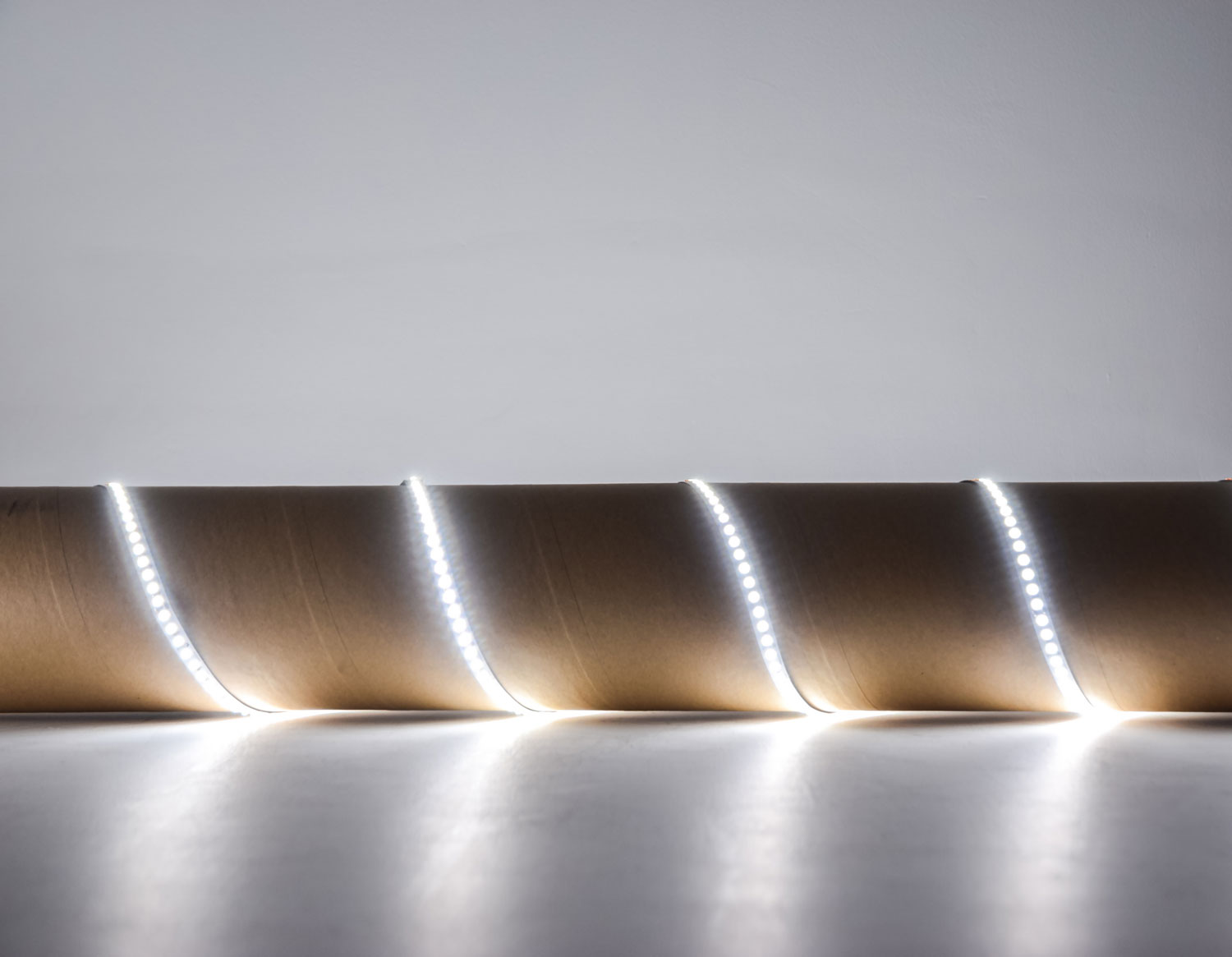

24V IP20 Hi Output LED Tape

156.788UK

24V LED tape with high luminous flux output. 120 LEDs per metre combine to give exceptional light output with narrow spacing for even light distribution. Features self adhesive backing for easy ins...

  • High luminous flux output
  • 120 ultra bright LEDs per metre
  • Self-adhesive backing for easy installation
Full description Find retailer
Description Version Packed
156.786UK
24V IP20 Hi Output LED Tape Warm White 		WW Poly Bag
156.788UK
24V IP20 Hi Output LED Tape Cool White 		CW Poly Bag

24V IP20 Hi Output LED Tape

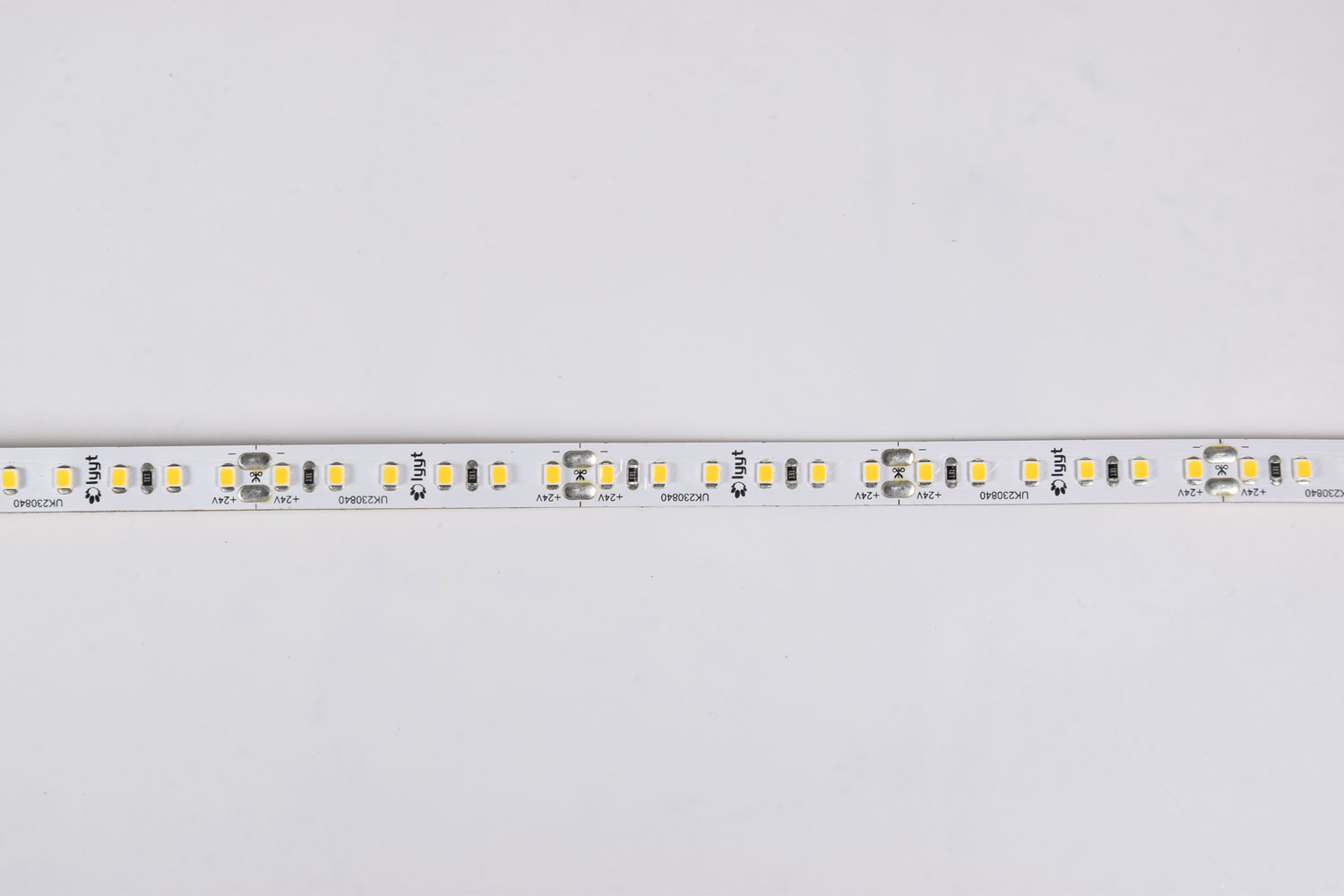

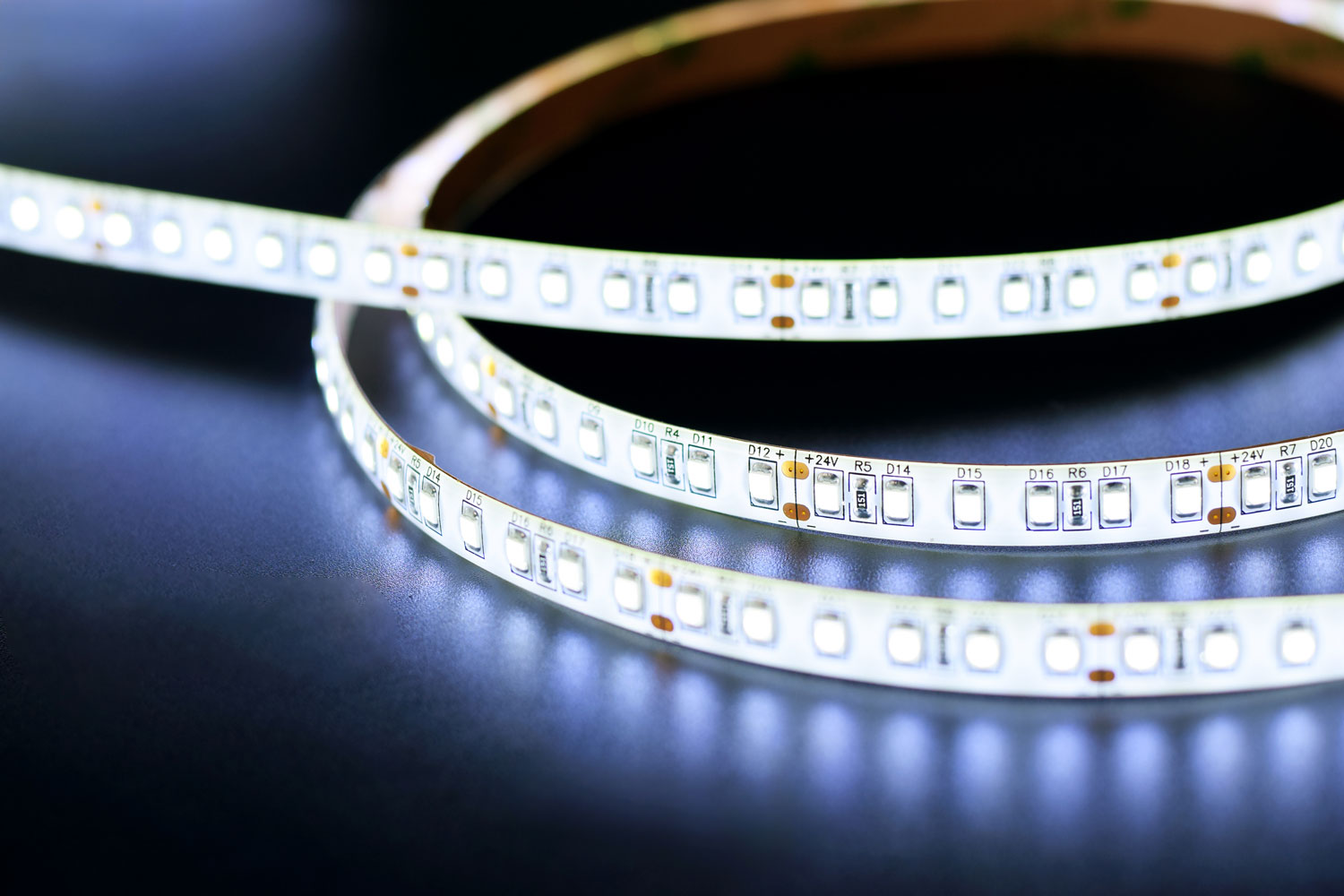

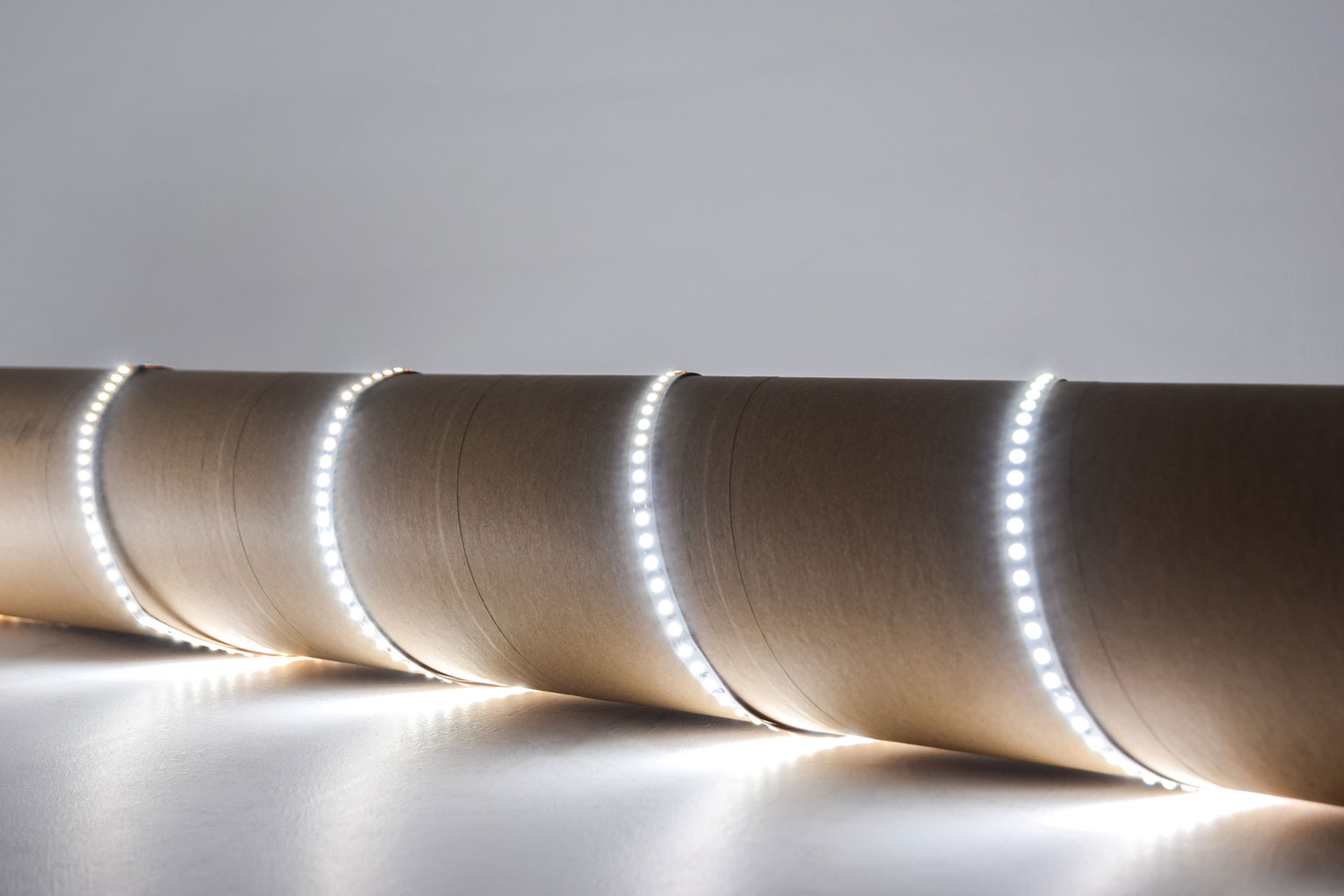

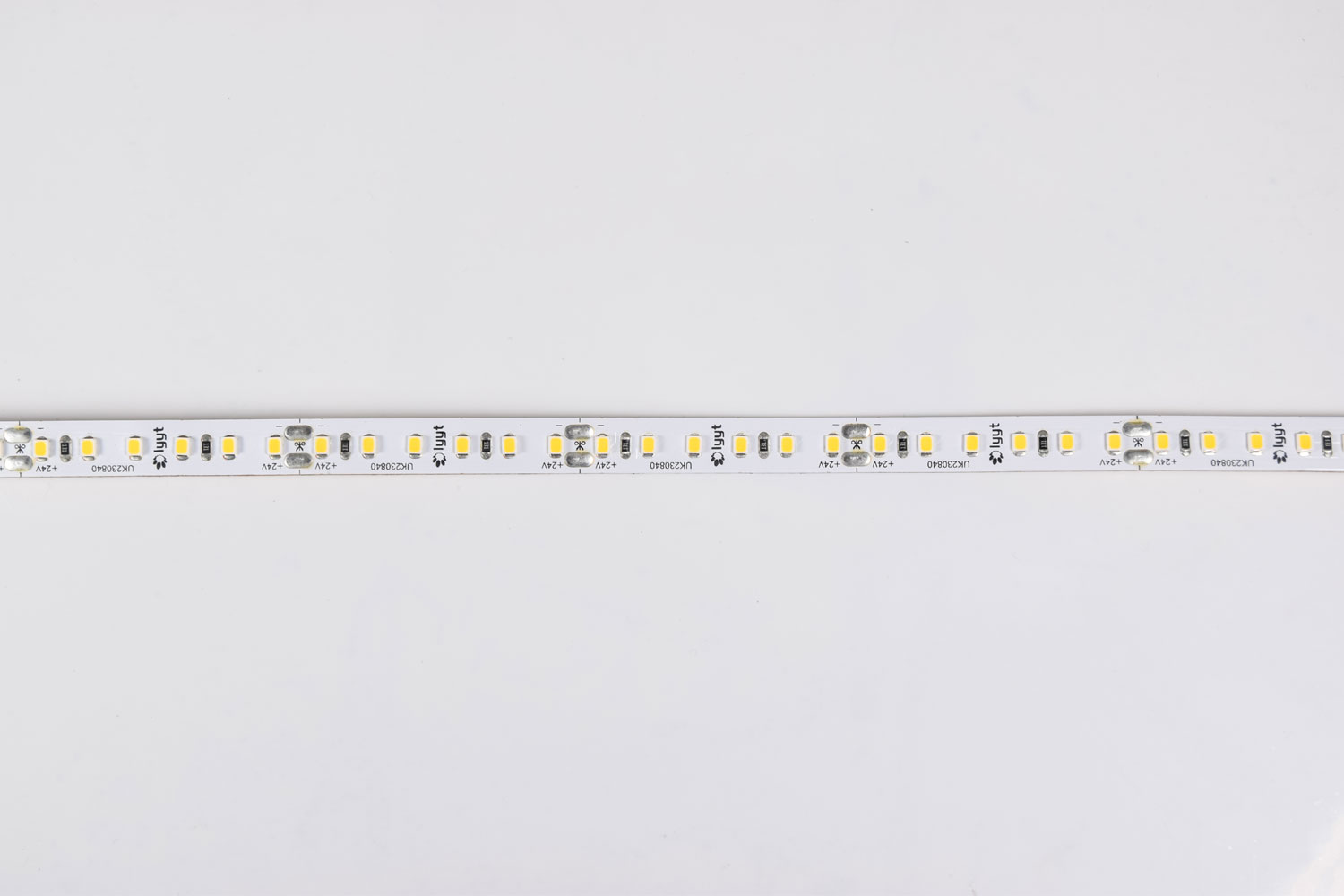

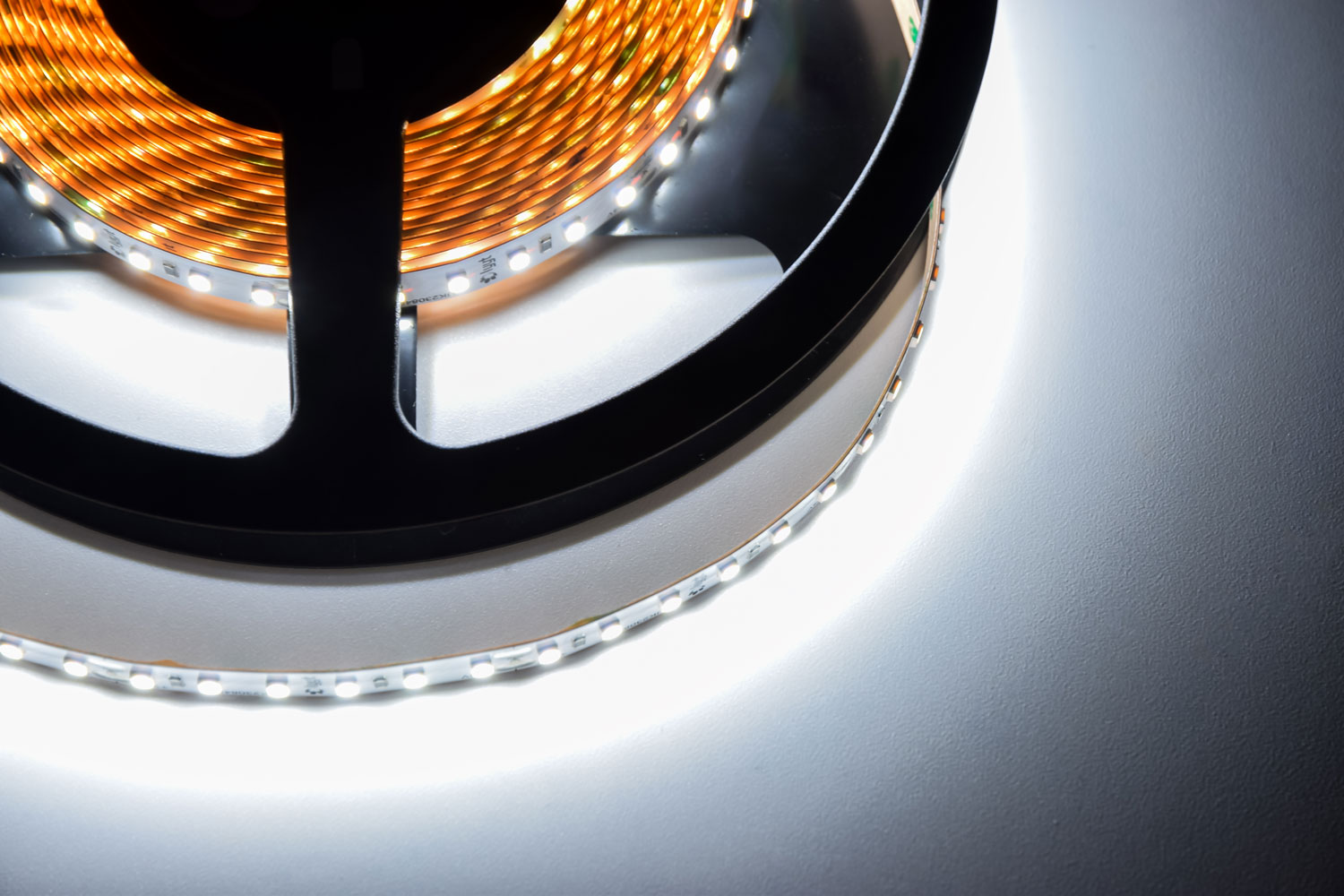

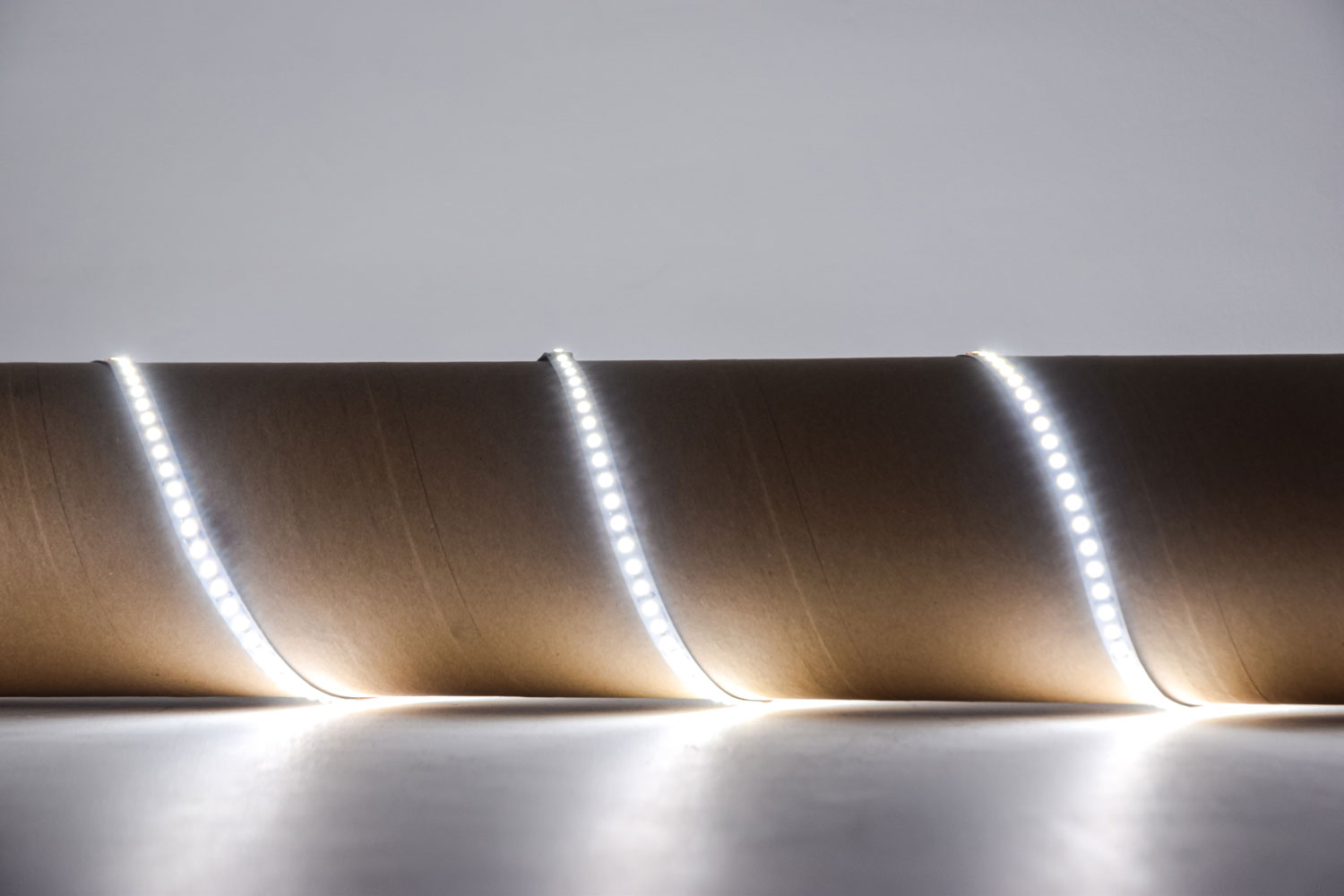

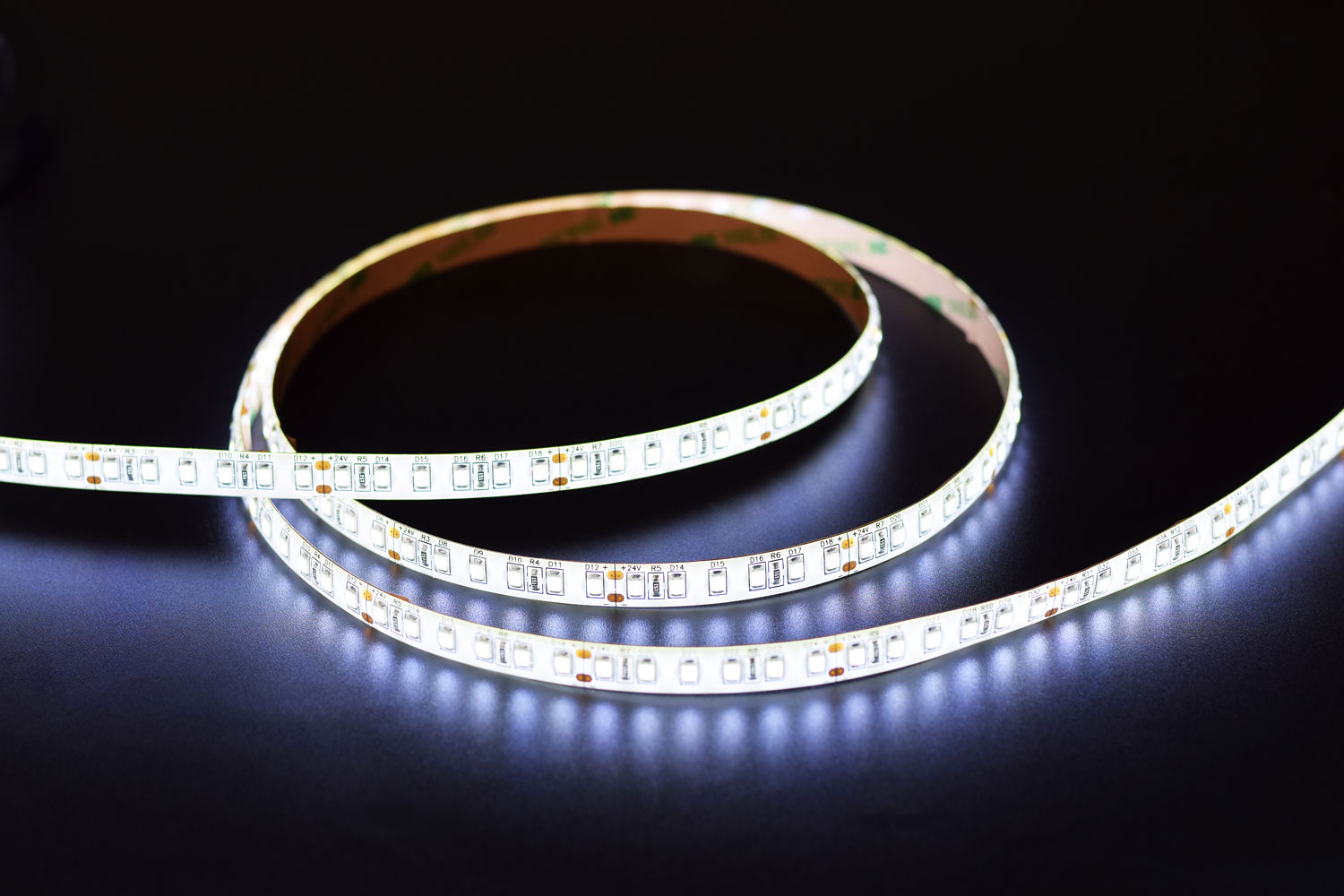

24V LED tape with high luminous flux output. 120 LEDs per metre combine to give exceptional light output with narrow spacing for even light distribution. Features self adhesive backing for easy installation. Where standard LED tapes may not be powerful enough, these high output versions offer sufficient illumination for cabinets, architectural detail and signage.

  • High luminous flux output
  • 120 ultra bright LEDs per metre
  • Self-adhesive backing for easy installation
  • Can be cut to desired length
  • IP20 version suitable for indoor use

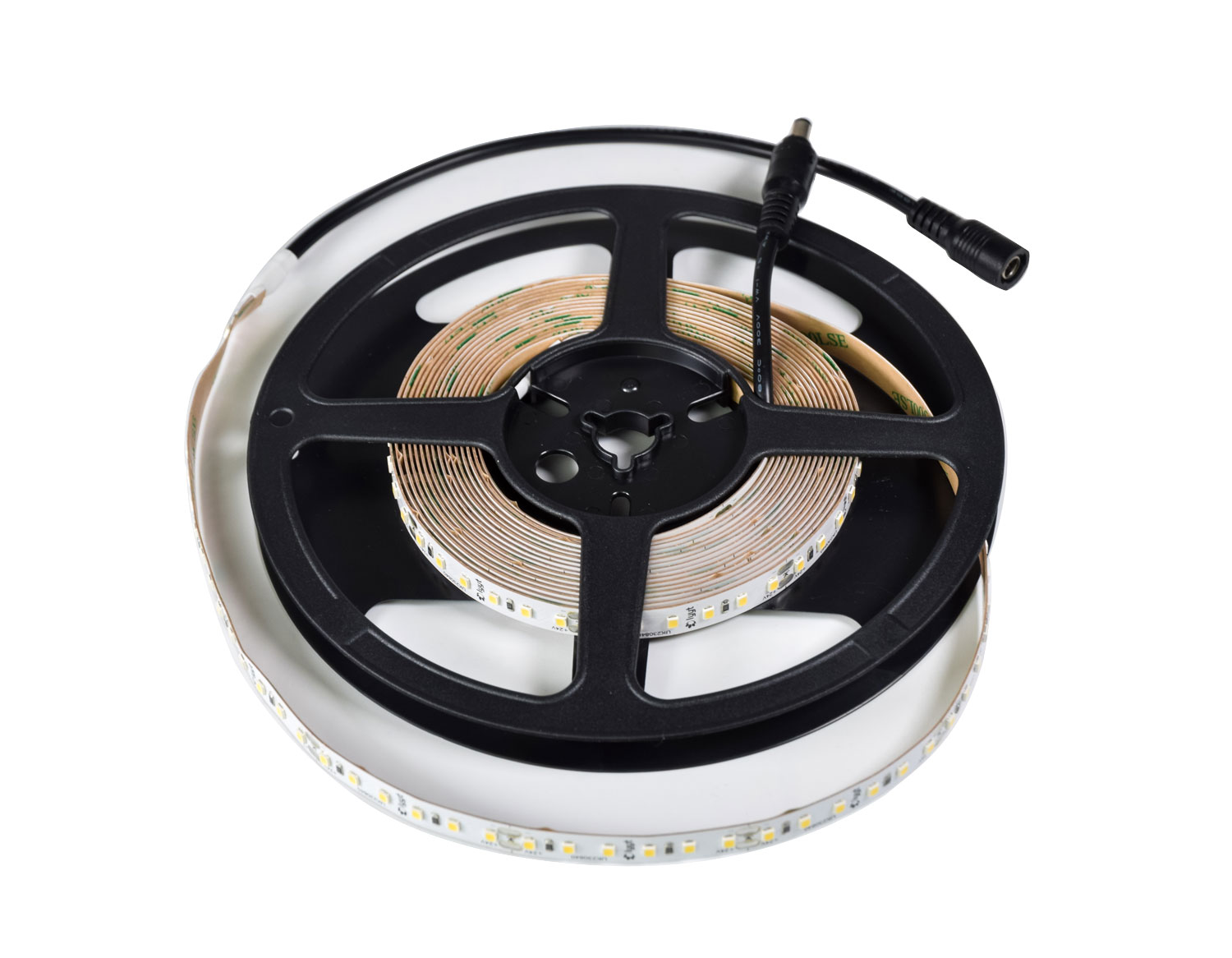

  • 2.1mm DC plug and socket fitted
  • Voltage 24Vdc
  • No. of LEDs 120/m
  • Beam angle 120°
  • Cut intervals 5cm
  • Reel length 5m
  • LED : type 2835 Sanan
  • LED : spacing 6mm
  • IP rating IP20
  • Current 533mA/m
  • Power consumption per metre 12.8W/m
  • Cross-section 10 x 1mm
  • Weight 230g

Versions

  156.786UK 156.788UK
Colour temperature 3000K 6000K
Luminous flux (Lumens per metre) 1084lm/m 1246lm/m

In the box

The box for this item contains :

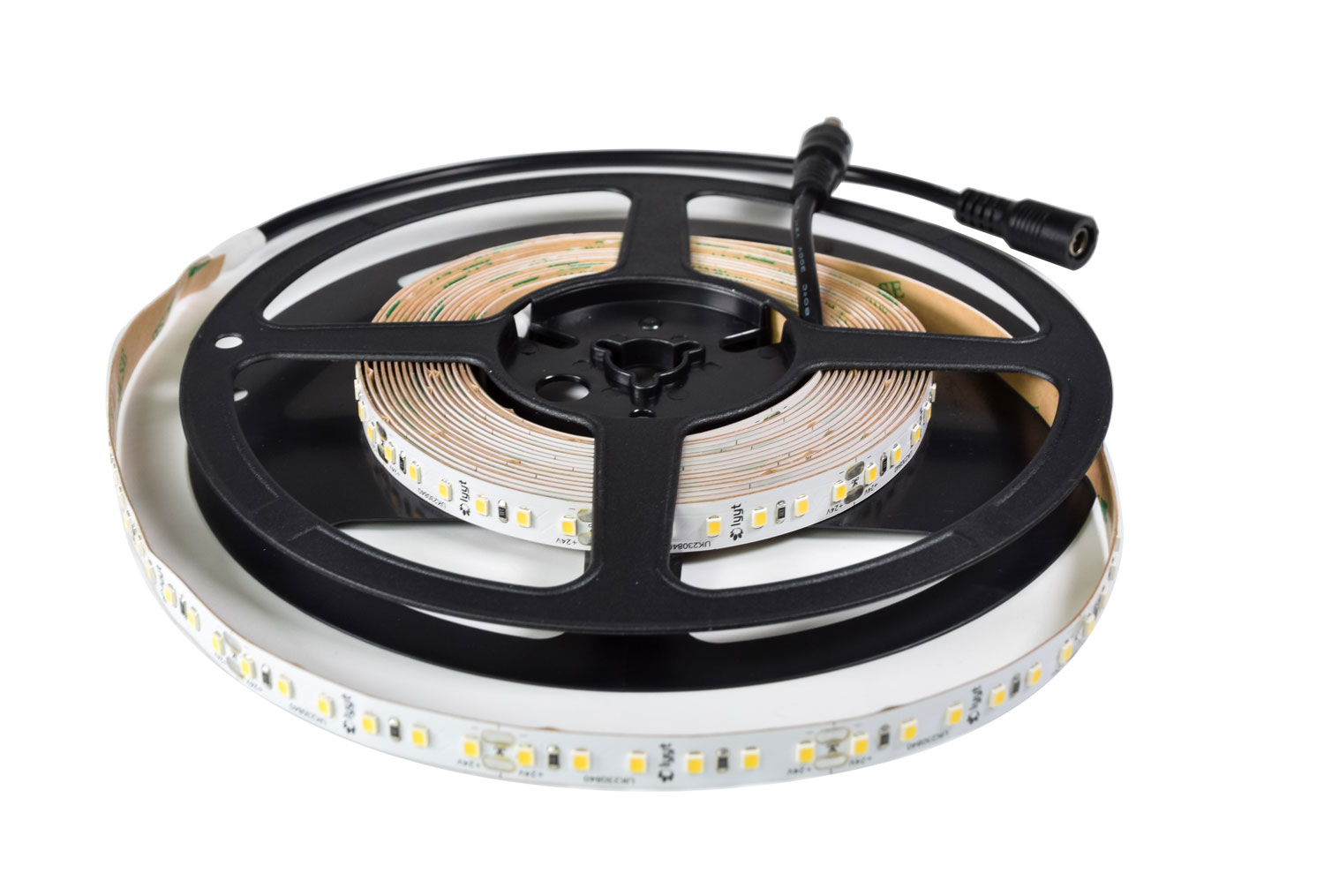

  • 1 x 24V IP20 Hi Output LED Tape 5m

Downloads

Instruction manual
For 156.788UK (206KB)
UK Declaration of conformity
For 156.788UK (265KB)
EU Declaration of conformity
For 156.788UK (253KB)
