5.25" Active Stereo Speaker Set 2x30W RMS

170.165UK BC5A-W

2-way active monitor speaker set comprising a powered unit with stereo amp module and a satellite passive unit. Designed for nearfield monitoring, home entertainment or as a small active background...

  • Volume, treble and bass controls
  • Magnetically shielded
  • Supplied as a pair (1 active + 1 passive)
Description Version Packed
170.165UK
Active 5.25inch Stereo Speaker Set White
White Gift Box
170.166UK
Active 5.25inch Stereo Speaker Set Black
Black Gift Box

5.25" Active Stereo Speaker Set 2x30W RMS

2-way active monitor speaker set comprising a powered unit with stereo amp module and a satellite passive unit. Designed for nearfield monitoring, home entertainment or as a small active background music system.

  • Volume, treble and bass controls
  • Magnetically shielded
  • Supplied as a pair (1 active + 1 passive)
  • Supplied with 4m speaker link cable
  • Supplied with mounting brackets
  • Power On/Off switch with LED indicator
  • 1.5m Fig.8 mains lead included

Specification : Common

  • Power supply 230Vac, 50Hz (fig 8)
  • Woofer 133mmØ (5.25") PP cone
  • Tweeter 25mm balanced dome
  • Frequency response 100Hz - 20kHz
  • Power : rms 2 x 30W
  • Dispersion 150° (-3dB)
  • Sensitivity 88dB

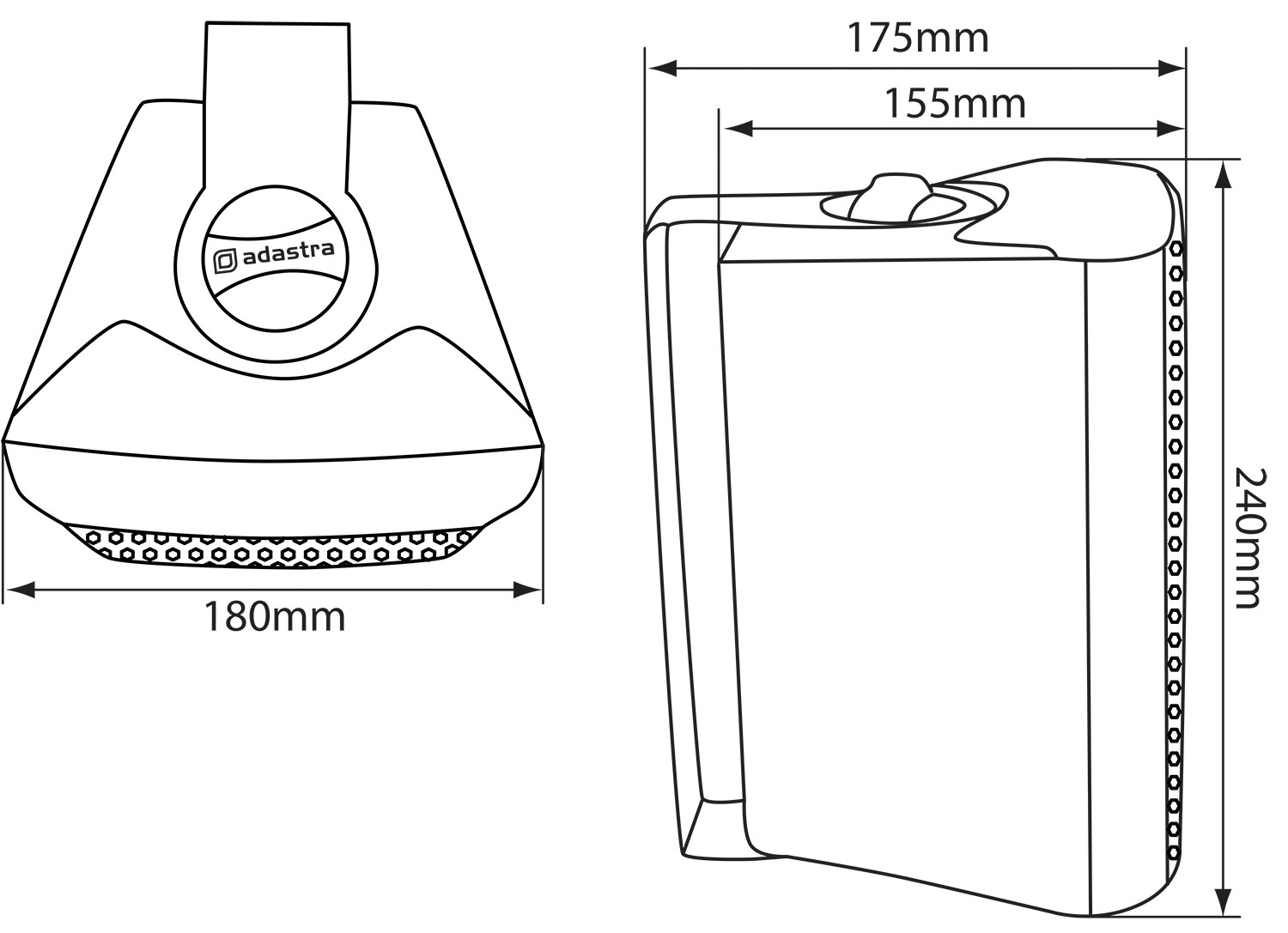

  • Dimensions 240 x 180 x 155mm
  • Weight (per set) 4.6kg

Specification : Versions

  170.165UK 170.166UK
Colour White Black

Trade information

  170.165UK 170.166UK
Barcode / EAN 5015972085172 5015972085196
Package type Gift Box Gift Box
Package dimensions 200 x 435 x 270mm 200 x 435 x 270mm
Package weight 5.50kg 5.50kg
Package quantity 1 unit 1 unit
Carton dimensions 440 x 590 x 380mm 440 x 590 x 380mm
Carton weight 22.00kg 22.00kg
Carton quantity 4 packages 4 packages
Pack paper weight 0.11kg 0.10kg
Pack plastic weight 0.08kg 0.07kg

In the box

The box for this item contains :

  • 1 x BC5 active speaker
  • 1 x BC5 passive speaker
  • 1 x 4m speaker cable
  • 1 x 1.5m fig.8 power lead
  • 2 x mounting brackets & screws
