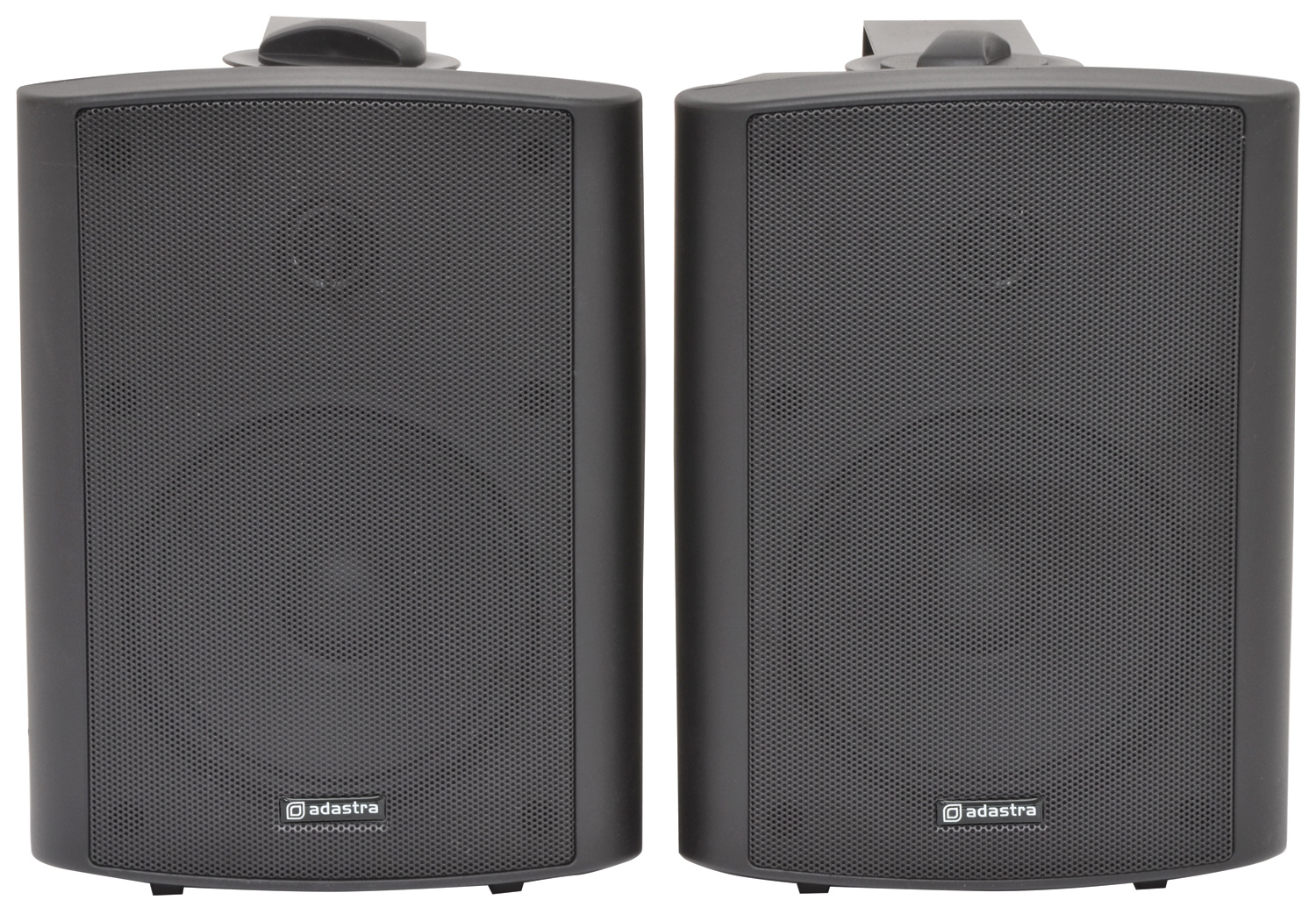

5.25" Active Stereo Speaker Set 2x30W RMS

170.166UK BC5A-B

2-way active monitor speaker set comprising a powered unit with stereo amp module and a satellite passive unit. Designed for nearfield monitoring, home entertainment or as a small active background...

  • Volume, treble and bass controls
  • Magnetically shielded
  • Supplied as a pair (1 active + 1 passive)
Full description Find retailer
Description Version Packed
170.165UK
Active 5.25inch Stereo Speaker Set White 		White Box Label
170.166UK
Active 5.25inch Stereo Speaker Set Black 		Black Box Label

5.25" Active Stereo Speaker Set 2x30W RMS

2-way active monitor speaker set comprising a powered unit with stereo amp module and a satellite passive unit. Designed for nearfield monitoring, home entertainment or as a small active background music system.

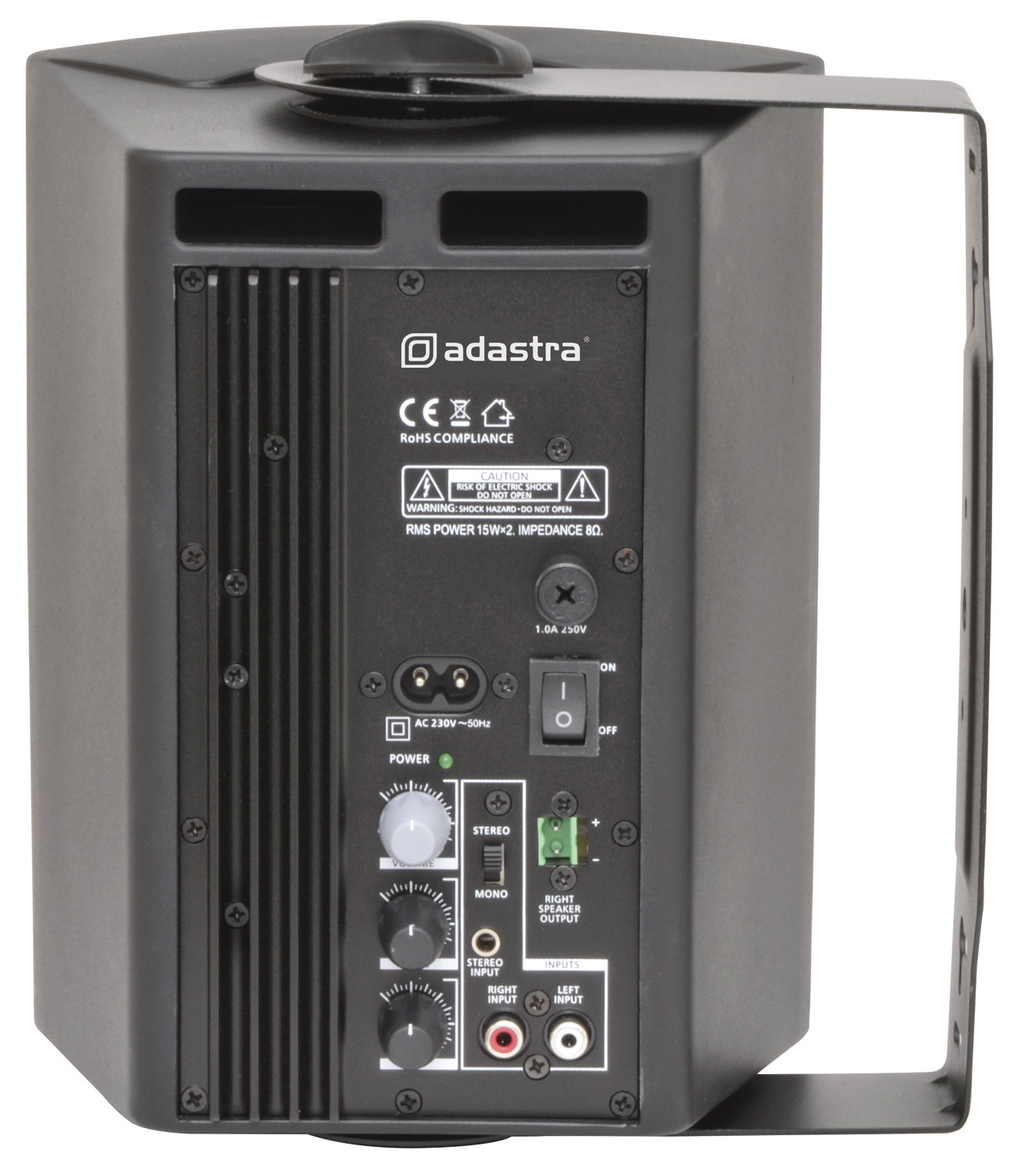

  • Volume, treble and bass controls
  • Magnetically shielded
  • Supplied as a pair (1 active + 1 passive)
  • Supplied with 4m speaker link cable
  • Supplied with mounting brackets
  • Power On/Off switch with LED indicator
  • 1.5m Fig.8 mains lead included
  • Power supply 230Vac, 50Hz (fig 8)
  • Woofer 133mmØ (5.25") PP cone
  • Tweeter 25mm balanced dome
  • Frequency response 100Hz - 20kHz
  • Power : rms 2 x 30W
  • Dispersion 150° (-3dB)
  • Sensitivity 88dB

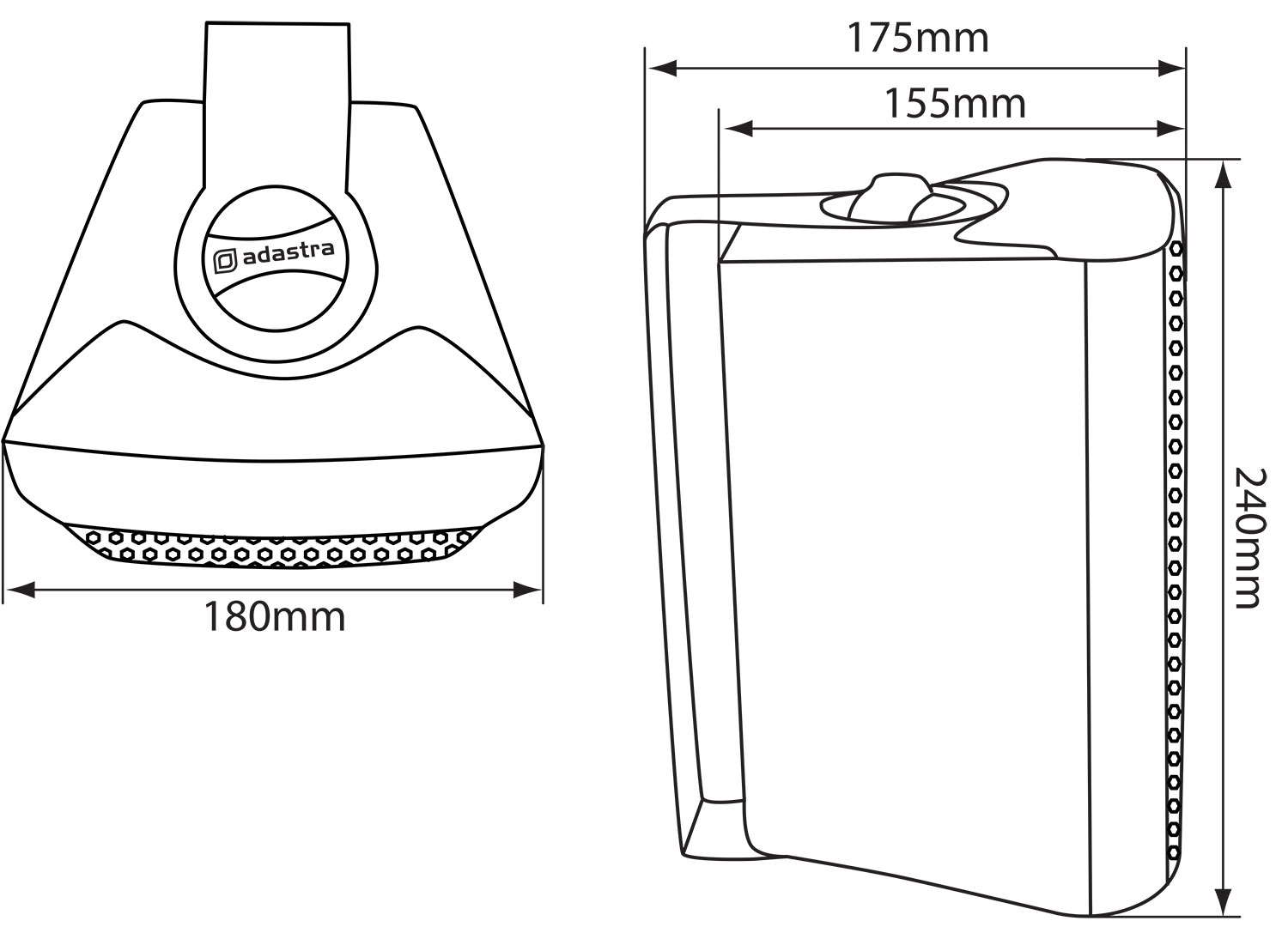

  • Dimensions 240 x 180 x 155mm
  • Weight (per set) 4.6kg

Versions

  170.165UK 170.166UK
Colour White Black

Support : articles

Active speakers

Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • 1 x BC5 active speaker
  • 1 x BC5 passive speaker
  • 1 x 4m speaker cable
  • 1 x 1.5m fig.8 power lead
  • 2 x mounting brackets & screws

Downloads

Instruction manual
For 170.166UK (281KB)
UK Declaration of conformity
For 170.166UK (244KB)
EU Declaration of conformity
For 170.166UK (235KB)
