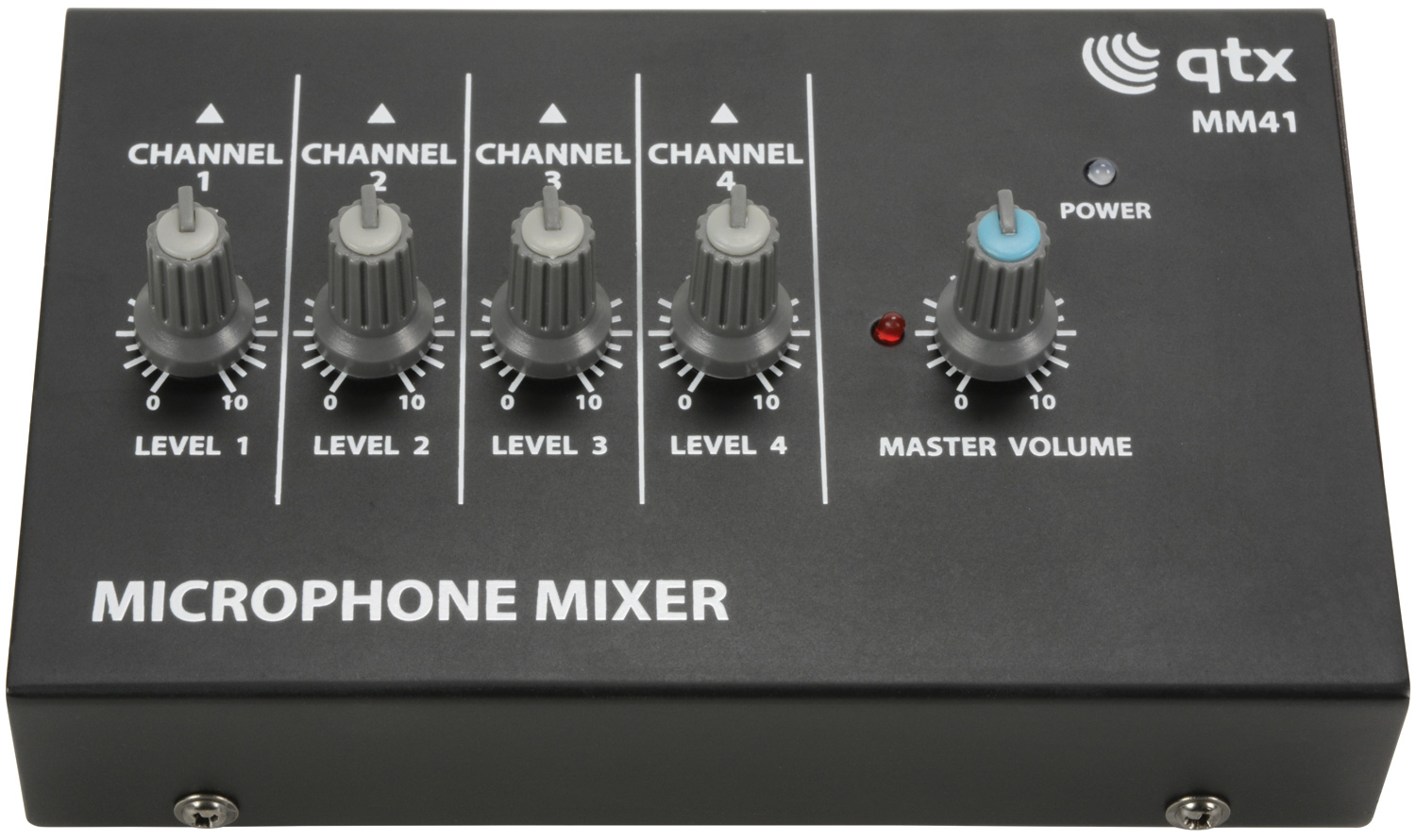

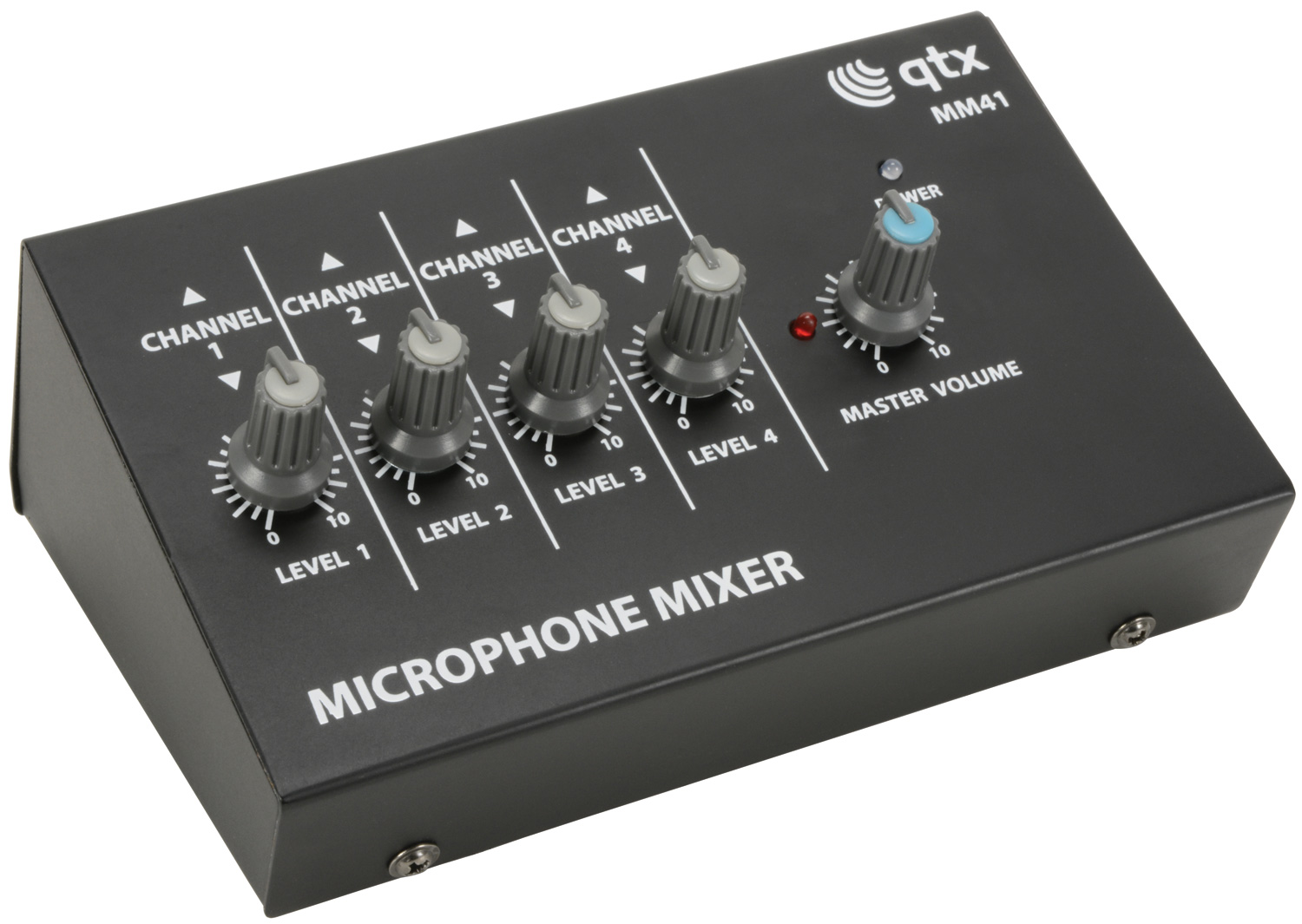

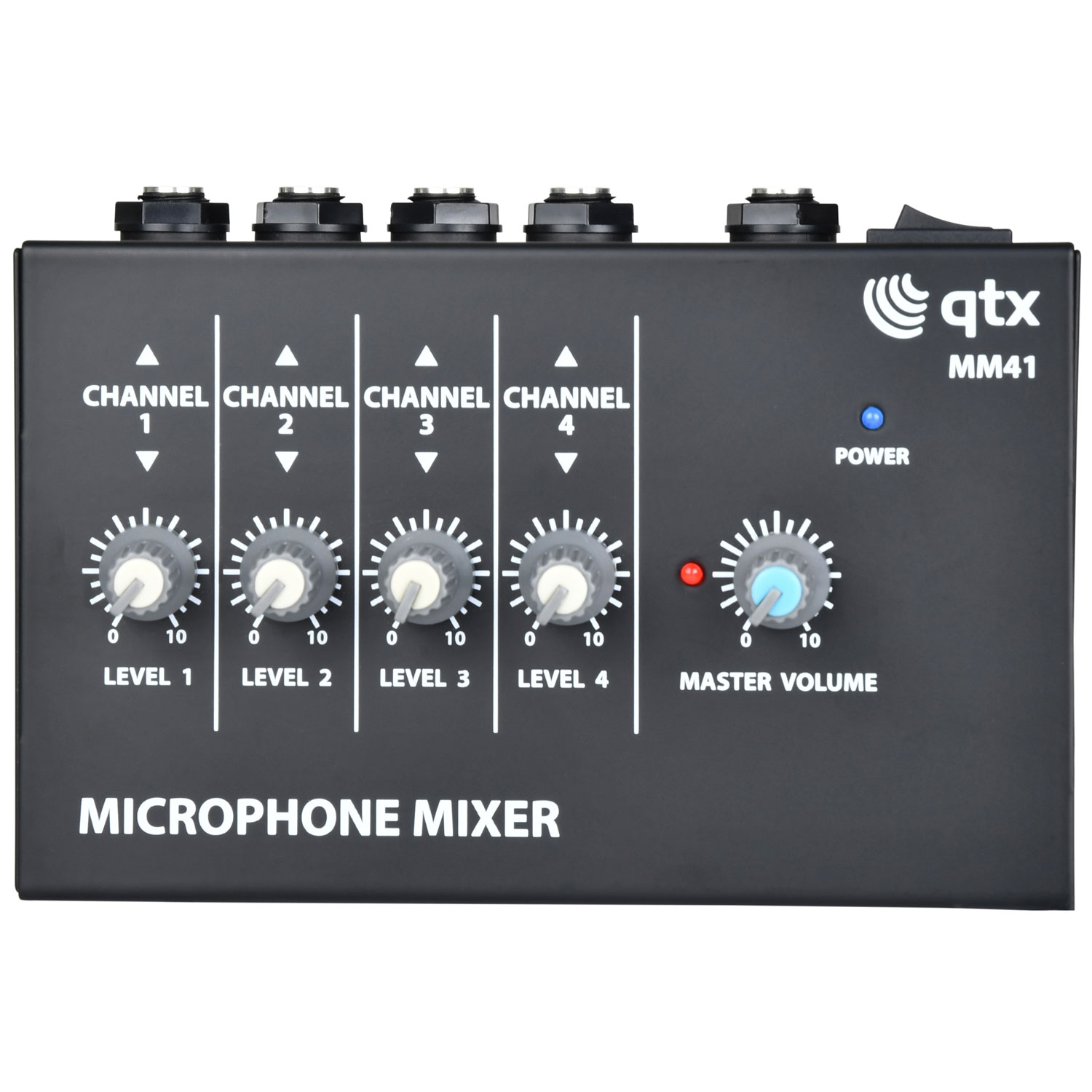

Mini Microphone Mixers

170.202UK MM41

Compact mono microphone mixers with 4 or 8 low impedance jack inputs, mixing to a single master jack output. Onboard separate volume controls for each microphone and the master output. Powered by 1...

  • Compact format
  • Battery or power adaptor operation
  • Can expand existing microphone inputs
Full description Find retailer
Description Version Packed
170.202UK
4 Channel Mini Microphone Mixer 		4 mic inputs Box Label BW
170.203UK
8 Channel Mini Microphone Mixer 		8 mic inputs Box Label BW

Mini Microphone Mixers

Compact mono microphone mixers with 4 or 8 low impedance jack inputs, mixing to a single master jack output. Onboard separate volume controls for each microphone and the master output. Powered by 1 x 9V battery or optional 12Vdc adaptor

  • Available in 4 or 8 channel versions
  • Requires 9V (PP3) battery or 12Vdc power adaptor
  • Battery 9V battery (PP3 - not supplied)
  • Power adaptor 12Vdc, 200mA (optional)
  • Input impedance 3.3k Ohms
  • Output impedance 600 Ohms

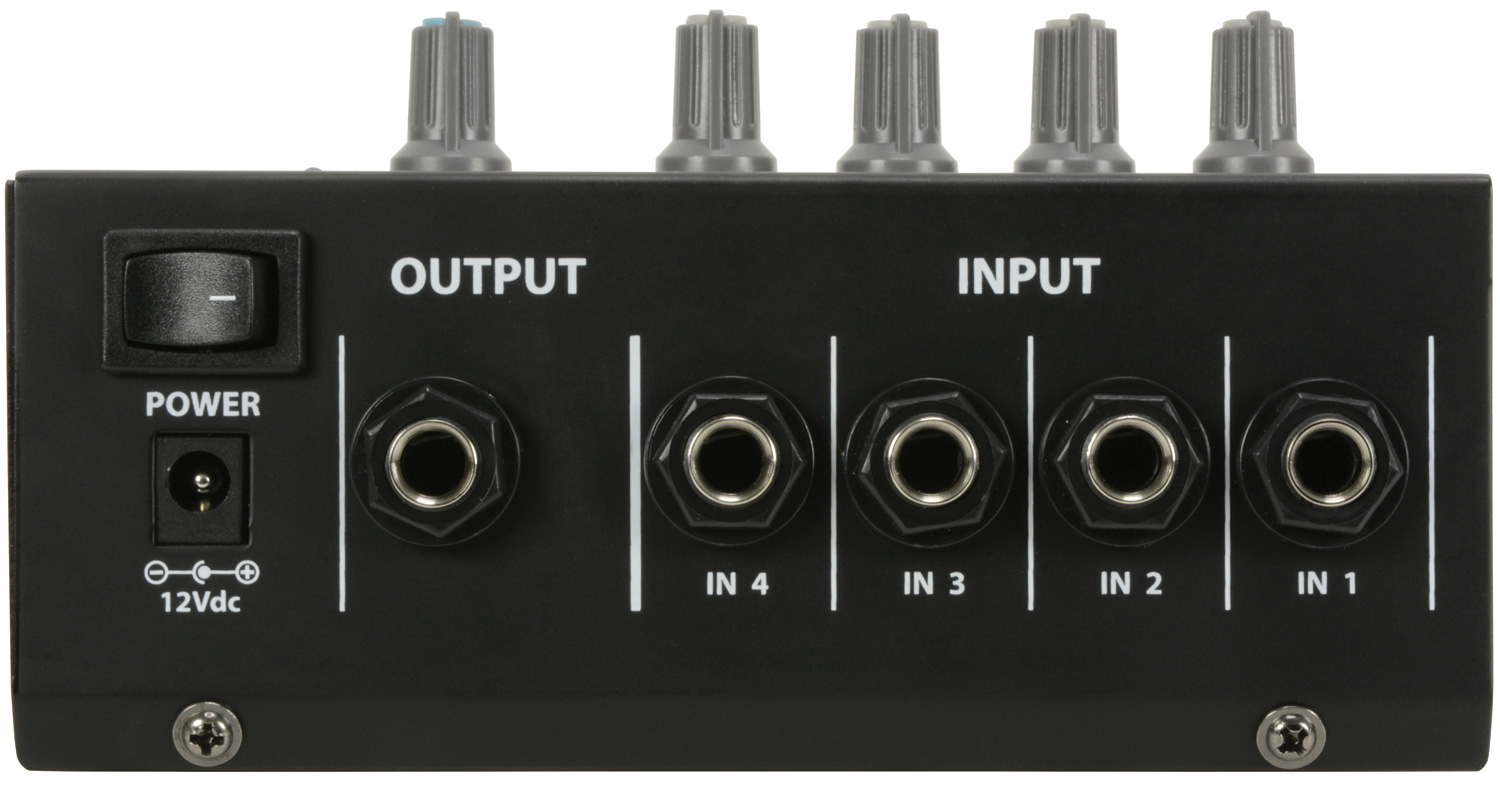

  • Output : master 1 x 6.3mm jack
  • Dimensions 150 x 108 x 64

Versions

  170.202UK 170.203UK
Inputs : mic 4 x 6.3mm jack 8 x 6.3mm jack
Weight 533g (no battery) 621g (no battery)

Support : articles

Equalization (EQ)

Equalization is the adjustment of bands of frequencies in an audio signal to change the tone of the sound it produces.

Thursday, 12th March 2020

In the box

The box for this item contains :

  • Mini microphone mixer

Downloads

Instruction manual
For 170.202UK (102KB)
UK Declaration of conformity
For 170.202UK (245KB)
EU Declaration of conformity
For 170.202UK (235KB)
