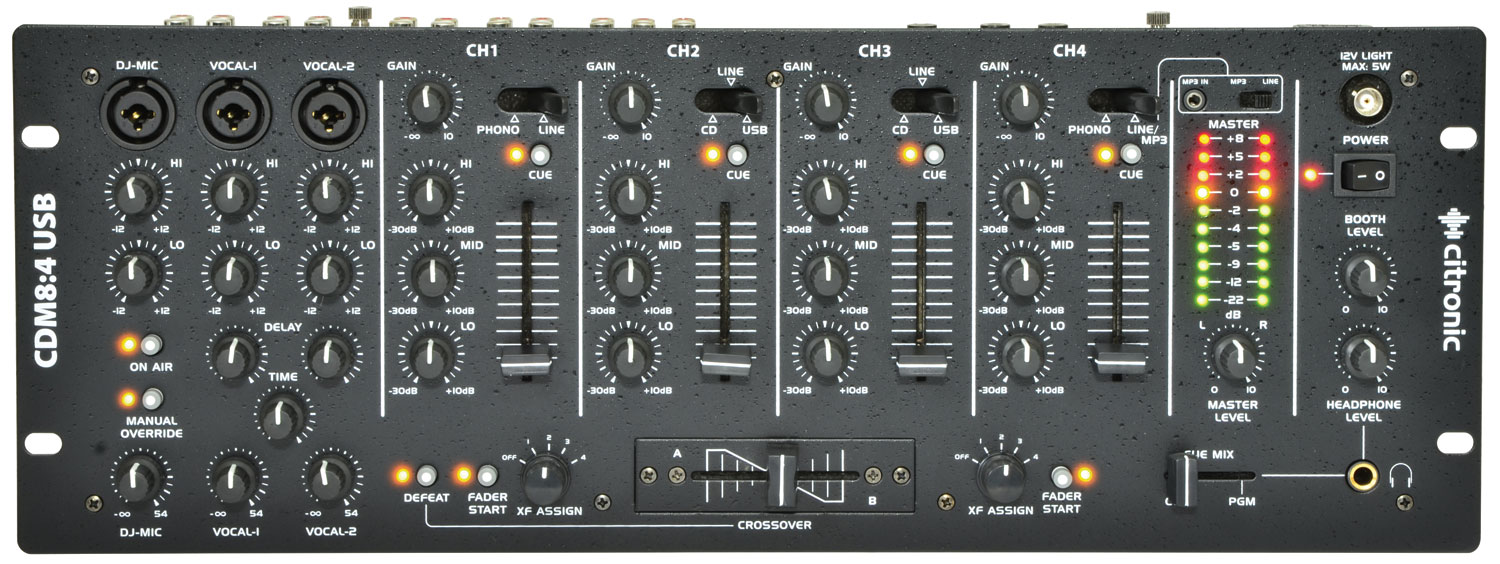

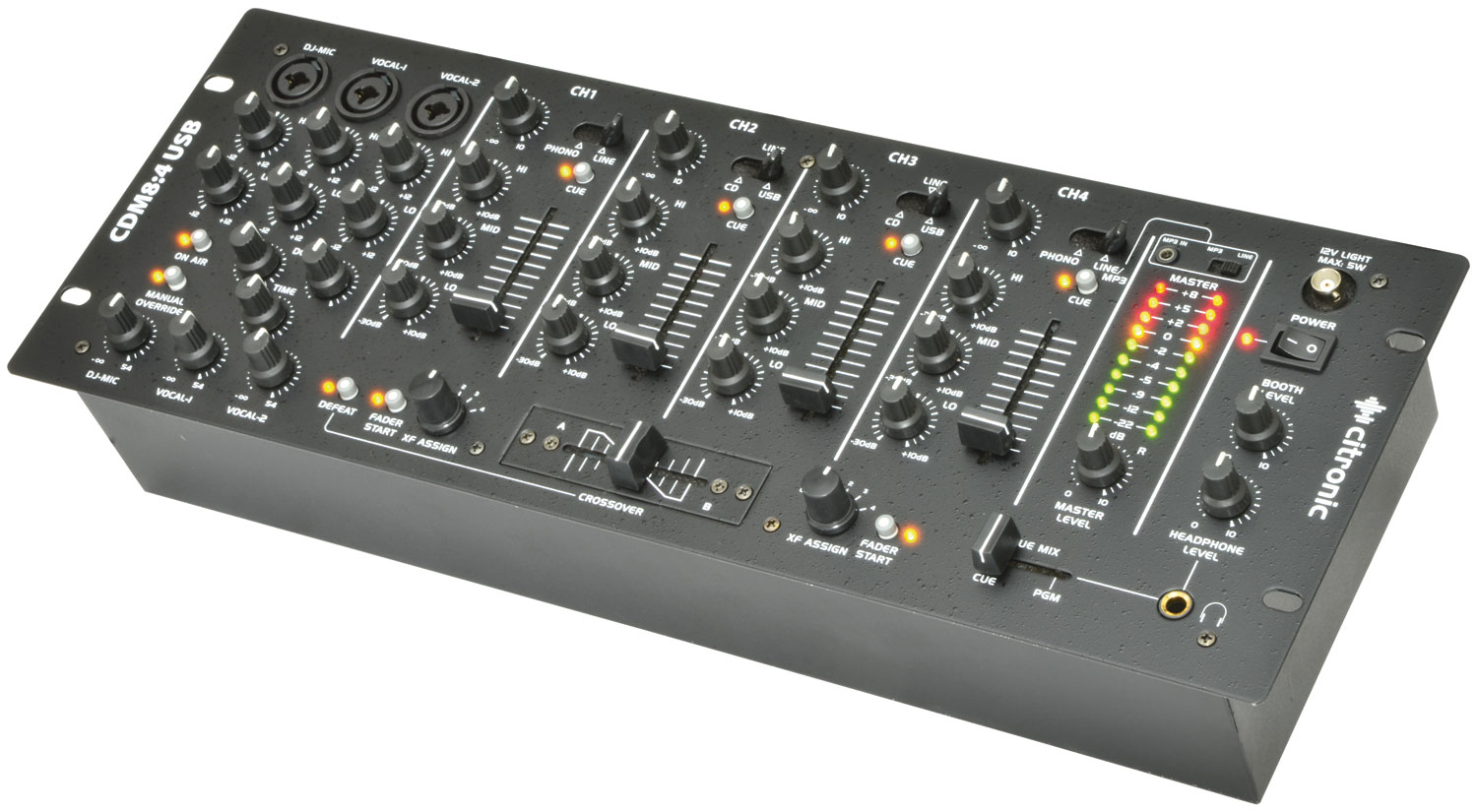

4 Channel 19" DJ Mixer

172.776UK CDM8:4 USB

This 14 input, 4 channel professional DJ mixer is ideal for mobile use and installations. Each channel has 3 band EQ with individual volume control that can be assigned to either side of the crossf...

  • DJ mic + 2 vocal mic inputs for karaoke
  • Internal digital delay or FX loop for vocal mics
  • 3-band EQ on all stereo channels
Full description Find retailer
Description Version Packed
172.776UK
CDM8:4 USB 14 - INPUT 19" RACK DJ MIXER 		Box Label

4 Channel 19" DJ Mixer

This 14 input, 4 channel professional DJ mixer is ideal for mobile use and installations. Each channel has 3 band EQ with individual volume control that can be assigned to either side of the crossfader or cue mix fader. It features USB IN/OUT for playback or recording, and there are 3 x microphone inputs, great for karaoke and DJ set-ups.

  • DJ mic + 2 vocal mic inputs for karaoke
  • Internal digital delay or FX loop for vocal mics
  • 3-band EQ on all stereo channels

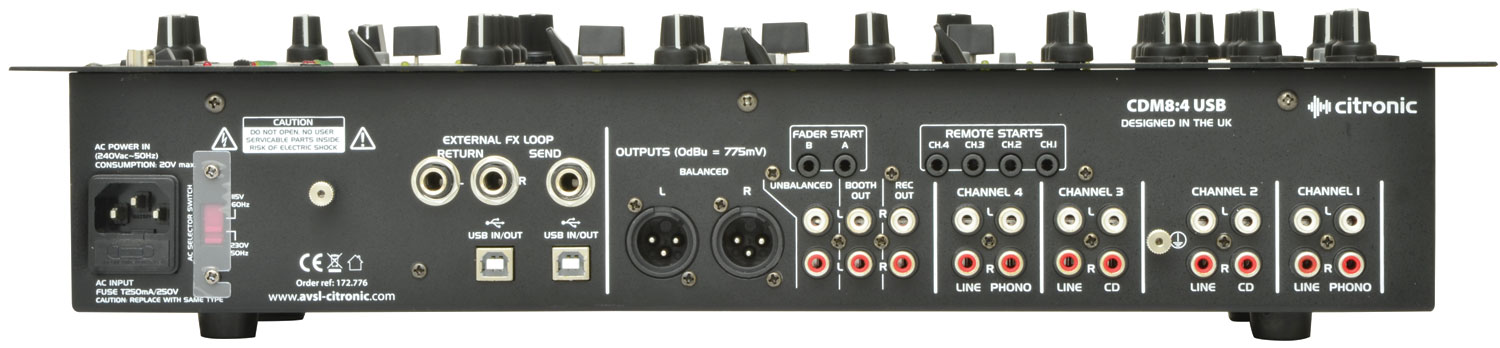

  • 2 x phono, 6 x line, 2 x USB IN/OUT, 1 x 3.5mm jack and 3 x microphone inputs
  • Hi/Lo EQ for each mic channel
  • 45mm rail glide replaceable crossfader with defeat and assign channels
  • Remote fader starts on stereo channels
  • 3.5mm input option for patching in an MP3 player
  • Individual gain controls on each music channel
  • 12Vdc BNC output for console light
  • Power supply 115/230Vac, 50/60Hz (IEC)
  • Equaliser : bass -30 +10dB @ 100Hz
  • Equaliser : midrange -30 +10dB @ 800Hz
  • Equaliser : treble -30 +10dB @ 9kHz
  • Signal to noise ratio : line >87dB
  • Signal to noise ratio : mic 68dB
  • Signal to noise ratio : phono 73dB
  • Headphone output 112mV @ 32 Ohms
  • Console light power 12Vdc 5W max (BNC)

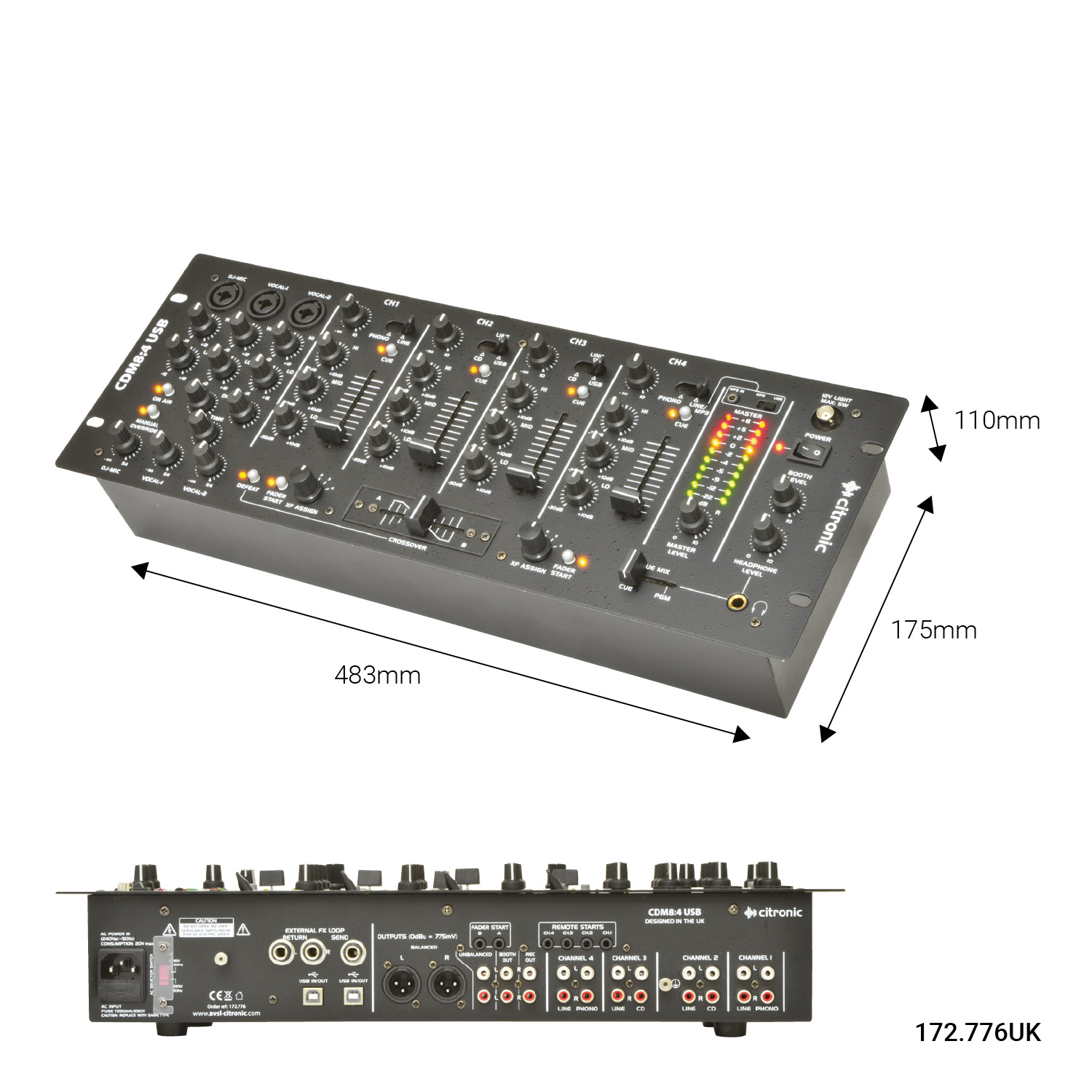

  • Dimensions 483 x 175 x 110mm (4U)
  • Weight 4.06kg

Support : articles

Equalization (EQ)

Equalization is the adjustment of bands of frequencies in an audio signal to change the tone of the sound it produces.

Thursday, 12th March 2020

Downloads

Instruction manual
For 172.776UK (571KB)
UK Declaration of conformity
For 172.776UK (248KB)
EU Declaration of conformity
For 172.776UK (238KB)
