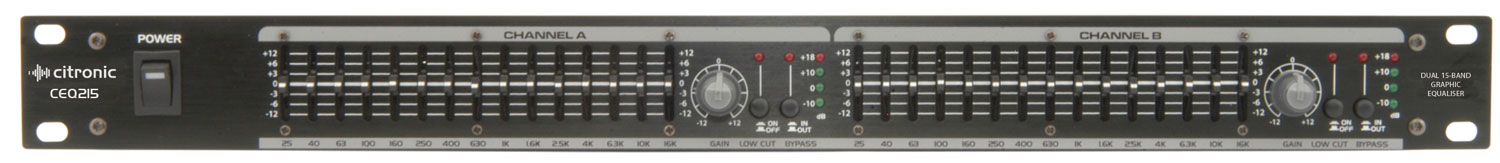

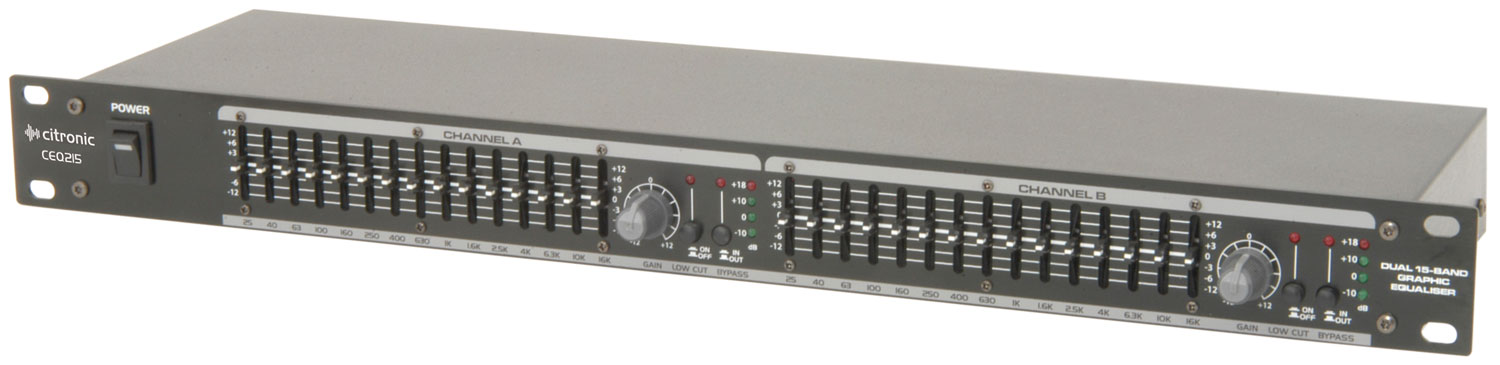

Dual 15-band Graphic EQ

170.923UK CEQ215

The CEQ215 is a 19" rack mounted dual 15-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ...

  • 2 x 15-band 2/3 octave ISO spacing

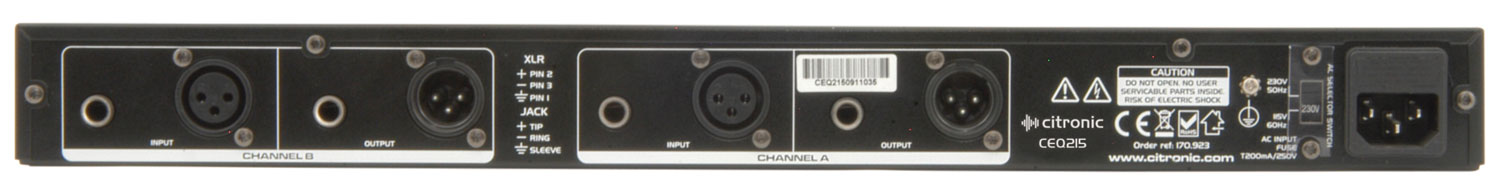

  • RF filtered servo-balanced inputs
  • Constant Q each band
Full description Find retailer
Description Version Packed
170.923UK
CEQ215 2 x 15-band graphic EQ 		Box Label

Dual 15-band Graphic EQ

The CEQ215 is a 19" rack mounted dual 15-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 25Hz to 16kHz for accurate audio spectrum control.

  • 2 x 15-band 2/3 octave ISO spacing
  • RF filtered servo-balanced inputs
  • Constant Q each band
  • Bypass switch for EQ comparison
  • Low-cut switch each channel
  • Gain control each channel
  • LED VU meters
  • 19" rackmount 1U
  • Power supply 115/230Vac, 50/60Hz (IEC)
  • Frequency response 20Hz-20kHz
  • Input impedance : balanced 40k Ohms
  • Input impedance : unbalanced 20k Ohms
  • Output impedance : bal/unbal 330 Ohms
  • Channel separation >50dB
  • Signal to noise ratio >102dB
  • THD 0.005%
  • Dimensions 482 x 44 x 138mm
  • Weight 2.0kg

Support : articles

Equalization (EQ)

Equalization is the adjustment of bands of frequencies in an audio signal to change the tone of the sound it produces.

Thursday, 12th March 2020

Downloads

Instruction manual
For 170.923UK (685KB)
UK Declaration of conformity
For 170.923UK (250KB)
EU Declaration of conformity
For 170.923UK (241KB)
