Active speakers
Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.
C-118S Line Array Sub Cabinet 1 x 18" 1000Wrms
171.118UK
C-118S
Created for high SPL output in medium to long throw applications, the C-series line array system offers uncompromised sound performance and power control in a modular and easy to configure format. ...
- Internal 1000Wrms digitally controlled amplifier

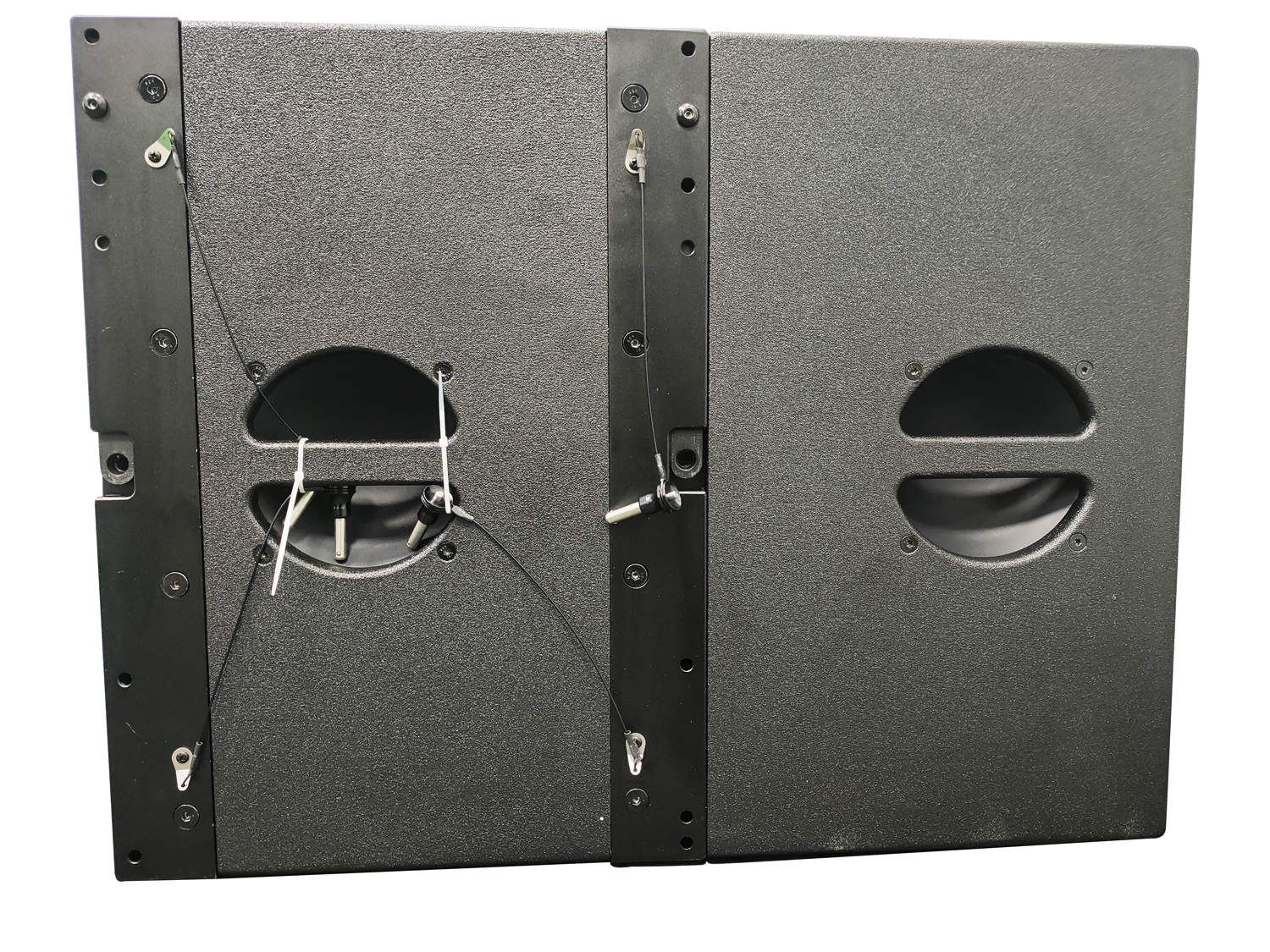

- Integral pinlock array hardware and carry handles
- Polyurea-coated wooden cabinet
| Description | |
|---|---|
|
171.118UK
C-118S Array Sub 1x18 1000Wrms |

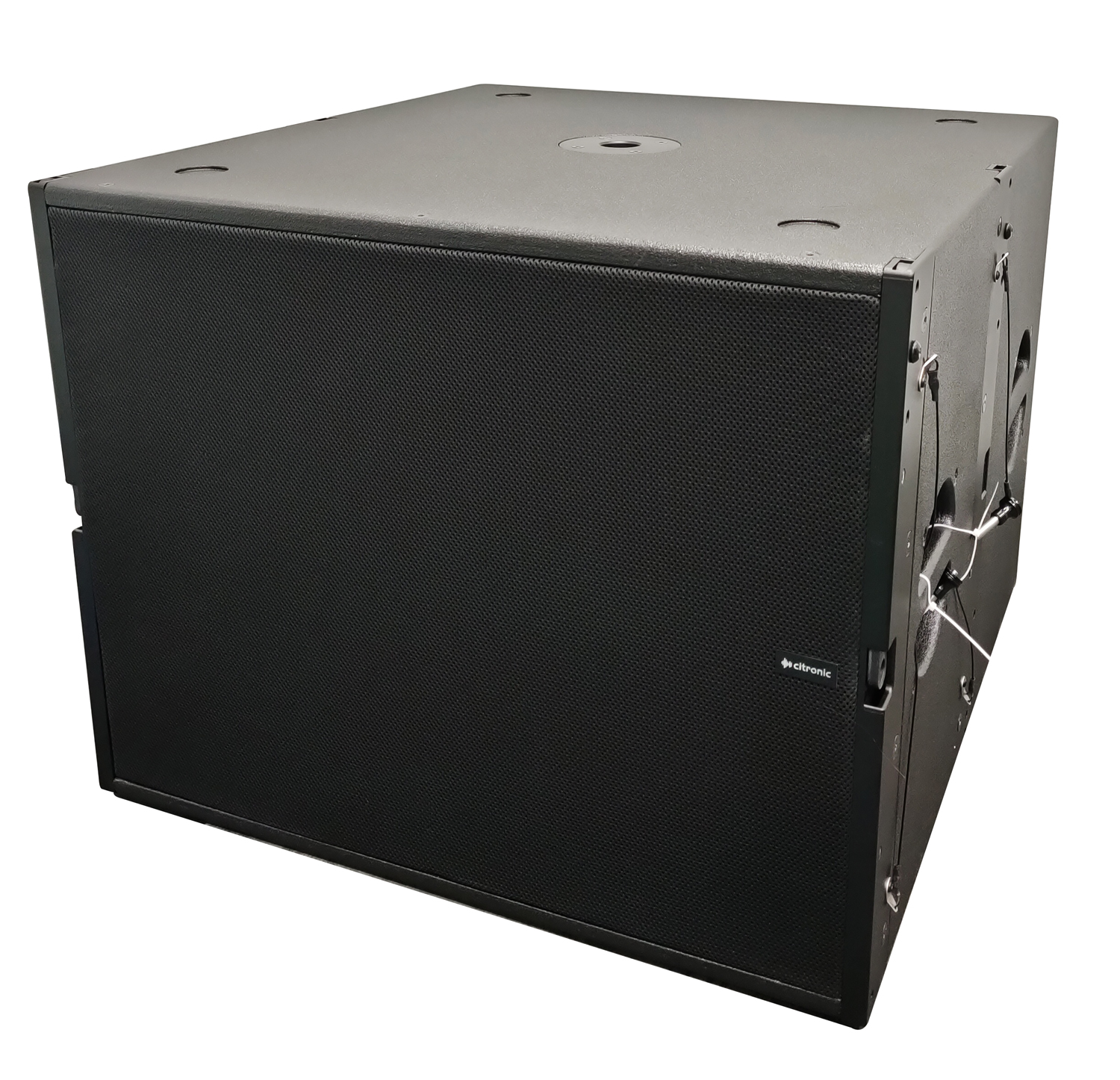

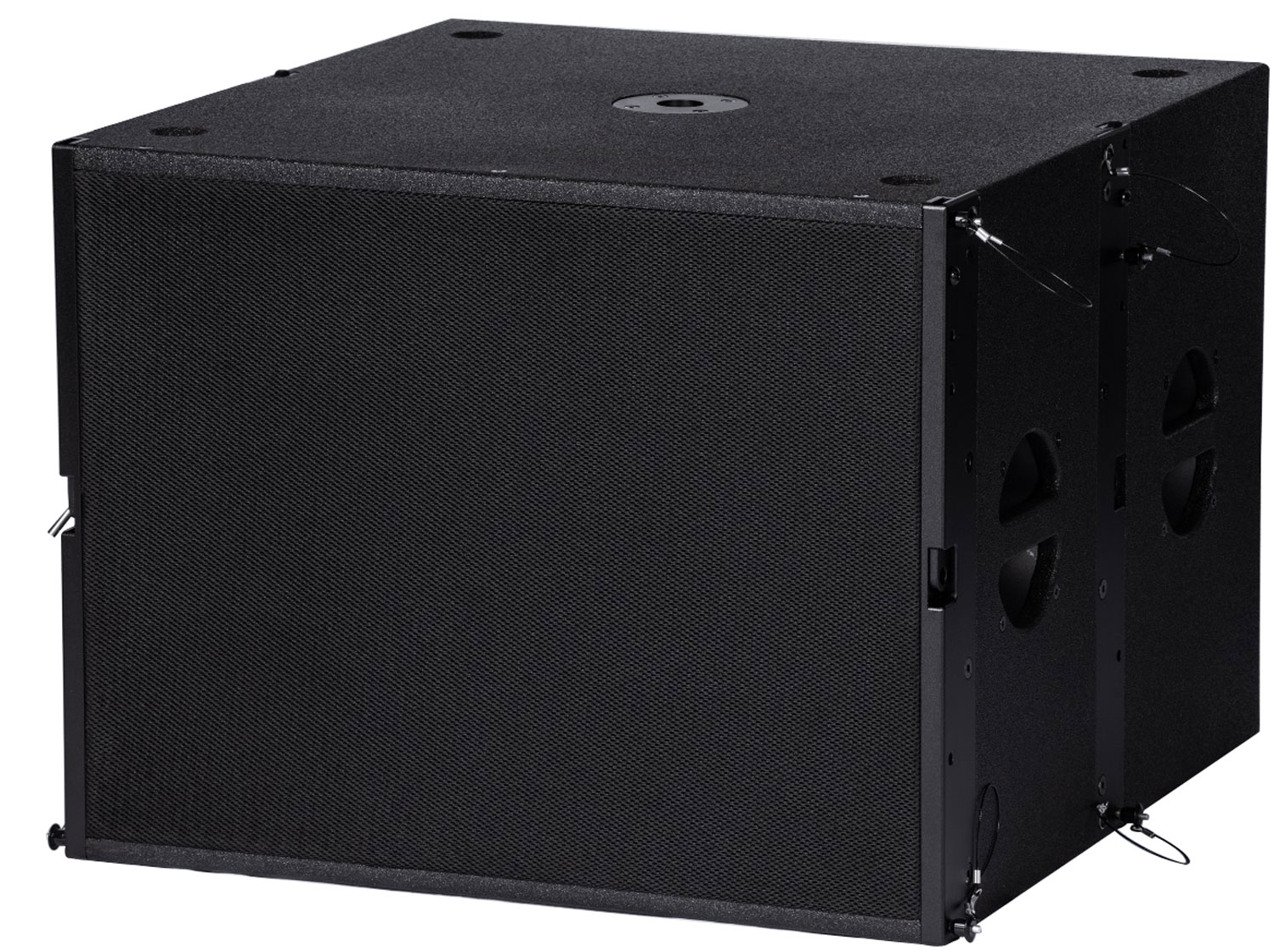

C-118S Line Array Sub Cabinet 1 x 18" 1000Wrms

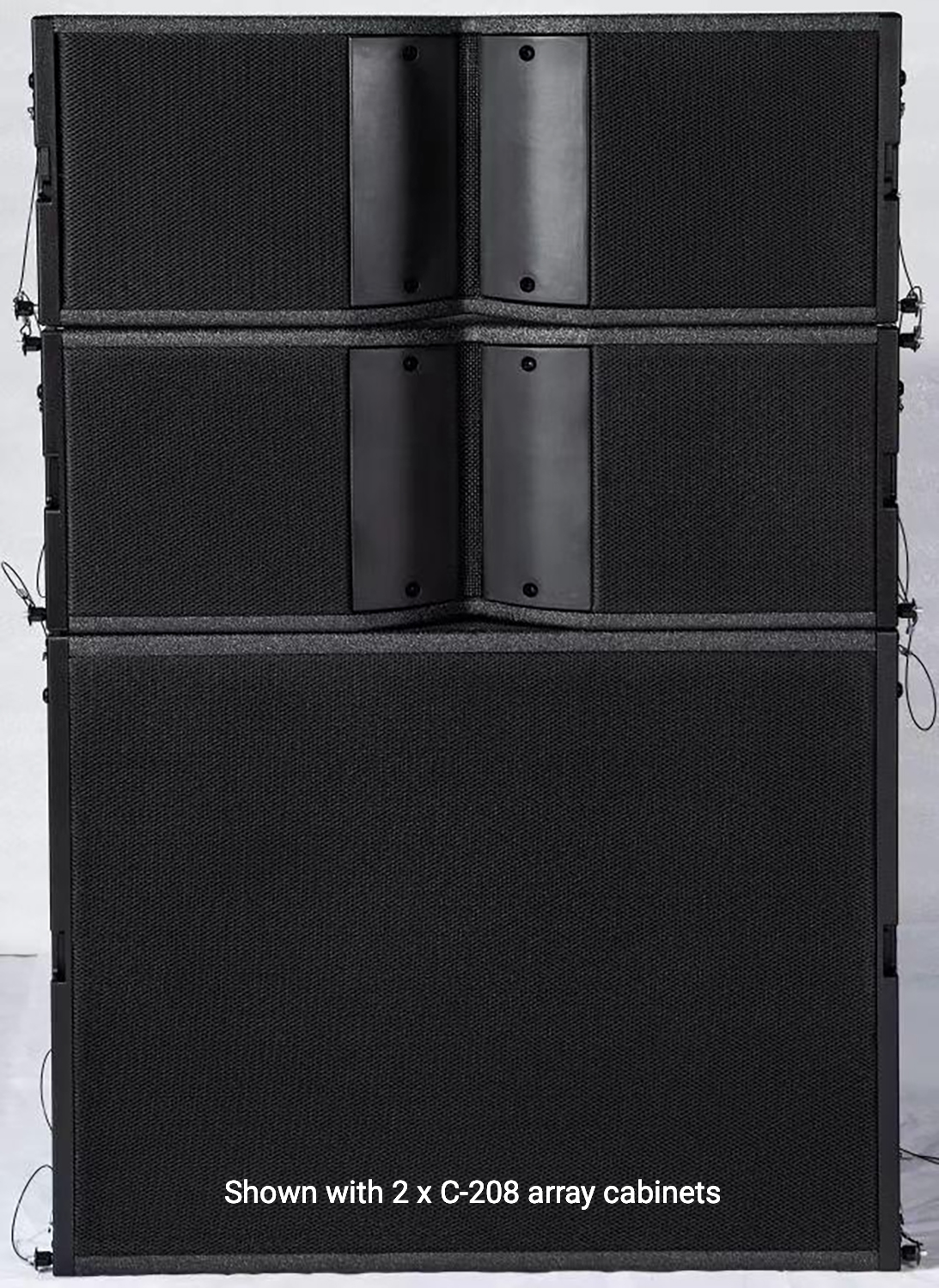

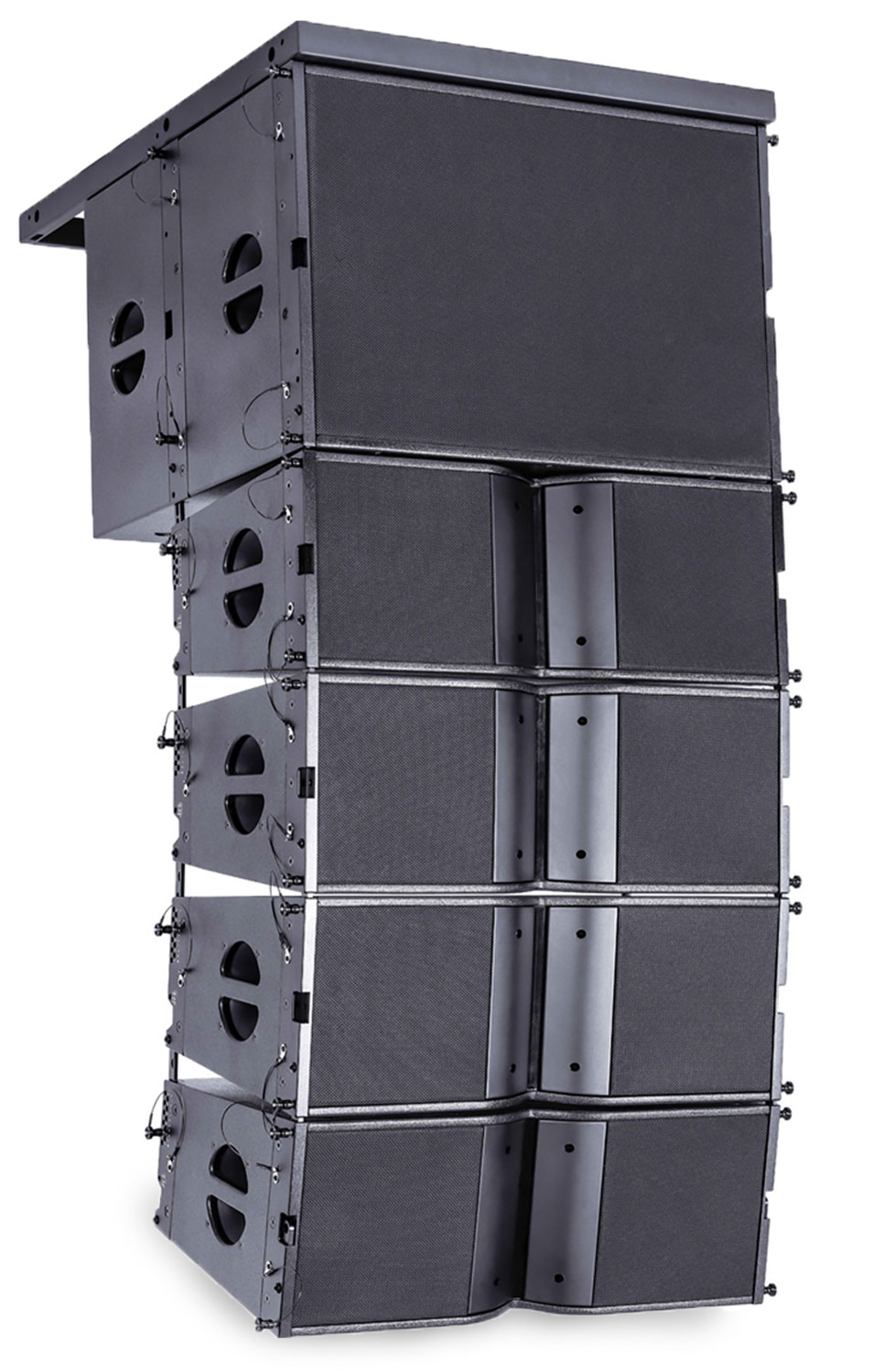

Created for high SPL output in medium to long throw applications, the C-series line array system offers uncompromised sound performance and power control in a modular and easy to configure format. The C-118S sub unit features a single 1000W 18" driver with cast aluminium basket and double reinforced suspension, loaded into a custom computer-designed and tuned wooden enclosure with a super-tough polyurea texture finish. The subwoofer is served by an internal class-D amplifier section with inbuilt pre-set DSP to deliver 1000W of power on demand with accurate frequency and dynamics control. The C-118S can be used as a standalone active subwoofer, stacked in multiples, or flown with C-series array cabinets using the optional C-FRAME support assembly
- Internal 1000Wrms digitally controlled amplifier
- Integral pinlock array hardware and carry handles
- Polyurea-coated wooden cabinet
- Single heavy duty sub driver
- Top panel 35mmm pole mount socket
- Power supply 230Vac, 50Hz (Powercon® in + through)
- Construction 15mm plywood cabinet, polyurea coated
- Frequency response 40Hz - 150Hz

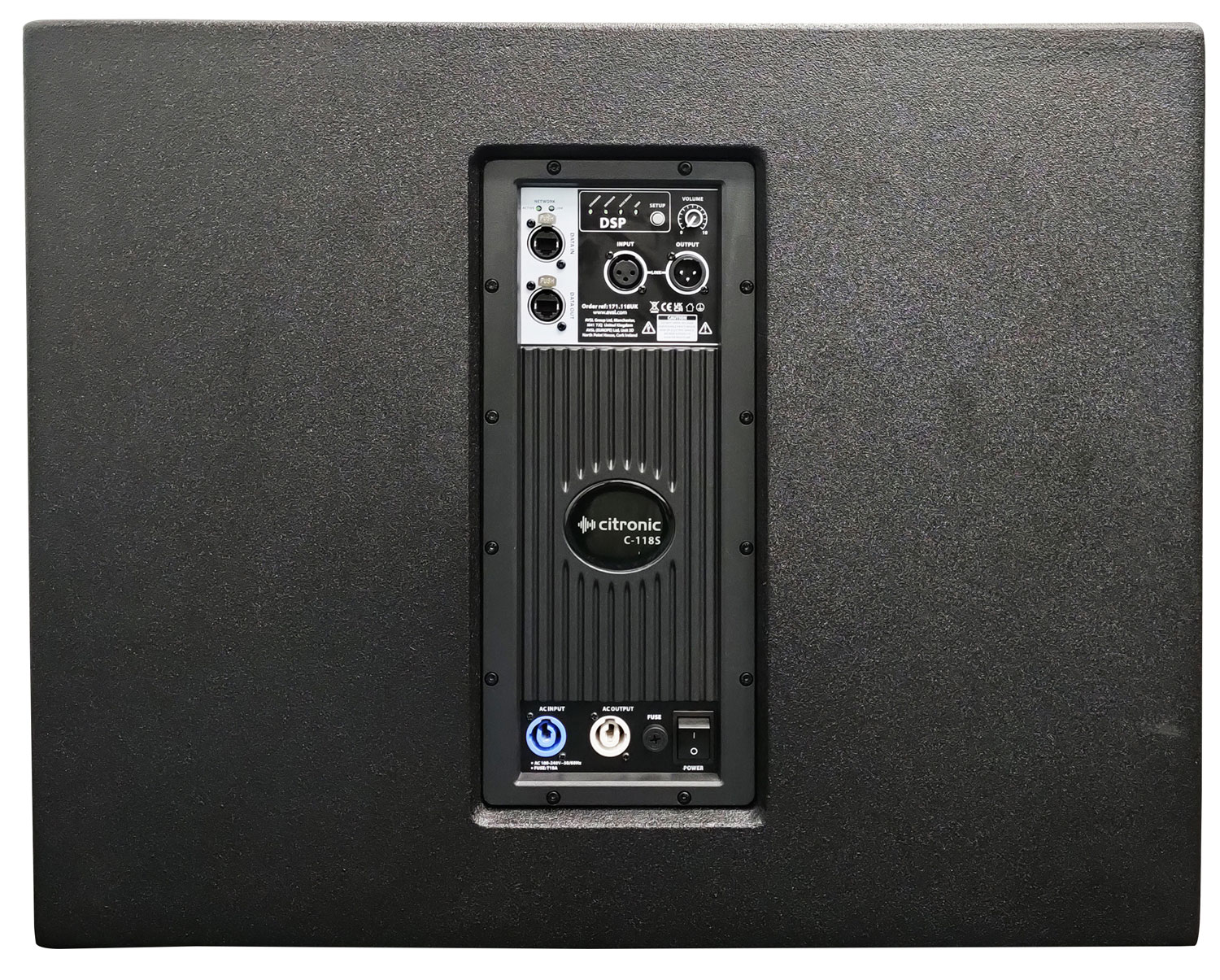

- Amplifier : construction Class-D (inbuilt DSP)
- Output power rms 1000W
- Output power peak 2000W
- Driver unit 450mmØ (18") driver, Al frame, ceramic magnet
- Voice coil 100mmØ (4")
- Sensitivity 98dB
- SPL max. 101dB
- Dimensions 710 x 690 x 545mm
- Weight 54kg
Support : articles
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
In the box
The box for this item contains :
- C-118S active subwoofer cabinet
- Powercon twist-lock power lead
Downloads
Instruction manual
For 171.118UK (430KB)
For 171.118UK (430KB)
UK Declaration of conformity
For 171.118UK (247KB)
For 171.118UK (247KB)
EU Declaration of conformity
For 171.118UK (239KB)
For 171.118UK (239KB)
