Handheld Microphone VHF Wireless System

171.804UK VH1

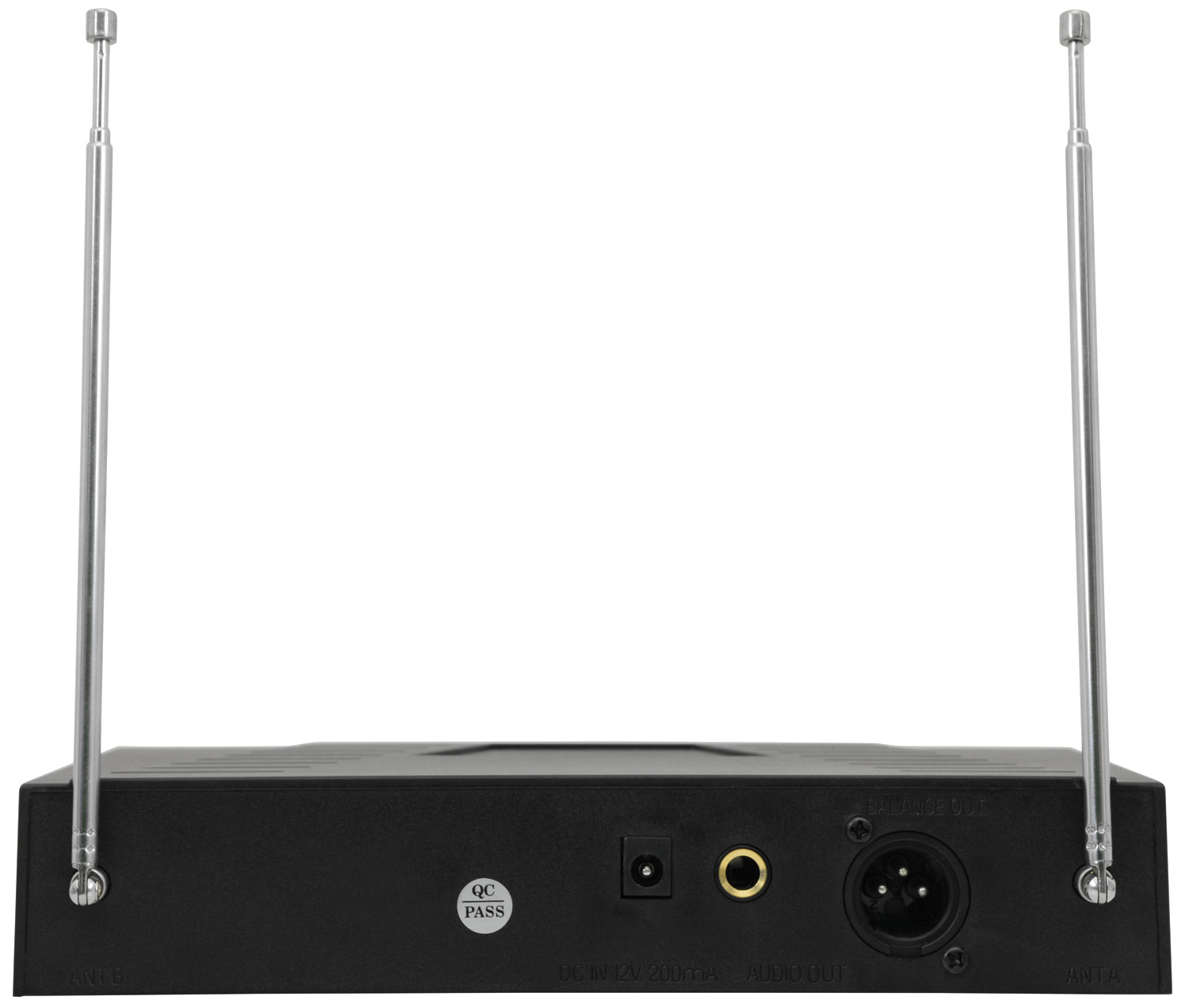

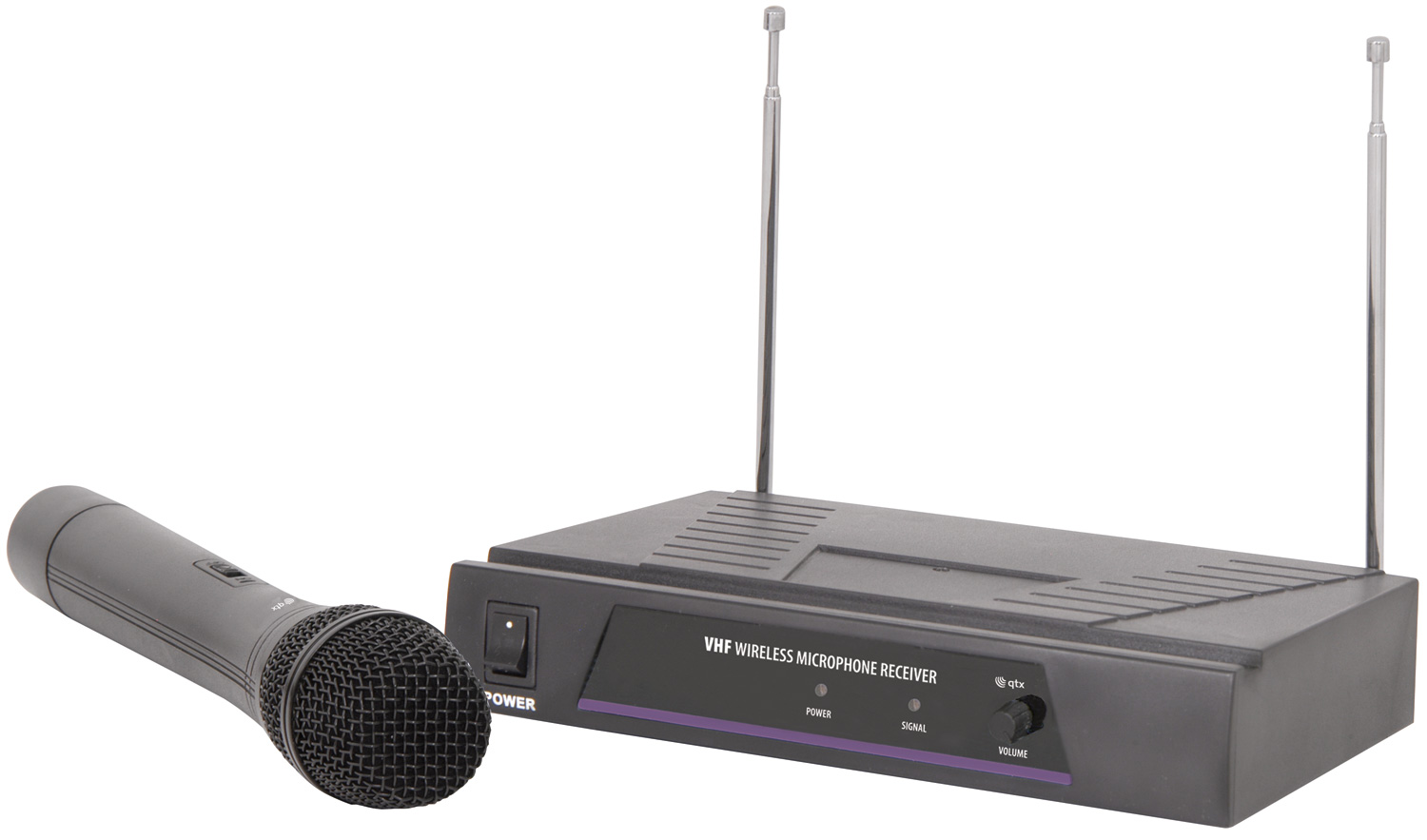

A VHF wireless microphone system with a half-width 1U receiver and a handheld transmitter.

  • Up to 50m range
  • Batteries and jack lead supplied
Full description Find retailer
Description Version Packed
171.804UK

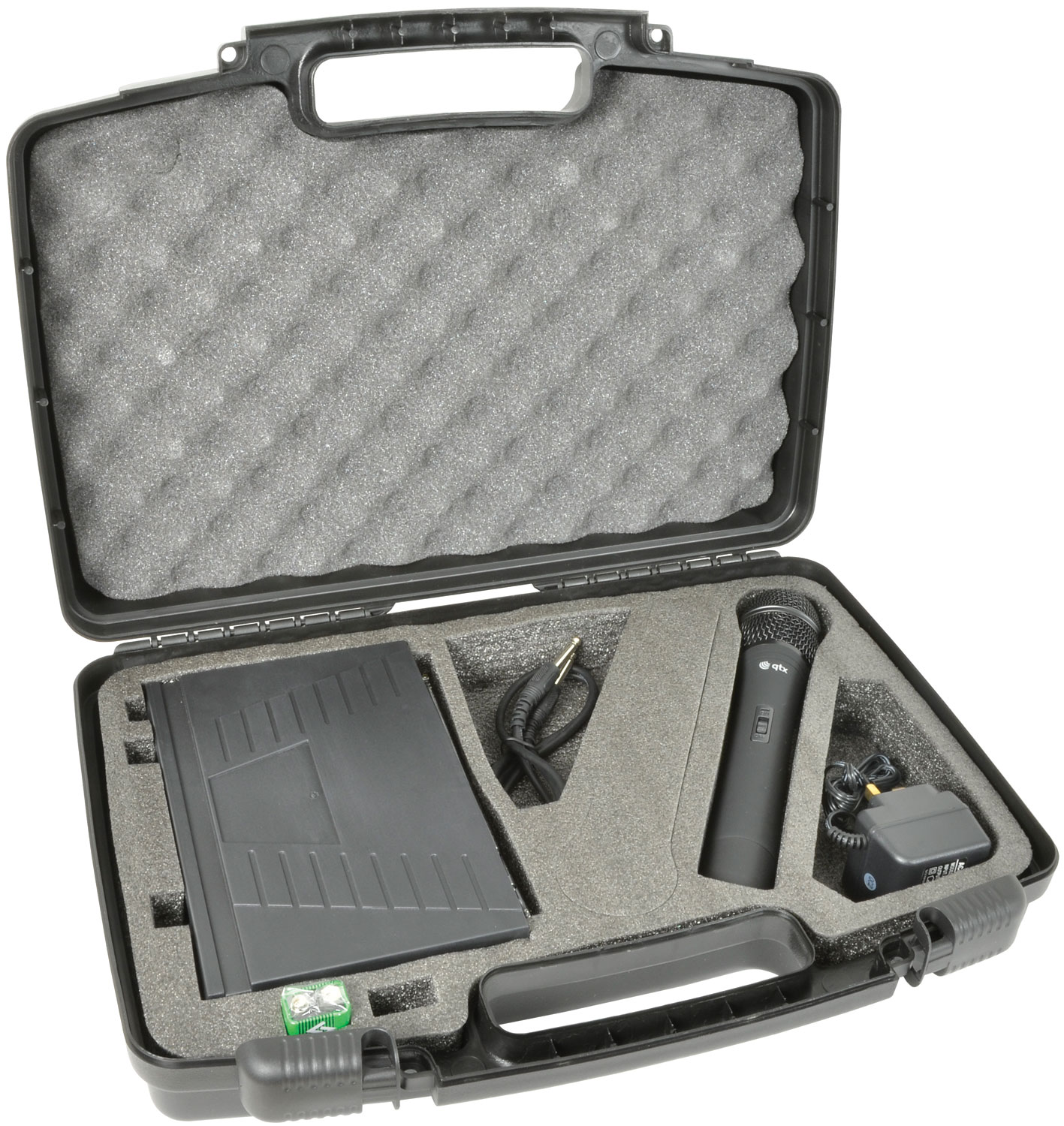

VHF handheld mic wireless system - 173.8MHz 		173.8MHz ABS Case

Handheld Microphone VHF Wireless System

A VHF wireless microphone system with a half-width 1U receiver and a handheld transmitter.

  • Up to 50m range
  • Batteries and jack lead supplied

Specification : Common

  • Power supply : receiver 10Vac 250mA (supplied)
  • Battery : handheld transmitter 9V, PP3 (supplied)
  • Maximum range 50.0m
  • Output connections XLR, 6.3mm jack
  • S/N ratio >85dB
  • THD <0.2%
  • Dimensions : transmitter 270 x 45mmØ
  • Dimensions : receiver 45 x 210 x 180mm
  • Weight : handheld transmitter 190g (no battery)
  • Weight : receiver 573g

Specification : Versions

  171.804UK
Operating frequency 173.8MHz

Trade information

  171.804UK
Barcode / EAN 5015972091043
Package type ABS Case
Package dimensions 320 x 430 x 100mm
Package weight 2.60kg
Package quantity 1 unit
Carton dimensions 325 x 445 x 520mm
Carton weight 13.00kg
Carton quantity 5 packages

Support

Instruction manual
For 171.805UK (306KB)
Instruction manual
For 171.804UK (315KB)
