NU4 Quad UHF Wireless Microphone System

171.843UK NU4-H

UHF wireless system with 4 independent channels. The receiver is 19" rack-mountable and features 4 separate XLR outputs or a mixed jack output. Available in sets with 4 handheld or 4 beltpack trans...

  • Individual or mixed outputs
  • 4 licence-free UHF frequencies with pilot tone
  • Supplied with 4 colour coded transmitters
Description Version Packed
171.843UK
NU4-H Quad UHF System - Handheld
4 x handheld Gift Box
171.844UK
NU4-N Quad UHF System-Neck/Lapel
4 x neckband/lapel Gift Box
171.845UK
NU4-C Quad UHF System - Combo
2 hand + 2 beltpack Gift Box

Accessories

Description Version Packed
171.954UK
NU4 Handheld Microphone Transmitter Red 864.8MHz
Red 864.8MHz Box Plain
171.955UK
NU4 Handheld Microphone Transmitter Green 864.3MHz
Green 864.3MHz Box Plain
171.956UK
NU4 Handheld Microphone Transmitter Blue 863.42MHz
Blue 863.42MHz Box Plain
171.957UK
NU4 Handheld Microphone Transmitter Yellow 863.1MHz
Yellow 863.1MHz Box Plain
171.958UK
NU4 Beltpack Transmitter Red 864.8MHz
Red 864.8MHz Box Plain
171.959UK
NU4 Beltpack Transmitter Green 864.3Hz
Green 864.3MHz Box Plain
171.960UK
NU4 Beltpack Transmitter Blue 863.42MHz
Blue 863.42MHz Box Plain
171.961UK
NU4 Beltpack Transmitter Yellow 863.1MHz
Yellow 863.1MHz Box Plain

NU4 Quad UHF Wireless Microphone System

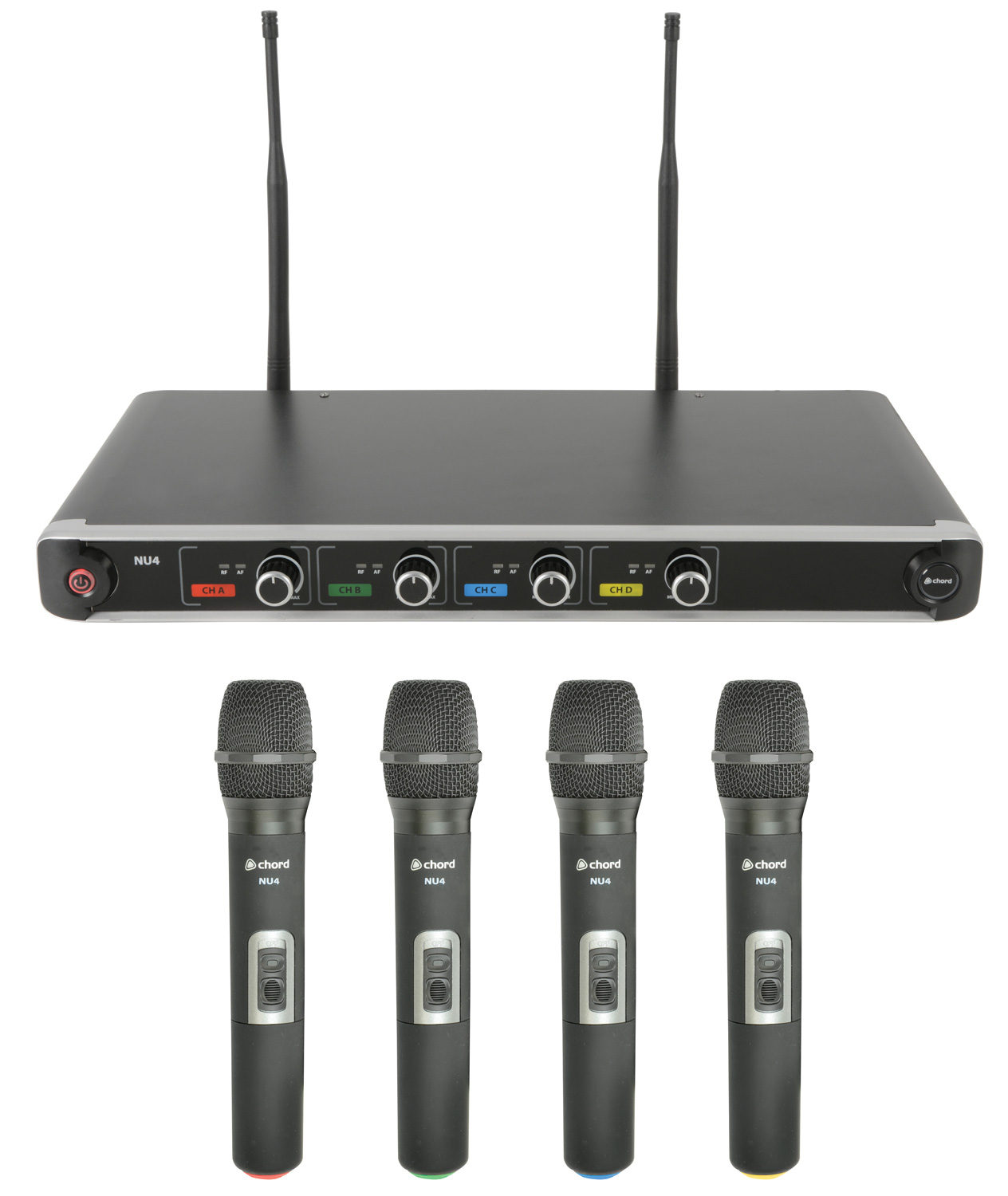

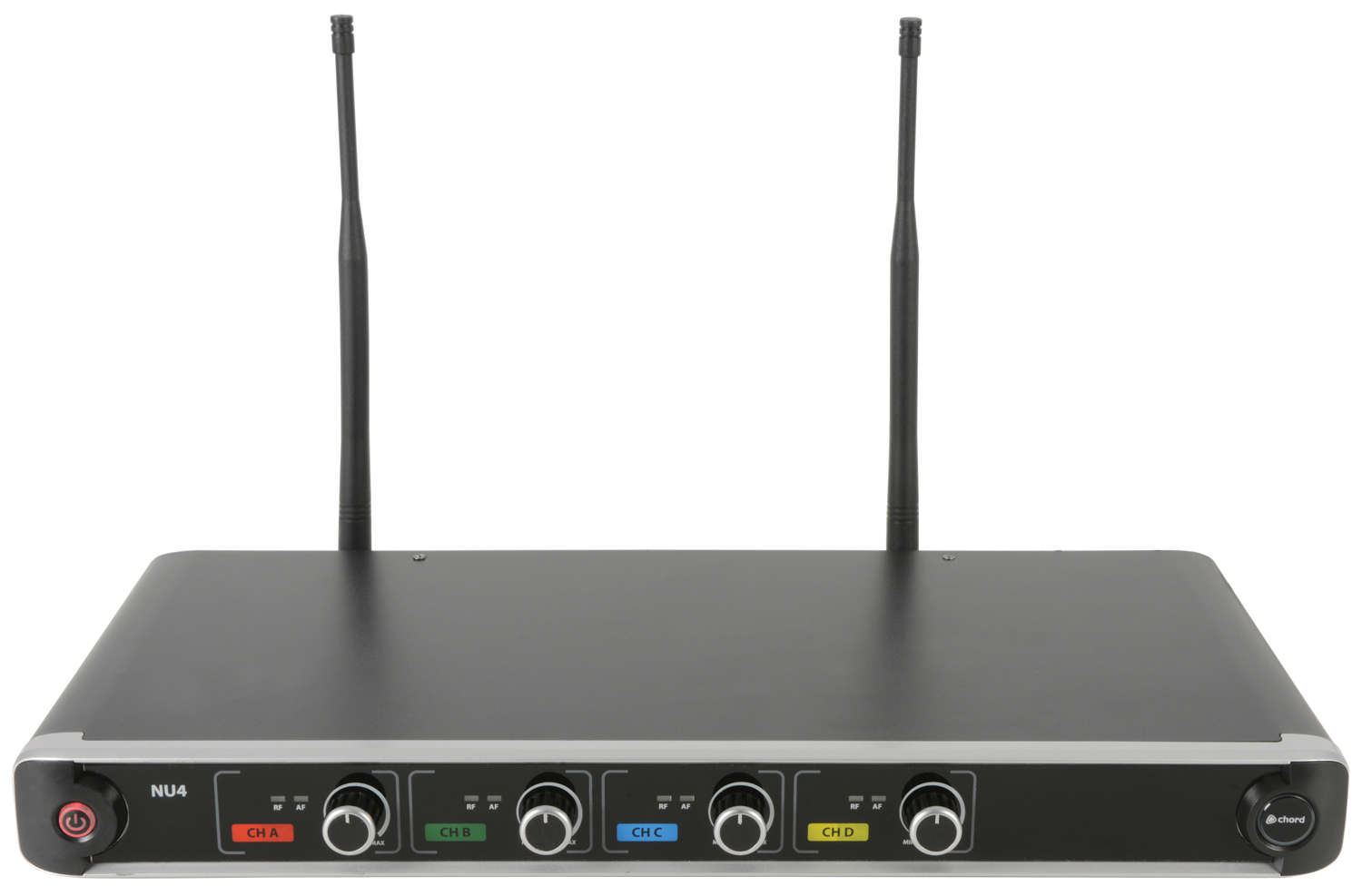

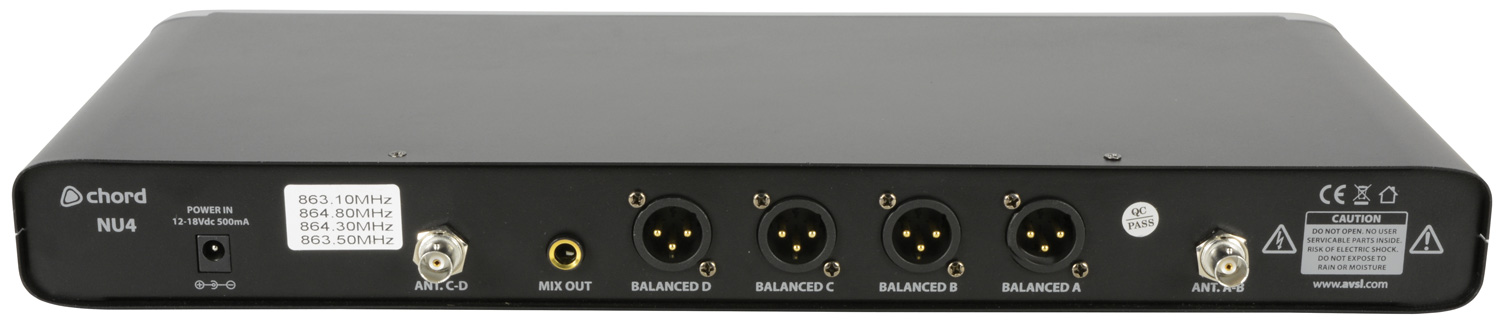

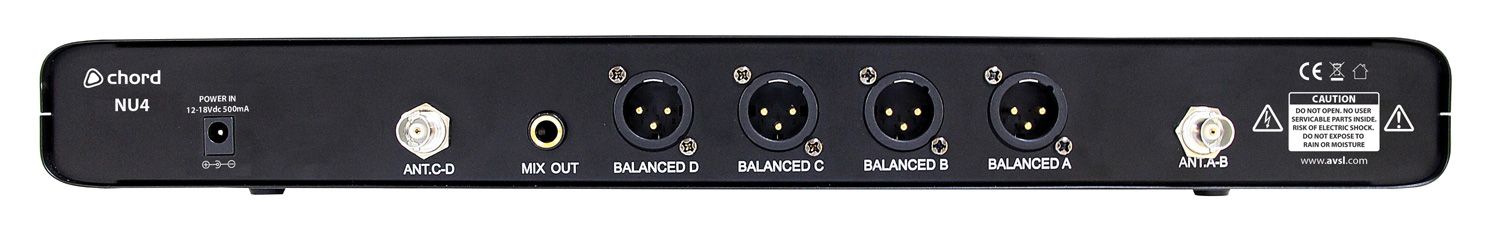

UHF wireless system with 4 independent channels. The receiver is 19" rack-mountable and features 4 separate XLR outputs or a mixed jack output. Available in sets with 4 handheld or 4 beltpack transmitters (with a choice of neckband or lavalier microphone for each beltpack) or a combo set with 2 of each. Suitable for vocal groups, theatres and presentations.

  • Individual or mixed outputs
  • 4 licence-free UHF frequencies with pilot tone

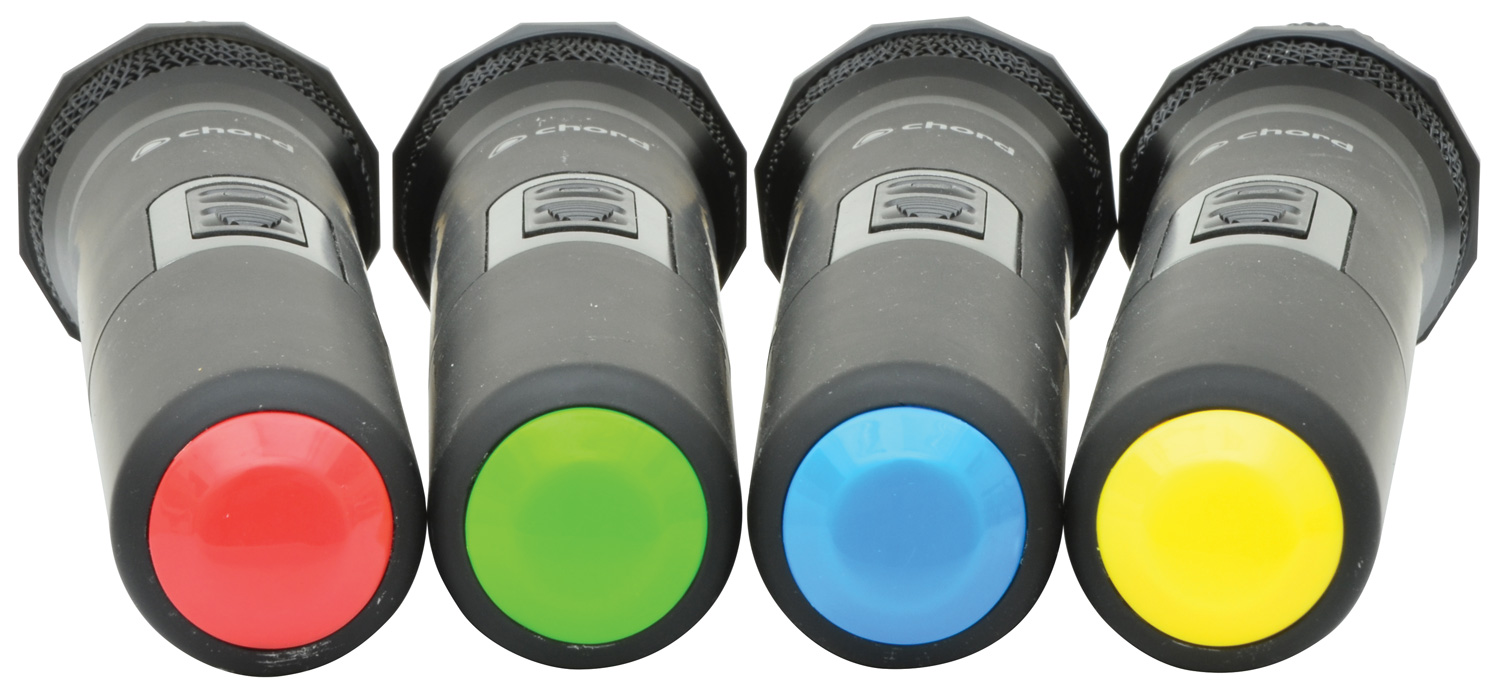

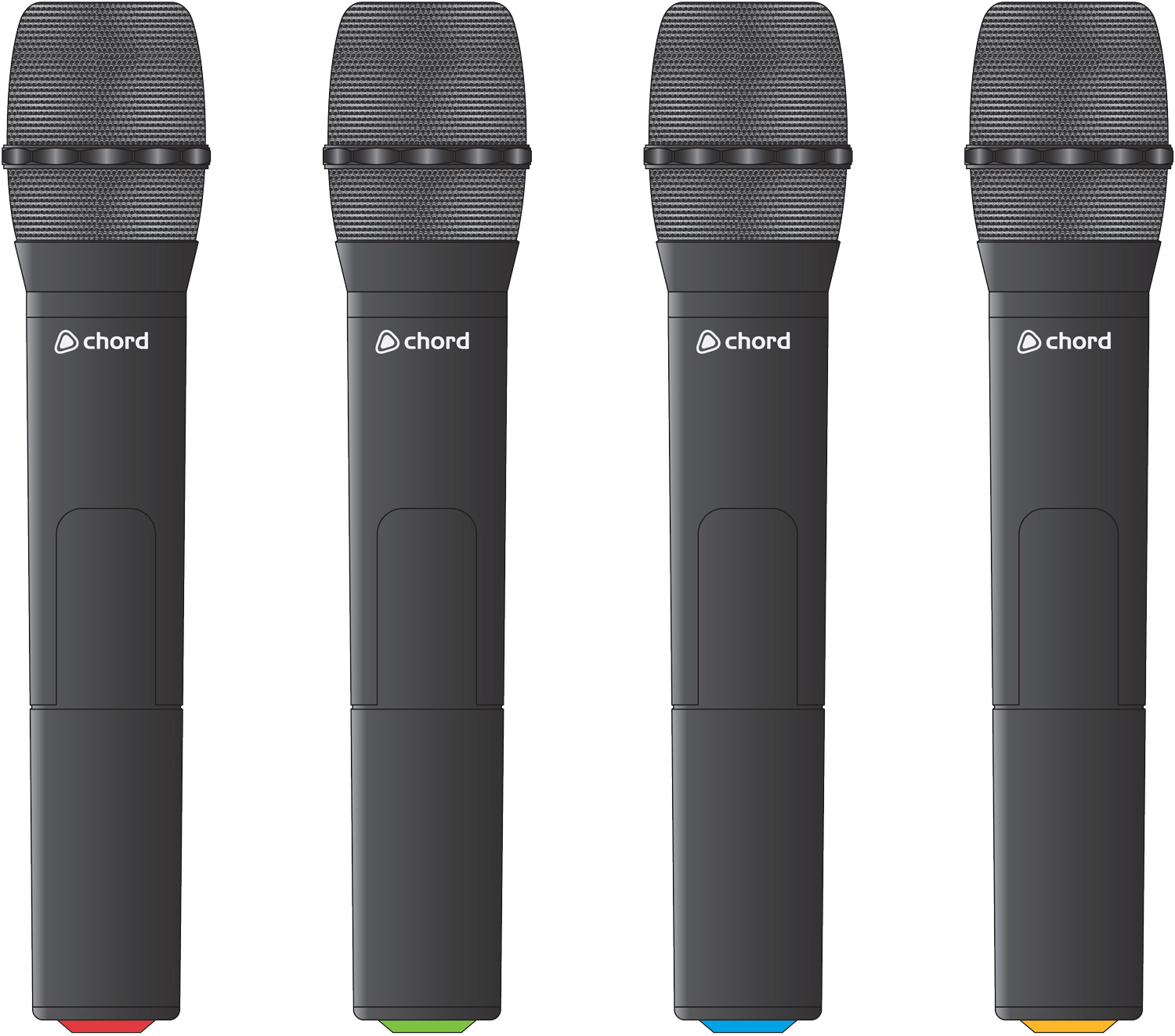

  • Supplied with 4 colour coded transmitters
  • 19" rack-mountable (1U)

Specification : Common

  • Power supply 12-18Vdc 500mA adaptor (supplied)
  • Dimensions : receiver 482 x 225 x 44mm (inc. rack ears)
  • Weight : receiver 3.0kg
  • Batteries 8 x AA (included)
  • Carrier frequencies Red 864.8 ,Green 864.3, Blue 863.42, Yellow 863.1 (all in MHz)

Specification : Versions

  171.843UK 171.844UK 171.845UK
Dimensions : handheld transmitter 243 x 48mmØ N/A 243 x 48mmØ
Weight : handheld transmitter 238g (no battery) N/A 238g (no battery)
Dimensions : beltpack transmitter N/A 205 x 68 x 25mm 205 x 68 x 25mm
Weight : beltpack transmitter N/A 76g (no battery) 76g (no battery)
Dimensions : neckband microphone N/A 180 x 140 x 60mm 180 x 140 x 60mm
Weight : neckband microphone N/A 20g 20g
Dimensions : lavalier microphone N/A 27 x 12mmØ 27 x 12mmØ
Weight : lavalier microphone N/A 20g 20g

Trade information

  171.843UK 171.844UK 171.845UK
Barcode / EAN 5015972177488 5015972193150 5015972193167
Package type Gift Box Gift Box Gift Box
Package dimensions 380 x 530 x 90mm 380 x 530 x 90mm 380 x 530 x 90mm
Package weight 6.80kg 6.80kg 6.80kg
Package quantity 1 unit 1 unit 1 unit
Carton dimensions 390 x 545 x 310mm 390 x 545 x 310mm 390 x 545 x 310mm
Carton weight 20.40kg 20.40kg 20.40kg
Carton quantity 3 packages 3 packages 3 packages

In the box

The box for this item contains :

  • 1U rack-mountable receiver
  • 4 x handheld or beltpack transmitters (with neckband and lavalier mics)
  • 2 x UHF antennas
  • 2 x BNC extension leads (for rack-mounting)
  • 2 x rack-mount ears
  • DC power adaptor
  • 8 x AA batteries

Support

Instruction manual
For 171.845UK (3.9MB)
Instruction manual
For 171.844UK (3.9MB)
Instruction manual
For 171.843UK (3.9MB)
