Q Series Stereo Power Amplifiers

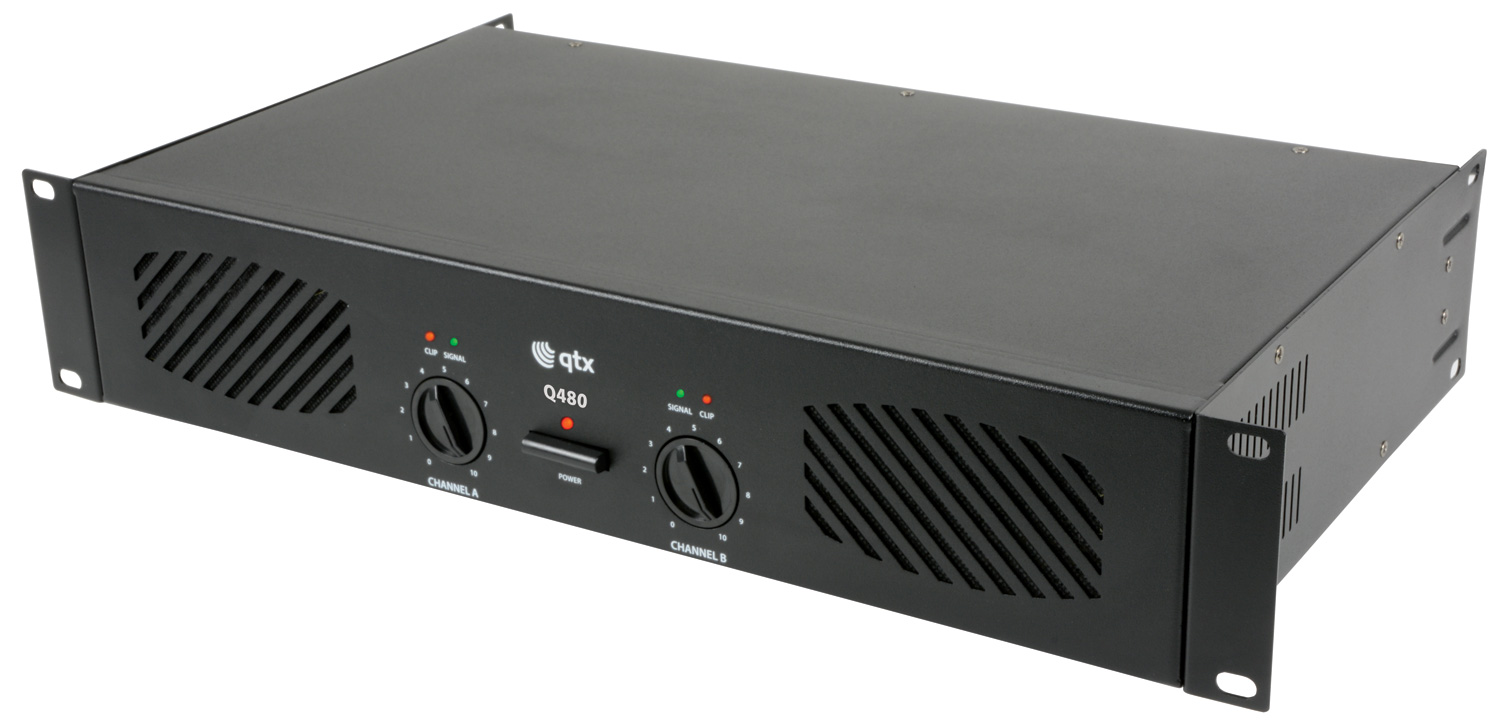

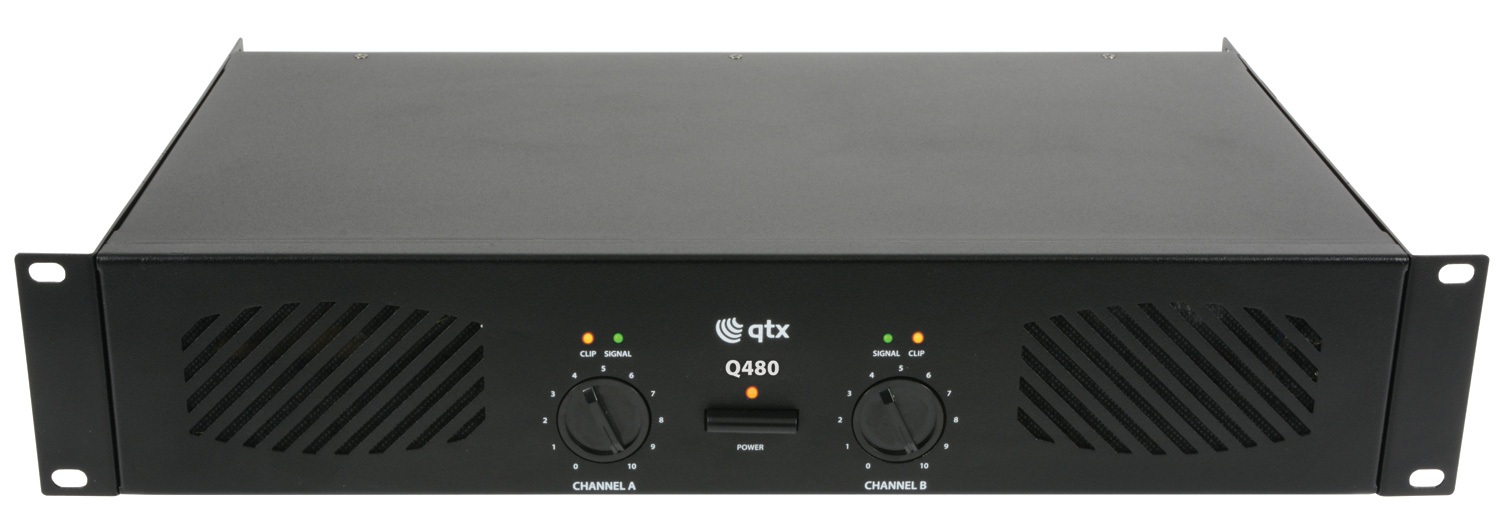

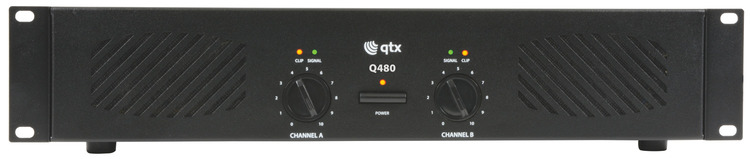

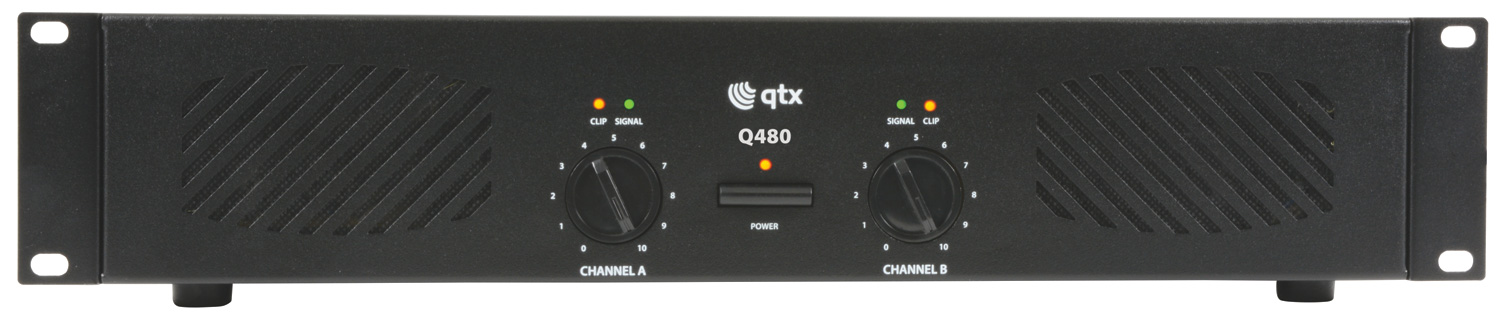

172.052UK Q480

Stereo workhorse power amplifiers with multiple input and output connection options. Designed for accurate and reliable service for venues, DJs and performers.

  • 6.3mm jack or RCA inputs
  • SPK, 6.3mm jack or 4mm post outputs
  • Fan cooled
Description Version Packed
172.051UK
Q240 power amplifier 2 x 120W
240W Box Printed
172.052UK
Q480 power amplifier 2 x 240W
480W Box Printed
172.054UK
Q600 power amplifier 2 x 300W
600W Box Printed
172.055UK
Q1000 power amplifier 2 x 500W
1000W Box Printed

Q Series Stereo Power Amplifiers

Stereo workhorse power amplifiers with multiple input and output connection options. Designed for accurate and reliable service for venues, DJs and performers.

  • 6.3mm jack or RCA inputs
  • SPK, 6.3mm jack or 4mm post outputs
  • Fan cooled

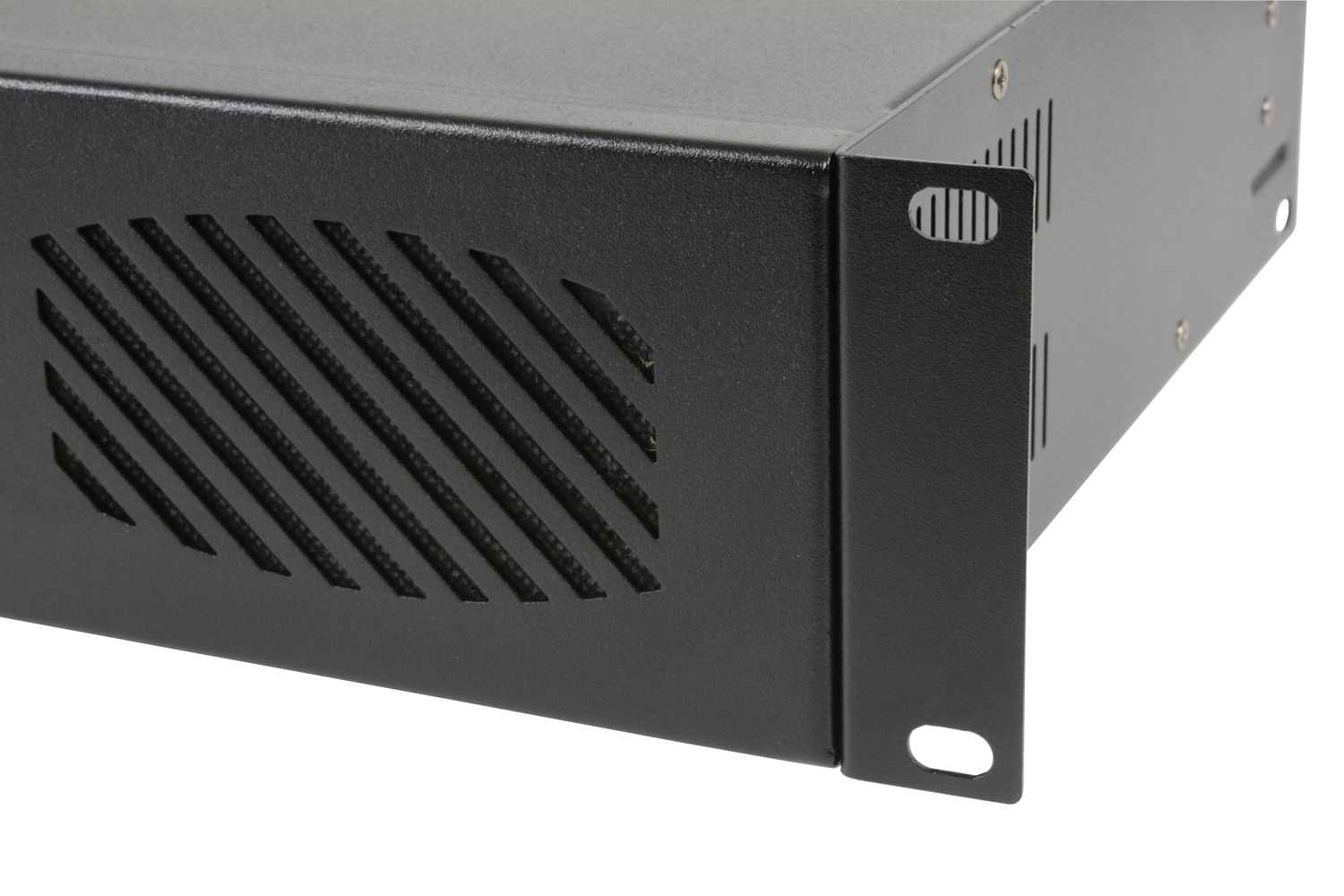

  • 19" rack-mountable (2U)

Specification : Common

  • Power supply 230Vac, 50Hz (IEC)
  • Frequency response 20Hz - 20kHz
  • Input connectors 6.3mm jack, RCA (L+R)
  • Input sensitivity 775mV, 10k Ohms
  • S/N ratio >98dB
  • THD <0.5%
  • Output connectors 6.3mm jack, SPK, 4mm binding posts (L+R)

Specification : Versions

  172.051UK 172.052UK 172.054UK 172.055UK
Fuse rating T2A (240V) / T4A (110V) T5A (240V) / T10A (110V) T5A (240V) / T10A (110V) T5A (240V) / T10A (110V)
Power max. : 4 Ohms 2 x 120W 2 x 240W 2 x 300W 2 x 500W
Power rms : 4 Ohms 2 x 60W 2 x 120W 2 x 150W 2 x 250W
Power rms : 8 Ohms 2 x 40W 2 x 80W 2 x 100W 2 x 160W
Dimensions 482 x 240 x 88mm (2U) 482 x 300 x 88mm (2U) 482 x 300 x 88mm (2U) 482 x 380 x 88mm (2U)
Weight 5.2kg 6.45kg 7.35kg 9kg

Trade information

  172.051UK 172.052UK 172.054UK 172.055UK
Barcode / EAN 5015972175866 5015972175880 5015972175903 5015972175927
Tariff code 8518500090 8518500090 8518500090 8518500090
Country of Origin CN CN CN CN
Package type Box Printed Box Printed Box Printed Box Printed
Package dimensions 520 x 150 x 310mm 520 x 150 x 310mm 520 x 150 x 310mm 520 x 150 x 380mm
Package weight 5.20kg 6.50kg 7.35kg 9.00kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 545 x 325 x 320mm 545 x 325 x 320mm 545 x 325 x 320mm 540 x 320 x 405mm
Carton weight 10.40kg 13.00kg 14.70kg 18.00kg
Carton quantity 2 packages 2 packages 2 packages 2 packages

Support

Instruction manual
For 172.051UK (646KB)
Instruction manual
For 172.054UK (646KB)
Instruction manual
For 172.052UK (646KB)
Instruction manual
For 172.055UK (646KB)
