Q Series Stereo Power Amplifiers
172.055UK

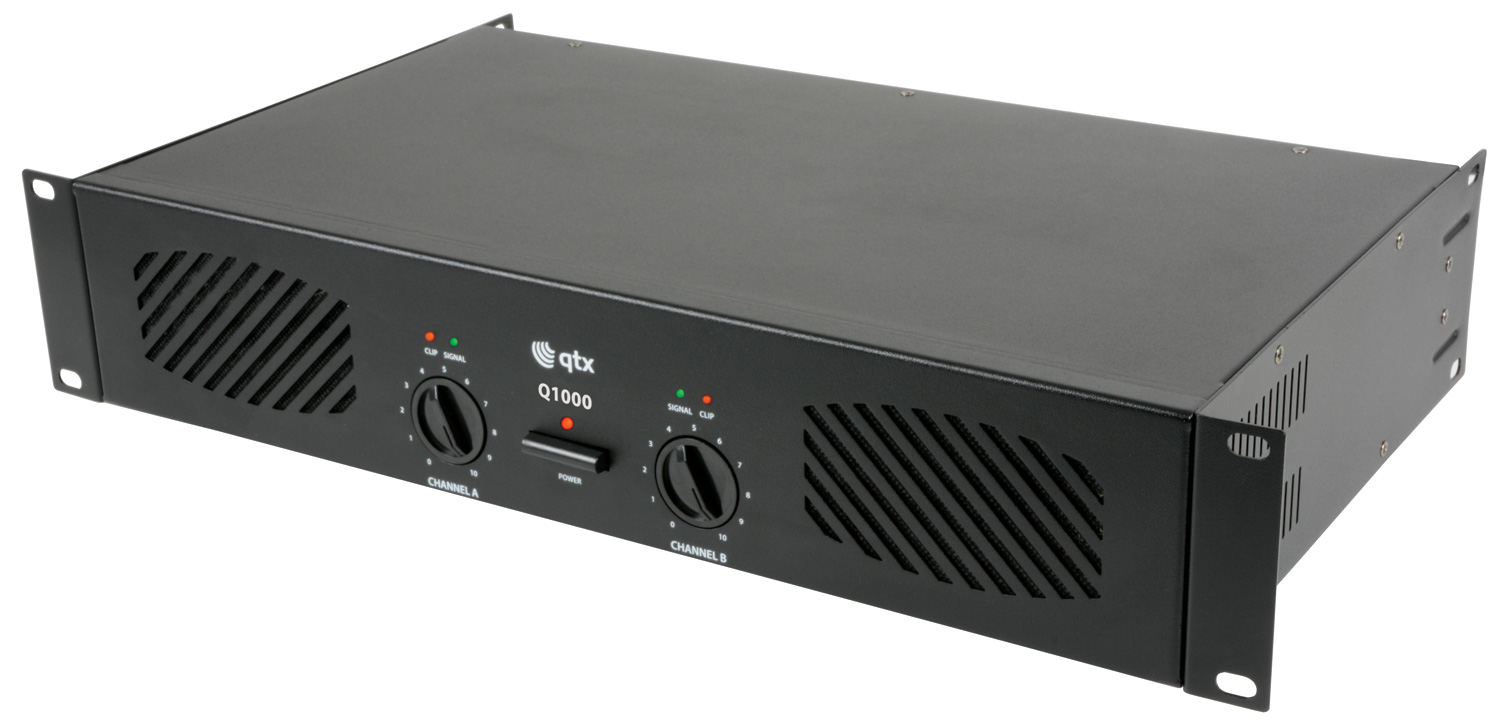

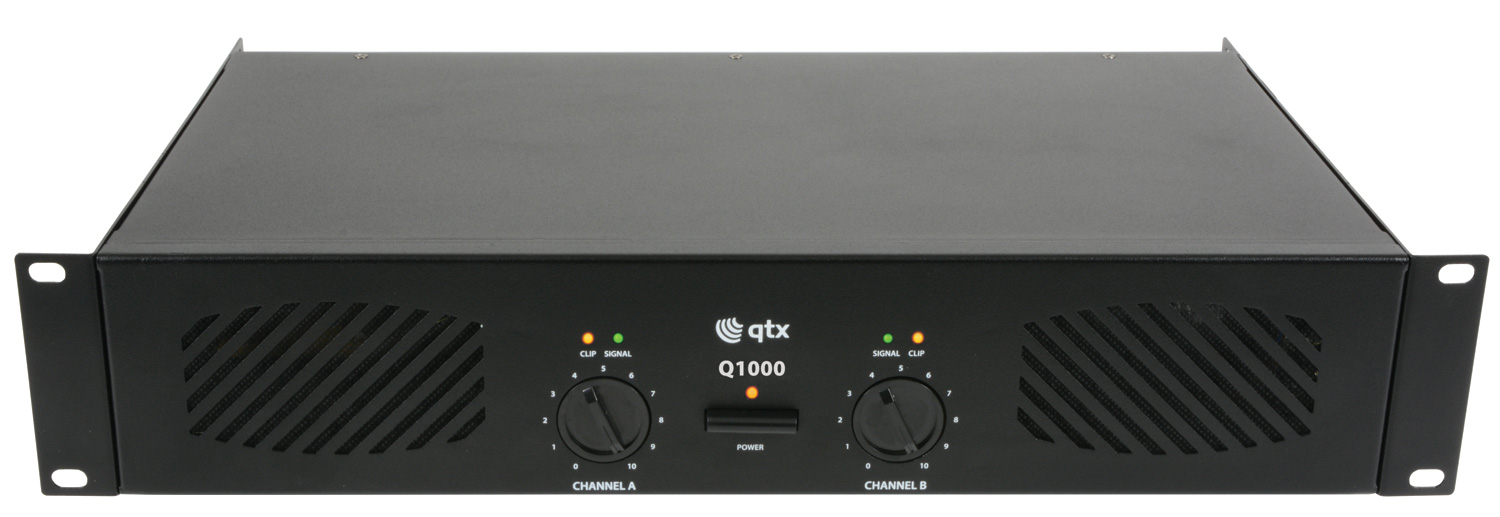

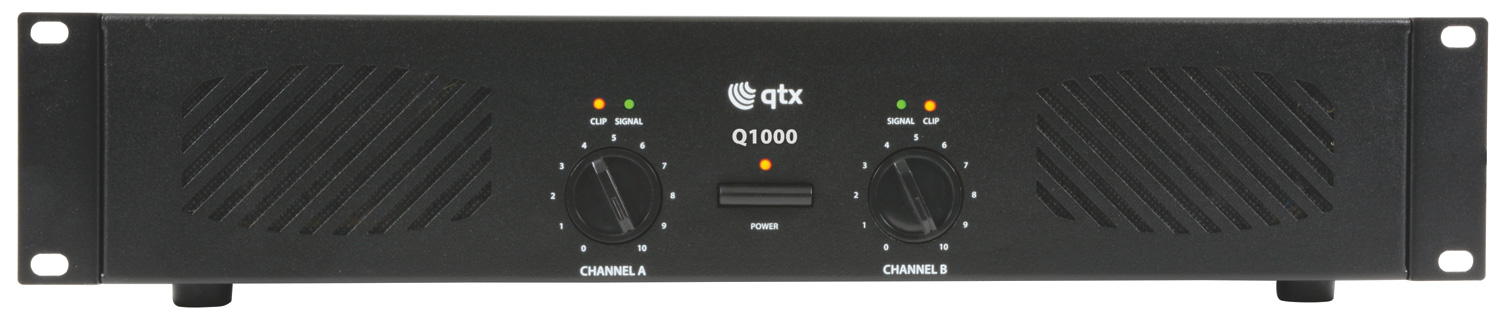

Q1000
Stereo workhorse power amplifiers with multiple input and output connection options. Designed for accurate and reliable service for venues, DJs and performers.
- 19" rack-mountable (2U)
- 6.3mm jack or RCA inputs
- SPK, 6.3mm jack or 4mm post outputs
Q Series Stereo Power Amplifiers
Stereo workhorse power amplifiers with multiple input and output connection options. Designed for accurate and reliable service for venues, DJs and performers.

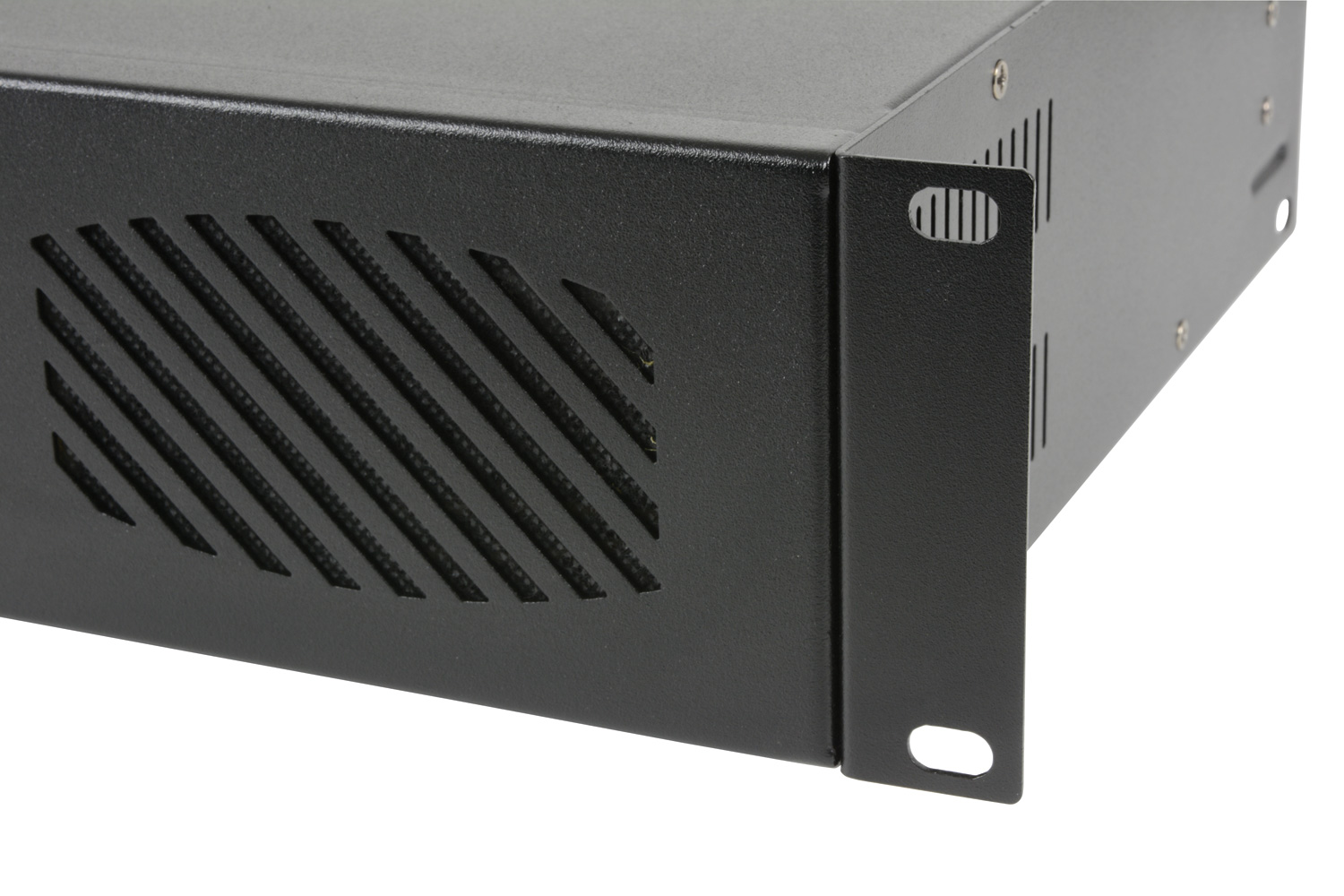

- 19" rack-mountable (2U)
- 6.3mm jack or RCA inputs
- SPK, 6.3mm jack or 4mm post outputs
- Fan cooled
- Power supply 230Vac, 50Hz (IEC)
- Frequency response 20Hz - 20kHz
- Input connectors 6.3mm jack, RCA (L+R)
- Input sensitivity 775mV, 10k Ohms
- S/N ratio >98dB
- THD <0.5%
- Output connectors 6.3mm jack, SPK, 4mm binding posts (L+R)
Versions
| 172.051UK | 172.052UK | 172.054UK | 172.055UK | |
|---|---|---|---|---|
| Fuse rating | T2A (240V) / T4A (110V) | T5A (240V) / T10A (110V) | T5A (240V) / T10A (110V) | T5A (240V) / T10A (110V) |
| Power max. : 4 Ohms | 2 x 120W | 2 x 240W | 2 x 300W | 2 x 500W |
| Power rms : 4 Ohms | 2 x 60W | 2 x 120W | 2 x 150W | 2 x 250W |
| Power rms : 8 Ohms | 2 x 40W | 2 x 80W | 2 x 100W | 2 x 160W |
| Dimensions | 482 x 240 x 88mm (2U) | 482 x 300 x 88mm (2U) | 482 x 300 x 88mm (2U) | 482 x 380 x 88mm (2U) |
| Weight | 5.2kg | 6.45kg | 7.35kg | 9kg |
