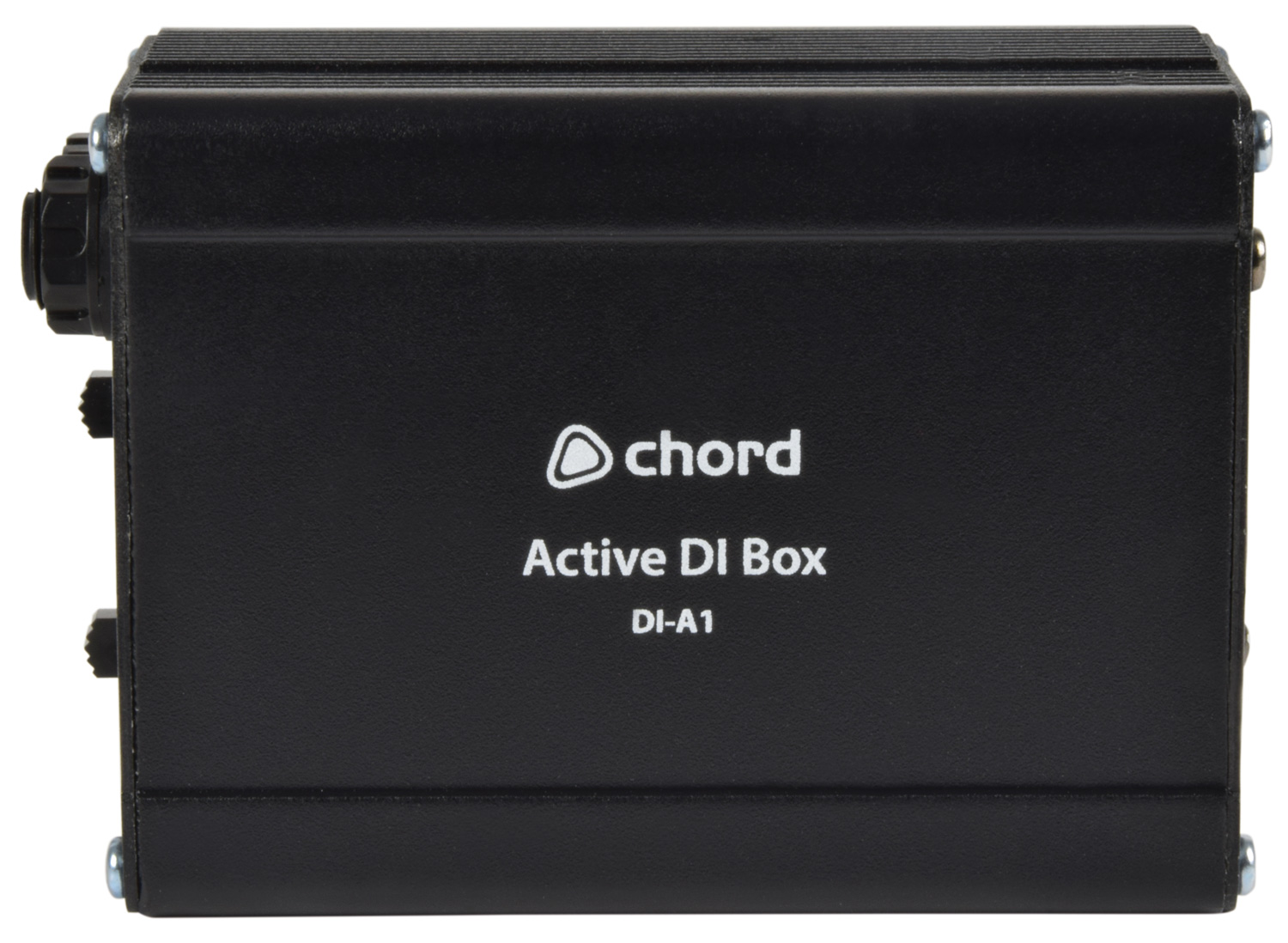

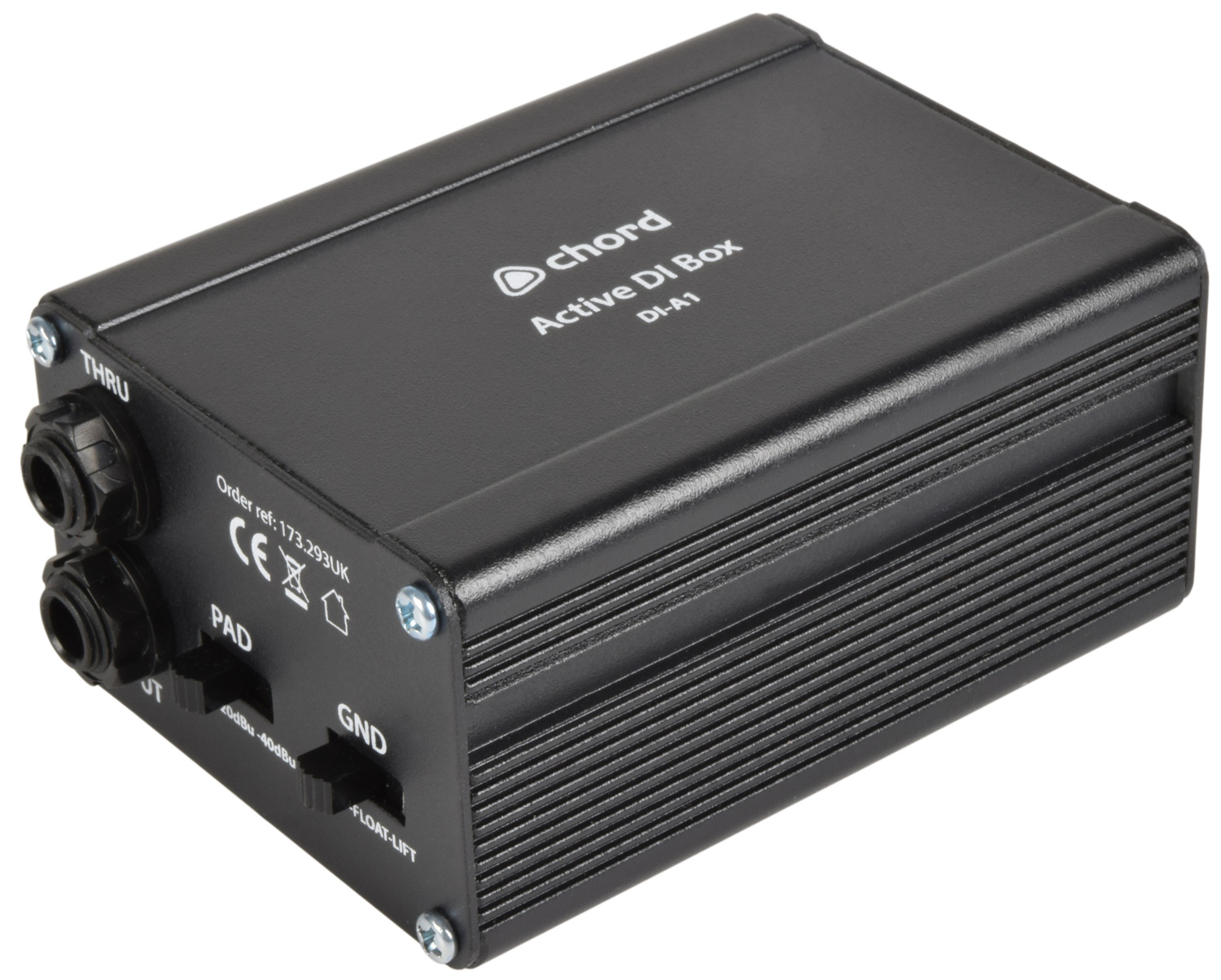

Active Direct Injection Box

173.293UK DI-A1

Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding loss...

  • Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
  • Ground float option for ground lift with RF/mains filter
  • Ground lift option isolates signal ground without filter
Description Version Packed
173.293UK
Active Direct Injection Box
Box Printed

Active Direct Injection Box

Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching. Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.

  • Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
  • Ground float option for ground lift with RF/mains filter
  • Ground lift option isolates signal ground without filter
  • 3 pad settings for level matching

Specification

  • Power supply 9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power

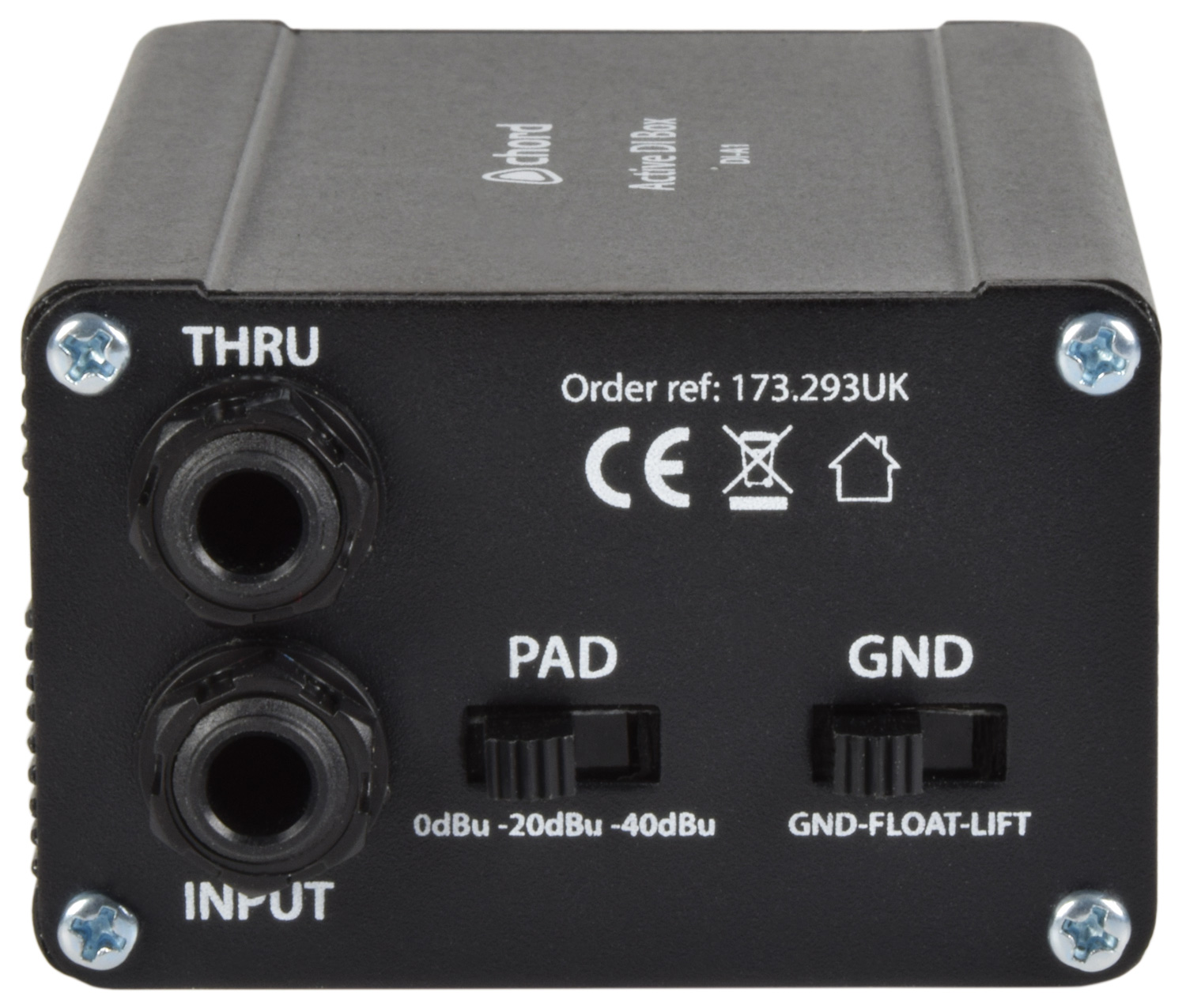

  • Input 6.3mm jack (unbalanced)

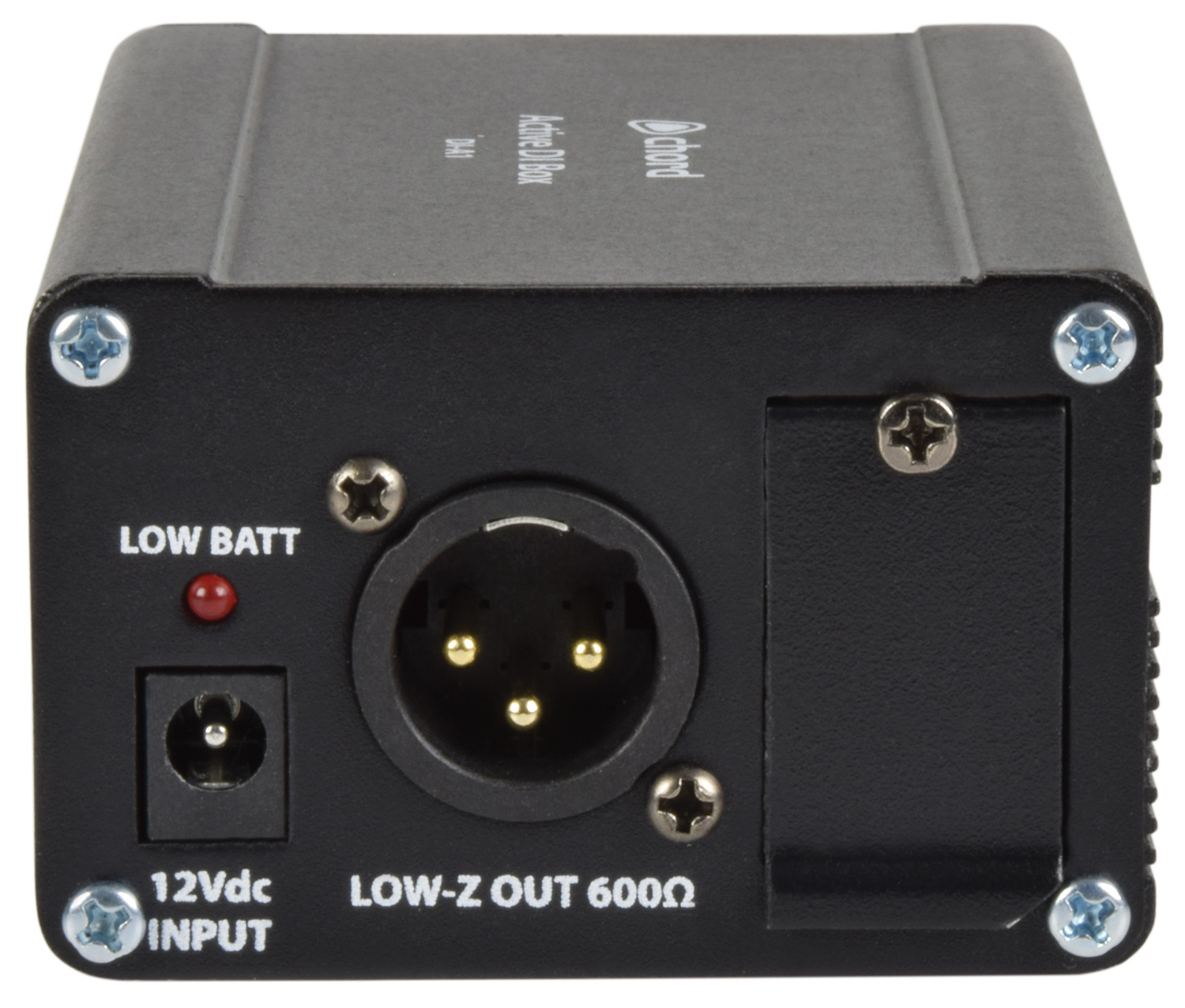

  • Outputs XLRM (balanced), 6.3mm jack through (unbalanced)
  • Input impedance >100k Ohms
  • Output impedance 600 Ohms
  • Controls 0/-20/-40dBu pad & Ground-Float-Lift switch

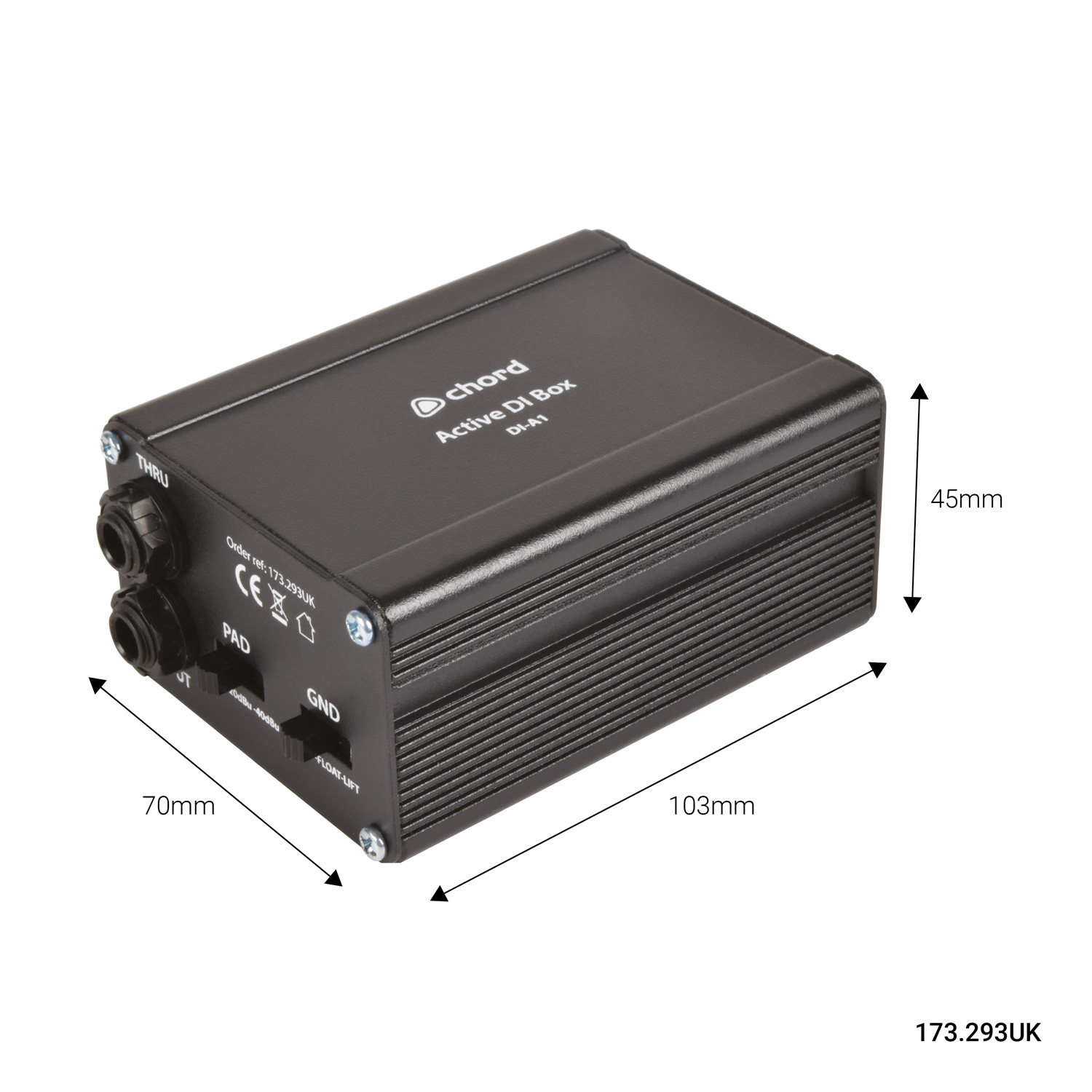

  • Dimensions 103 x 70 x 45mm
  • Weight 243g

Trade information

  173.293UK
Barcode / EAN 5015972209370
Package type Box Printed
Package dimensions 75 x 110 x 50mm
Package weight 0.32kg
Package quantity 1 unit
Carton dimensions 235 x 270 x 165mm
Carton weight 7.00kg
Carton quantity 20 packages

In the box

The box for this item contains :

  • Active direct injection box

Support

Instruction manual
For 173.293UK (152KB)
