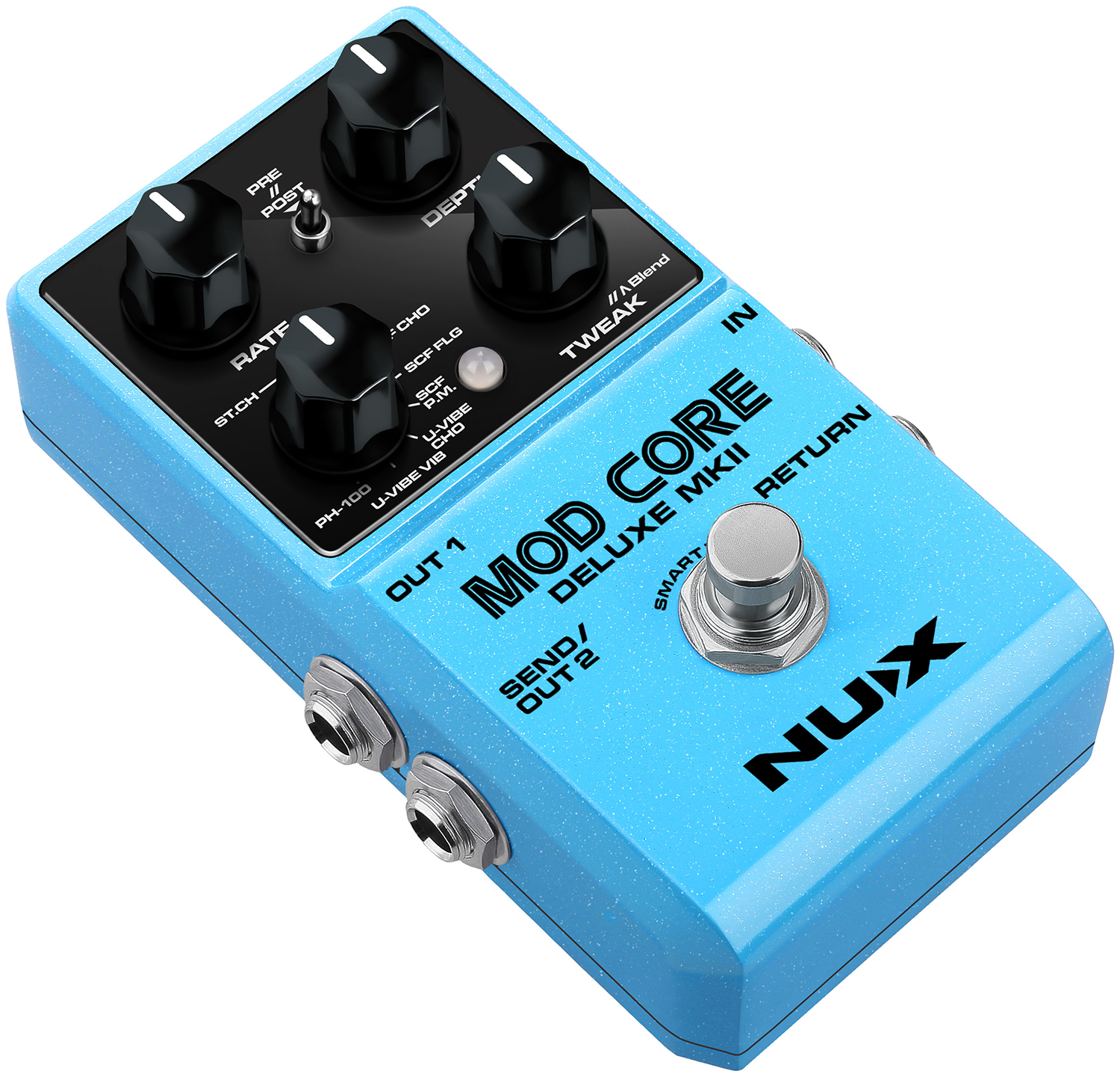

Mod Core Deluxe mkII Pedal
Evolving from the popular Mod Core Deluxe pedal, this mkII version has new effect models, signal routing options and editing features. A choice of 8 modulation models range from chorus to phasing a...
- 8 distinct modulation effect models
- Analog dry signal path for low noise and zero latency
- Mono or stereo output
| Description | |
|---|---|
|
173.473UK
Mod Core Deluxe mkII Pedal |

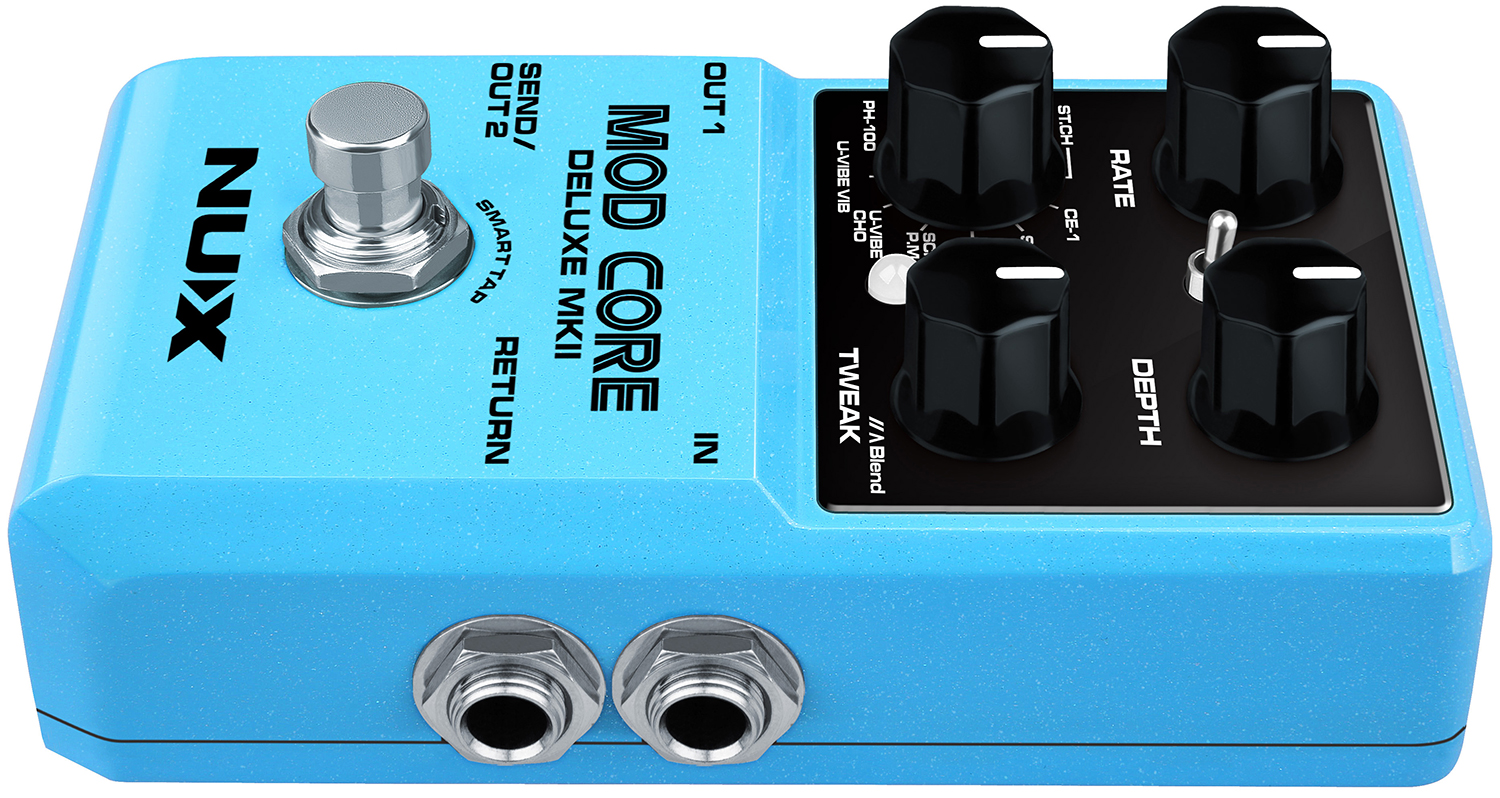

Mod Core Deluxe mkII Pedal
Evolving from the popular Mod Core Deluxe pedal, this mkII version has new effect models, signal routing options and editing features. A choice of 8 modulation models range from chorus to phasing and vibrato, with Rate and Depth controls and an additional Tweak control to adjust a third parameter specific to each effect and a further Blend adjustment in Alt mode. Rate can also be adjusted using a Tap Tempo function of the main footswitch. Mod Core Deluxe mkII has routing options for mono out, stereo out or mono with send/return loop. When using the loop, there are 3 routing options for pre, parallel and post effect placement. If you have space for just one mod effect on your board, the Mod Core Deluxe mkII offers a choice of 8 high quality pedals in a single compact stomp box format.
- 8 distinct modulation effect models
- Analog dry signal path for low noise and zero latency
- Mono or stereo output
- Built-in send-return loop
- 4 paramter control for effect settings

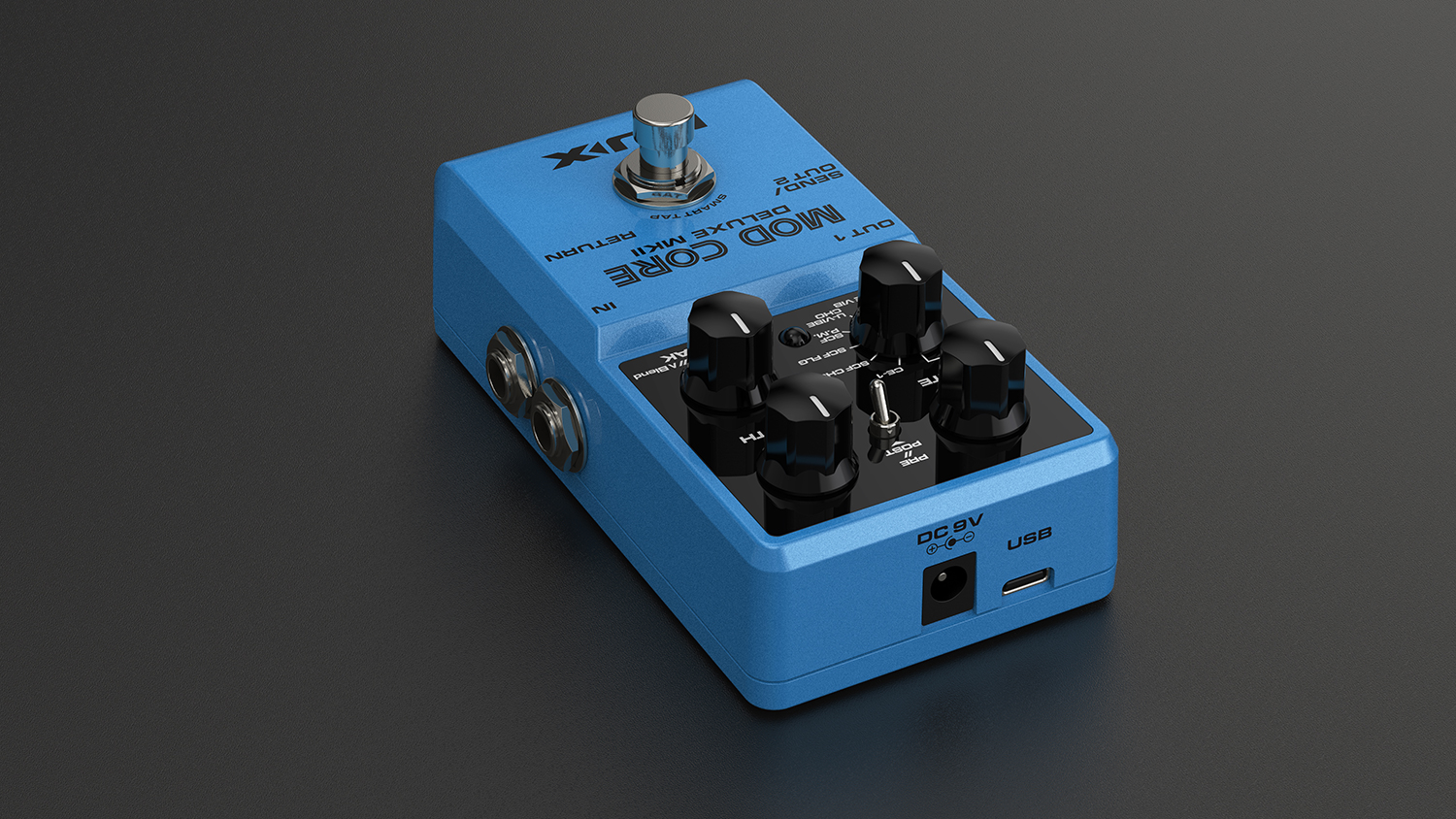

- USB-C for firmware updates
- Power supply 9Vdc (PP3) battery or optional power adaptor
- DC input connection DC5521 jack (for optional adaptor - pin-negative)
- Current consumption <120mA

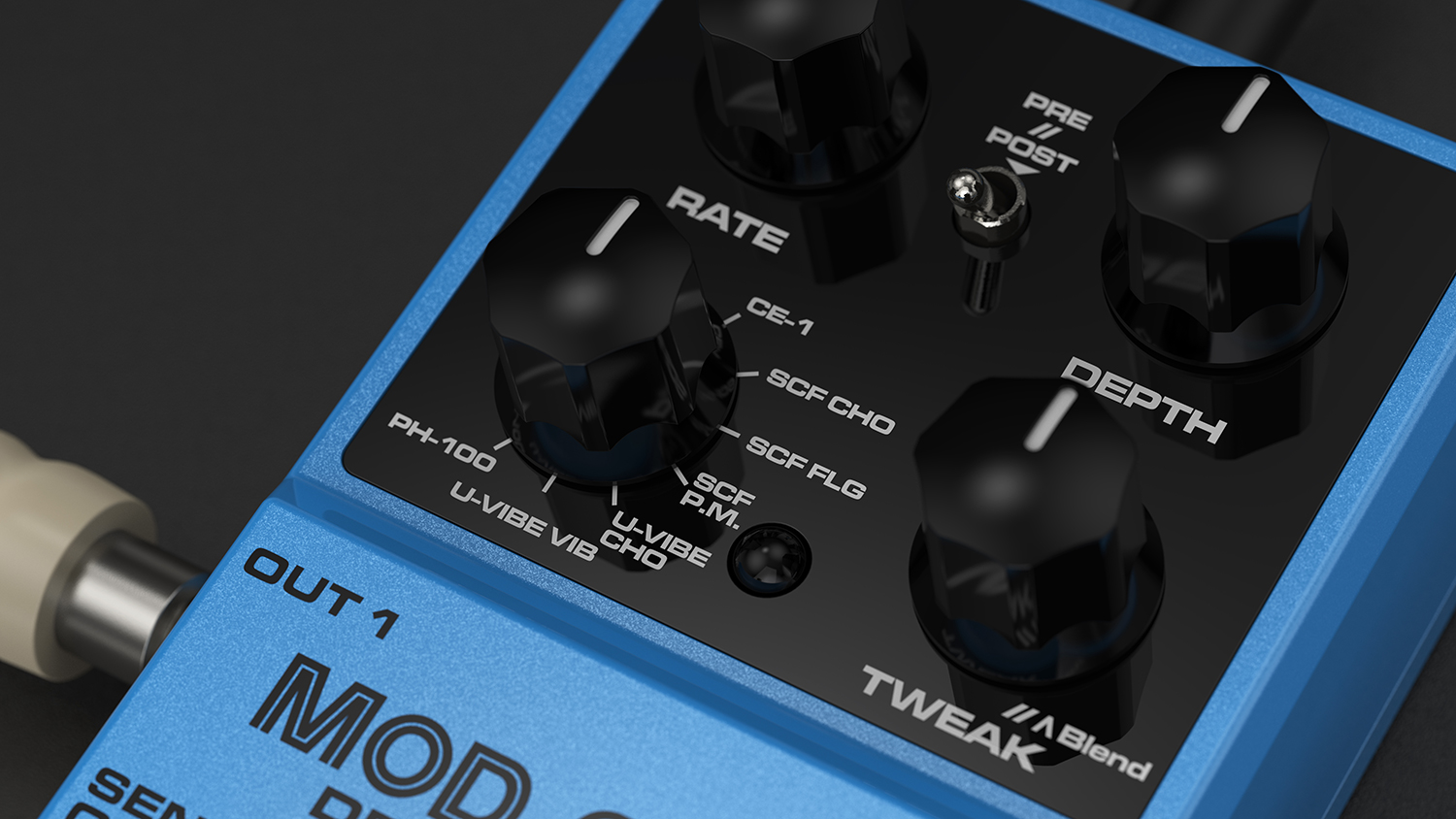

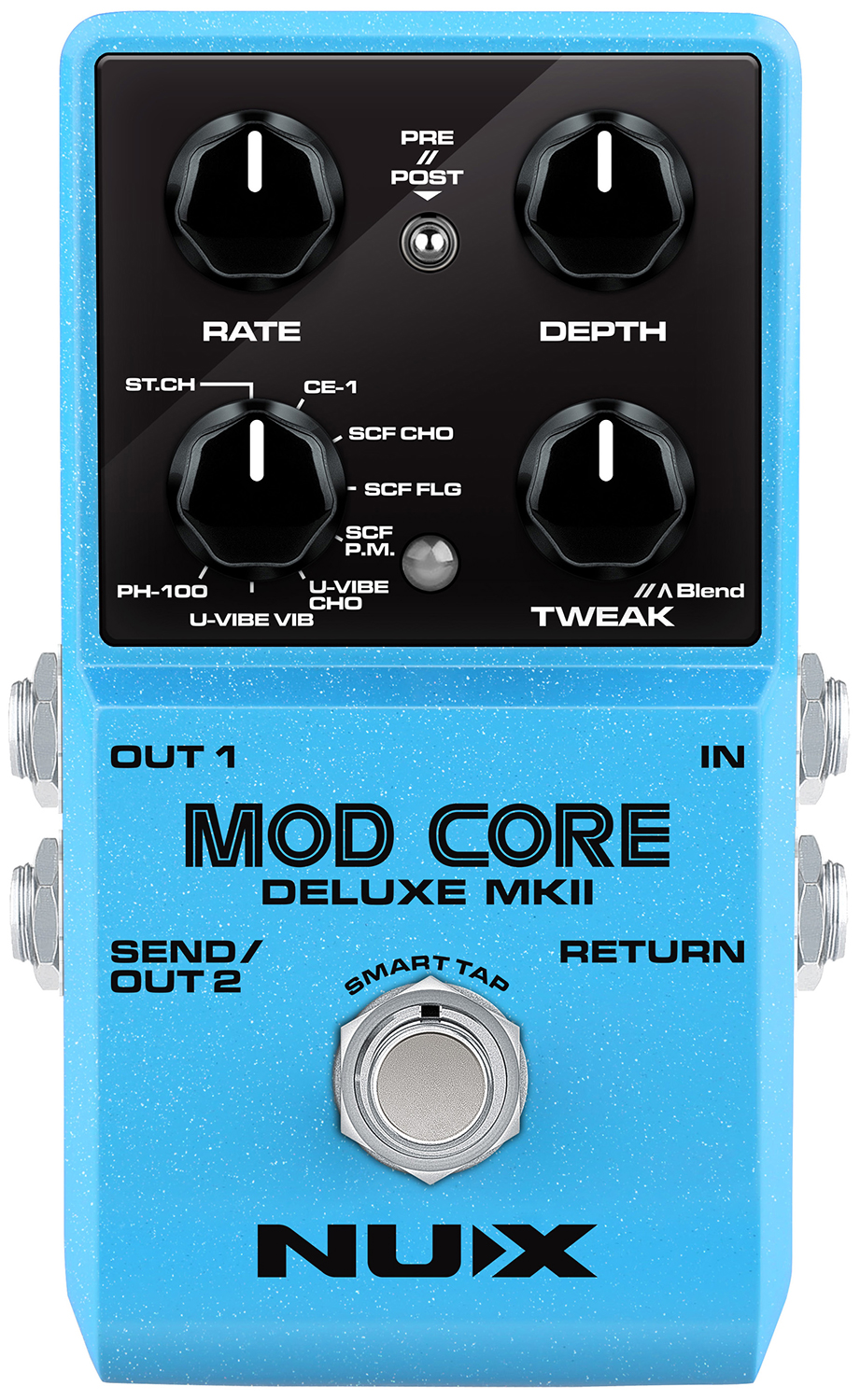

- Controls Rate, Depth, Tweak & Mod type
- Modes ST.CH, CE-1, SCF CHO, SCF FLG, SCF PM, U-VIBE CHO, U-VIBE VIB, PH-100
- Inputs Instrument in & Loop return (6.3mm mono jack)

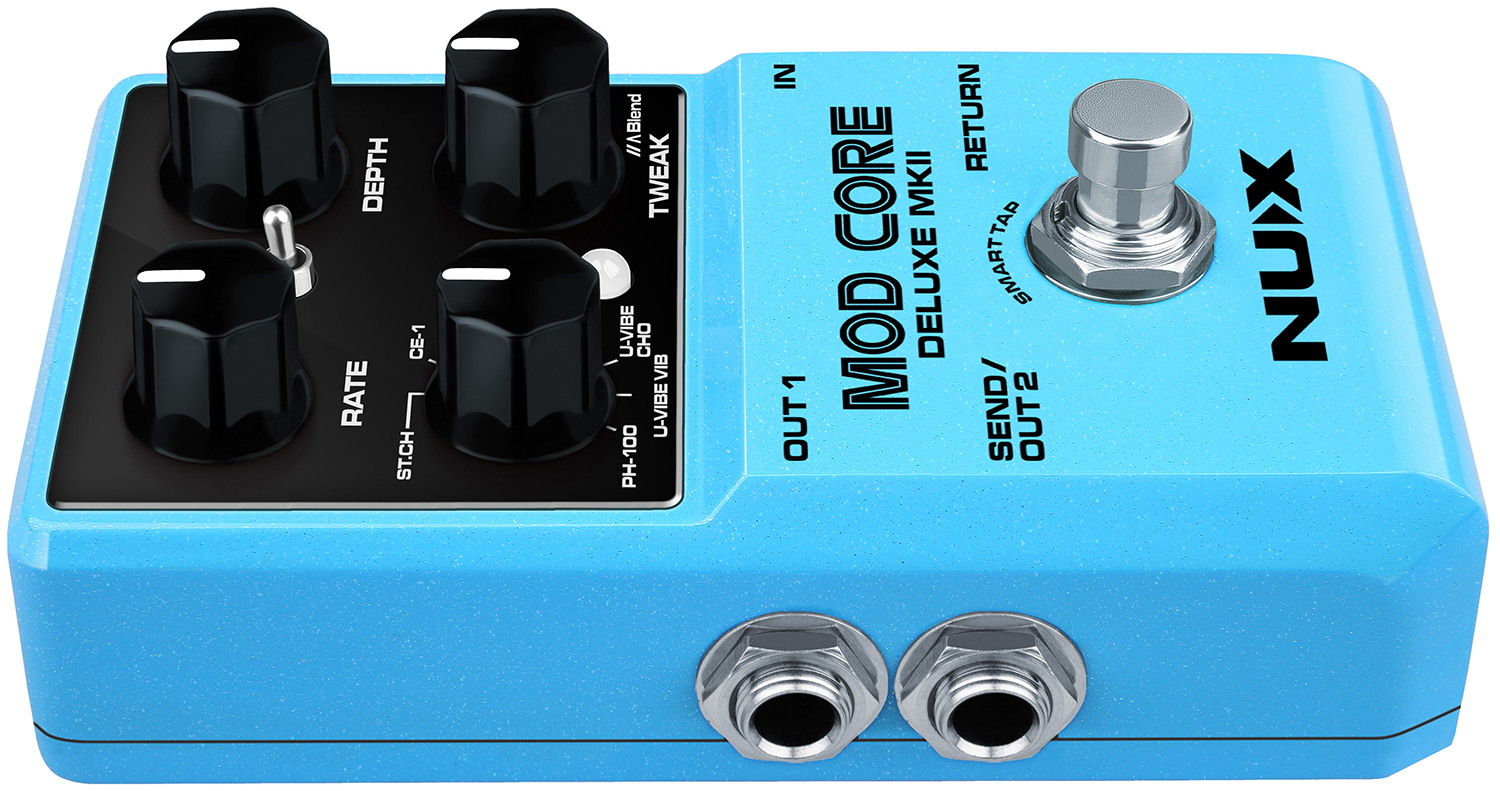

- Outputs Out1 & Out2/Loop send (6.3mm mono jack)
- Tempo range 50-200 bpm
- Sampling format 48kHz, 24-bit
- Input impedance 1M ohm
- Output impedance 1k ohm
- Dynamic range 104dB
- Dimensions 122 x 72 x 47mm
- Weight 270g
In the box
The box for this item contains :
- Mod Core Deluxe mkII pedal
- Alkaline PP3 battery
Videos
NUX EFX CORE SERIES RANGE | Core Series Stomp Boxes
Downloads
For 173.473UK (244KB)
For 173.473UK (234KB)
