CASA Active PA Cabinets with DSP, USB/SD and Bluetooth

178.112UK CASA-12A

Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material....

  • High efficiency class D bi-amplifier section
  • DSP speaker control with 5 selectable profiles
  • Inbuilt USB/SD audio player
Description Version Packed
178.108UK
CASA-8A Active Cab 8" 200W RMS + USB/SD/BT
8" 200W RMS Box Label BW
178.110UK
CASA-10A Active Cab 10" 220W RMS + USB/SD/BT
10" 220W RMS Box Label BW
178.112UK
CASA-12A Active Cab 12" 280W RMS + USB/SD/BT
12" 280W RMS Box Label BW

Accessories

Description Version Packed
902.111UK
34mm (1.35") HF Driver 35Wrms for CASA-12A
34mm (1.35") 35Wrms Box Label BW
902.112UK
12" Driver 4 Ohm 300W CASA-12A
12" 4ohm 300W Box Label BW

CASA Active PA Cabinets with DSP, USB/SD and Bluetooth

Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material. Inputs are provided on XLR/jack with mic/line level switching and RCA line connectors. A built-in audio module provides playback from USB or SD media and Bluetooth wireless pairing. These cabinets are fully featured for virtually any PA application and pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.

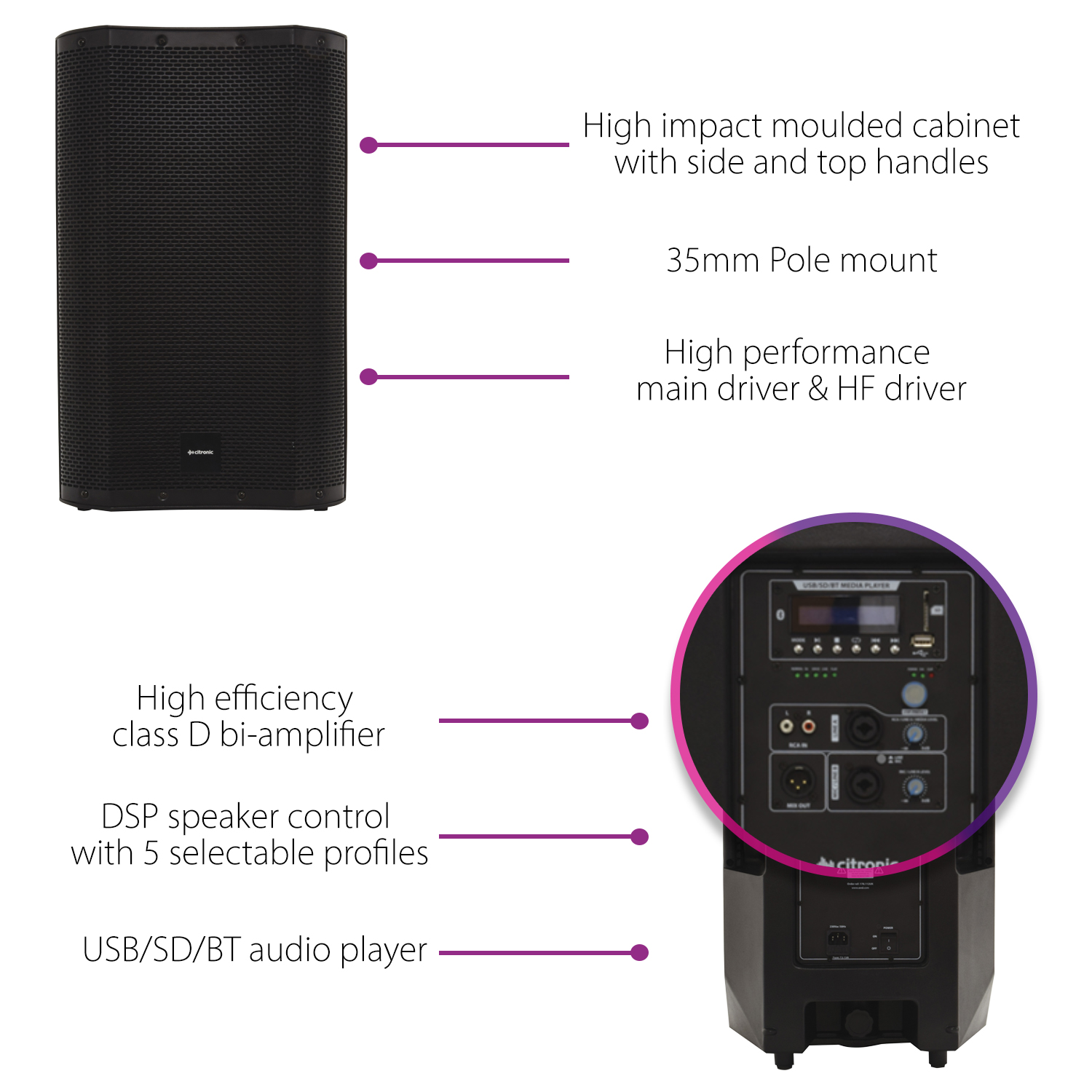

  • High efficiency class D bi-amplifier section
  • DSP speaker control with 5 selectable profiles
  • Inbuilt USB/SD audio player
  • Bluetooth wireless connectivity

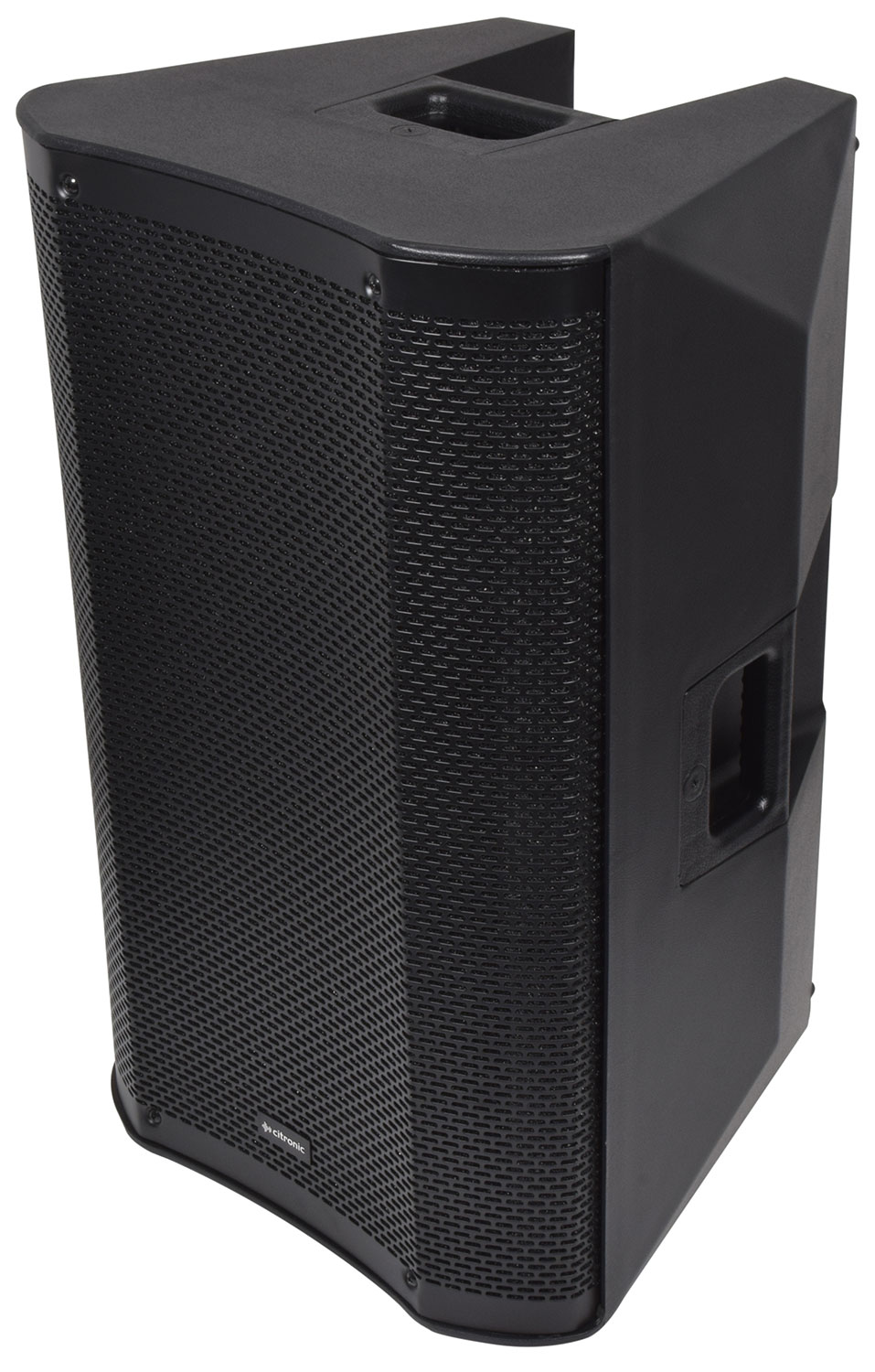

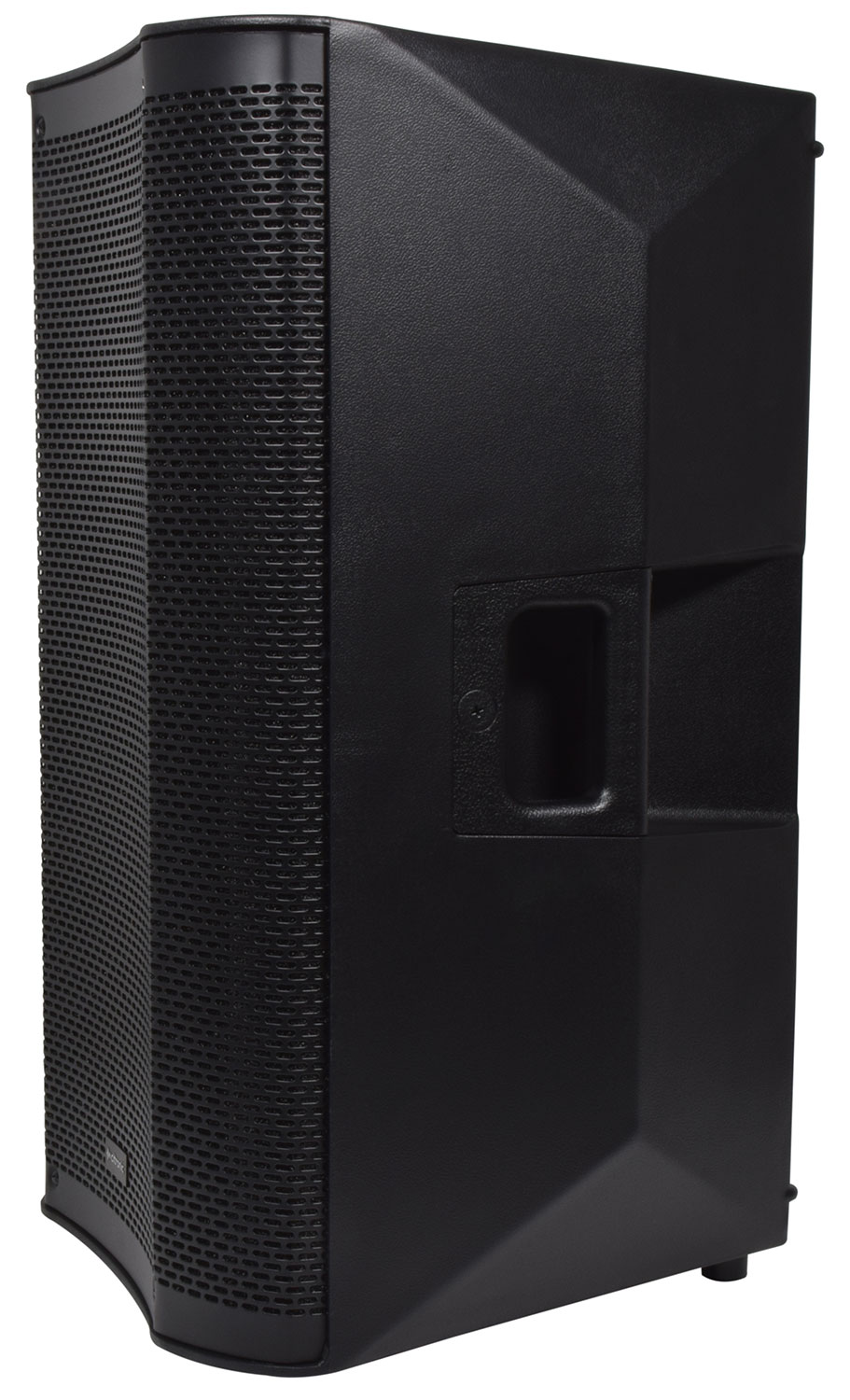

  • High impact moulded cabinet with side and top handles.

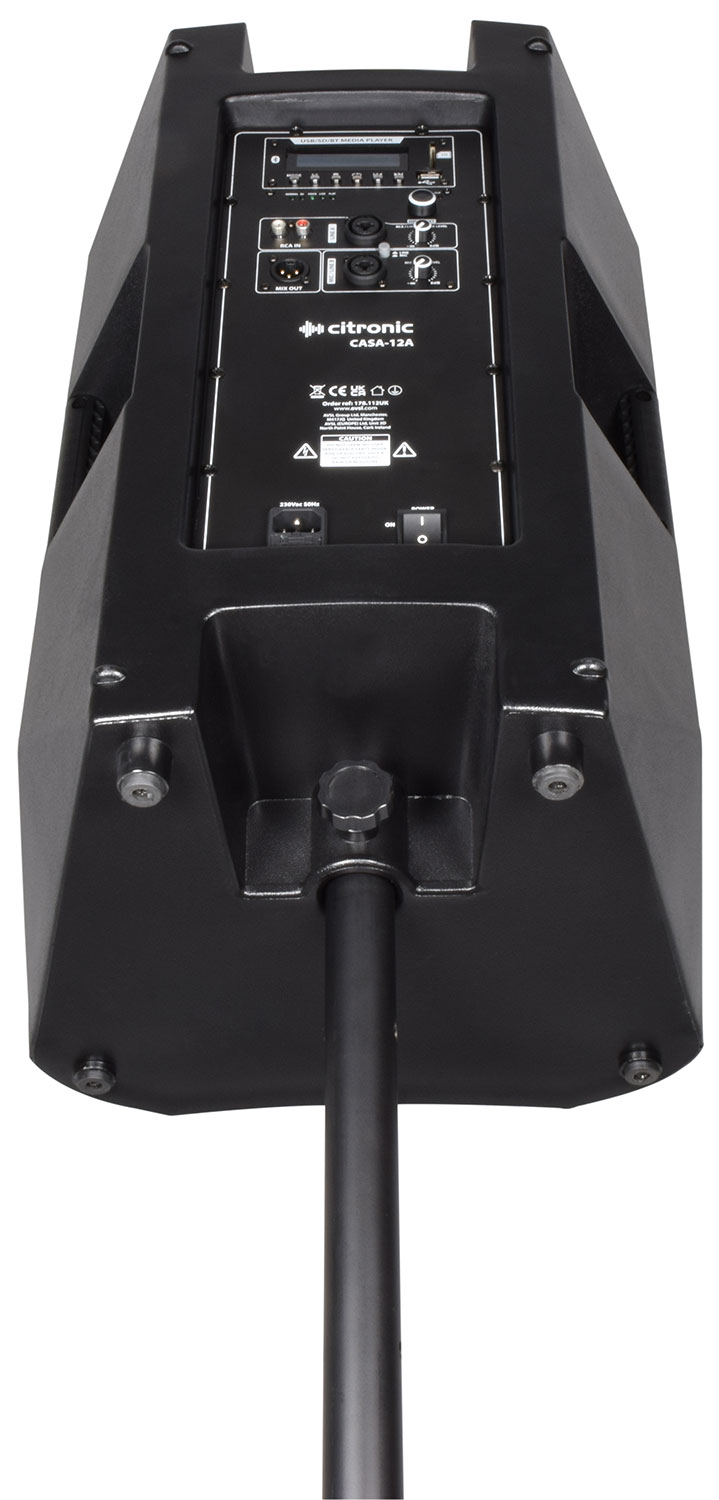

  • 35mm pole mount socket
  • Power supply 230Vac, 50Hz (IEC)
  • Audio source USB/SD player + Bluetooth receiver
  • Line output XLR
  • DSP settings Normal, DJ. Voice, Live, Flat

Versions

  178.108UK 178.110UK 178.112UK
Main driver 200mmØ (8") 250mmØ (10") 300mmØ (12")
Voice coil 50mmØ (2") 50mmØ (2") 75mmØ (2.5")
HF driver 25mmØ (1") Ti compression driver 25mmØ (1") Ti compression driver 35mmØ (1.35") Ti compression driver
Output power : rms 200W 220W 280W
Output power : max. 400W 440W 600W
Output power peak 800W 880W 1120W
Sensitivity 94dB 94dB 96dB
SPL max. 120.0dB 121.0dB 123.5dB
Frequency response 60Hz - 19kHz 55Hz - 19kHz 50Hz - 20kHz

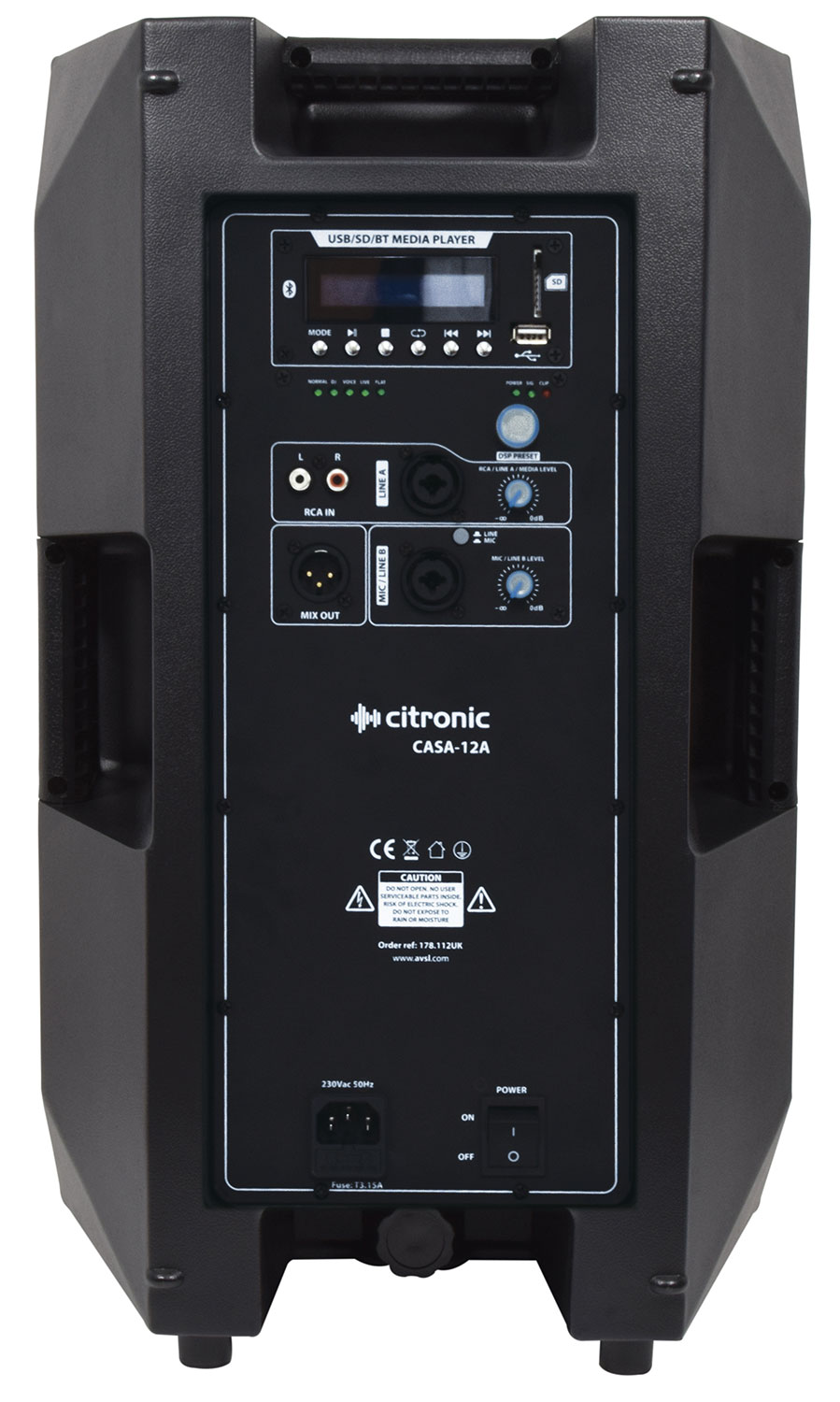

Inputs XLR/jack mic/line, 6.3mm jack mic/instrument, L+R RCA line XLR/jack mic/line, 6.3mm jack mic/instrument, L+R RCA line XLR/jack mic/line, XLR/jack/L+R RCA line
Dimensions 435 x 278 x 245mm 500 x 310 x 260mm 610 x 375 x 340mm
Weight 8.71kg 10.27kg 15.98kg

Support : articles

Active speakers

Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Amplifier Classes

There have been many developments in audio electronics, resulting in different amplifier circuit designs. Such designs can be divided into classes, of which 4 main types are relevant to audio – A, AB, H and D.

Friday, 28th February 2020

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

What is a DSP?

Tuesday, 24th March 2020

In the box

The box for this item contains :

  • CASA active moulded cabinet
  • IEC mains power lead(s)
