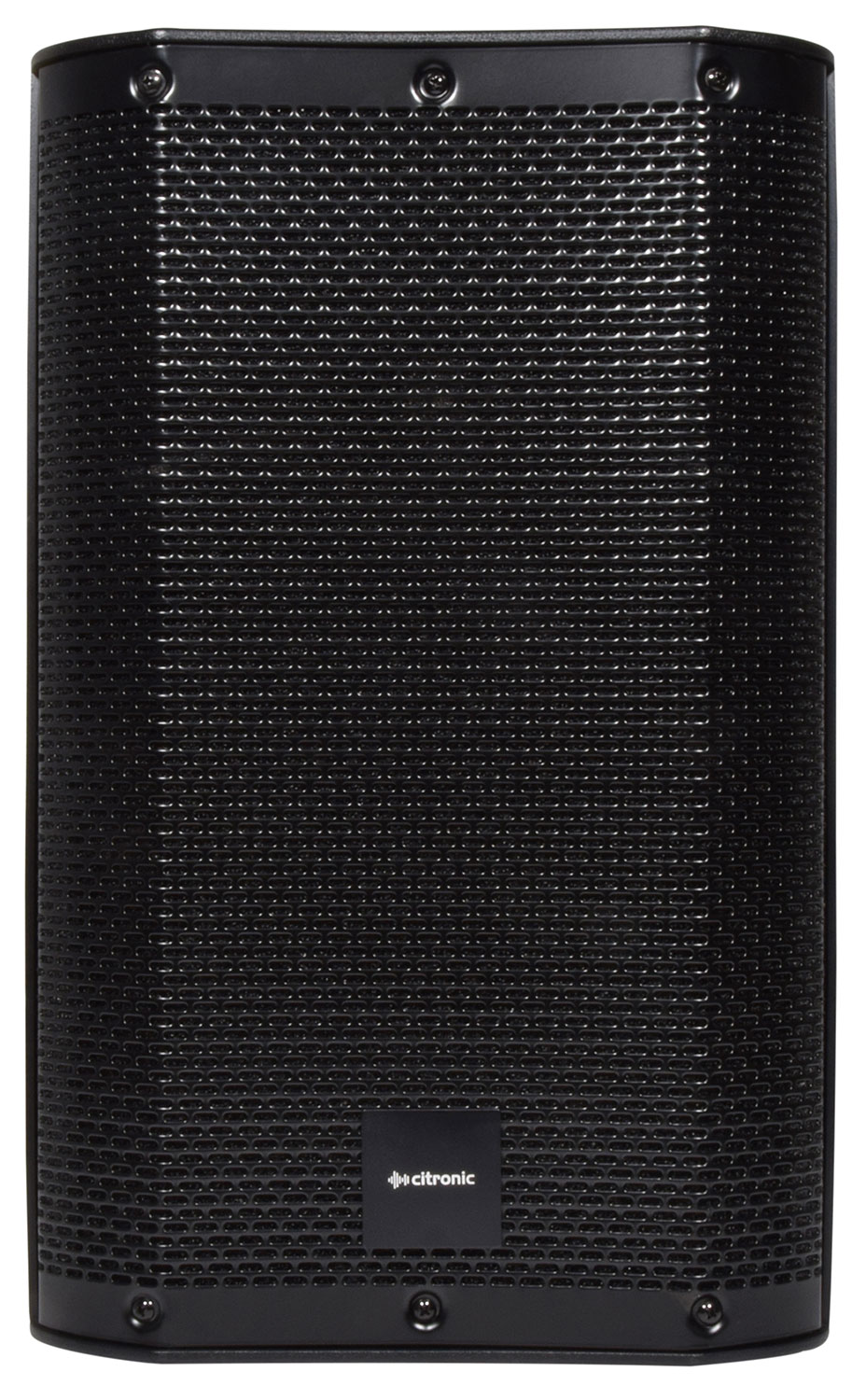

CASA Active PA Cabinets with DSP, USB/SD and Bluetooth

178.110UK CASA-10A

Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material....

  • High efficiency class D bi-amplifier section
  • DSP speaker control with 5 selectable profiles
  • Inbuilt USB/SD audio player
Description Version Packed
178.108UK
CASA-8A Active Cab 8" 200W RMS + USB/SD/BT
8" 200W RMS Box Printed
178.110UK
CASA-10A Active Cab 10" 220W RMS + USB/SD/BT
10" 220W RMS Box Printed
178.112UK
CASA-12A Active Cab 12" 280W RMS + USB/SD/BT
12" 280W RMS Box Printed

Accessories

Description Version Packed
902.109UK
25mm (1") HF Driver 20Wrms for CASA-8A and CASA-10A
25mm (1") 20Wrms Box Label BW
902.110UK
10" Driver 4 Ohm 250W CASA-10A
10" 4ohm 250W Box Label BW

CASA Active PA Cabinets with DSP, USB/SD and Bluetooth

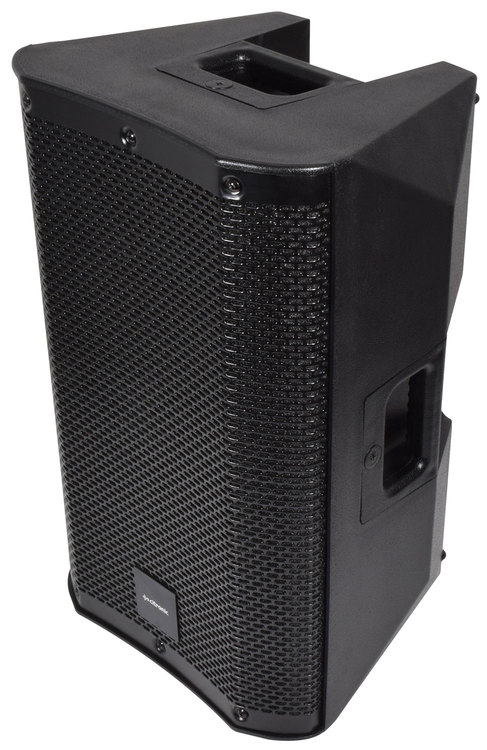

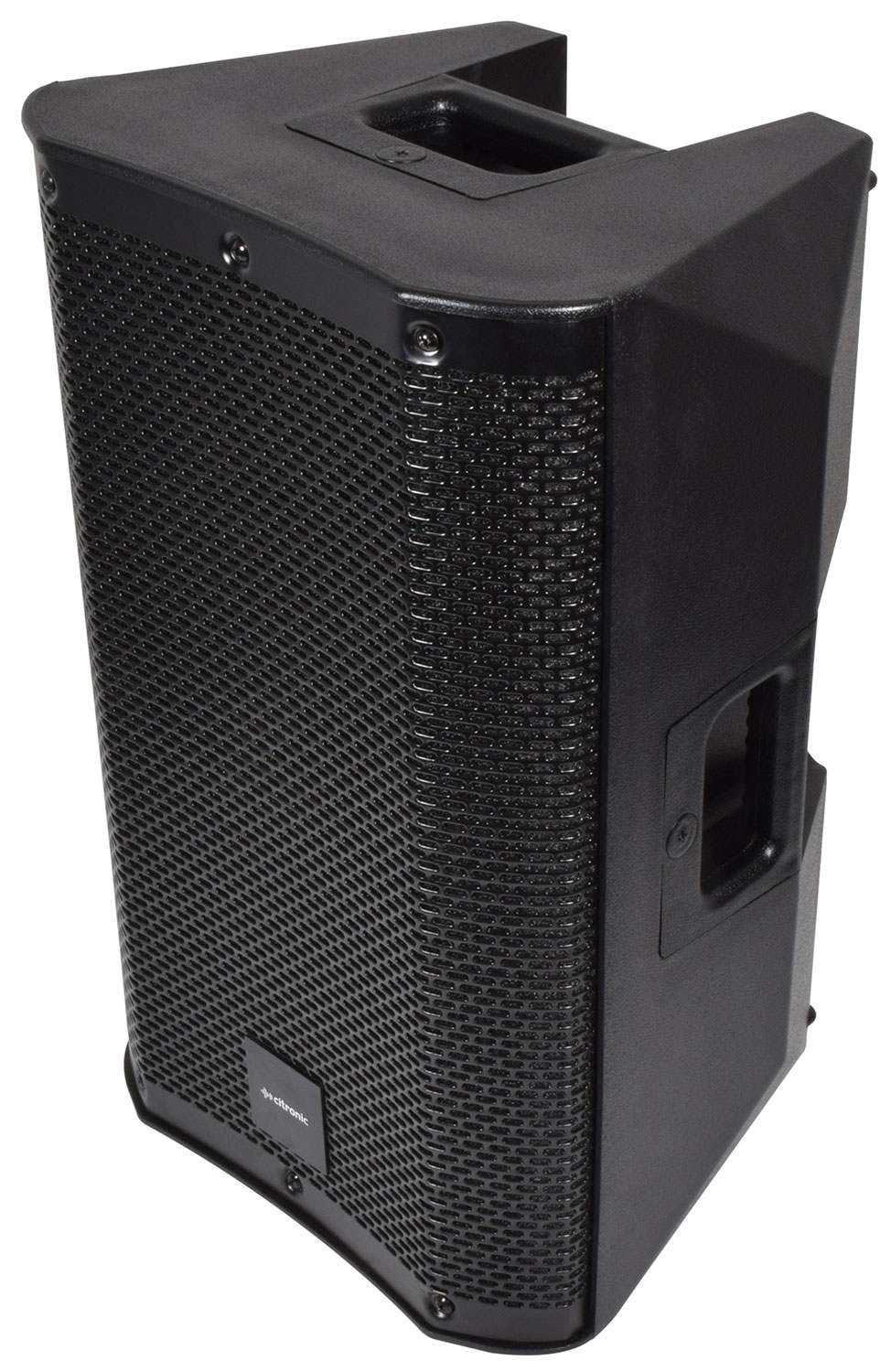

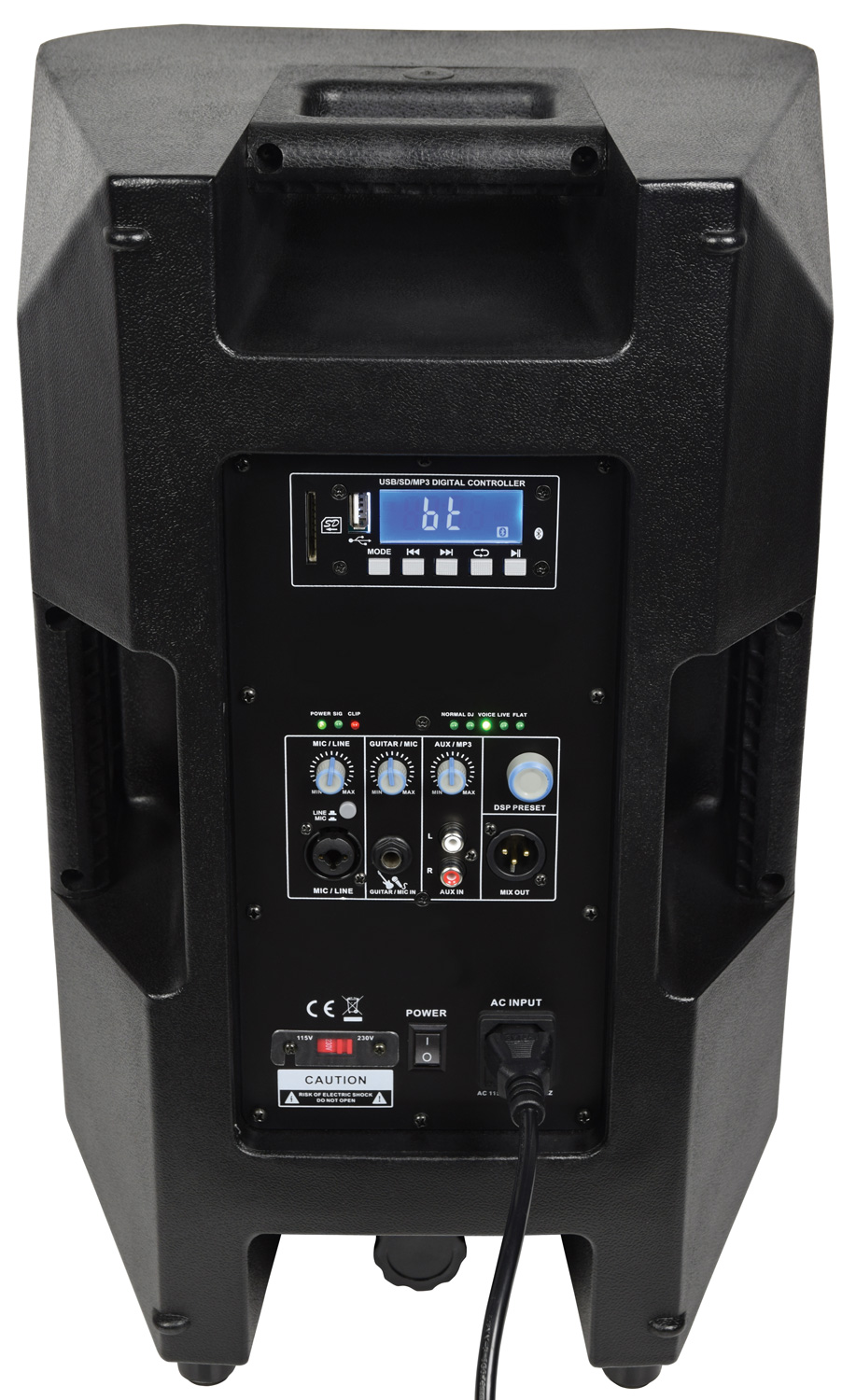

Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material. Inputs are provided on XLR/jack with mic/line level switching and RCA line connectors. A built-in audio module provides playback from USB or SD media and Bluetooth wireless pairing. These cabinets are fully featured for virtually any PA application and pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.

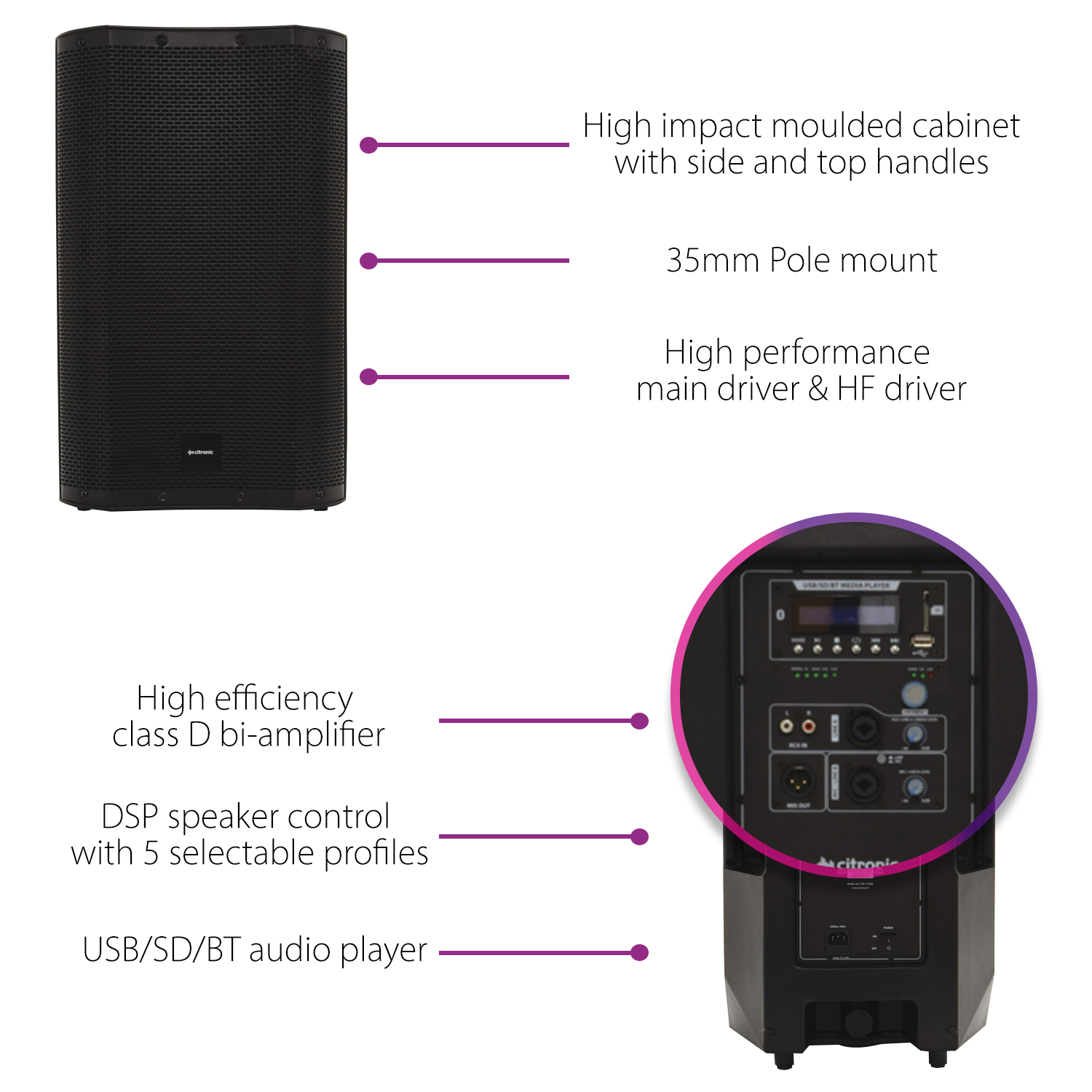

  • High efficiency class D bi-amplifier section
  • DSP speaker control with 5 selectable profiles
  • Inbuilt USB/SD audio player
  • Bluetooth wireless connectivity

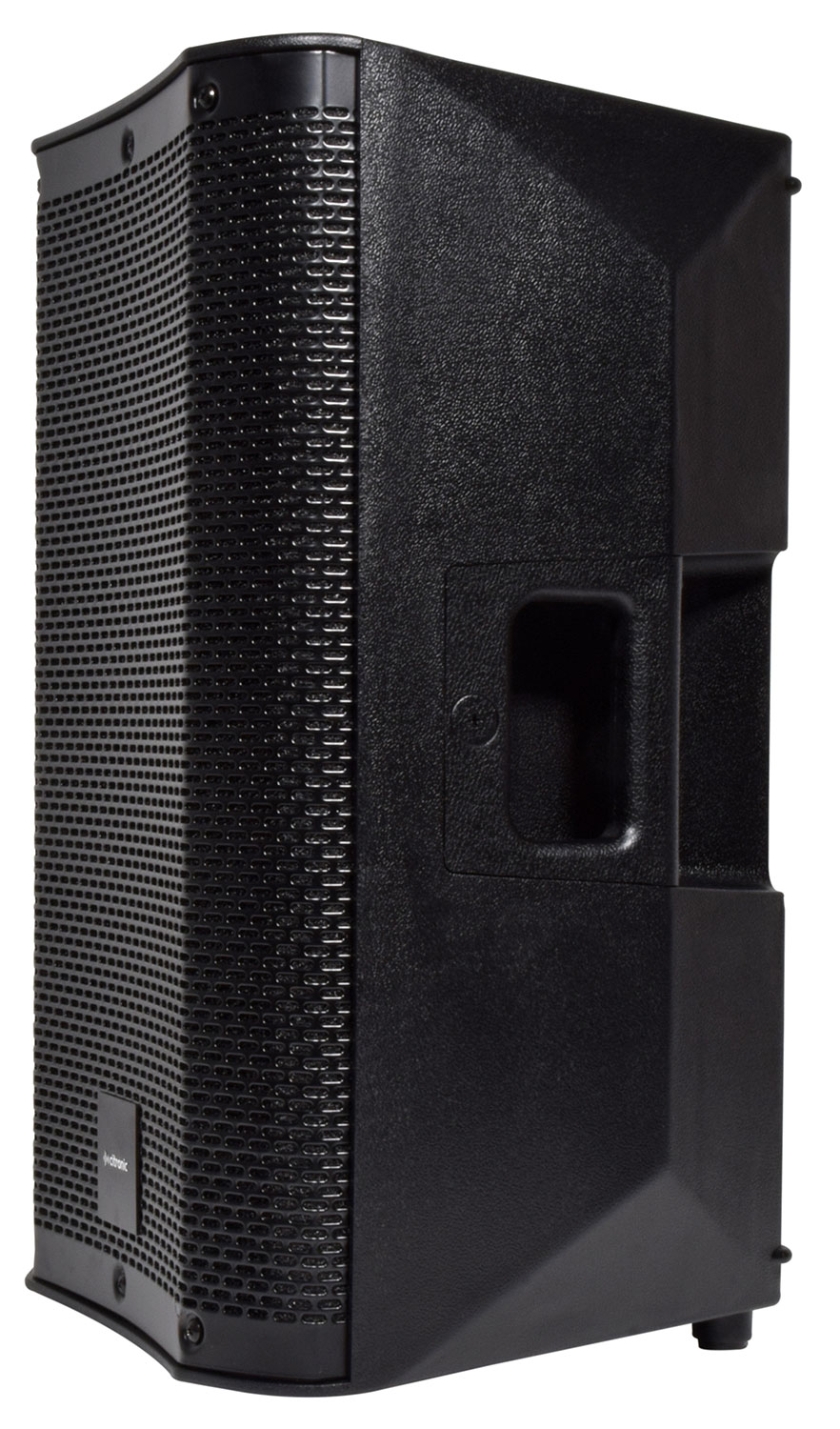

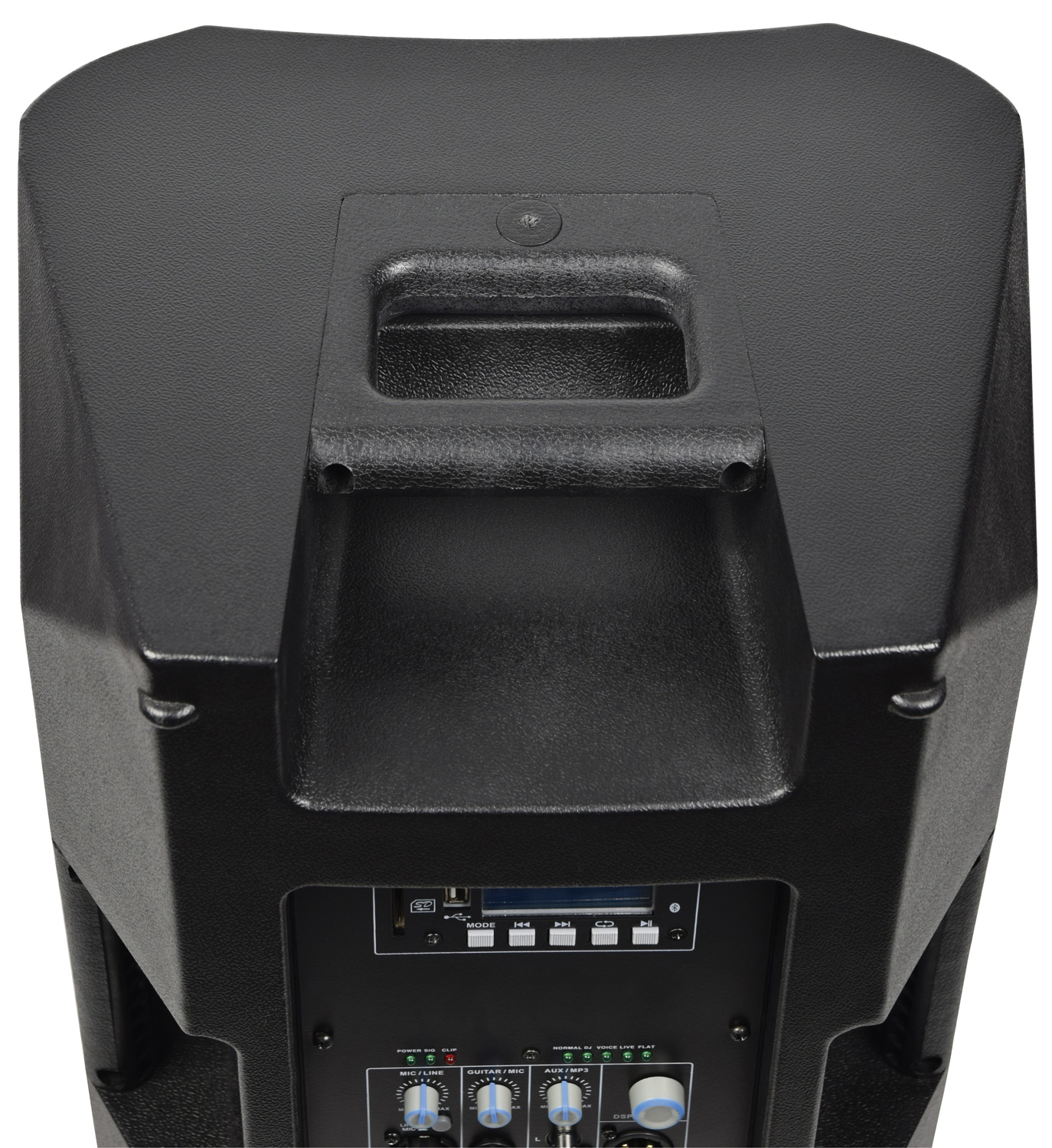

  • High impact moulded cabinet with side and top handles.

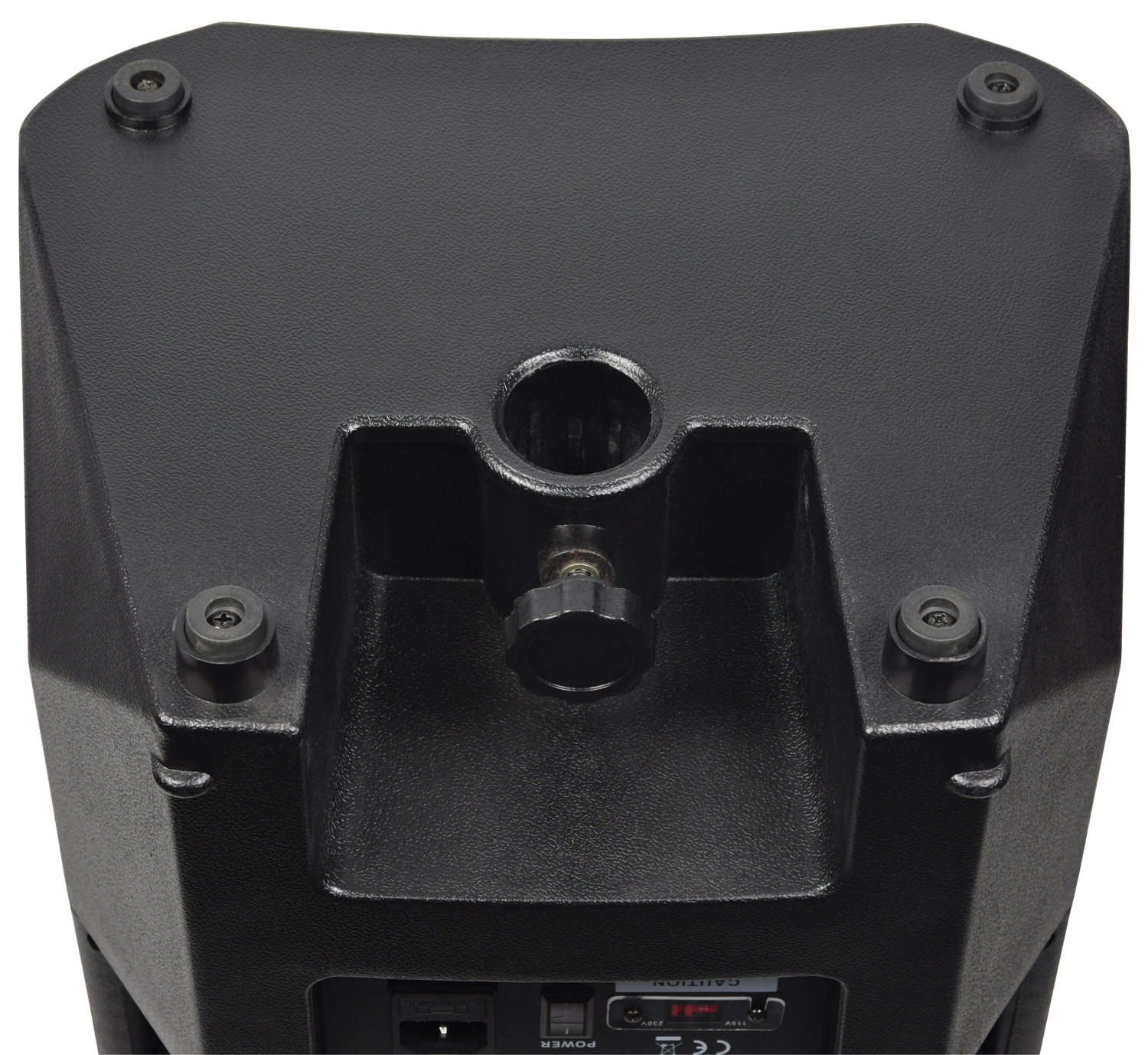

  • 35mm pole mount socket

Specification : Common

  • Power supply 230Vac, 50Hz (IEC)
  • Audio source USB/SD player + Bluetooth receiver
  • Line output XLR
  • DSP settings Normal, DJ. Voice, Live, Flat

Specification : Versions

  178.108UK 178.110UK 178.112UK
Main driver 200mmØ (8") 250mmØ (10") 300mmØ (12")
HF driver 25mmØ (1") Ti compression driver 25mmØ (1") Ti compression driver 35mmØ (1.35") Ti compression driver
Voice coil 50mmØ (2") 50mmØ (2") 75mmØ (2.5")
Output power : rms 200W 220W 280W
Output power : max. 400W 440W 600W
Output power peak 800W 880W 1120W
Sensitivity 94dB 94dB 96dB
SPL max. 120.0dB 121.0dB 123.5dB
Frequency response 60Hz - 19kHz 55Hz - 19kHz 50Hz - 20kHz

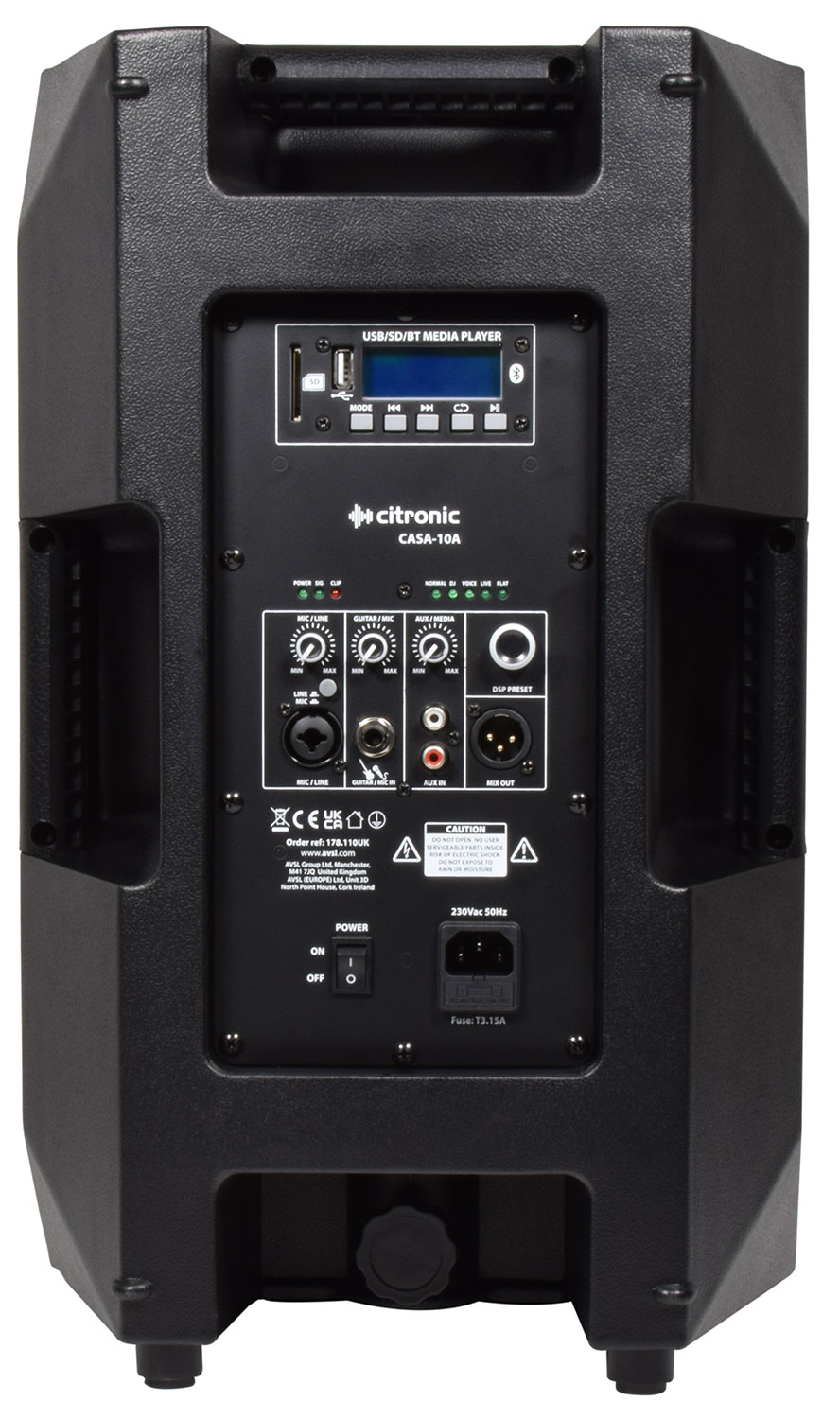

Inputs XLR/jack mic/line, 6.3mm jack mic/instrument, L+R RCA line XLR/jack mic/line, 6.3mm jack mic/instrument, L+R RCA line XLR/jack mic/line, XLR/jack/L+R RCA line
Dimensions 435 x 278 x 245mm 500 x 310 x 260mm 610 x 375 x 340mm
Weight 8.71kg 10.27kg 15.98kg

Trade information

  178.108UK 178.110UK 178.112UK
Barcode / EAN 5015972215838 5015972215845 5015972215852
Package type Box Printed Box Printed Box Printed
Package dimensions 365 x 555 x 325mm 340 x 540 x 290mm 420 x 650 x 380mm
Package weight 10.66kg 12.40kg 19.62kg
Package quantity 1 unit 1 unit 1 unit
Carton dimensions 320 x 475 x 280mm 340 x 540 x 290mm 420 x 650 x 380mm
Carton weight 10.66kg 12.40kg 19.62kg
Carton quantity 1 package 1 package 1 package

In the box

The box for this item contains :

  • CASA active moulded cabinet
  • IEC mains power lead(s)

Videos

Introducing the Citronic CASA Series Active Subs and Cabinets

Support

Instruction manual
For 178.108UK (292KB)
Instruction manual
For 178.110UK (292KB)
Instruction manual
For 178.112UK (292KB)
