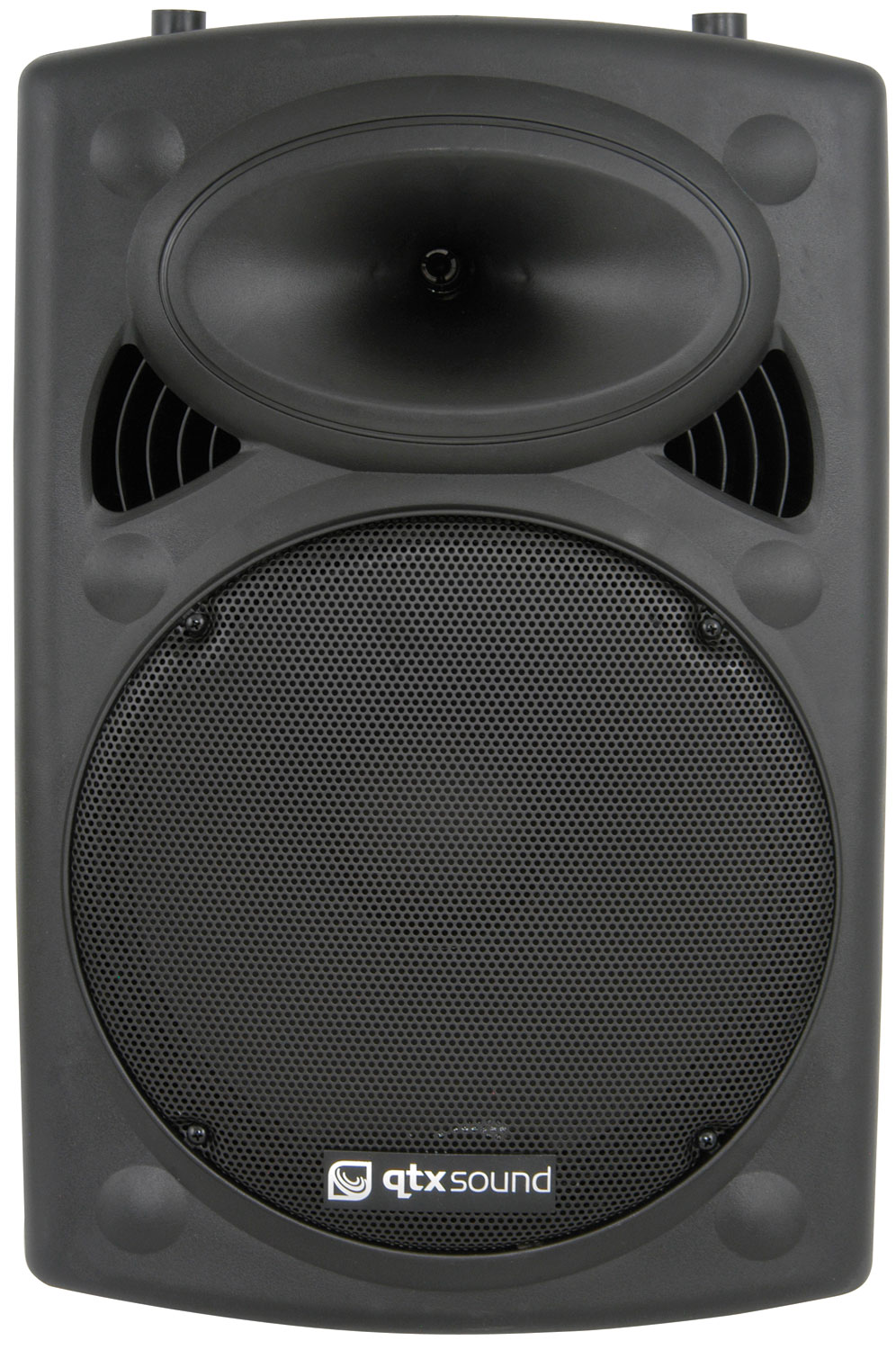

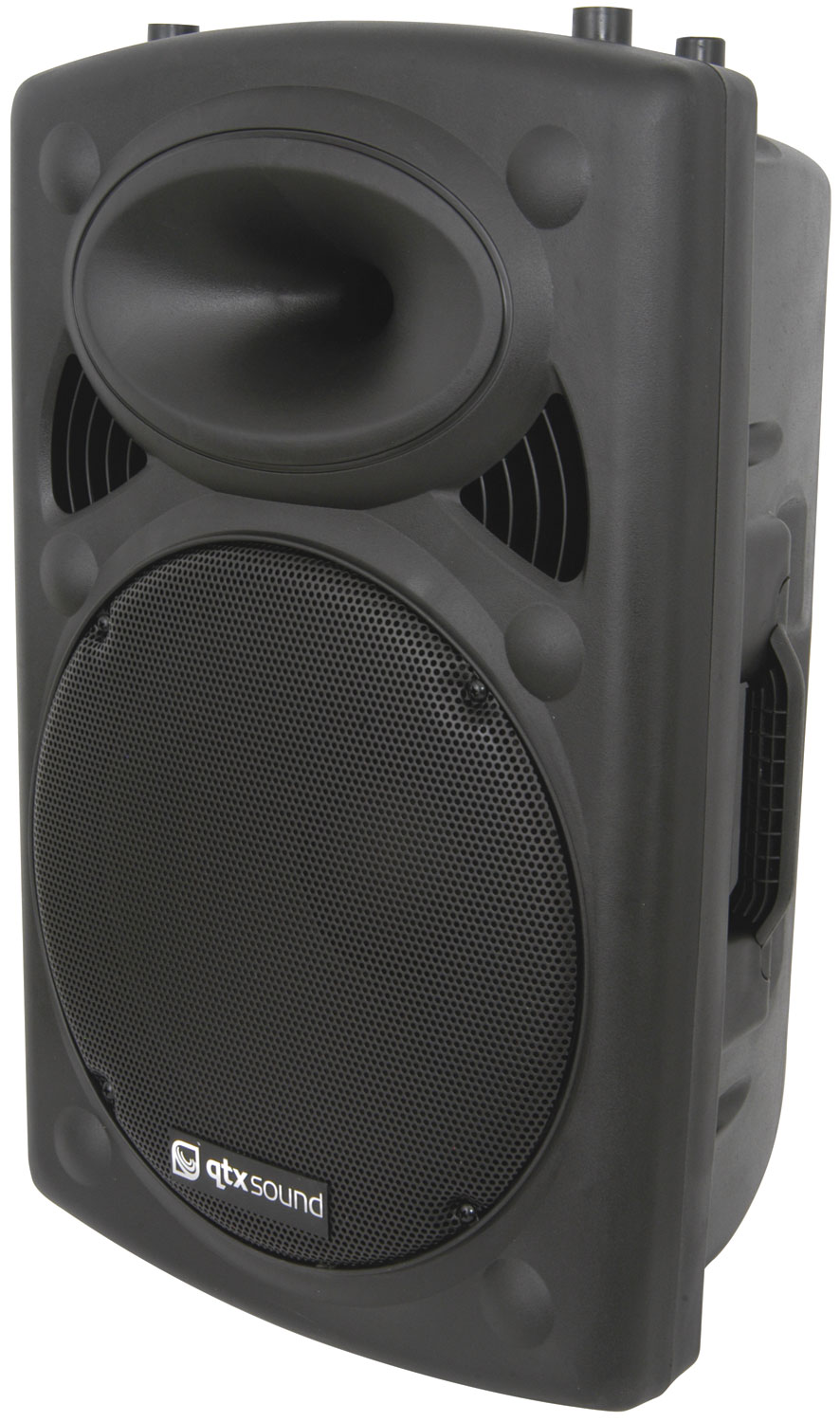

QR Series Passive Moulded PA Speaker Boxes

178.213UK QR15

Compact & lightweight speaker cabinets designed for multi-purpose sound reinforcement. These shockproof moulded enclosures feature M8/M6 fixing points, allowing them to be arrayed in various combin...

  • SPK connectors
  • Rigid steel grille and easy-carry handle
  • Multiple mounting points
Description Version Packed
178.210UK
QR8 Passive ABS Speaker 8in
8" Box Label
178.211UK
QR10 Passive ABS Speaker 10in
10" Box Label
178.212UK
QR12 Passive ABS Speaker 12in
12" Box Label
178.213UK
QR15 Passive ABS Speaker 15in
15" Box Label

Accessories

Description Version Packed
127.080UK
QR15 slip cover for QR15, QR15A or QR15PA speaker
QR15/QR15A/QR15PA Poly Bag
902.518UK
15" driver for QR15 (178.213UK)
15" for QR15 Box Label
902.506UK
Replacement Crossover for QR15
Box Label
902.503UK
HF Compression Driver for QR12/QR15/QS12+A/QS15+A
Box Label

QR Series Passive Moulded PA Speaker Boxes

Compact & lightweight speaker cabinets designed for multi-purpose sound reinforcement. These shockproof moulded enclosures feature M8/M6 fixing points, allowing them to be arrayed in various combinations to suit most applications from small halls to large nightclubs.

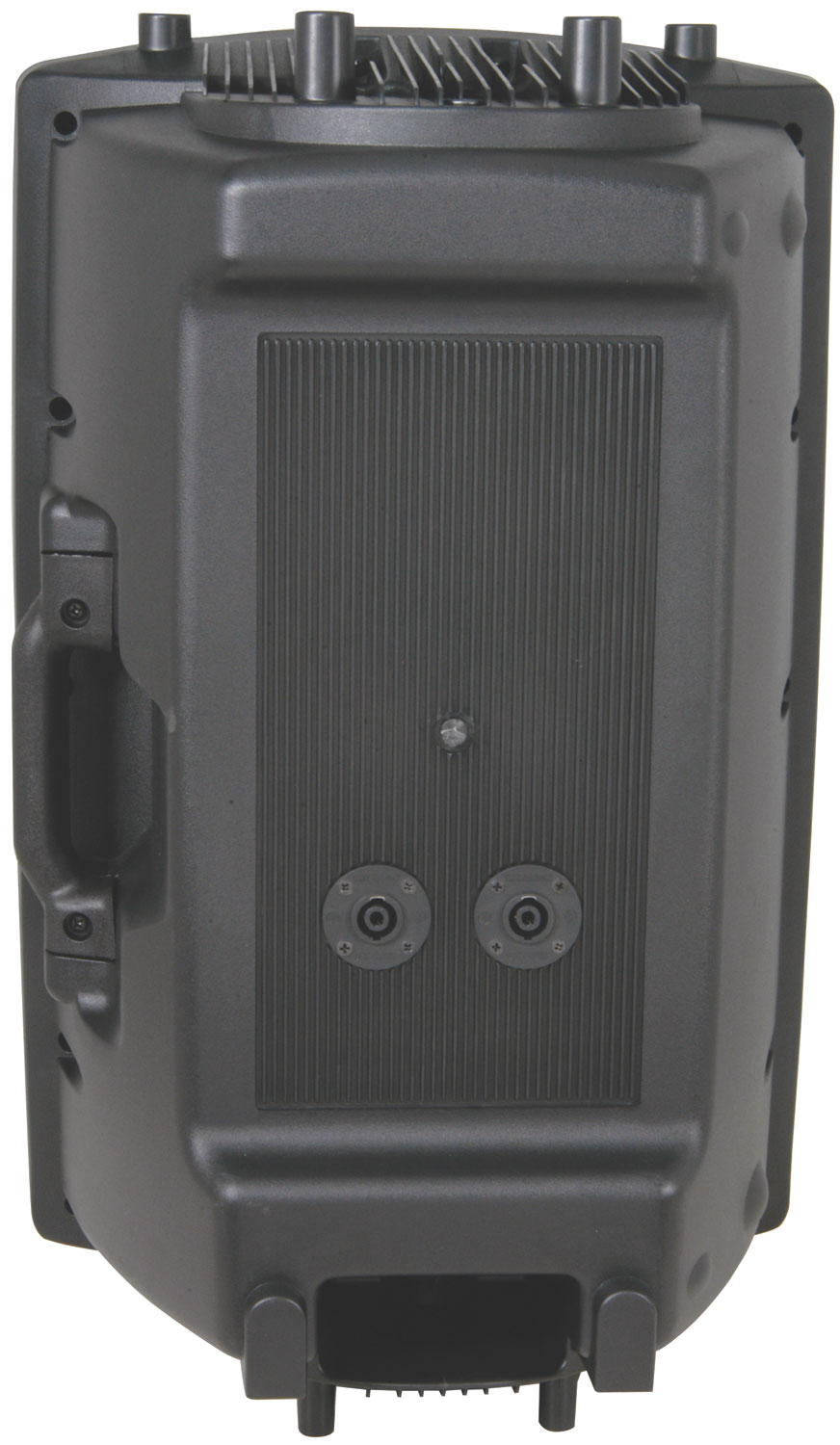

  • SPK connectors
  • Rigid steel grille and easy-carry handle
  • Multiple mounting points
  • Titanium compression driver
  • Lightweight moulded enclosure
  • 35mm internal pole-mounting
  • Impedance 8 ohms
  • Pole mounting 35mm integral top-hat

Versions

  178.210UK 178.211UK 178.212UK 178.213UK
Model QR8 QR10 QR12 QR15
Power rms 100W 150W 200W 250W
Power max. 200W 300W 400W 500W
Woofer 200mm (8'') 250mm (10'') 300mm (12'') 380mm (15'')
Frequency response 55Hz - 20kHz 50Hz - 20kHz 48Hz - 20kHz 45Hz - 20kHz
SPL @ 1W/1m 93dB 95dB 98dB 101dB
Connector 1 x SPK 2 x SPK 2 x SPK 2 x 4 wire SPK
Dimensions : W(front/rear) x H x D 290/150 x 400 x 220mm 320/180 x 470 x 260mm 350/180 x 570 x 300mm 430/250 x 680 x 360mm
Weight 4.9kg 6.4kg 9.8kg 14.2kg
