XCAB-15 Moulded PA Cabinet

178.972UK XCAB-15

Full range PA speaker in a high impact injection moulded cabinet with integral handles, 35mm pole-mount socket and retractable trolley assembly for easy transportation. The enclosure is loaded with...

  • Heavy duty injection moulded cabinet
  • Retractable trolley assembly
  • 4 Ohm impedance
Description Version Packed
178.972UK
XCAB-15 Moulded PA Cabinet 15"
Box Printed

XCAB-15 Moulded PA Cabinet

Full range PA speaker in a high impact injection moulded cabinet with integral handles, 35mm pole-mount socket and retractable trolley assembly for easy transportation. The enclosure is loaded with a 4 Ohm heavy duty 15" main driver and titanium compression driver for high frequencies. Designed for general PA duties or as a matching satellite speaker for the high power MIXCAB-15 portable PA unit. XCAB-15 is a full range PA speaker in a high impact injection moulded cabinet with integral handles, 35mm pole-mount socket and retractable trolley assembly for easy transportation. Fitted with a 15" main driver and 2” tweeter for balanced full-range sound delivery. Impedance is 4? to enable maximum power delivery from your amplifier. Designed for general PA duties and ideal as a matching satellite speaker for the high power MIXCAB-15 portable PA unit.

  • Heavy duty injection moulded cabinet
  • Retractable trolley assembly
  • 4 Ohm impedance
  • Matching satellite cabinet for the MIXCAB-15

Specification

  • Power handling : rms 150W
  • Main driver 380mmØ (15") woofer
  • HF driver 50mm (2") Ti compression unit
  • Connection SPK socket
  • Impedance 4 Ohms
  • Frequency response 45Hz - 18kHz
  • Max. SPL 136dB

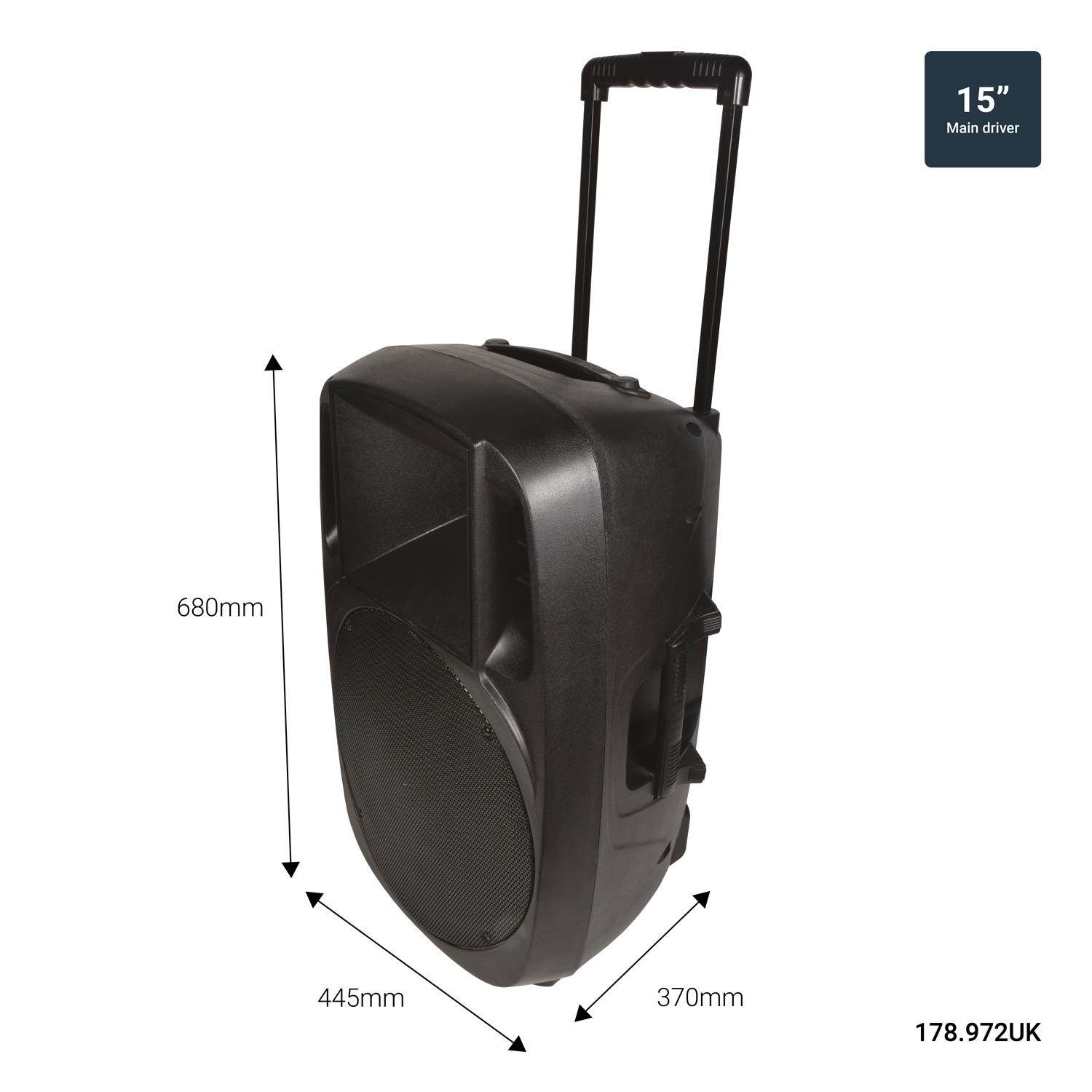

  • Dimensions 680 x 445 x 370mm
  • Weight 13.18kg

Trade information

  178.972UK
Barcode / EAN 5015972215050
Package type Box Printed
Package dimensions 470 x 745 x 400mm
Package weight 14.53kg
Package quantity 1 unit
Carton dimensions 470 x 745 x 400mm
Carton weight 14.53kg
Carton quantity 1 package

In the box

The box for this item contains :

  • XCAB-15 moulded PA cabinet
