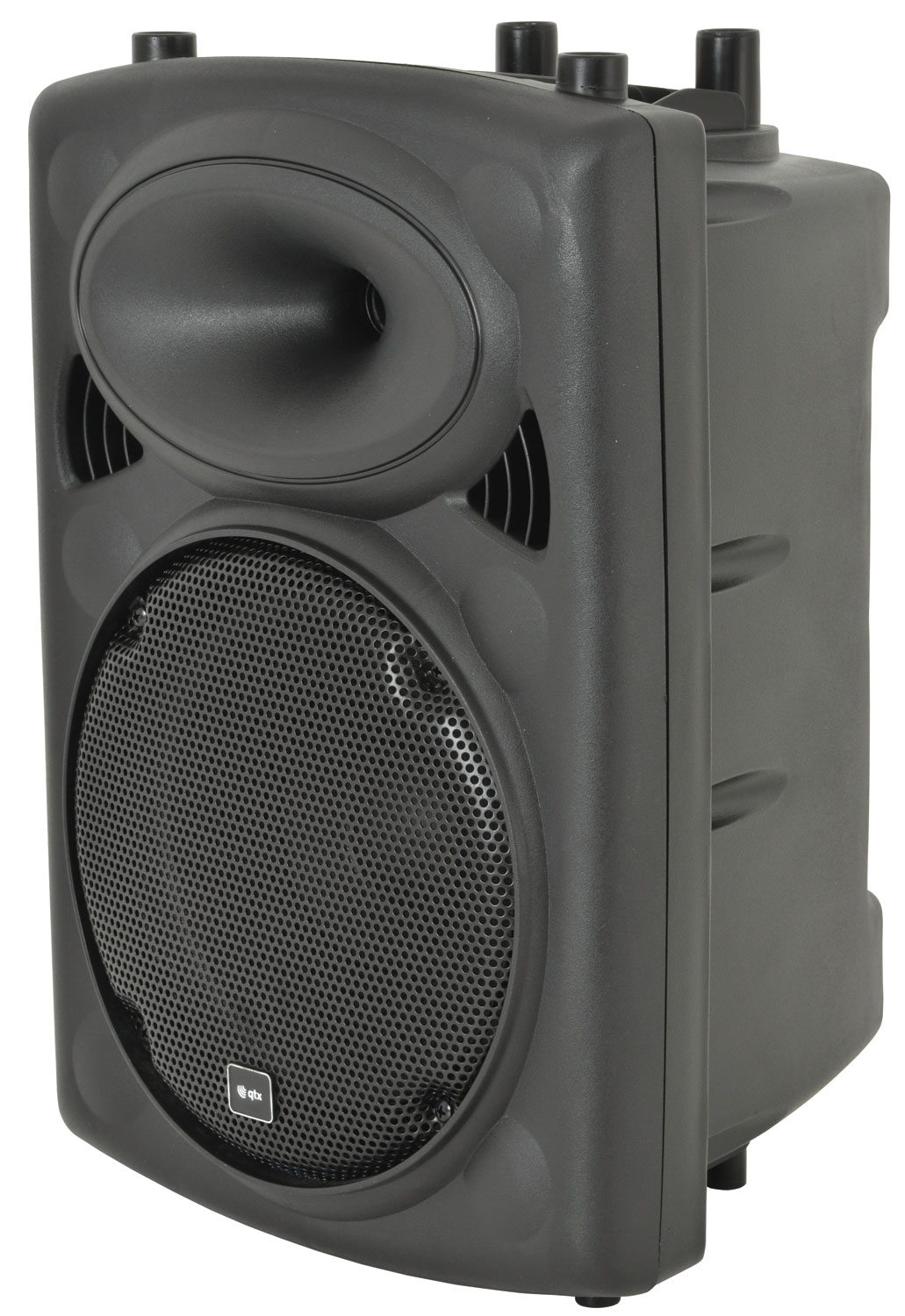

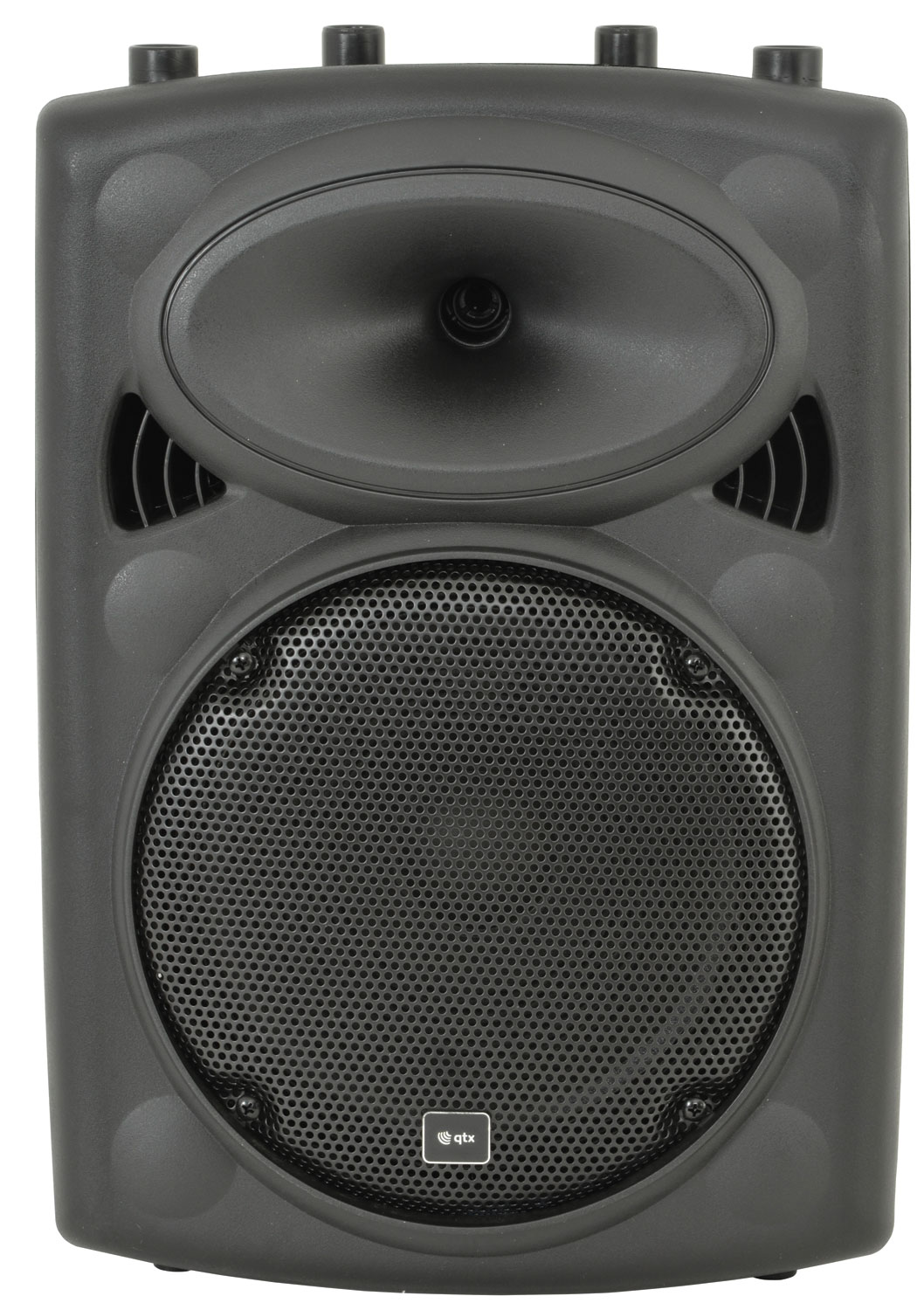

QRK Series Active Moulded Speaker Cabinets

178.311UK QR10K

Compact injection moulded speaker cabinets with built-in amplifier and input section. Independent mic and line channels make this range ideal for DJs, vocalists and karaoke setups.

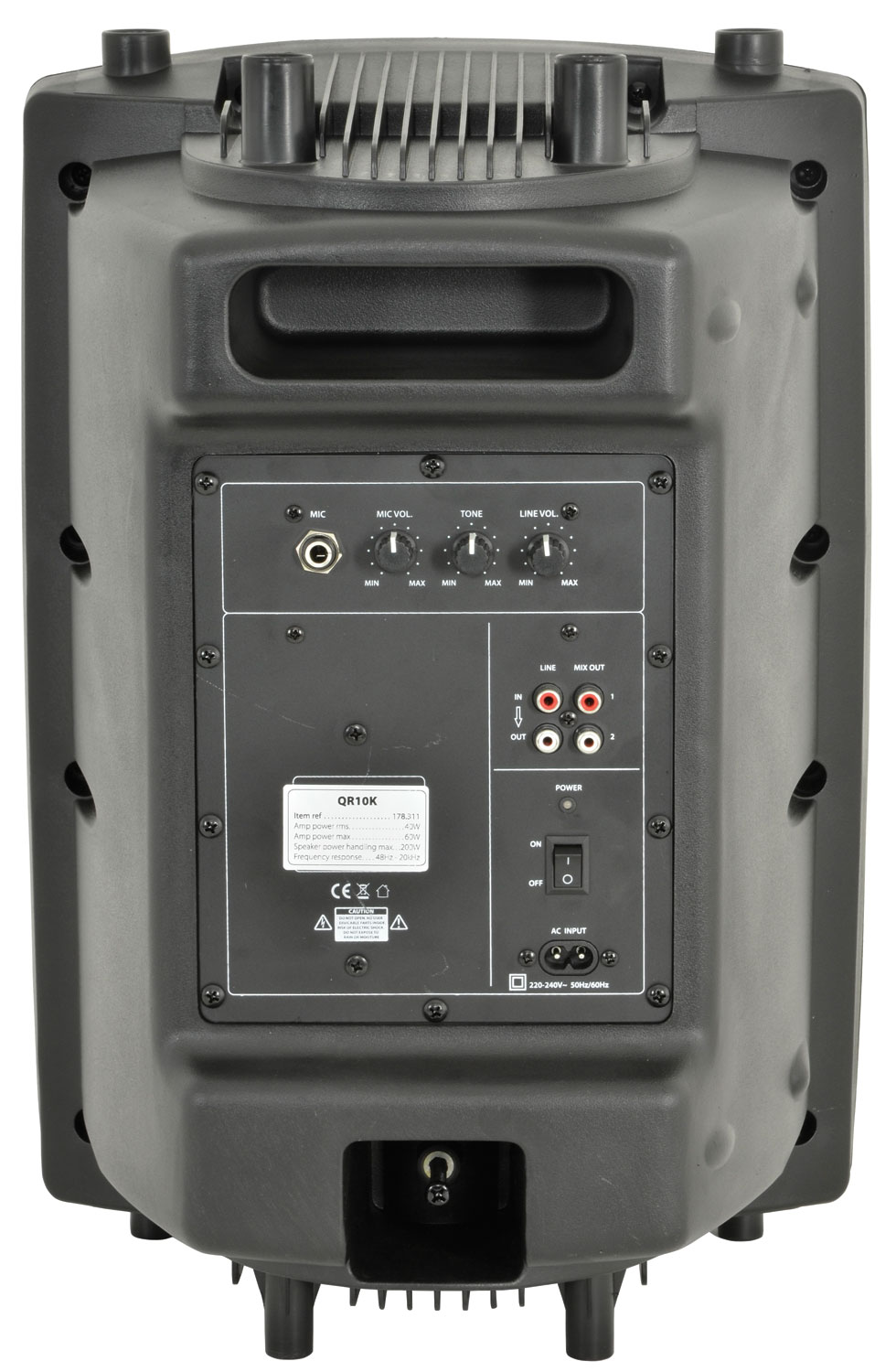

  • Microphone and line inputs with volume controls
  • Titanium HF compression driver
  • Compact moulded enclosure with carry handle
Full description Find retailer
Description Version Packed
178.310UK
QR8K active moulded speaker cabinet - 80Wmax 		8" Box Printed
178.311UK
QR10K active moulded speaker cabinet - 200Wmax 		10" Box Printed
178.313UK
QR12K active moulded speaker cabinet - 300Wmax 		12" Box Printed
178.316UK
QR15K active moulded speaker cabinet - 400Wmax 		15" Box Printed

Accessories

Description Version Packed
902.525UK
4 Ohm 10" Driver for QR10A (178.203UK) 		25cm (10"), 100Wrms Box Label BW
127.089UK
QR10 slip cover for QR10, QR10A or QR10PA speaker 		QR10/QR10A/QR10PA Bag

QRK Series Active Moulded Speaker Cabinets

Compact injection moulded speaker cabinets with built-in amplifier and input section. Independent mic and line channels make this range ideal for DJs, vocalists and karaoke setups.

  • Microphone and line inputs with volume controls
  • Titanium HF compression driver
  • Compact moulded enclosure with carry handle

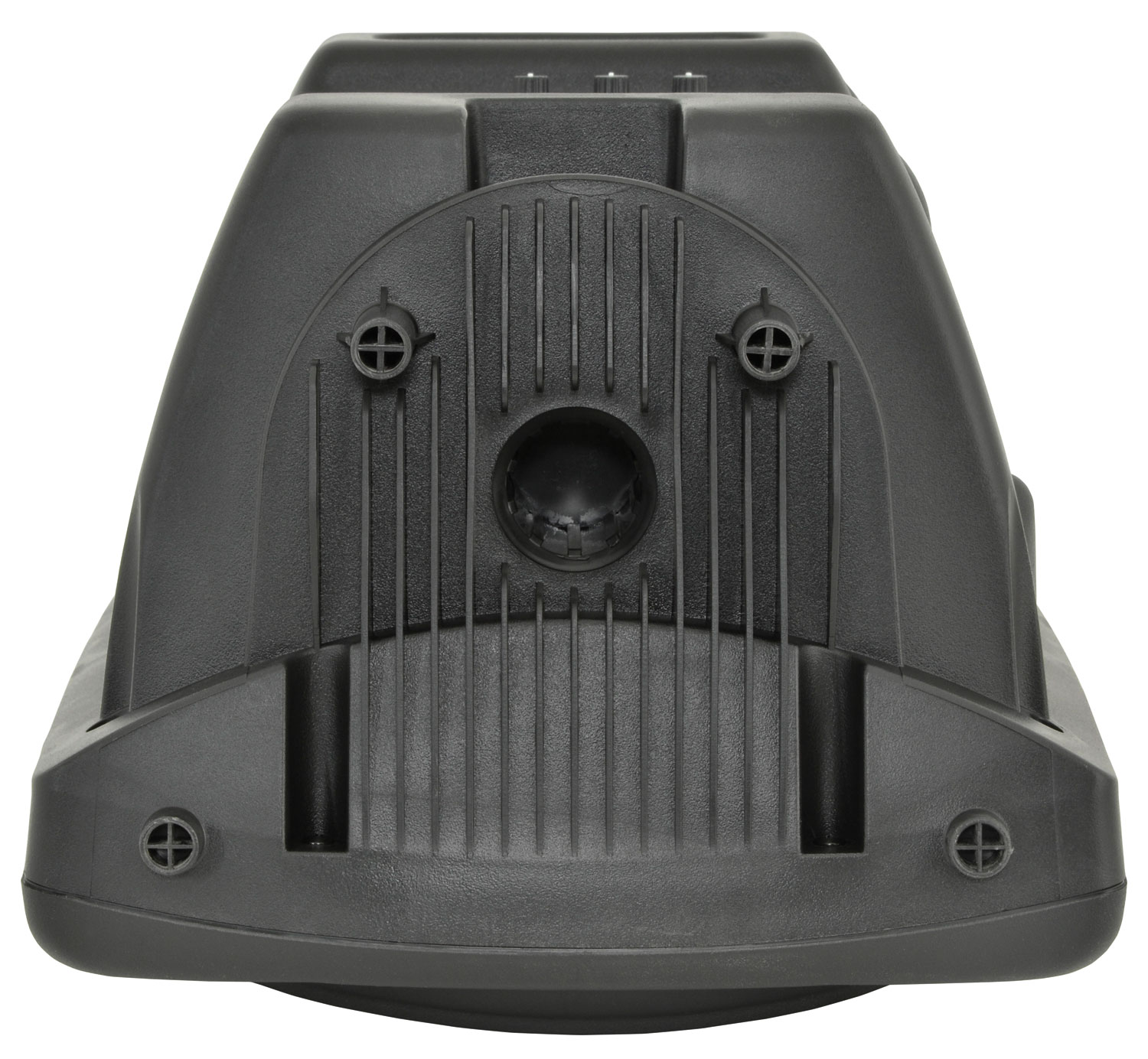

  • Integral flying points and 35mmØ pole mount
  • QR12K and QR15K models have additional echo effect and speaker output

Specification : Common

  • Impedance 8 Ohms

Specification : Versions

  178.310UK 178.311UK 178.313UK 178.316UK
Model QR8K QR10K QR12K QR15K
Power supply 220-240Vac, 50/60Hz (fig.8) 220-240Vac, 50/60Hz (fig.8) 220-240Vac, 50/60Hz (IEC) 220-240Vac, 50/60Hz (IEC)
Woofer 200mm (8'') 250mm (10'') 300mm (12'') 380mm (15")
Amplifier : output power : rms 40W 40W 80W 80W
Amplifier : output power : max. 60W 60W 180W 180W
Power handling : speaker max. 80W 200W 300W 400W
Speaker : outputs N/A N/A 8 Ohms min, 90W max. 8 Ohms min, 90W max.
Frequency response 55Hz - 20kHz 48Hz - 20kHz 50Hz - 20kHz 45Hz - 20kHz
Dimensions : W(front/rear) x H x D 290/150 x 400 x 220mm 320/180 x 470 x 260mm 350/180 x 570 x 300mm 430/250 x 680 x 360mm
Weight 6.5kg 7.5kg 11.2kg 15.8kg

Trade information

  178.310UK 178.311UK 178.313UK 178.316UK
Barcode / EAN 5015972159576 5015972159590 5015972159613 5015972159637
Package type Box Printed Box Printed Box Printed Box Printed
Package dimensions 350 x 470 x 290mm 330 x 530 x 360mm 398 x 630 x 370mm 482 x 730 x 442mm
Package weight 6.50kg 7.50kg 11.20kg 15.80kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 350 x 470 x 290mm 330 x 530 x 360mm 398 x 630 x 370mm 482 x 730 x 442mm
Carton weight 6.50kg 7.50kg 11.20kg 15.80kg
Carton quantity 1 package 1 package 1 package 1 package
Pack paper weight 0.60kg 0.79kg 1.00kg 1.50kg
Pack plastic weight 0.17kg 0.17kg 0.05kg 0.24kg

Support

Instruction manual
For 178.316UK (376KB)
Instruction manual
For 178.311UK (376KB)
Instruction manual
For 178.313UK (376KB)
Instruction manual
For 178.310UK (376KB)
