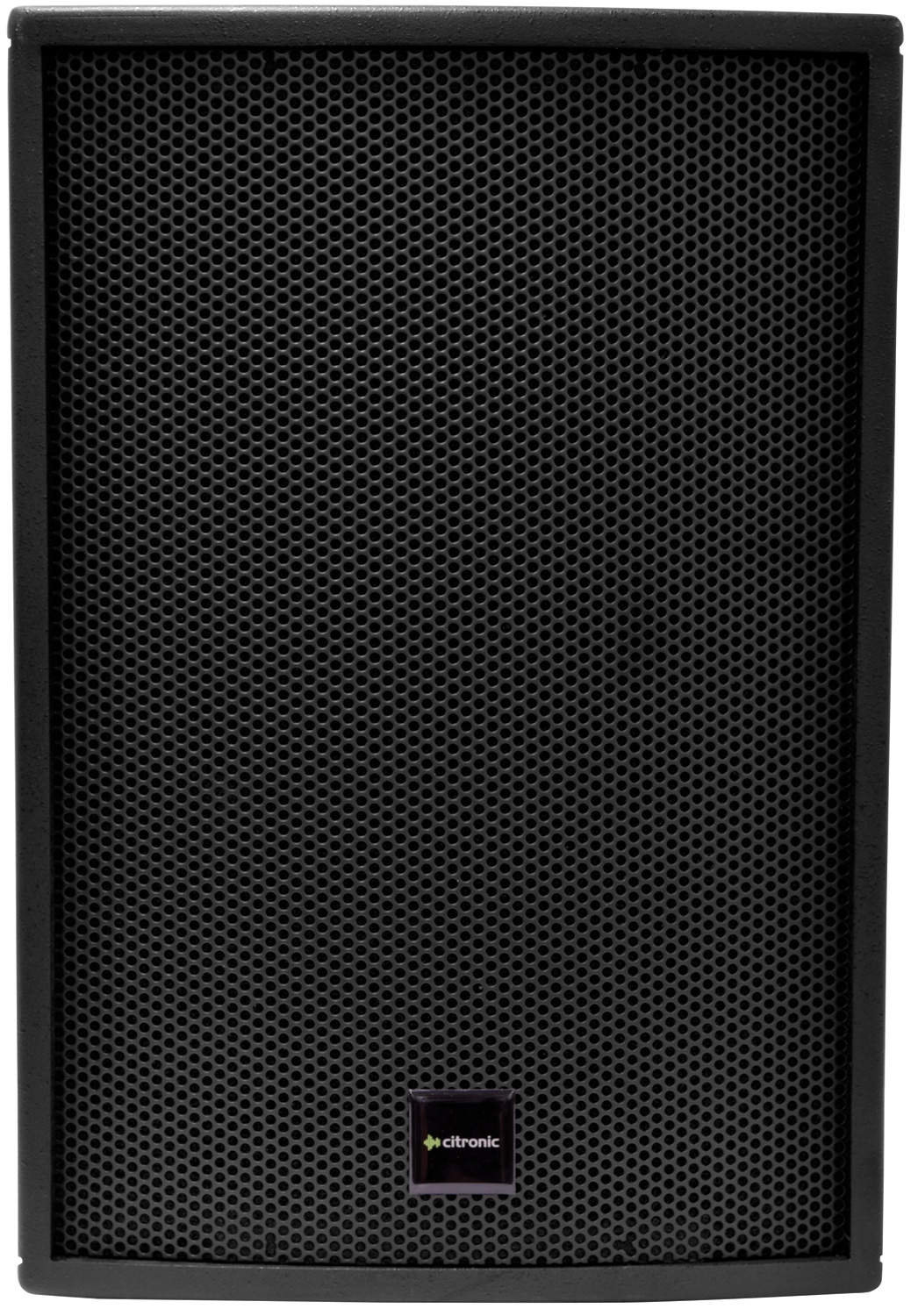

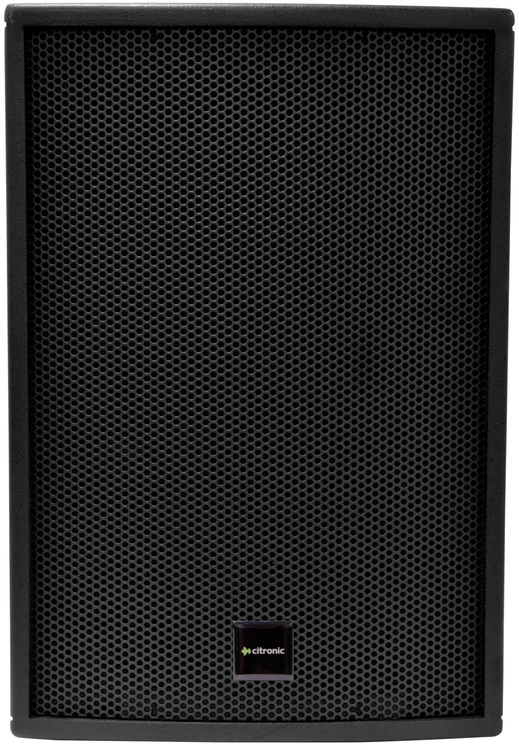

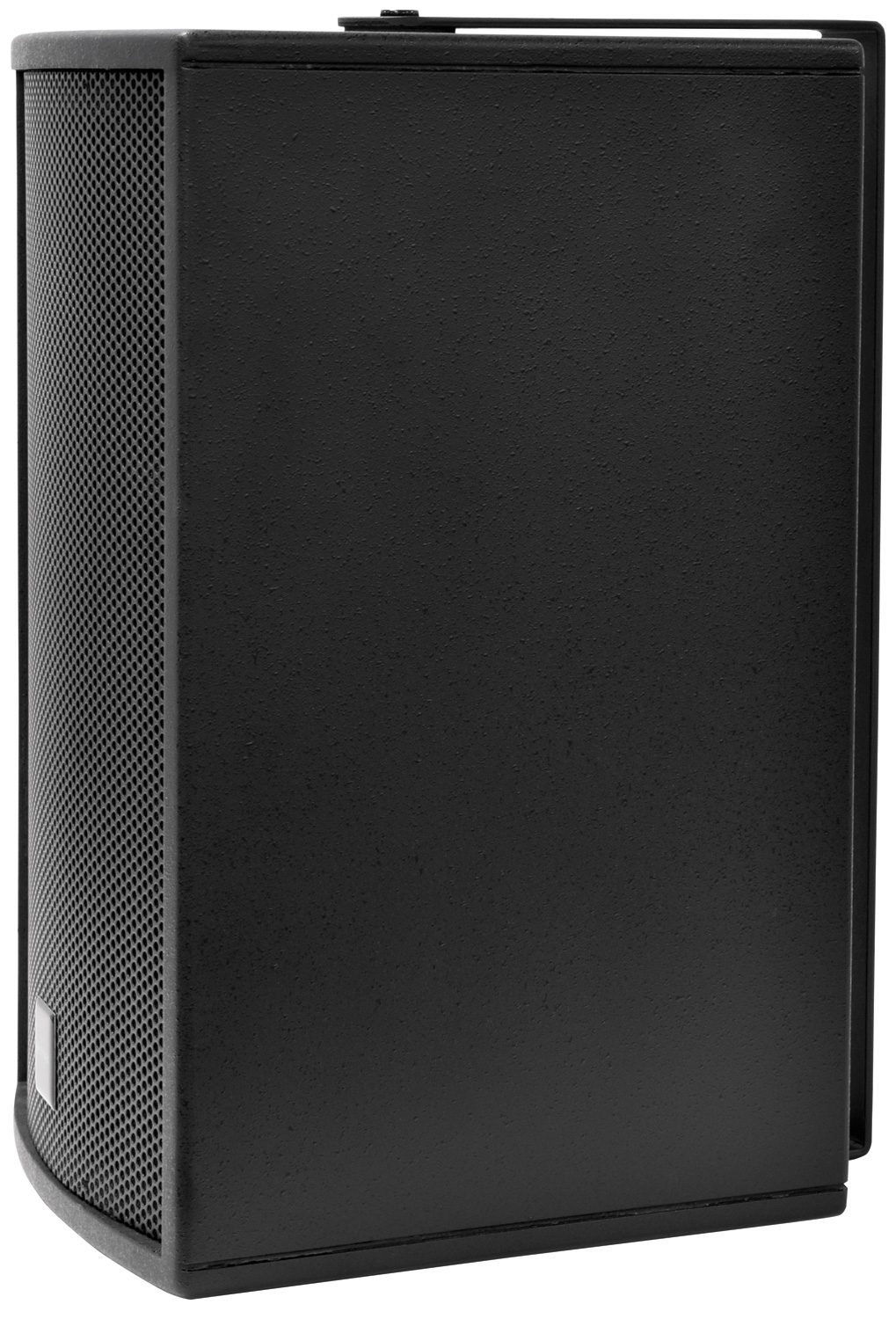

CS Series Wooden Installation Speakers

178.677UK CS-1035B

Passive speaker cabinets with smooth and even frequency response for accurate delivery of music and vocal material. Birch plywood cabinets with polyurethane texture coated finish and acoustic foam ...

  • Premium birch plywood construction
  • Titanium diaphragm HF compression driver
  • Balanced full-range sound reproduction
Description Version Packed
178.671UK
CS-610B Passive Speaker Black
6" Black Box Plain
178.672UK
CS-610W Passive Speaker White
6" White Box Plain
178.674UK
CS-810B Passive Speaker Black
8" Black Box Plain
178.675UK
CS-810W Passive Speaker White
8" White Box Plain
178.677UK
CS-1035B Passive Speaker Black
10" Black Box Plain
178.678UK
CS-1035W Passive Speaker White
10" White Box Plain
178.682UK
CS-1245B Passive Speaker Black
12" Black Box Plain

CS Series Wooden Installation Speakers

Passive speaker cabinets with smooth and even frequency response for accurate delivery of music and vocal material. Birch plywood cabinets with polyurethane texture coated finish and acoustic foam backed steel grilles. Fitted with steel U brackets and mounting hardware for convenient and neat installation. Understated minimalist design with premium quality performance.

  • Premium birch plywood construction
  • Titanium diaphragm HF compression driver
  • Balanced full-range sound reproduction

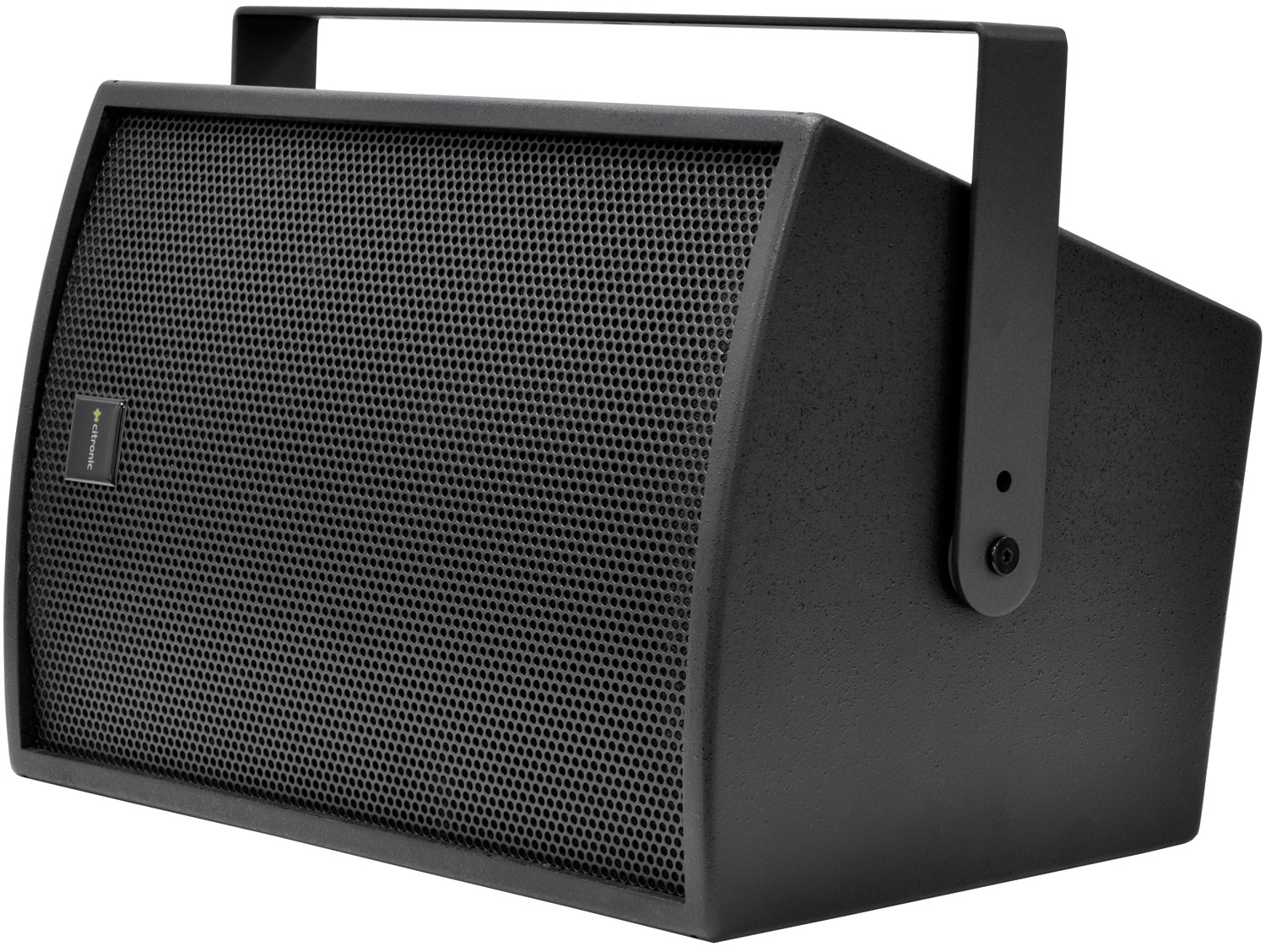

  • Supplied with adjustable U-brackets
  • CS-610 and CS-810 VESA mount compatible
  • 10", 12" and 15" models fitted with 35mm pole mount socket
  • Supplied singly
  • Impedance 8 Ohms
  • Housing material Birch Plywood

Versions

  178.671UK 178.672UK 178.674UK 178.675UK 178.677UK 178.678UK 178.682UK

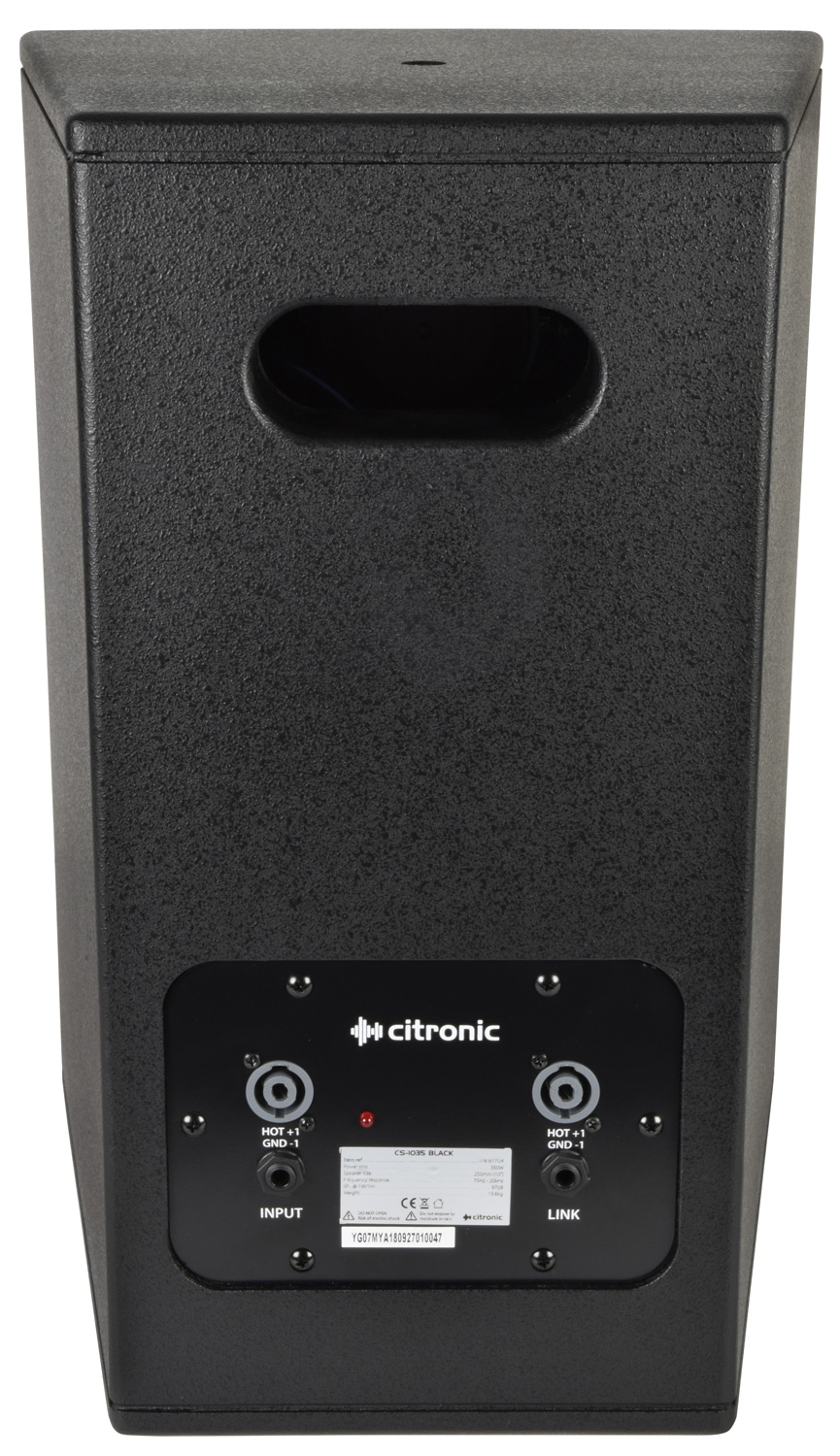

Input connections 6.3mm jack & 4mm binding posts 6.3mm jack & 4mm binding posts 6.3mm jack & 4mm binding posts 6.3mm jack & 4mm binding posts 2 x SPK sockets 2 x SPK sockets 2 x SPK sockets
Crossover frequency 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 2.5kHz (12dB/oct)
Model CS-610B CS-610W CS-810B CS-810W CS-1035B CS-1035W CS-1245B
Power : rms 100W 100W 100W 100W 350W 350W 450W
Configuration 150mm (6") & 0.5" dome tweeter 150mm (6") & 0.5" dome tweeter 200mm (8") & CD horn 200mm (8") & CD horn 250mm (10") & CD horn 250mm (10") & CD horn 300mm (12") & CD horn
Dispersion 120° x 30° (H x V) 120° x 30° (H x V) 120° x 120° (H x V) 120° x 120° (H x V) 120° x 120° (H x V) 120° x 120° (H x V) 90° x 60° (H x V)
Finish Black White Black White Black White Black
Hardware U bracket + VESA75 threaded inserts 4mm U bracket + VESA75 threaded inserts 4mm U bracket + VESA100 threaded inserts 4mm U bracket + VESA100 threaded inserts 4mm U bracket + 35mm pole mount socket U bracket + 35mm pole mount socket U bracket + 35mm pole mount socket
Frequency response 80Hz - 20kHz 80Hz - 20kHz 70Hz - 20kHz 70Hz - 20kHz 75Hz - 20kHz 75Hz - 20kHz 48Hz - 20kHz
SPL @ 1W/1m 93dB 93dB 93dB 93dB 95dB 95dB 98dB

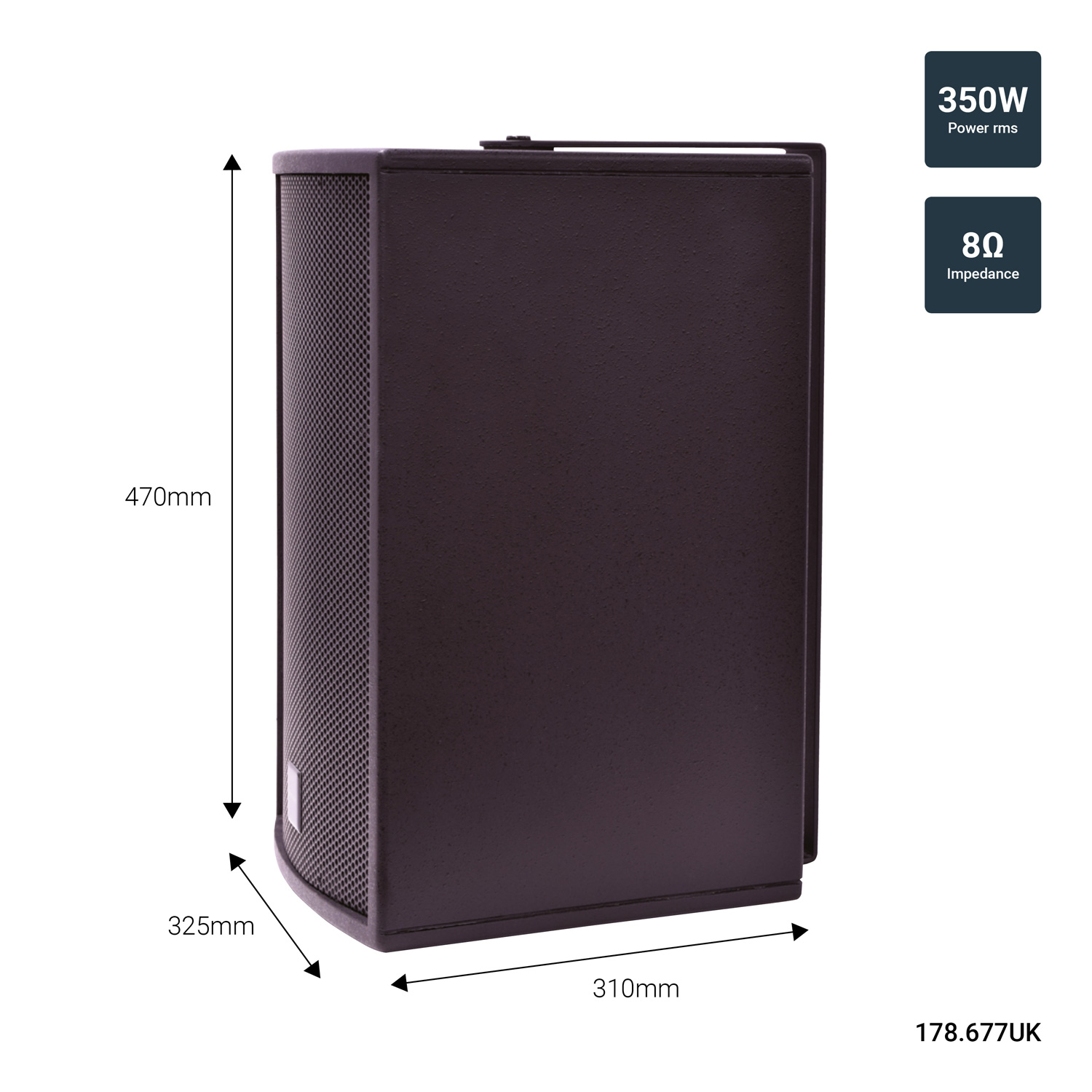

Dimensions 300 x 225 x 215mm 300 x 225 x 215mm 410 x 280 x 250mm 410 x 280 x 250mm 470 x 325 x 310mm 470 x 325 x 310mm 610 x 410 x 375mm
Weight 5.0kg 5.0kg 8.9kg 8.9kg 15.6kg 15.6kg 22.5kg
