QR Series Portable Powered PA Units

178.846UK QR15PA

Compact, portable PA unit with pull/carry handles and 2 wireless microphones. Versatile input options, ideal for singer/songwriters, DJs, fitness instructors, busking etc. Powered by mains or battery.

  • 2 VHF wireless microphones included
  • Inbuilt media player with SD/USB inputs and IR remote control
  • Mains or internal rechargeable battery power (up to 8 hours)
Description Version Packed
178.843UK
QR12PA Portable PA 12 inch
12" Gift Box
178.846UK
QR15PA Portable PA 15 inch
15" Gift Box

Accessories

Description Version Packed
127.080UK
QR15 slip cover for QR15, QR15A or QR15PA speaker
QR15/QR15A/QR15PA Bag
178.891UK
Headset for QR+QXPA - 174.1MHz
VHF 174.1MHz Box Plain
178.892UK
Headset for QR+QXPA - 175.0MHz
VHF 175.0MHz Box Plain
178.893UK
Handheld Mic QR+QXPA- 174.1MHz
VHF 174.1MHz Box Plain
178.894UK
Handheld Mic QR+QXPA- 175.0MHz
VHF 175.0MHz Box Plain

QR Series Portable Powered PA Units

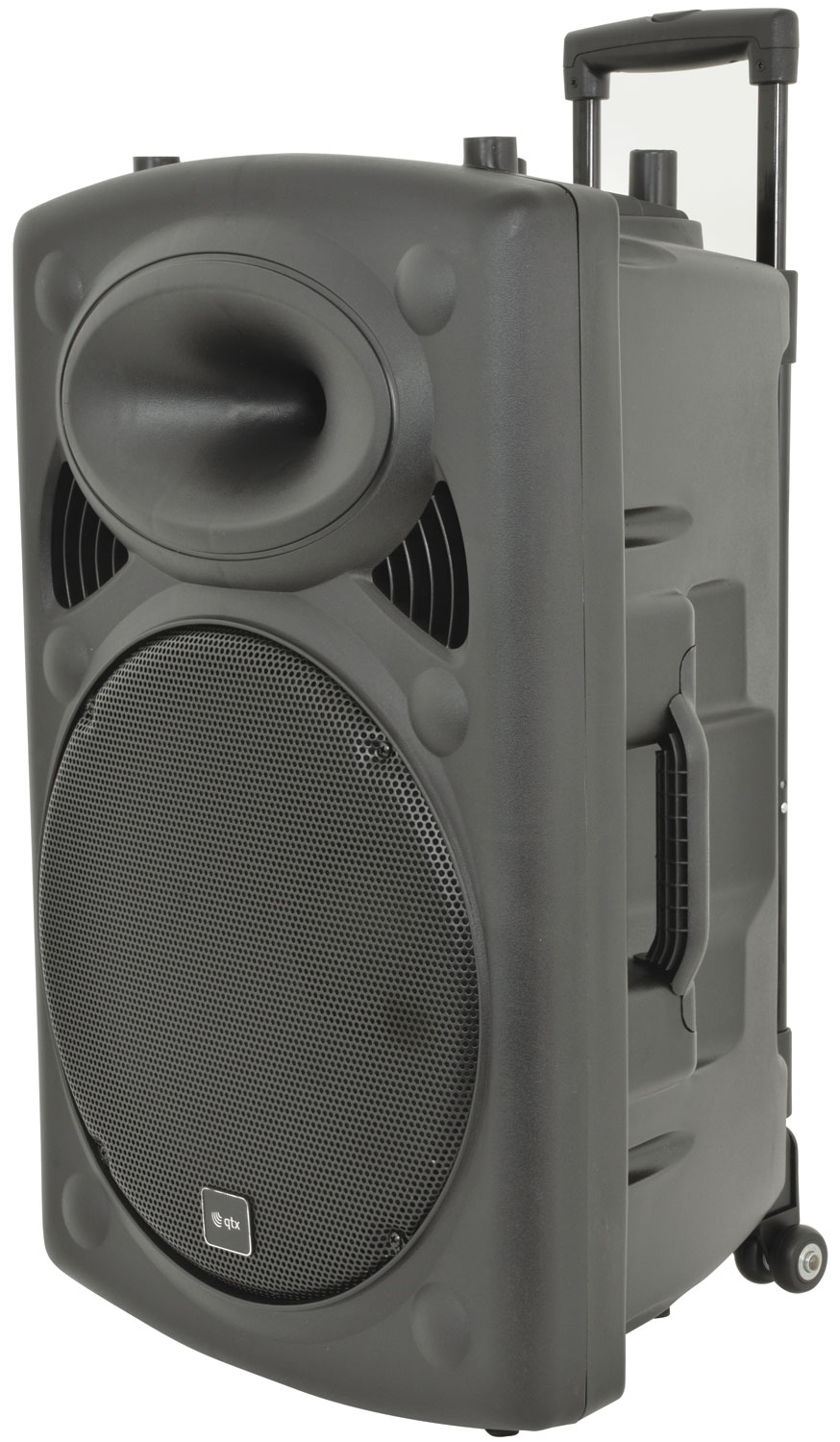

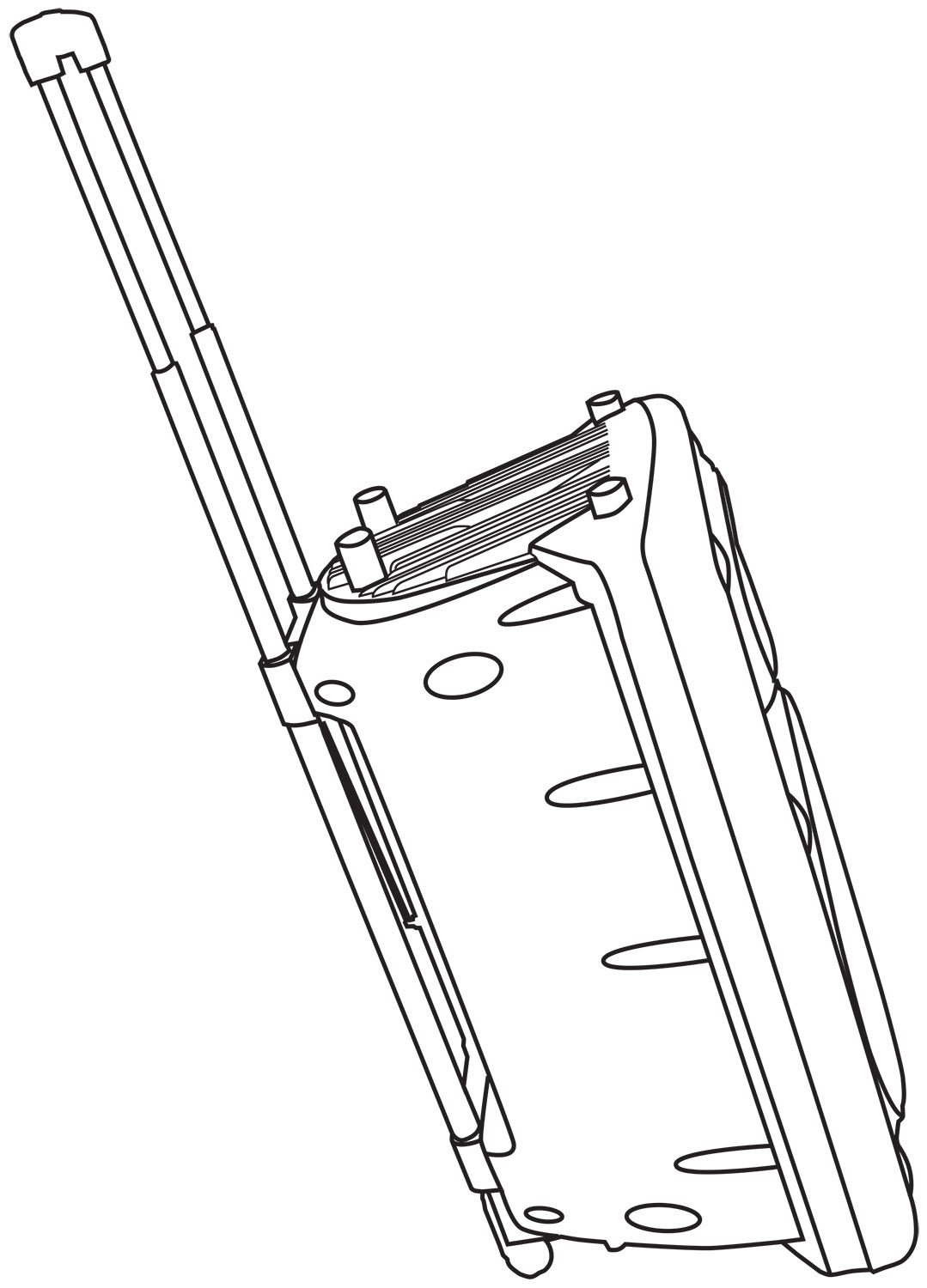

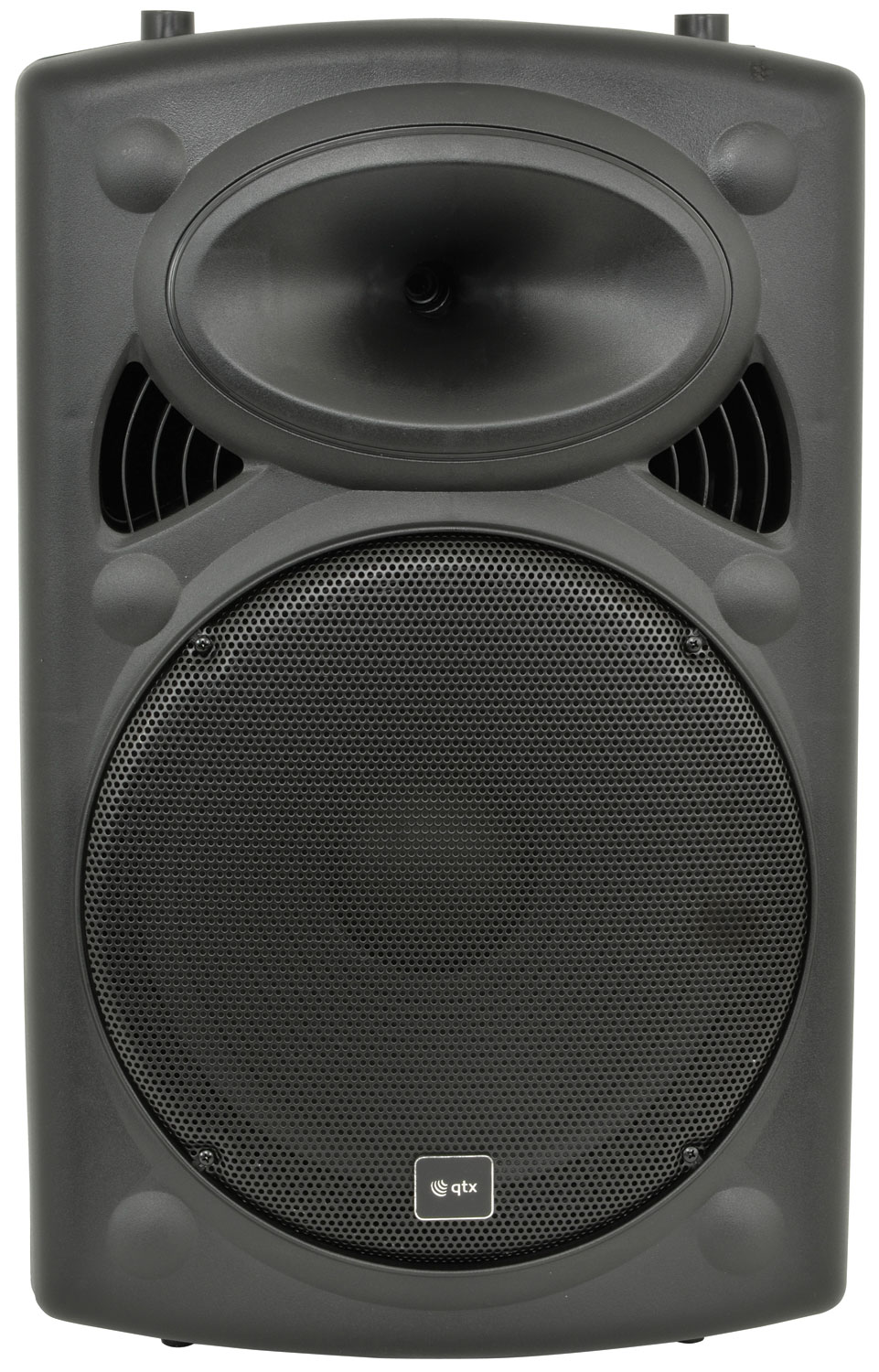

A compact, trolley-style wheeled portable PA unit with a top-mounted retractable pull handle and side-mounted carry handle. Versatile input options include 2 VHF wireless microphones (included), 2 further mic inputs (one can also be used for guitar), mini jack (for phones, tablets, laptops and mp3 players), and RCA in/out (ideal for DJs). An internal media player works directly from SD card or USB memory stick, and a switchable VCV ‘voiceover’ feature automatically lowers the volume of background music when the mics are used. A 35mm pole mount enables the unit to be used on a stand. Mains or internal battery power (up to 8 hours).

  • 2 VHF wireless microphones included
  • Inbuilt media player with SD/USB inputs and IR remote control
  • Mains or internal rechargeable battery power (up to 8 hours)
  • Active inbuilt amplifier

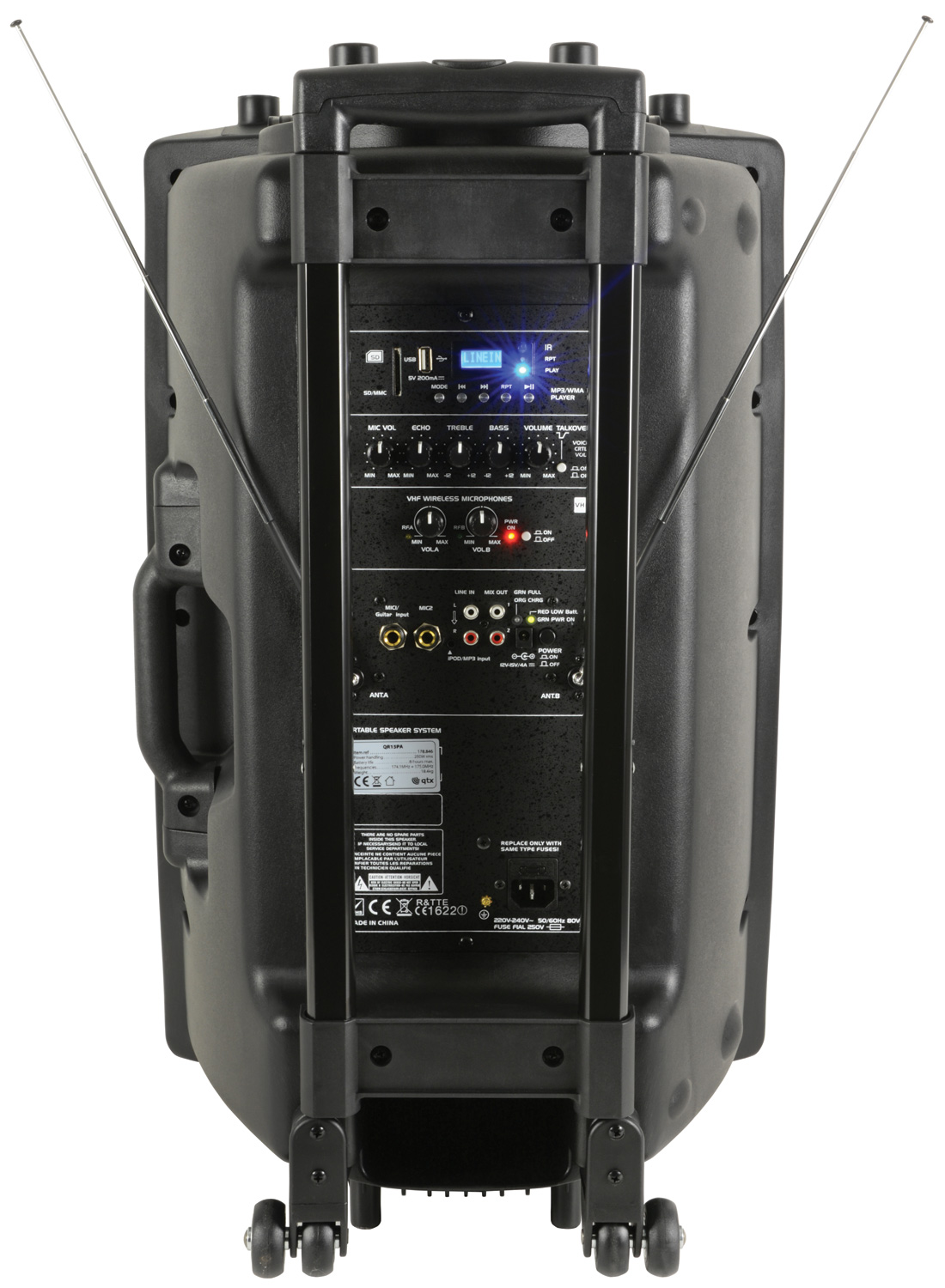

  • Mic, guitar, line-level aux (mp3) and RCA inputs

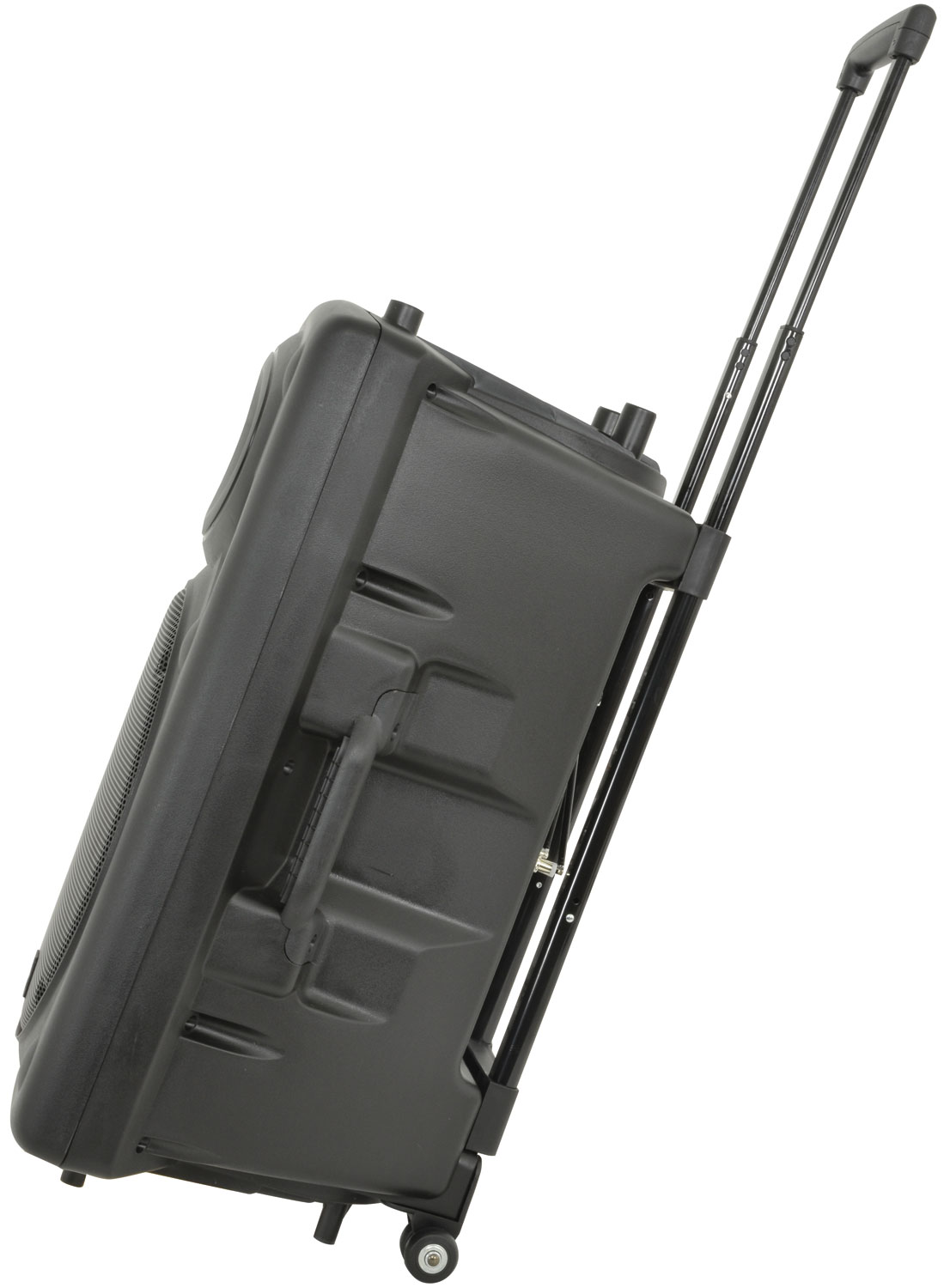

  • Pull/carry handles and wheels for easy transit
  • Switchable VCV ‘voiceover’ feature; lowers music for vocals
  • Echo effect for microphones

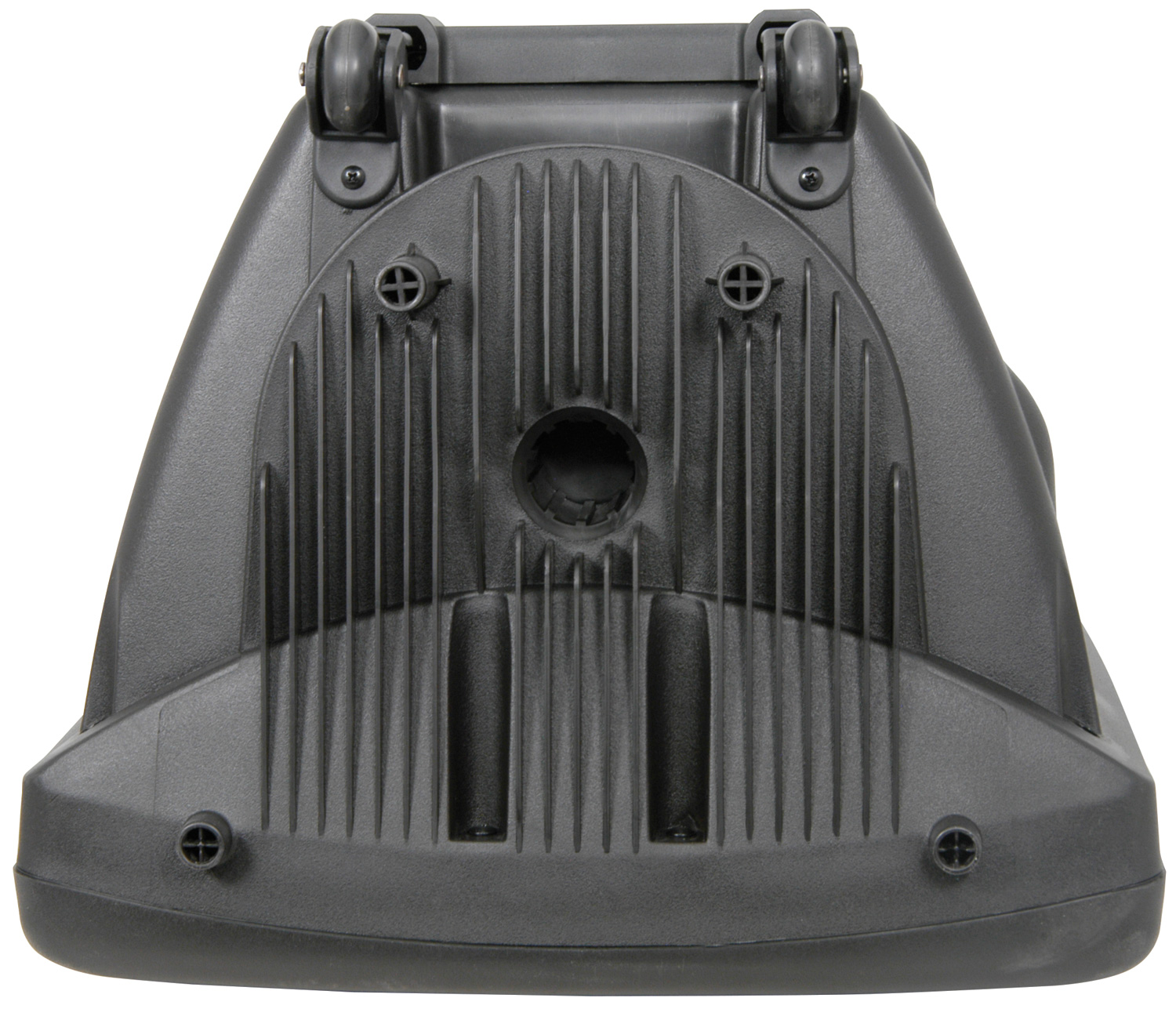

  • 35mm stand/pole mount
  • Optional neck-worn transmitters available

Specification : Common

  • Power supply 220-240Vac, 50/60Hz (IEC) / external 12Vdc / internal battery
  • Power consumption max. 100W
  • HF driver 25mm (1'') Titanium compression driver
  • Battery life Up to 8 hours

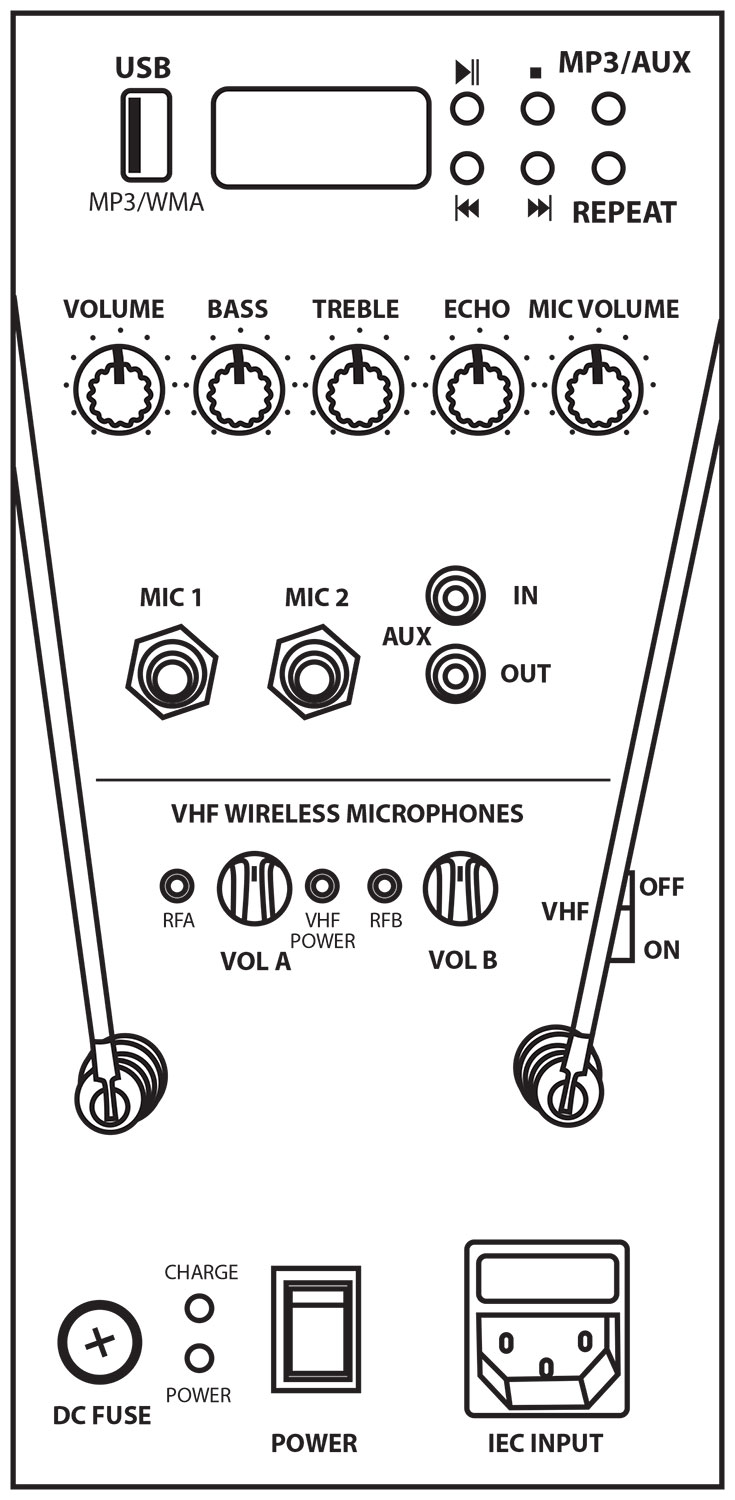

  • Controls Volume, Bass, Treble, Echo, Mic volume, VCV & VHF mic levels
  • Inputs 2 wired mic (jack) and aux (RCA & 3.5mm)
  • Wireless microphone frequencies 174.1MHz + 175.0MHz
  • Amplifier : output 50 + 50Wrms

Specification : Versions

  178.843UK 178.846UK
Main driver 300mm (12'') 380mm (15'')
Power handling : rms 200W 250W
Frequency response 48Hz - 20kHz 45Hz - 20kHz
SPL @ 1W/1m 100dB 103dB
Dimensions 570 x 350 x 310mm 685 x 440 x 380mm
Weight 14kg 18.4kg

Trade information

  178.843UK 178.846UK
Barcode / EAN 5015972090145 5015972090152
Package type Gift Box Gift Box
Package dimensions 370 x 398 x 630mm 442 x 482 x 730mm
Package weight 17.00kg 18.40kg
Package quantity 1 unit 1 unit
Carton dimensions 410 x 400 x 660mm 470 x 510 x 770mm
Carton weight 17.00kg 18.40kg
Carton quantity 1 package 1 package
Pack paper weight 1.00kg 1.50kg
Pack plastic weight 0.05kg 0.24kg

In the box

The box for this item contains :

  • QR series portable PA unit

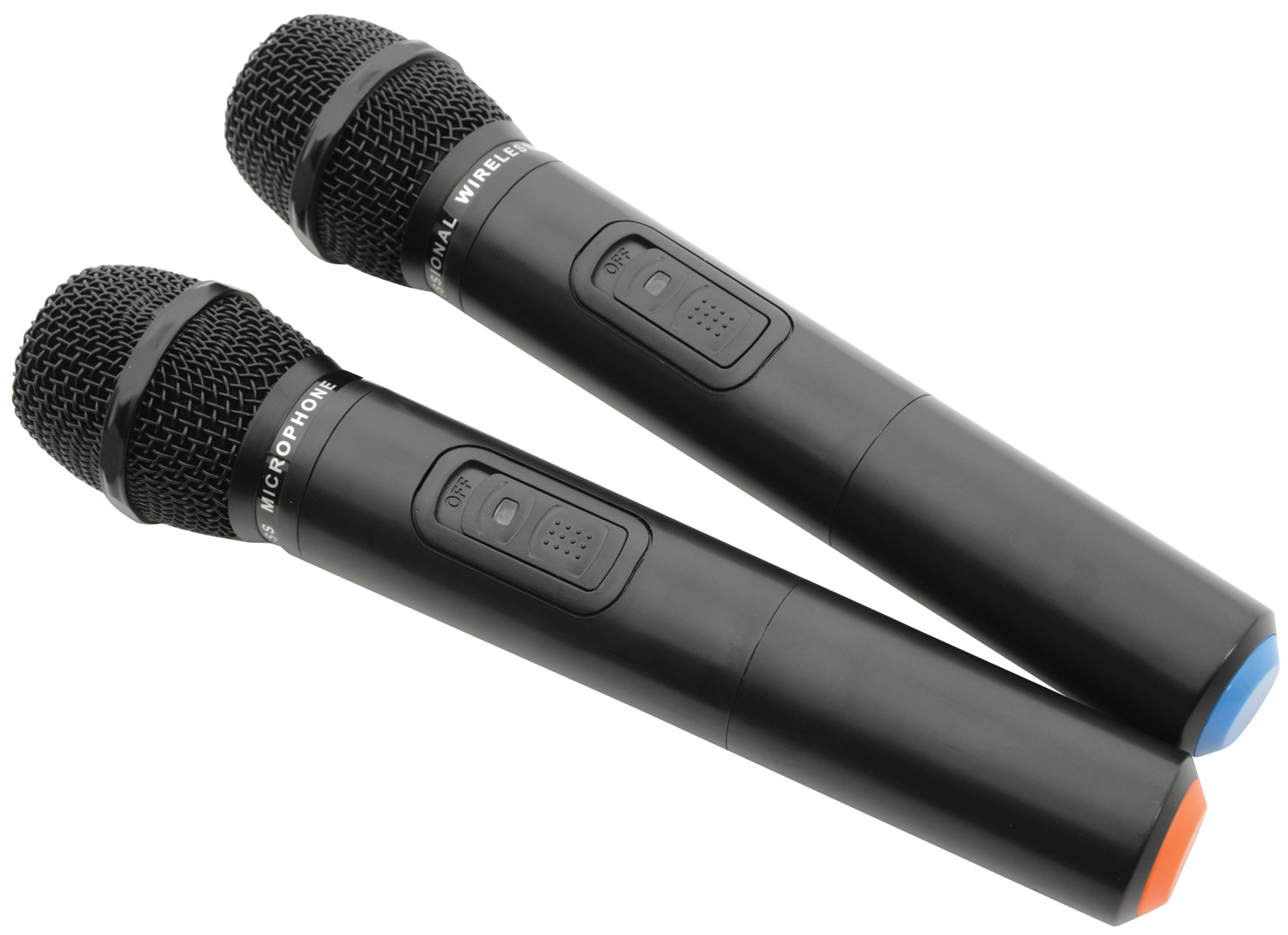

  • 2 VHF wireless handheld microphones
  • Mains power lead

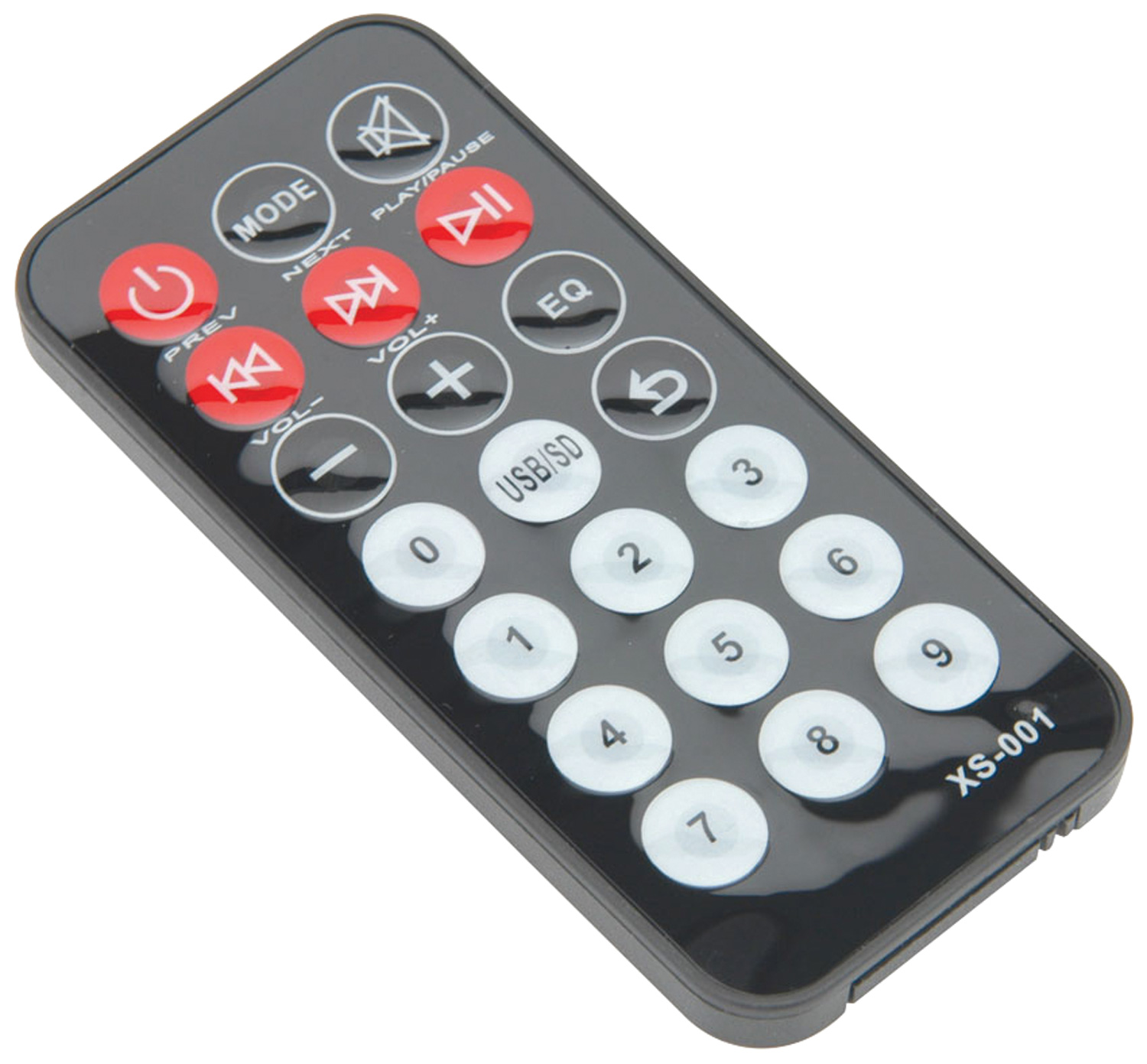

  • IR remote control for inbuilt media player
  • User manual

Videos

QR Series Portable PA Units

Support

Instruction manual
For 178.846UK (470KB)
Instruction manual
For 178.843UK (470KB)
