Plug Through Wireless Door Chime

350.300UK DB300

An easy to install, mains powered doorbell with integral 13A socket and remote push button, providing up to 80m wireless range. The waterproof push button simply installs against a door frame using...

  • Simple wire-free installation
  • Choice of 16 ring tones and melodies
  • Digital coded signal to prevent outside interference
Description Version Packed
350.300UK
Plug Through Wireless Door Chime
Blister

Plug Through Wireless Door Chime

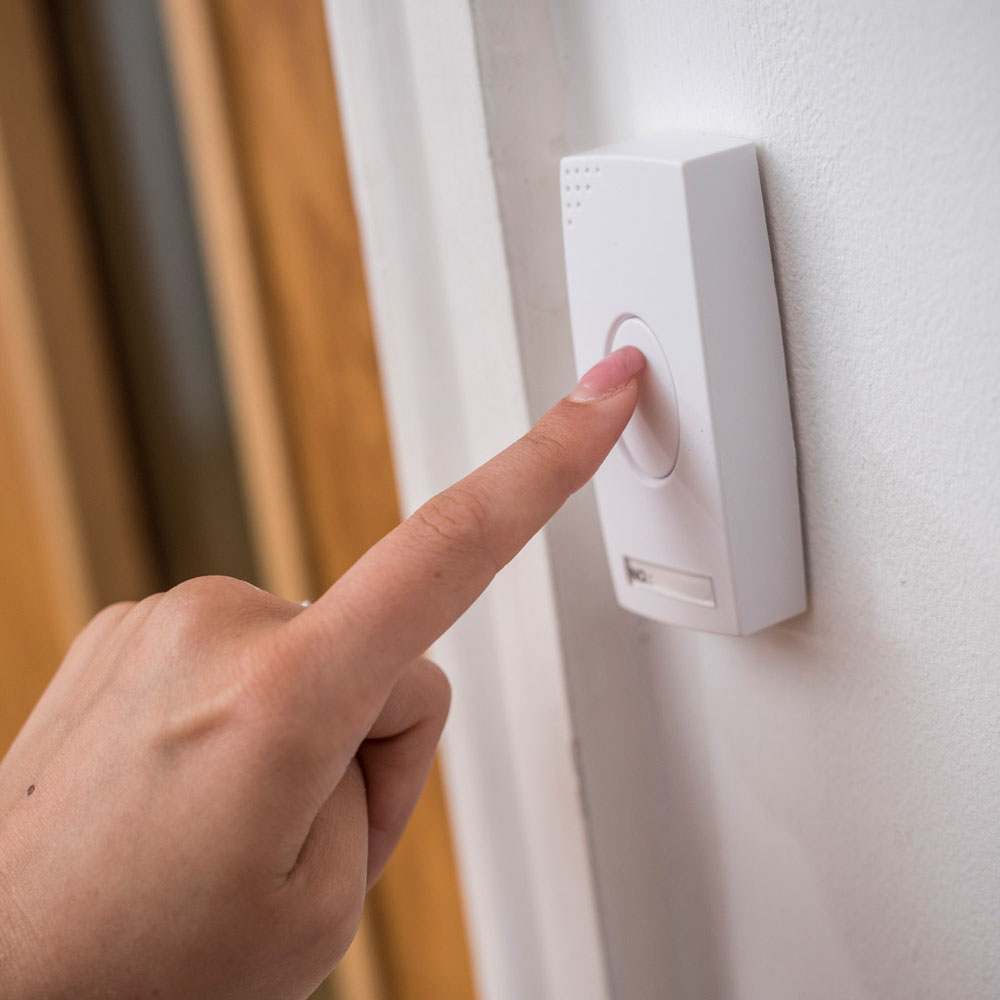

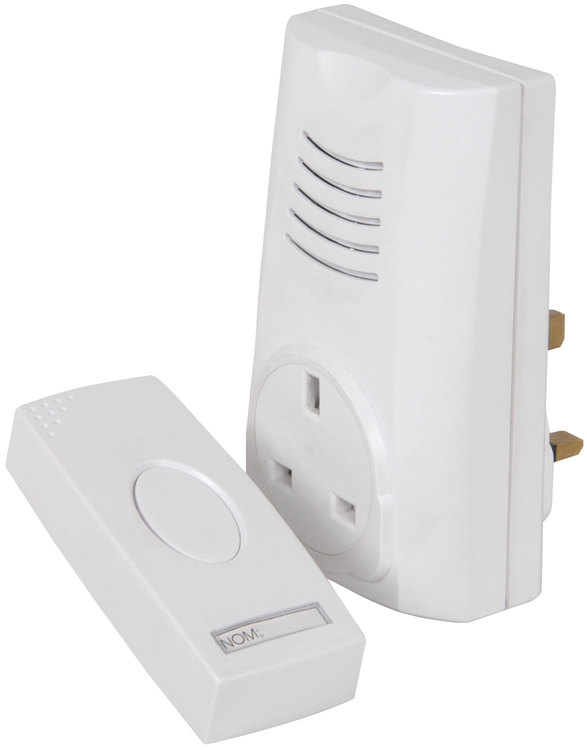

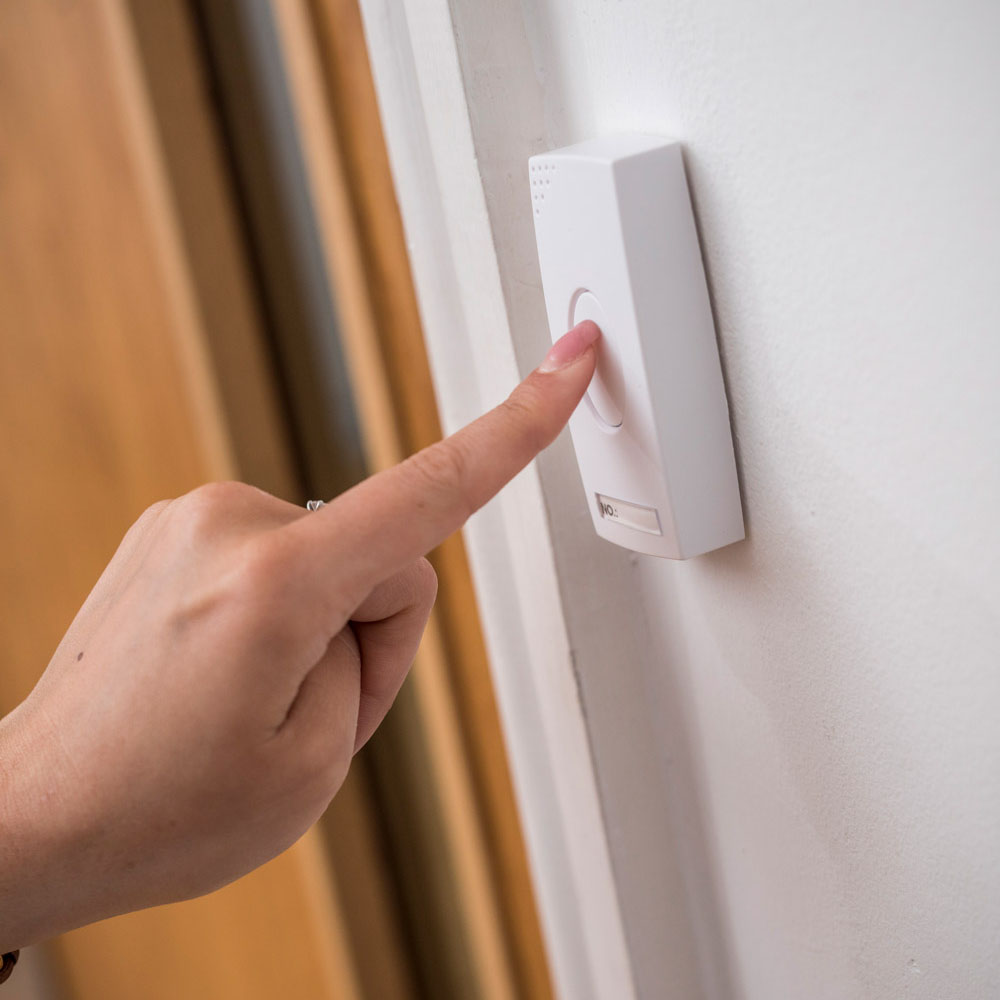

An easy to install, mains powered doorbell with integral 13A socket and remote push button, providing up to 80m wireless range. The waterproof push button simply installs against a door frame using the self-adhesive pad provided. House numbers and names can be displayed on the removable name card, protected beneath a clear plastic cover. A choice of 16 melodies, alerts users to visitors via a simple, plug through chime that can be moved as required within a 80m operating range of the push button. 16 unique digital coded signals help to prevent outside interference from other wireless devices in the immediate area of the mains unit. Ideal for use in larger homes and business premises or as an assistance button for the elderly.

  • Simple wire-free installation
  • Choice of 16 ring tones and melodies
  • Digital coded signal to prevent outside interference
  • Wireless range of up to 80m
  • Waterproof remote push button with name card
  • Mains plug through unit is for indoor use only
  • Can also be used as an assistance button for the elderly
  • Battery for door press supplied (12V 23A)

Specification

  • Power supply : receiver 230Vac, 50Hz
  • Battery : transmitter 12V (23A)
  • Frequency 433.92 MHz (±150kHz)
  • Range 80m (Open air)
  • Dimensions : receiver 116 x 47 x 68mm
  • Dimensions : transmitter 88 x 20 x 36.5mm
  • Weight : receiver 129g
  • Weight : transmitter 25g

Trade information

  350.300UK
Barcode / EAN 5015972036907
Package type Blister
Package dimensions 150 x 205 x 50mm
Package weight 0.15kg
Package quantity 1 unit
Carton dimensions 390 x 590 x 320mm
Carton weight 6.16kg
Carton quantity 40 packages
Pack paper weight 0.00kg

In the box

The box for this item contains :

  • Mains plug through unit
  • Remote push button
  • 12V 23A battery
  • Self-adhesive pad (for push button)

Support

Instruction manual
For 350.300UK (125KB)
