2-Way Intercom
952.065UK
A two station, energy saving, telephone style intercom with a simple two wire connection, allowing 2-way conversation. It features a call button with adjustable call tone level. Both units are powe...

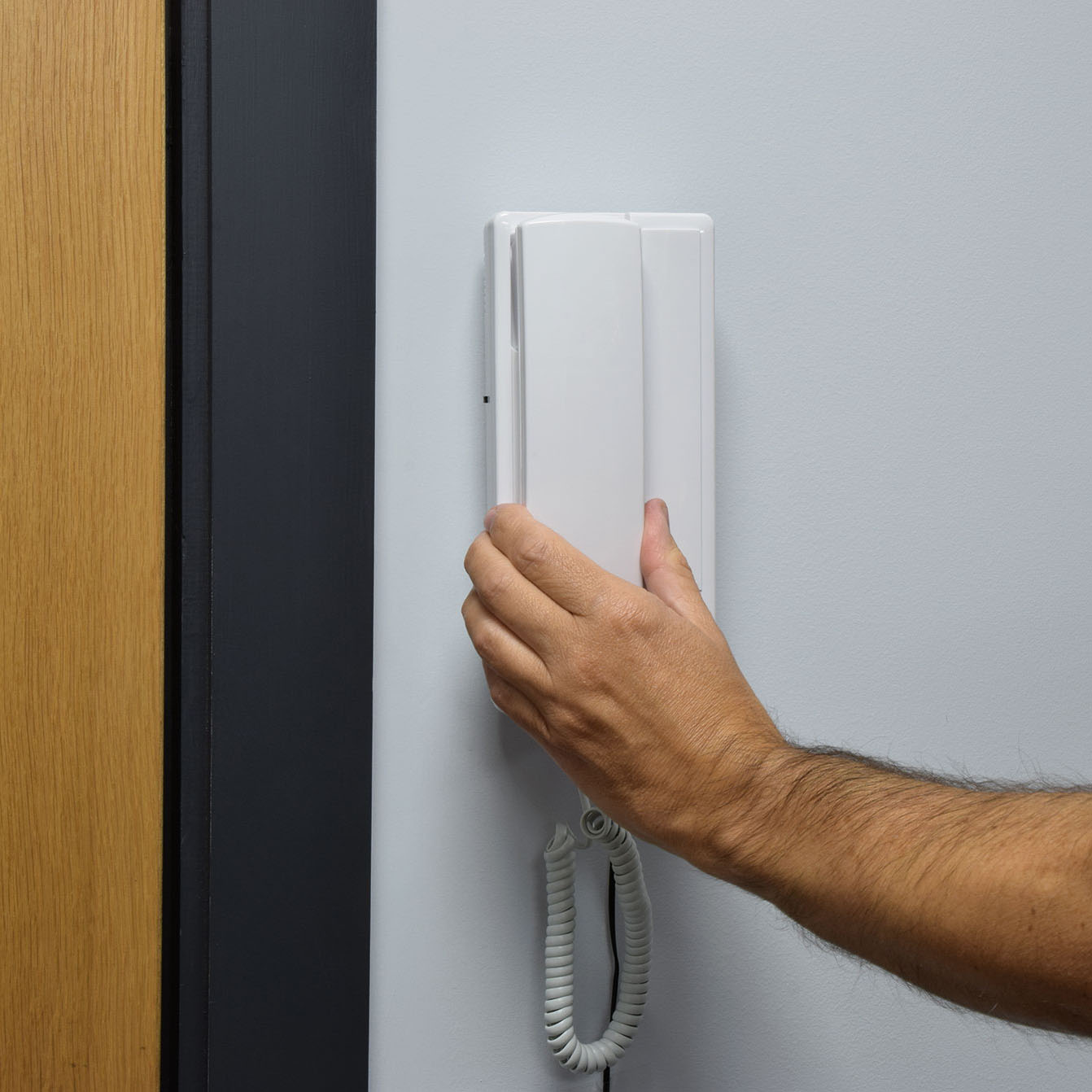

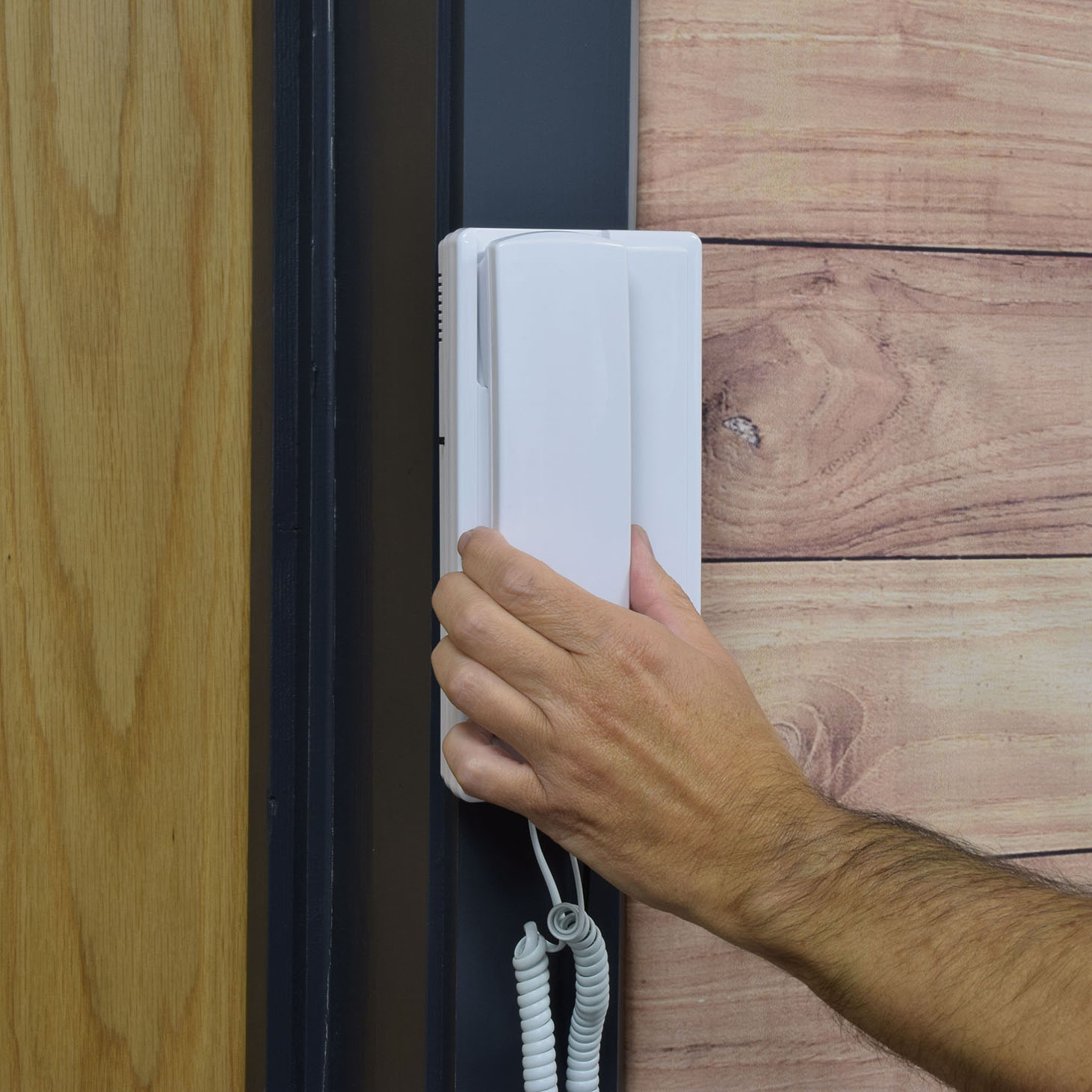

- Can be free standing or wall mounted (brackets supplied)
- Maximum transmission range 200m
- Easy to set up and operate
| Description | |
|---|---|
|
952.065UK
2-Way Intercom |
2-Way Intercom
A two station, energy saving, telephone style intercom with a simple two wire connection, allowing 2-way conversation. It features a call button with adjustable call tone level. Both units are powered by 4x AA batteries (not supplied).
- Can be free standing or wall mounted (brackets supplied)
- Maximum transmission range 200m
- Easy to set up and operate
- 8m of 2 wire connecting cable supplied (use 808.207UK for up to 100m distance)
- Both units require 4 x AA batteries (not supplied)
- Power supply 6Vdc (4 x AA per unit)
- Sensitivity <60mV?Frequency 1000 Hz)
- Frequency response +3dB (300 Hz-3400 Hz)
- Current consumption : standby <5uA
- Current consumption : in use <100mA
- Range 200m
- Dimensions 210 x 92 x 68mm (each unit)
- Weight 360g (per unit)

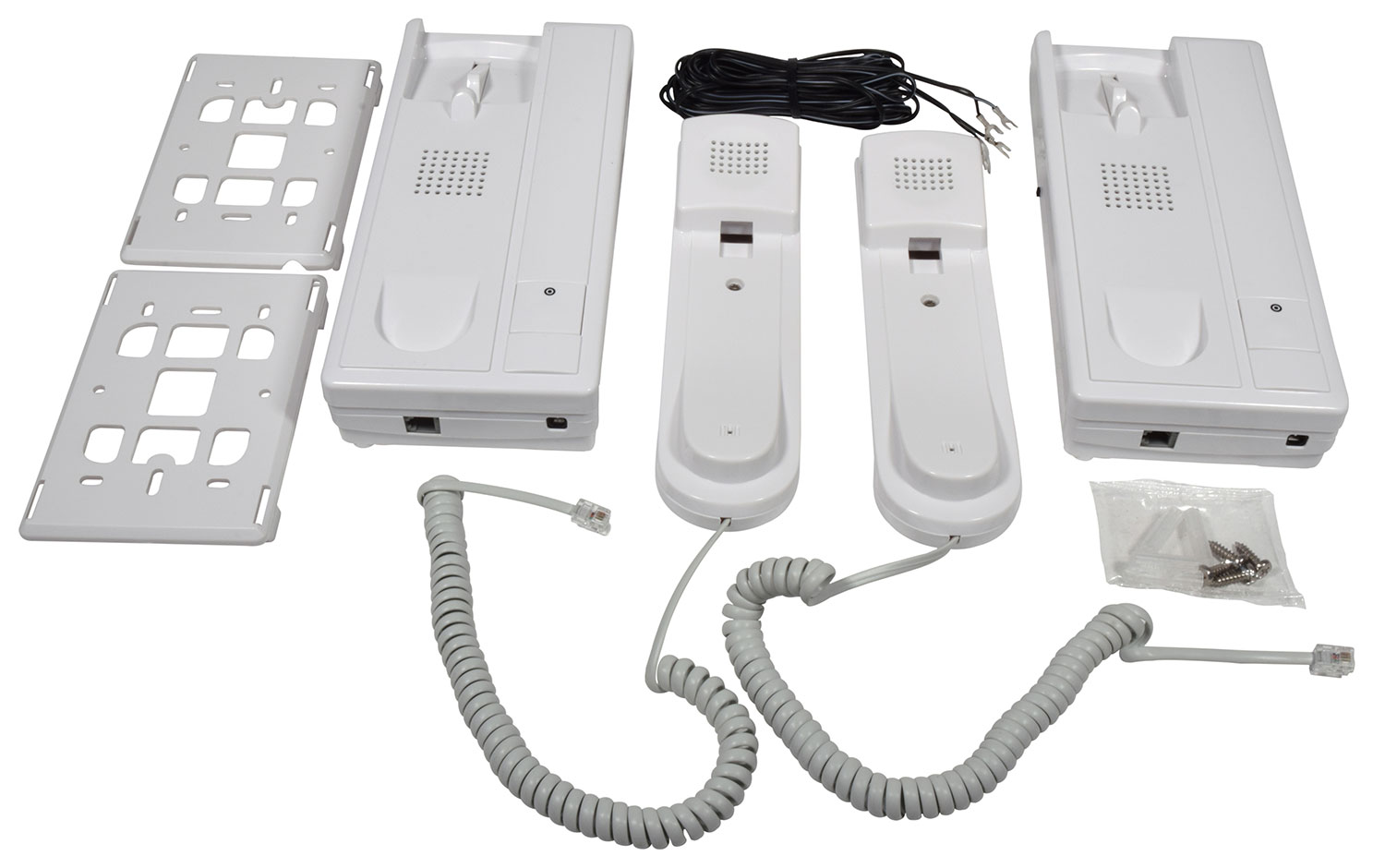

In the box
The box for this item contains :
- 2pcs indoor call unit
- 2pcs wall bracket
- 8m 2 wire connection cable
- Pack mounting screws
Downloads
Instruction manual
For 952.065UK (110KB)
For 952.065UK (110KB)
UK Declaration of conformity
For 952.065UK (245KB)
For 952.065UK (245KB)
EU Declaration of conformity
For 952.065UK (234KB)
For 952.065UK (234KB)
