Energy Efficient UK Switch-mode Variable Voltage Universal Power Supply 1500mA

661.403UK SMDC403UK

This compact, energy efficient switch-mode power supply gives up to 1500mA with a variable output from 3V to 12V. Suitable for most low power electronic products such as CD Players, Walkmans, Radio...

  • Up to 1500mA at all output voltages
  • Supplied with 8 DC adaptors and USB socket adaptor
  • Uses 25% less power making it more energy efficient
Full description Find retailer
Description Version Packed
661.403UK
Energy efficient switch-mode power supply 1500mA 		Box Label

Energy Efficient UK Switch-mode Variable Voltage Universal Power Supply 1500mA

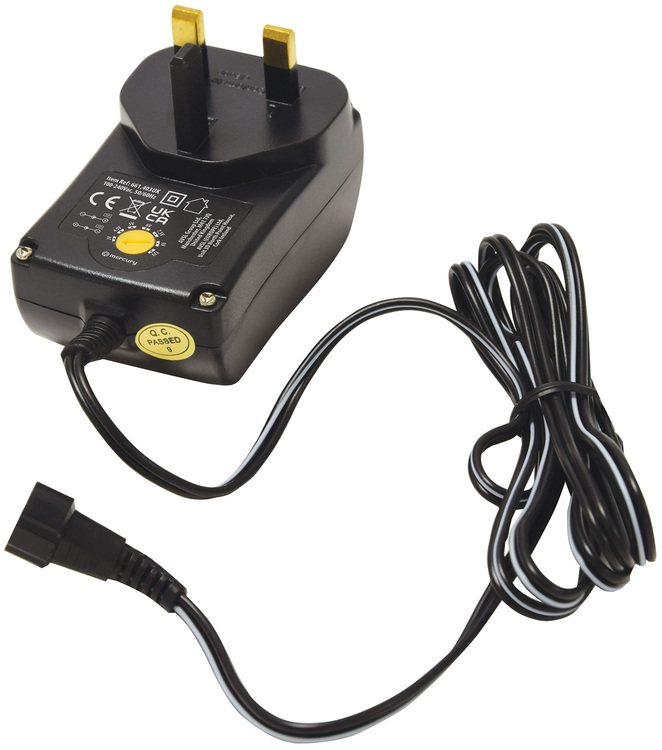

This compact, energy efficient switch-mode power supply gives up to 1500mA with a variable output from 3V to 12V. Suitable for most low power electronic products such as CD Players, Walkmans, Radios, Portable Games Consoles, MP3 players etc.

  • Up to 1500mA at all output voltages
  • Supplied with 8 DC adaptors and USB socket adaptor
  • Uses 25% less power making it more energy efficient
  • Materials used and manufacturing process are more environmentally friendly
  • Power max. 18W
  • Adaptor plugs 3.5mm jack, 2.35 x 0.75mm, 3.5 x 1.35mm, 4 x 1.7mm, 5 x 2.1mm, 5.5 x 2.1mm, 5.5 x 2.5mm, 6.3 x 3mm
  • Input voltage 100-240Vac, 50/60Hz
  • Output current max. 1500mA (all output voltages)
  • Output voltage 3/4.5/5/6/7.5/9/12Vdc
  • Dimensions 82 x 52 x 46mm
  • Weight 144g

Downloads

Instruction manual
For 661.403UK (60KB)
UK Declaration of conformity
For 661.403UK (248KB)
EU Declaration of conformity
For 661.403UK (236KB)
